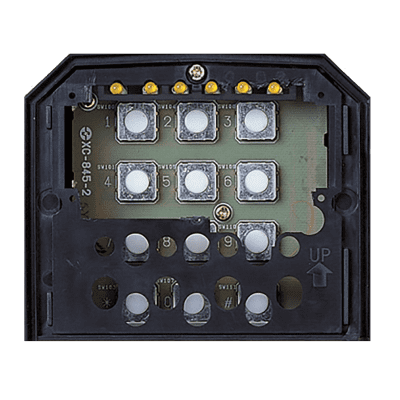

Add direct tenant dialing and coded door-entry capability to an Aiphone GT Series modular entrance station with the Aiphone GT-10K 10-Key Keypad Module.

Designed for use with the GT-NSB digital display/directory module, the GT-10K provides a numeric keypad for entering tenant numbers and authorized access codes at a multi-tenant entrance.

The module installs behind the separately sold GF-10KP vandal-resistant keypad panel and integrates with the GT-DB or GT-DB-VN audio module as part of a custom GT Series entrance station.

Key Features

• Genuine Aiphone GT-10K

• 10-key numeric keypad module

• Designed for Aiphone GT Series

• Used with GT-NSB digital display/directory module

• Supports direct tenant dialing

• Supports authorized access-control code entry

• Up to 500 access codes in compatible digital-directory configurations

• Access codes programmable from 4 to 6 digits

• Supports digital tenant-directory entrance stations

• System-powered operation

• Power supplied through compatible GT-DB / GT-DB-VN audio module

• Supplied ribbon-cable connection

• IP43 protection rating

• Installs behind GF-10KP keypad panel

• Fits GF-2F, GF-3F, and GT-4F modular frame systems

• Ideal for apartments, condominiums, commercial offices, and mixed-use buildings

Product Specifications

Manufacturer: Aiphone
Model: GT-10K
Series: GT Series
Product Type: 10-Key Keypad Module
Keypad Layout: 0–9, * and #
Primary Functions: Direct Tenant Dialing / Access-Code Entry
Required Digital Display Module: GT-NSB
Required Exterior Panel: GF-10KP
Power Source: Supplied from GT-DB, GT-DB-V, or GT-DB-VN
Connection: Supplied Ribbon Cable
Protection Rating: IP43
Module Material: Fire-Resistant ABS Plastic
Operating Temperature: 14°F to 140°F (-10°C to 60°C)
Mounting: GT Series Modular Entrance Frame
Height: 3-9/16"
Width: 4-3/16"
Depth: 1-1/2"

Direct Tenant Dialing

When the GT-10K is paired with the GT-NSB digital display module, visitors can enter the assigned tenant number directly instead of scrolling through the building directory.

A typical visitor sequence is:

1. Locate the tenant's number on the digital directory

2. Enter the number using the GT-10K

3. Initiate the tenant call

4. Communicate through the GT Series audio module

5. Wait for the tenant to grant access

Direct dialing is especially useful for larger properties where scrolling through hundreds of tenant names would be inconvenient.

Access-Control Code Entry

The GT-10K can also function as an entrance access-code keypad when used as part of the compatible GT digital-directory system.

Authorized residents or staff can enter a programmed code to activate the entrance door-release function without placing a tenant call.

Compatible configurations support up to:

500 Unique Access Codes

Access-code length can be programmed from:

4 to 6 Digits

This makes the GT-10K useful for providing authorized keyless entry to residents, staff, maintenance personnel, or other approved users.

Important Access-Control Function

The GT-10K itself does not contain a standalone lock relay or independent keypad controller.

Access-code programming and door-release operation are handled through the compatible GT Series entrance electronics.

A typical system uses:

• GT-10K – Keypad Module

• GT-NSB – Digital Display / Directory Module

• GT-DB or GT-DB-VN – Audio & Door Release Module

• GF-10KP – Exterior Keypad Panel

The GT-DB / GT-DB-VN provides the actual door-release relay.

GT-DB Door Release

The compatible GT-DB audio module provides a:

Form C Dry Contact

rated:

24V AC/DC, 4A

This relay can be used to control compatible:

• Electric strikes

• Magnetic locks

• Auxiliary relays

• Gate-control interfaces

• Other access-control equipment

Always verify the electrical requirements of the locking hardware before connection.

GT-NSB Digital Directory

The GT-10K is intended for use with the:

GT-NSB – Digital Display / Directory Module

The GT-NSB provides the tenant database and visual user interface.

Compatible digital-directory entrance configurations can support:

• Up to 500 tenant names / numbers

• Direct tenant dialing

• Alphabetical tenant searching

• Jump searching by letter

• Programmable access codes

• Building greeting message

• System-status messages

The GT-10K provides the numeric input for these functions.

GF-10KP Exterior Panel

The GT-10K installs behind the:

GF-10KP – Keypad Cover Panel

The GF-10KP provides the vandal-resistant exterior face of the keypad assembly.

Component Relationship

GT-10K = Internal electronic keypad module

GF-10KP = Exterior zinc die-cast keypad panel

Both parts are required for a typical modular entrance installation.

GF-10KP Specifications

The compatible GF-10KP panel features:

• Vandal-resistant construction

• Zinc die-cast material

• IP43 protection

• 3-3/4" height

• 4-5/16" width

• 5/16" depth

The GF-10KP is sold separately.

Keypad Layout

The GT-10K provides standard numeric and function keys:

• 0

• 1

• 2

• 3

• 4

• 5

• 6

• 7

• 8

• 9

• *

• #

The exact function of the * and # keys depends on system operation and programming.

System-Powered Operation

The GT-10K does not require a dedicated local power supply.

Power is supplied from the compatible:

• GT-DB – Audio Module

• GT-DB-V – Legacy Audio Module

• GT-DB-VN – Audio Module with NFC Reader

The module connects using the supplied ribbon cable.

Modular GT Series Entrance Design

The GT-10K is one component in Aiphone's customizable modular entrance architecture.

A digital-directory entrance may combine:

• GT-DB or GT-DB-VN – Audio Module

• GT-DBP – Audio Module Panel

• GT-NSB – Digital Display Module

• GT-NSP-L – Digital Display Panel

• GT-10K – Keypad Module

• GF-10KP – Keypad Panel

• Compatible frame

• Compatible back box or surface enclosure

Video systems can additionally include:

• GT-VB – Camera Module

• GT-VP – Camera Module Panel

Audio Digital-Directory Entrance

A typical audio-only digital-directory entrance can be built with:

• GT-DB or GT-DB-VN

• GT-DBP

• GT-NSB

• GT-NSP-L

• GT-10K

• GF-10KP

• GF-3F

• GF-3B

Aiphone also offers this general configuration as a preselected entrance kit.

GTA-DESB Entrance Kit

The:

GTA-DESB – 10-Key Audio Entrance Panel Kit

includes components for a modular digital-directory audio entrance.

Its keypad provides:

• Direct dialing

• Access-code entry

while the digital display provides:

• Tenant directory

• Tenant dialing numbers

• Greeting message

• System status

Video Digital-Directory Entrance

For a video installation, the GT-10K can be incorporated into entrance configurations using:

• GT-VB camera module

• GT-VP camera panel

• GT-DB / GT-DB-VN audio module

• GT-DBP audio panel

• GT-NSB digital display

• GT-NSP-L display panel

• GT-10K keypad

• GF-10KP keypad panel

Examples of Aiphone modular video kits using the GT-10K include:

• GTV-DES104B

• GTV-DES202B

Compatible Front Frames

The GT-10K can be installed using the mounting bracket supplied with compatible modular frames including:

GF-2F

2-Module Front Frame

GF-3F

3-Module Front Frame

GT-4F

4-Module Front Frame

The correct frame depends on the complete entrance-station layout.

Compatible Back Boxes

Flush-mount modular installations may use:

• GF-2B – 2-Module Back Box

• GF-3B – 3-Module Back Box

• GT-4B – 4-Module Back Box

Select the back box according to the entire frame configuration.

Surface-Mount Options

Compatible hooded surface-mount boxes are also available for GT Series entrance assemblies.

Examples include:

• GT-102HB – 2-Module Surface Mount Box

• GT-103HB – 3-Module Surface Mount Box

• GT-104HB – 4-Module Surface Mount Box

The enclosure is selected based on the complete entrance configuration.

GT-10K vs. GT-AC

The GT-10K should not be confused with the:

GT-AC – Standalone Access Control Keypad Module

GT-10K

Designed primarily for use with the GT-NSB digital directory and provides:

• Tenant dialing

• Access-code input

• Digital-directory operation

GT-AC

Dedicated access-control keypad used where a separate access-control keypad function is required.

Choose the keypad based on the intended GT Series system design.

Ideal Applications

• Apartment buildings

• Condominium complexes

• Commercial office buildings

• Mixed-use developments

• Student housing

• Senior-living properties

• Large multi-tenant entrances

• Digital tenant directories

• Controlled-access entrances

• GT Series audio entrances

• GT Series video entrances

• Existing GT Series repairs and expansions

Important Ordering Information

This listing is for the GT-10K electronic keypad module only.

The GF-10KP exterior keypad panel is sold separately.

The GT-10K is intended to operate with the GT-NSB digital display/directory module and compatible GT Series entrance electronics.

The following are sold separately unless specifically stated:

• GF-10KP keypad panel

• GT-NSB display module

• GT-NSP-L display panel

• GT-DB audio module

• GT-DB-VN audio module

• GT-DBP audio panel

• GT-VB camera module

• GT-VP camera panel

• Front frame

• Back box or surface enclosure

• System power supply

• Bus-control equipment

• Electric locking hardware

Verify the complete entrance-station design before ordering.
