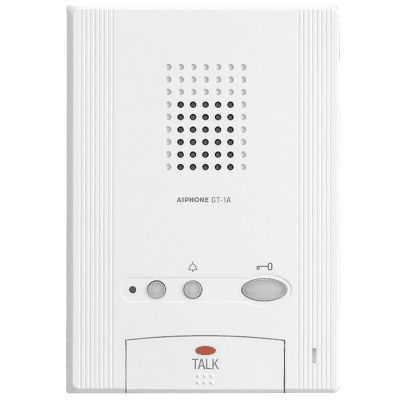

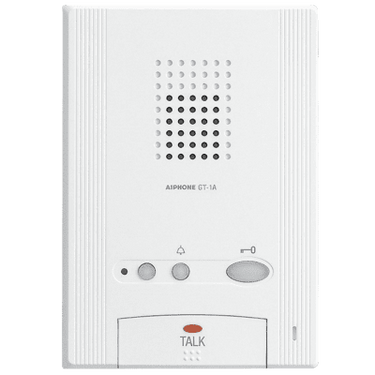

Provide hands-free visitor communication and entrance control in an Aiphone multi-tenant intercom system with the Aiphone GT-1A Audio Open-Voice Tenant Station.

Designed for the Aiphone GT Series, the GT-1A provides convenient hands-free VOX or push-to-talk audio communication, remote door release, security guard or concierge calling, adjustable communication volume, and adjustable call-tone volume.

Its slim wall-mount design and simple 2-conductor common-bus wiring make the GT-1A an excellent choice for apartments, condominiums, commercial buildings, and other multi-tenant properties requiring reliable audio-only tenant communication.

Key Features

• Genuine Aiphone GT-1A

• Audio-only tenant station

• Designed for Aiphone GT Series

• Compatible with supported GT and GH Series systems

• Hands-free VOX communication

• Push-to-talk operation

• Dedicated door-release button

• Call to security guard / concierge station

• Optional service button

• Optional individual tenant doorbell input

• Optional external light activation

• Compatible with GFK-PS panic switch

• Separate communication-volume control

• Separate call-tone volume control

• Call-tone off / mute indicator

• Simple 2-conductor common-bus wiring

• Surface wall mount

• Optional desk mounting with MCW-S/B

• Slim ABS plastic housing

• Up to four compatible audio tenant stations at one tenant location

Product Specifications

Manufacturer: Aiphone
Model: GT-1A
Series: GT Series
Product Type: Audio Open-Voice Tenant Station
Communication: Hands-Free VOX or Push-to-Talk
Video Display: None
Power Source: 24VDC Supplied by GT System Bus
Bus Control: GT-BC / Compatible GT Bus Equipment
Wiring: 2-Conductor, Solid, Non-Shielded, PE Insulated
Recommended Wire: Aiphone #872002 Series
Door Release: Yes
Guard / Concierge Call: Yes
Service Button: Optional
Call-Tone Volume: Adjustable
Communication Volume: Adjustable
Mounting: Wall Mount or Optional Desk Stand
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Height: 6-7/8"
Width: 4-15/16"
Depth: 1-1/4"
Approximate Weight: 0.70 lb / 330g
Housing: ABS Plastic

Hands-Free Communication

When a visitor calls from a compatible GT Series entrance station, the GT-1A sounds its call tone.

Press the TALK button once to establish communication.

The station can operate using:

Hands-Free VOX

Voice-activated communication allows natural conversation without continuously holding a button.

Push-to-Talk

In noisy environments, the GT-1A can be operated in push-to-talk mode for greater control over audio transmission.

Door Release

The GT-1A includes a dedicated door-release button.

While communicating with a visitor, press the door-release button to unlock the entrance associated with the active call.

The actual electric locking hardware and control equipment are part of the GT Series entrance system and are sold separately.

Security Guard / Concierge Call

The GT-1A can call a compatible GT Series security guard or concierge station.

This allows residents to contact building personnel directly from the tenant station.

Compatible equipment includes:

GT-MKB-N – Video Security Guard Station with NFC Reader

System programming and configuration determine the available guard-station functions.

Optional Service Button

The GT-1A supports an optional SERVICE button function.

Depending on system configuration, this can be used for compatible auxiliary functions such as:

• Gate control

• Building equipment

• Auxiliary relay activation

• Other programmed services

Additional GT Series relay or control equipment may be required.

Optional Exterior Light Control

The GT-1A can be configured to activate an outside light while communicating with a visitor at the entrance.

This feature requires compatible system equipment and wiring.

Individual Tenant Doorbell

A separate tenant doorbell can be connected to provide a distinctive call tone at the GT-1A.

This allows the resident to distinguish between:

• A call from the main building entrance

• A call from the security guard / concierge

• Someone pressing the individual apartment or tenant doorbell

Panic Call Capability

The GT-1A supports connection to the:

GFK-PS – Normally Closed Panic Switch

When properly configured, activation of the panic switch can:

• Sound an emergency tone

• Generate a call to the compatible concierge / guard station

This provides an additional emergency notification option for multi-tenant installations.

Adjustable Communication Volume

The GT-1A includes a dedicated receive-volume control so residents can adjust the communication level to suit the room environment.

Adjustable Call-Tone Volume

A separate call-tone volume control allows the entrance-call level to be adjusted independently from communication volume.

The call tone can also be turned off.

A dedicated indicator shows when call-tone mute is active.

GT Series System

The GT Series is Aiphone's modular multi-tenant intercom platform for apartment, condominium, and commercial applications.

A complete GT system can include:

• Modular entrance stations

• Digital directory entrance stations

• Video entrance stations

• Audio tenant stations

• Video tenant stations

• Security guard stations

• Bus control units

• Door-release equipment

• Access-control components

The GT-1A is the audio-only open-voice tenant option within this system.

Compatible GT Tenant Stations

Other current tenant-station options include:

GT-1D

Audio tenant station with privacy handset.

GT-1M3

Video tenant station with 3.5" display.

GT-1C7

Video tenant station with 7" display.

GT-1C7W

App-compatible video tenant station with 7" touchscreen and mobile-app support.

The GT-1A is ideal when video identification is not required.

Multiple Stations Per Tenant

Aiphone supports up to four compatible audio tenant stations at one resident location using the applicable GT Series system configuration.

This allows entrance calls to be answered from multiple areas within a residence or tenant space.

Always verify the complete system layout before adding stations to an existing installation.

Recommended Wiring

The GT-1A uses:

2-Conductor, Solid, Non-Shielded, PE-Insulated Cable

Recommended Aiphone wire:

• 87200250C – 20 AWG | 2-Conductor | 500'

• 87200210C – 20 AWG | 2-Conductor | 1,000'

• 872002P10C – 20 AWG | 2-Conductor | Plenum | 1,000'

Because the GT-1A is an audio-only tenant station, separate video wiring is not required.

Power

The GT-1A receives:

24VDC

through compatible GT Series bus equipment.

Current Aiphone GT documentation lists compatible power distribution through equipment such as:

• GT-BC – Audio Bus Control Unit

• GT-VBC – Video Bus Control Unit

No dedicated local power supply is normally required at the GT-1A.

Mounting

The GT-1A is designed for surface wall mounting.

It can mount over a compatible:

• 1-gang electrical box

• 1-gang mounting ring

• Suitable flat wall surface

For desktop installations, use the optional:

MCW-S/B – Adjustable Desk Stand

The MCW-S/B provides approximately 45° or 60° positioning.

Current GT & GH Compatibility

Aiphone currently identifies the GT-1A as a supported current tenant station for:

• GT Series

• GH Series

It is not compatible with legacy GF Series tenant-station architecture.

Always verify the existing system before ordering replacement tenant equipment.

Ideal Applications

• Apartment buildings

• Condominium complexes

• Multi-tenant residential properties

• Commercial office buildings

• Mixed-use developments

• Student housing

• Senior-living properties

• Security-controlled buildings

• Existing GT Series expansions

• Audio-only tenant communication

Important Ordering Information

This listing is for the GT-1A audio tenant station only.

The following are sold separately unless specifically stated:

• GT Series entrance station

• Bus control unit

• Security guard station

• Electric locking hardware

• GFK-PS panic switch

• MCW-S/B desk stand

• Intercom wiring

• Access-control equipment

• Other GT Series components

Verify system compatibility and programming requirements before ordering.
