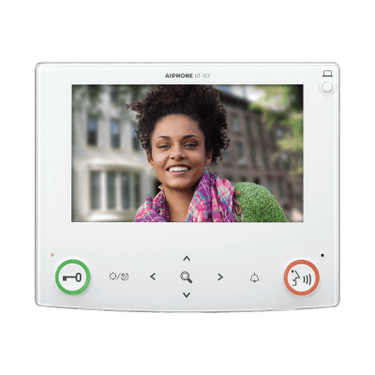

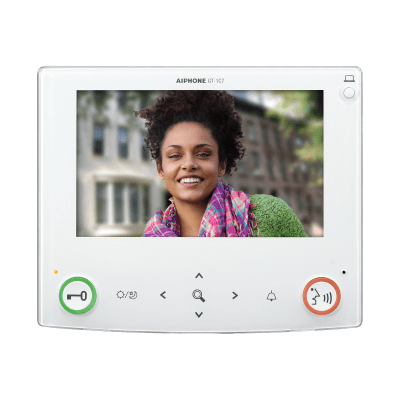

Provide video visitor identification, hands-free communication, and remote entrance control with the Aiphone GT-1C7 7-Inch Video Tenant Station.

Designed for the Aiphone GT Series multi-tenant video intercom system, the GT-1C7 features a large 7" color LCD display, hands-free VOX or push-to-talk communication, digital pan/tilt/zoom controls, door release, concierge/security guard calling, and an auxiliary option button for compatible external devices.

Its slim surface-mount design makes it ideal for apartments, condominiums, mixed-use developments, and commercial multi-tenant properties.

Key Features

• Genuine Aiphone GT-1C7

• 7" color TFT LCD display

• Designed for Aiphone GT Series

• Supported on compatible GT and GH Series systems

• Hands-free VOX communication

• Push-to-talk operation

• Digital Pan / Tilt / Zoom

• Wide / zoom image selection

• Adjustable screen brightness

• Adjustable receive volume

• Adjustable call-tone volume

• Dedicated door-release button

• Concierge / security guard call button

• Option button for compatible external devices

• External light-control capability with compatible system equipment

• Emergency / panic-call tone capability

• Surface wall mount

• Optional desk mounting with MCW-S/B

• 24VDC system power

Product Specifications

Manufacturer: Aiphone
Model: GT-1C7
Series: GT Series
Product Type: Video Tenant Station
Display: 7" TFT Color LCD
Communication: Hands-Free VOX or Push-to-Talk
Power Source: 24VDC
Power Supply: Supplied Through GT-BC / GT-VBC System
Door Release: Yes
Concierge / Guard Call: Yes
Digital PTZ: Yes
Brightness Adjustment: Yes
Option Button: Yes
Mounting: Surface Wall Mount / Optional Desk Mount
Housing: Plastic
Color: White
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Height: 6-1/2"
Width: 7-7/8"
Depth: 1"

7-Inch Color Video Display

The GT-1C7 features a large 7" TFT color LCD screen for clear visitor identification.

When a visitor calls from a compatible video entrance station:

• The tenant station rings

• Visitor video appears on screen

• The resident can view the entrance

• Communication begins by pressing TALK

• Door release can be activated after visitor identification

Digital Pan / Tilt / Zoom

The GT-1C7 provides digital camera-view controls for compatible GT Series entrance cameras.

Available controls include:

• Wide View

• Zoom

• Pan

• Tilt

• Brightness Adjustment

These controls allow the resident to reposition the displayed image and obtain a better view of the visitor or entrance area.

Hands-Free VOX Communication

Press the TALK button to communicate using hands-free voice-activated operation.

The station automatically switches between transmit and receive based on voice activity.

Push-to-Talk Operation

In noisy environments, the GT-1C7 can also operate using push-to-talk.

This provides greater control over audio transmission where background noise could interfere with automatic VOX operation.

Door Release

The GT-1C7 includes a dedicated illuminated door-release button.

While communicating with a visitor, the resident can activate compatible GT Series door-release equipment to unlock the entrance.

Electric locking hardware and required interface equipment are sold separately.

Concierge / Security Guard Call

The GT-1C7 can call compatible building security or concierge equipment.

Compatible current equipment includes:

GT-MKB-N – Video Security Guard Station

This allows tenants to communicate directly with building personnel when configured within the GT system.

Auxiliary Option Button

The GT-1C7 includes an OPTION button that can activate a Normally Open contact at the back of the station.

Depending on system design, this can be used to control compatible external devices such as:

• Exterior lighting

• Auxiliary relay

• Gate equipment

• Other low-voltage control functions

Always verify the electrical requirements of the connected device.

External Light Control

The concierge/security button can also be configured to activate a compatible external light while communicating with the entrance.

This can improve visibility around exterior entrances during nighttime operation.

Emergency / Panic Call

The GT-1C7 can receive an emergency tone from compatible emergency-call equipment such as:

GFK-PS – Normally Closed Panic Switch

When properly configured, a panic signal can also be sent to a compatible security guard station.

Volume Controls

The GT-1C7 includes separate controls for:

Communication Volume

Adjustable from approximately:

0–10

Call-Tone Volume

Adjustable from approximately:

0–10

This allows the resident to independently adjust conversation and incoming-call levels.

Brightness Control

The screen brightness can also be adjusted from approximately:

0–10

This helps optimize the display for different indoor lighting conditions.

GT Series System

The GT-1C7 is part of Aiphone's scalable GT Series multi-tenant video intercom platform.

A standard GT system can support:

• Multiple entrance stations

• Video and audio tenant stations

• Security guard stations

• Door-release equipment

• Access-control equipment

• Modular entrance stations

• Digital directory systems

Aiphone's current standard-system architecture supports up to 48 tenant stations, depending on system configuration.

Tenant Station Configuration

Aiphone allows up to four compatible interior stations per tenant under supported configurations.

For GT-1C7 applications, a typical maximum tenant configuration is:

• 1 GT-1C7 Video Tenant Station

• Up to 3 Compatible Audio Tenant Stations

Compatible audio stations include:

• GT-1A

• GT-1D

Only one GT-1C7 video station is used per tenant in this configuration.

Current GT & GH Compatibility

Aiphone's current compatibility guidance identifies the GT-1C7 as supported on:

• GT Series

• GH Series

It is not compatible with legacy GF Series tenant-station architecture.

Recommended Wiring

The GT-1C7 uses separate audio and video wiring.

Audio Wiring

Use:

2-Conductor, Solid, Non-Shielded, PE-Insulated Cable

Recommended Aiphone wire:

• 87200250C – 20 AWG | 500'

• 87200210C – 20 AWG | 1,000'

• 872002P10C – 20 AWG | Plenum | 1,000'

Video Wiring

Use:

2-Conductor, Solid, Non-Shielded, PE-Insulated Cable

Recommended Aiphone wire:

• 87180250C – 18 AWG | 500'

• 87180210C – 18 AWG | 1,000'

• 871802P10C – 18 AWG | Plenum | 1,000'

Power

The GT-1C7 operates from:

24VDC

Power is supplied through compatible GT Series equipment including:

• GT-BC – Audio Bus Control Unit

• GT-VBC – Video Bus Control Unit

A separate local power supply is not normally required at the GT-1C7.

Mounting

The GT-1C7 can be installed as a:

Surface Wall Mount

Compatible with a 3-gang electrical box or suitable wall surface.

Desk Mount

Use:

MCW-S/B – Adjustable Desk Stand

The MCW-S/B allows convenient tabletop positioning.

Ideal Applications

• Apartment buildings

• Condominium complexes

• Multi-tenant residential properties

• Commercial office buildings

• Mixed-use developments

• Student housing

• Senior-living properties

• Controlled-access buildings

• Video intercom systems

• Existing GT Series installations

• GH Series tenant-station upgrades

Important Ordering Information

This listing is for the GT-1C7 video tenant station only.

The following are sold separately unless specifically stated:

• GT Series entrance station

• GT-BC bus control unit

• GT-VBC video bus control unit

• Power supplies

• GT-MKB-N guard station

• Electric locking hardware

• GFK-PS panic switch

• MCW-S/B desk stand

• Audio wiring

• Video wiring

• Other system accessories

Verify system compatibility, station addressing, and wiring requirements before ordering.
