Create organized home-run video connections for Aiphone GT Series tenant stations with the Aiphone GT-4Z 4-Way Video Distribution Adaptor.

The GT-4Z provides four tenant-station distribution outputs for the GT Series audio, video, and data bus. It receives the common bus from the GT-BC Audio Bus Control Unit and GT-VBC Video Bus Control Unit, then distributes those signals to individual tenant-station branches.

Designed for equipment-room or low-voltage cabinet installations, the GT-4Z can be surface mounted or installed on an optional W-DIN11 DIN rail.

Key Features

• Genuine Aiphone GT-4Z

• 4-way video distribution adaptor

• Designed for Aiphone GT Series

• Provides four tenant-station branch outputs

• Distributes audio, video, and data signals

• Used with GT-BC and GT-VBC

• Supports home-run tenant-station wiring

• Up to 6 GT-4Z units per tenant trunk

• Built-in SW1 termination switch

• LINE IN and LINE OUT connections

• No separate local power supply required

• Uses Aiphone-approved 2-conductor bus wiring

• Surface wall mounting

• Optional DIN rail mounting with W-DIN11

• Self-extinguishing ABS construction

• Compact equipment-cabinet design

Product Specifications

Manufacturer: Aiphone
Model: GT-4Z
Series: GT Series
Product Type: 4-Way Video Distribution Adaptor
Function: Audio / Video / Data Bus Distribution
Tenant Outputs: 4
Input: B1 / B2 Video, R1 / R2 Audio/Data
Line Output: B1 / B2, R1 / R2
Termination: SW1 A/B Selector
Dedicated Power Supply: Not Required
Video Bus Source: GT-VBC
Audio / Data Bus Source: GT-BC
Mounting: Surface Wall Mount or DIN Rail
DIN Rail: W-DIN11, Sold Separately
Material: Self-Extinguishing ABS Plastic
Color: Middle Gray
Height: 4-1/4"
Width: 4-13/16"
Depth: 2-3/8"
Approximate Weight: 0.42 lb / 190g

Four-Way Tenant Station Distribution

The GT-4Z converts the main GT Series tenant trunk into four individual branch connections.

Each output contains connections for:

• B1 / B2 – Video

• R1 / R2 – Audio / Data

This allows individual tenant stations to be home-run back to a centrally located GT-4Z instead of requiring every station to be looped from one residence to the next.

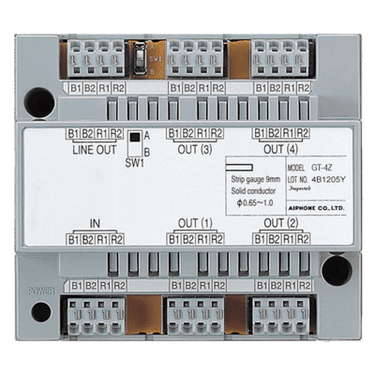

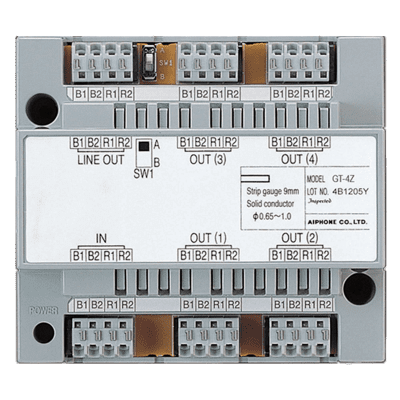

GT-4Z Connections

The GT-4Z provides:

LINE IN

Receives the GT Series bus from the preceding controller or GT-4Z.

Connections include:

• B1

• B2

• R1

• R2

OUT 1–4

Four separate residential / tenant outputs.

Each output includes:

• B1

• B2

• R1

• R2

LINE OUT

Allows the tenant trunk to continue to another GT-4Z or applicable downstream equipment.

Used with GT-BC & GT-VBC

The GT-4Z works with both major GT Series bus controllers.

GT-BC

Audio Bus Control Unit

Provides the GT Series:

• Audio bus

• Data communication

• Control signals

GT-VBC

Video Bus Control Unit

Provides the GT Series:

• Video distribution

• Video bus infrastructure

The GT-4Z combines the applicable B1/B2 and R1/R2 connections into convenient tenant-station branch outputs.

No Separate Power Supply Required

Aiphone's current GT Series catalog identifies the GT-4Z as not requiring a dedicated power supply.

A separate PS-2420UL does not connect directly to the GT-4Z.

The GT Series controllers and associated system equipment supply the necessary bus signals.

This differs from the GT-4ZP, which is specifically designed to distribute both video and dedicated power for compatible GT-1C7W applications.

Up to Six GT-4Z Units Per Trunk

Aiphone supports up to:

6 GT-4Z Distribution Adaptors Per Tenant / Residential Trunk

This allows multiple four-way distribution points to be connected when a larger number of tenant stations require home-run connections.

Actual station quantity remains subject to the complete GT Series system capacity and wiring-distance limitations.

SW1 Termination Switch

The GT-4Z includes an SW1 A/B termination selector.

On the last GT-4Z in a sub-trunk where the LINE OUT terminals are unused:

Set SW1 to Position A – Terminated

Termination is important for reliable GT Series bus operation.

Always follow the current Aiphone system wiring diagram when configuring multiple GT-4Z adaptors.

Standard GT System Capacity

A standard GT Series system supports an architecture of up to:

• 5 entrance stations

• 48 tenant stations

• 2 security guard stations

• 6 GT-4Z units per tenant trunk

Actual capacity can vary with tenant-station type and system configuration.

Expanded GT Series architecture is available for significantly larger installations.

Recommended Audio / Data Wiring

For the R1/R2 audio and data bus, Aiphone recommends:

2-Conductor, Solid, Non-Shielded, PE-Insulated Cable

Recommended wire:

• 87200250C – 20 AWG | 500'

• 87200210C – 20 AWG | 1,000'

• 872002P10C – 20 AWG | Plenum | 1,000'

Recommended Video Wiring

For the B1/B2 video bus, Aiphone recommends:

2-Conductor, Solid, Non-Shielded, PE-Insulated Cable

Recommended wire:

• 87180250C – 18 AWG | 500'

• 87180210C – 18 AWG | 1,000'

• 871802P10C – 18 AWG | Plenum | 1,000'

Use separate jacketed cables for the audio/data and video circuits according to Aiphone's current wiring documentation.

GT-VBC Wiring Distance

Aiphone's current GT Series specifications list maximum distance from the GT-VBC to the farthest tenant station as:

22 AWG: Up to 330 ft
20 AWG: Up to 490 ft
18 AWG: Up to 490 ft

Overall system wiring distance depends on:

• Cable gauge

• Number of distribution adaptors

• Standard or expanded architecture

• Controller placement

• Tenant-station model

• Complete trunk layout

Compatible Tenant Stations

The GT-4Z can be used in applicable GT Series video configurations with tenant stations including:

• GT-1C7 – 7" Video Tenant Station

• GT-1M3 – 3.5" Video Tenant Station

• GT-1C7W – App-Compatible 7" Video Tenant Station

• Other compatible GT Series tenant stations

Some tenant-station models have additional power requirements.

Always verify the complete station configuration before ordering distribution equipment.

GT-4Z vs. GT-4ZP

Aiphone offers two similar four-way distribution adaptors.

GT-4Z

4-Way Video Distribution Adaptor

Used for:

• Audio distribution

• Video distribution

• Data distribution

• Standard GT tenant-station branching

A dedicated power supply is not connected to the GT-4Z.

GT-4ZP

4-Way Video & Power Distribution Adaptor

Designed specifically to distribute video and 24VDC power to compatible GT-1C7W app-enabled tenant stations.

The GT-4ZP requires:

1 PS-2420UL per GT-4ZP

and includes the applicable GTW-24J power jumpers.

Do not substitute one model for the other without verifying the tenant-station power requirements.

Surface Mounting

The GT-4Z can be mounted directly to a suitable:

• Low-voltage backboard

• Equipment panel

• Cabinet

• Wall surface

Mounting holes are built into the housing.

DIN Rail Mounting

For organized equipment-cabinet installations, the GT-4Z can be mounted using:

W-DIN11 – 11cm Steel DIN Rail Mounting Bracket

The W-DIN11 is not included with the GT-4Z and must be ordered separately when DIN rail mounting is required.

Typical Equipment Cabinet

A standard GT Series video equipment location may include:

• GT-BC – Audio Bus Control Unit

• GT-VBC – Video Bus Control Unit

• GT-4Z – 4-Way Video Distribution Adaptor

• GTW-DP – R1/R2 Distribution Point

• PS-2420UL – 24VDC Power Supply

• Wiring terminal blocks

• Additional distribution equipment

Exact equipment depends on the system design.

Ideal Applications

• Apartment buildings

• Condominium complexes

• Multi-tenant residential buildings

• Commercial office buildings

• Mixed-use developments

• Student housing

• Senior-living properties

• GT Series video intercom systems

• Tenant-station home-run wiring

• Equipment-room distribution

• Existing GT Series system expansions

Important Ordering Information

This listing is for the GT-4Z 4-Way Video Distribution Adaptor only.

The following are sold separately unless specifically stated:

• GT-BC audio bus controller

• GT-VBC video bus controller

• PS-2420UL system power supply

• W-DIN11 DIN rail

• GTW-DP distribution terminal

• Tenant stations

• Entrance stations

• Audio / data wiring

• Video wiring

• Other GT Series components

The GT-4Z does not require a separate dedicated power supply.

For applications requiring centralized power distribution to compatible GT-1C7W stations, review the GT-4ZP Video/Power Distribution Adaptor.
