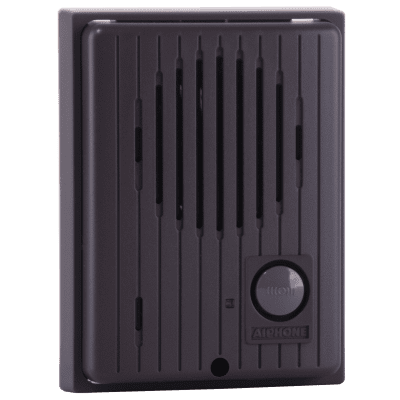

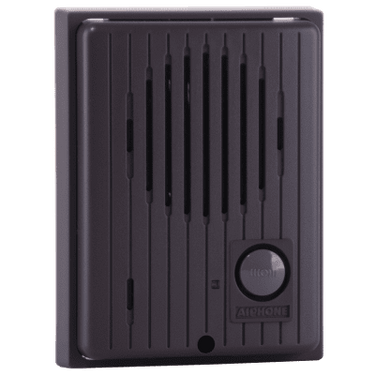

Provide reliable visitor communication at commercial or residential entrances with the Aiphone IF-DA Surface Mount Audio Door Station.

The IF-DA features a compact, weather-resistant design with hands-free communication, an illuminated locator LED beside the call button, and durable brown ABS plastic construction.

Designed for compatible Aiphone intercom systems, the IF-DA can mount directly to a wall or over a standard 1-gang electrical box, making it ideal for new installations, replacements, and retrofit applications.

Key Features

• Genuine Aiphone IF-DA

• Surface-mount audio door station

• Hands-free communication

• Weather-resistant construction

• IP43 protection rating

• Durable ABS plastic housing

• Brown finish

• Built-in call button

• Locator LED beside call button

• Compact commercial design

• Mounts directly to wall

• Compatible with standard 1-gang box or ring

• Uses 2-conductor overall-shielded wire

• Designed for compatible Aiphone intercom systems

• Suitable for protected exterior and interior entrances

Product Specifications

Manufacturer: Aiphone
Model: IF-DA
Product Type: Audio Door Station
Communication: Hands-Free
Mounting: Surface Mount
Mounting Options: Direct to Wall or 1-Gang Box / Ring
Material: ABS Plastic
Color: Brown
Protection Rating: IP43
Operating Temperature: 14°F to 140°F (-10°C to 60°C)
Wire Type: 2-Conductor Overall Shielded
Dimensions: 5-1/8" H x 3-7/8" W x 1-1/8" D
Application: Door Entry / Intercom Communication

Hands-Free Communication

Visitors initiate a call by pressing the integrated call button.

Once answered from the compatible Aiphone master station, the IF-DA provides hands-free audio communication through its built-in speaker and microphone.

This allows personnel to identify and communicate with visitors before granting entry.

Locator LED

A built-in locator LED beside the call button makes the station easier for visitors to locate and operate, especially in dim entrance areas.

Weather-Resistant Construction

The IF-DA carries an IP43 protection rating and is designed for weather-resistant entry applications.

Its durable ABS enclosure makes it suitable for protected exterior entrances as well as indoor commercial applications.

Wiring Requirements

Aiphone specifies 2-conductor overall-shielded cable for the IF-DA.

Recommended Aiphone wire includes:

• 822202 – 22 AWG, 2-Conductor Overall Shielded

• 821802 – 18 AWG, 2-Conductor Overall Shielded

Maximum wiring distance depends on the connected Aiphone system and wire gauge.

Always follow the wiring specifications for the specific master station or intercom system.

Compatible Aiphone Systems

The IF-DA is used with compatible Aiphone systems including select:

• AX Series

• KB Series

• IE Series

• Other Aiphone systems specifying IF-DA compatibility

Always verify the existing master station and system wiring before ordering.

Mounting Accessories

The IF-DA can be paired with compatible Aiphone mounting accessories for specialized installations.

KAW-D

30° Angle Box

Angles the door station toward the visitor for improved positioning at wide or offset entrances.

KMB-45

45° Mullion Mounting Bracket

Allows the IF-DA to be installed on compatible narrow mullion applications.

SBX-CON1

Conduit Surface Mount Box

Provides additional mounting space for conduit-fed installations.

SBX-ACE

Surface Mount Box with Access Control Device Space

Allows installation of the IF-DA along with a compatible access-control reader or device.

Ideal Applications

• Commercial office entrances

• Retail stores

• Aluminum storefronts

• Apartment entrances

• Residential entry systems

• Schools and universities

• Healthcare facilities

• Government buildings

• Reception entrances

• Existing Aiphone intercom systems

Important Ordering Information

This listing is for the Aiphone IF-DA audio door station only.

Master station, power supply, wiring, electric strike, door-release relay, and mounting accessories are sold separately unless specifically stated.

Verify compatibility with the existing Aiphone system before ordering.
