Add secure IP video communication, visitor identification, door release, surveillance integration, and entrance monitoring with the Aiphone IX-DV Surface-Mount IP Video Door Station.

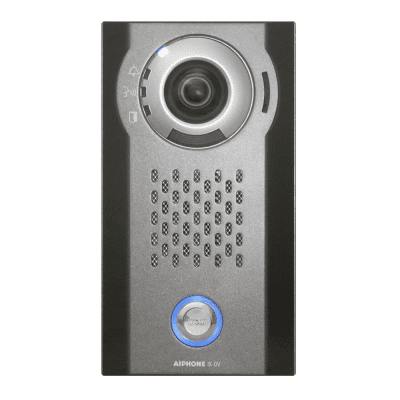

Designed for Aiphone IX and IXG Series IP intercom systems, the IX-DV combines a 1.23-megapixel color camera, hands-free audio, illuminated call/status indicators, programmable relay outputs, trigger inputs, SIP integration, ONVIF video streaming, local microSD recording, and PoE connectivity in a compact vandal- and weather-resistant aluminum enclosure.

The IX-DV surface mounts directly to the wall using the included bracket and is ideal for commercial buildings, campuses, schools, healthcare facilities, industrial properties, parking facilities, and other secured entrances.

Key Features

• Genuine Aiphone IX-DV

• Current Aiphone IX | IXG Series

• Surface-mounted IP video door station

• Hands-free communication

• 1/3" CMOS color camera

• 1.23 megapixel

• Manual vertical camera adjustment

• Camera positions: +15°, 0°, or -8°

• White LED for low-light illumination

• Minimum illumination approximately 5 lux

• SIP compliant

• ONVIF Profile S compliant

• RTSP video streaming

• Compatible with all IX | IXG Series devices

• PoE powered

• Optional 24VDC power

• PoE pass-through

• Two programmable contact outputs

• Six programmable trigger inputs

• Door-release capability

• microSD audio/video recording

• Custom sound-file playback

• Programmable multi-station calling

• Three call-priority levels

• 600Ω audio output

• Audible and visual call-status indication

• Aluminum die-cast construction

• Weather resistant

• Vandal resistant

• IP54 rated

• IK08 impact rated

• IEEE 802.1X network security

• UL certified

• Extreme-temperature operation down to -40°F

• Surface-mount bracket included

Product Specifications

Manufacturer: Aiphone
Model: IX-DV
Series: IX | IXG Series
Product Type: Surface-Mount IP Video Door Station
Communication: Hands-Free
Camera: 1/3" CMOS
Resolution: 1.23 Megapixel
Camera Adjustment: +15°, 0°, or -8° Vertical
Minimum Illumination: 5 Lux
Low-Light Illumination: White LED
Audio Codecs: G.711 μ-law / A-law, G.722
Video Codecs: H.264/AVC, Motion JPEG
SIP: Yes
ONVIF Profile S: Yes
RTSP Streaming: Yes
Port Security: IEEE 802.1X
Speaker Volume: 73–96 dB
Power Source: IEEE 802.3af PoE Class 0 or 24VDC
24VDC Power Supply: PS-2420UL
Power Draw: 5.28W
PoE Pass-Through: Yes
PoE Pass-Through Requirement: 802.3at Type 2 PoE+ Input
Contact Outputs: 2
Contact Type: Form C Dry Contact
Contact Rating: 24V AC/DC, 1A
Trigger Inputs: 6
Audio Output: 600Ω
Recording: microSD Card
microSD Card Included: No
Network Cable: CAT-5e or CAT-6
Maximum Network Drop: 330 ft / 100 m
Protection Rating: IP54
Impact Rating: IK08
Material: Aluminum Die Cast
Operating Temperature: -40°F to 140°F (-40°C to 60°C)
Mounting: Surface Mount
Mounting Bracket: Included
Height: 8-1/16"
Width: 4-1/2"
Depth: 2-1/16"
Metric Dimensions: 207 × 115 × 52.5 mm

IP Video Entrance Communication

The IX-DV provides full network-based video and audio communication between a secured entrance and compatible Aiphone answering stations.

When a visitor presses the call button:

1. The IX-DV initiates the programmed call

2. Compatible answering stations receive the call

3. Video from the IX-DV camera is displayed

4. Hands-free audio communication begins when answered

5. Authorized personnel can release the entrance when appropriate

Because the station is IP-based, communication is transported over the facility's Ethernet network.

1.23-Megapixel Color Camera

The IX-DV includes a:

1/3" CMOS 1.23-Megapixel Camera

The camera provides visitor identification and live entrance monitoring through compatible IX / IXG answering stations.

Video can also be streamed to compatible third-party systems using:

• ONVIF Profile S

• RTSP

Adjustable Camera Angle

A rear adjustment lever allows the camera to be positioned vertically at:

• +15°

• 0°

• -8°

This helps compensate for station mounting height and visitor position without requiring a separate wedge.

The camera adjustment is mechanical and should be set during installation.

White LED Illumination

An integrated white LED improves visitor visibility in lower-light conditions.

Minimum camera illumination is approximately:

5 Lux

The illuminator is useful at:

• Exterior entrances

• Parking facilities

• Vestibules

• After-hours entrances

• Covered entryways

• Dim corridors

Hands-Free Communication

The IX-DV provides open-voice hands-free communication through its built-in:

• Microphone

• Speaker

Visitors do not need to hold or operate a handset.

Programmable Call Button

The IX-DV call button can be programmed to call multiple compatible stations.

Aiphone's IX architecture allows a door station to call up to:

20 Stations

with three selectable call-priority levels.

This allows calls to be routed to combinations such as:

• Reception desk

• Security desk

• Guard station

• Administrative office

• IX-SOFT workstation

• Other compatible answering stations

Call Priority Levels

IX Series programming supports three call levels.

These allow calls to be configured according to priority within the overall system.

This is especially useful when IX devices are used for:

• Security

• Emergency communication

• Visitor entry

• Campus communication

SIP Compliance

The IX-DV is SIP compliant and can integrate with compatible SIP communication systems.

Potential applications may include:

• SIP servers

• IP PBX systems

• Compatible VoIP platforms

• Telephone integration

Available functions depend on the third-party SIP system and programming.

ONVIF Profile S

The IX-DV is:

ONVIF Profile S Compliant

This allows compatible security-video platforms to access the station's camera stream.

Potential integrations include:

• Video management systems

• Network video recorders

• Security monitoring platforms

• Other ONVIF-compatible systems

Third-party compatibility should always be verified before deployment.

RTSP Video Streaming

The IX-DV can also provide its video stream through:

RTSP

This provides another method of integrating the entrance camera with compatible video-security software or recording platforms.

microSD Recording

The IX-DV includes a microSD card slot for recording:

• Audio

• Video

from active conversations.

The microSD card is:

Not Included

Recording capability and available duration depend on the installed card and system configuration.

Custom Audio Messages

Custom audio files can be uploaded to the IX-DV for playback during applicable system events.

Possible functions include:

• Call placed

• Communication started

• Door released

• Error condition

• Other programmed station events

This can provide visitors with clear audible operating feedback.

Visual & Audible Status Indication

The station provides audible and visual feedback for functions including:

• Call placed

• Communication active

• Door released

This helps visitors understand the status of the intercom call.

Two Form C Contact Outputs

The IX-DV provides:

2 Programmable Form C Dry Contact Outputs

Contact rating:

24V AC/DC, 1A

Each output provides:

• Normally Open

• Common

• Normally Closed

The contacts can be assigned to functions such as:

• Door release

• Auxiliary relay control

• Station-status output

• External signaling

• 600Ω audio-related functions

Door Release

A programmed output can control compatible entrance locking equipment.

Applications may include:

• Electric strikes

• Magnetic-lock relays

• Gate-control interfaces

• Access-control relays

The connected electrical load must remain within the station's:

24V AC/DC, 1A

contact rating.

Higher-current devices should be controlled through an appropriately rated external relay.

Six Trigger Inputs

The IX-DV provides:

6 Programmable Trigger Inputs

These inputs can be used for functions such as:

• External call button

• Outgoing call trigger

• Answering a call

• Answering a page

• Alarm input

• Security-system interface

• Auxiliary dry-contact device

Exact functionality is determined through IX / IXG programming.

600-Ohm Audio Output

The IX-DV provides a:

600Ω Audio Output

for compatible external audio applications.

This can be used for applicable:

• Paging

• Communication

• External amplifier integration

The system can also program a contact output to operate in conjunction with the 600Ω output.

PoE Power

The IX-DV can operate using:

IEEE 802.3af Class 0 PoE

This allows network communication and power to travel over the same CAT-5e or CAT-6 cable.

Normal power consumption:

5.28 Watts

A compatible PoE network switch or injector is required.

Optional 24VDC Power

The IX-DV can alternatively operate from:

24VDC

using the:

PS-2420UL – 24VDC 2A Power Supply

The maximum published distance to the power supply is approximately:

50 ft

when using the approved installation method.

PoE Pass-Through

The IX-DV includes an Ethernet output that can provide PoE pass-through to an additional compatible network device.

To use this feature, the IX-DV must receive:

IEEE 802.3at Type 2 PoE+

from the upstream network equipment.

This feature can reduce the amount of network cabling required at an entrance location when another compatible PoE device is nearby.

CAT-5e / CAT-6 Network Wiring

Network connection requires:

• CAT-5e

• CAT-6

Maximum standard Ethernet distance:

330 ft / 100 m

between the IX-DV and the network switch or other Ethernet node.

Longer runs require appropriate network infrastructure.

IEEE 802.1X

The IX-DV supports:

IEEE 802.1X Port Security

This allows compatible enterprise networks to authenticate the device before providing network access.

This feature is particularly useful in:

• Schools

• Government facilities

• Healthcare systems

• Corporate networks

• Higher-security installations

Weather Resistance

The IX-DV is rated:

IP54

This provides protection against applicable dust intrusion and splashing water.

The unit is intended for indoor or outdoor entrance use when installed according to Aiphone's instructions.

Impact Resistance

Impact rating:

IK08

The aluminum die-cast enclosure and vandal-resistant mounting design make the IX-DV suitable for high-traffic public entrances.

Extreme Temperature Operation

Operating range:

-40°F to 140°F

or:

-40°C to 60°C

This wide operating range makes the IX-DV suitable for many exposed exterior environments without requiring a separate heater.

Aluminum Die-Cast Construction

The IX-DV uses a durable:

Aluminum Die-Cast Cover

providing a compact commercial-grade exterior housing.

The station is designed for:

• High-traffic areas

• Commercial entrances

• Campus facilities

• Parking structures

• Exterior security doors

Surface-Mount Installation

The IX-DV is designed for direct surface mounting.

The standard mounting bracket is:

Included

The station can be installed directly to the appropriate finished mounting surface with wiring concealed behind the unit.

IX-MB Mullion Mounting Bracket

For narrow door frames or mullions, use:

IX-MB – Mullion Mounting Bracket

The IX-MB allows the station to overhang either side of a mullion while providing additional internal clearance for:

• CAT-5e / CAT-6 cable

• Wiring

• External conduit

The IX-MB is sold separately.

SBX-IXDV30 Angle Box

For entrances where the camera needs to face inward toward the visitor, use:

SBX-IXDV30 – 30° Angled Surface-Mount Box

The stainless-steel enclosure angles the IX-DV outward by approximately:

30 Degrees

It can be mounted on either side of the entrance.

This is especially useful for:

• Wide entrances

• Double doors

• Side-mounted door stations

• Entrances where the visitor stands away from the station

IX-DV vs. IX-DVF

IX-DV

Provides:

• Surface mounting

• Aluminum die-cast cover

• IP54 rating

• Compact 4-1/2" width

• Included surface-mount bracket

IX-DVF

Provides:

• Flush mounting

• Stainless-steel faceplate

• IP65 protection

• Included recessed back box

Both provide similar core IX Series video-intercom functions.

IX-DV vs. IX-DVM

IX-DV

• Standard-width surface-mount station

• 1.23MP camera

• Two contact outputs

• Six trigger inputs

• PoE pass-through

• Heavy-duty aluminum enclosure

IX-DVM

• Narrow mullion-style station

• Designed for limited-width mounting locations

• Different camera and enclosure configuration

Choose according to available mounting space and system requirements.

TAA-Compliant Version

For projects requiring Trade Agreements Act compliance, Aiphone offers:

IX-DV-JP

Aiphone states that the IX-DV-JP is functionally identical to the IX-DV but is:

TAA Compliant

The correct model should be ordered based on project requirements.

Compatible Answering Stations

The IX-DV is compatible with current IX | IXG Series equipment including:

• IX-MV7-B – Black IP Video Answering Station

• IX-MV7-W – White IP Video Answering Station

• IX-MV7-HB – Black IP Video Answering Station with Handset

• IX-MV7-HB-L – Black Answering Station with T-Coil Handset

• IX-MV7-HW-JP – White TAA-Compliant Answering Station

• IX-SOFT – PC Answering Station Software

• IXG-MK – IP Video Guard Station

• Other compatible IX | IXG Series devices

Actual available functions depend on the connected equipment and programming.

Preprogrammed IX Kit Option

Aiphone also offers the:

IXS-HBDV – Preprogrammed IX Box Set

which includes:

• IX-DV Video Door Station

• IX-MV7-HB 7" Video Answering Station

• 8-Port PoE Switch

• USB Drive with Configuration Files and Installation Videos

This kit is useful for basic single-door applications where a preconfigured system is preferred.

Ideal Applications

• Commercial building entrances

• Corporate offices

• Schools and universities

• Healthcare facilities

• Government facilities

• Industrial properties

• Warehouses

• Parking garages

• Parking lots

• Security gates

• Reception entrances

• Campuses

• Retail facilities

• Multi-building properties

• SIP intercom systems

• ONVIF video-security systems

• IX Series installations

• IXG Series installations

Important Ordering Information

This listing is for the:

Aiphone IX-DV Surface-Mount IP Video Door Station

Included

• IX-DV Video Door Station

• Surface-Mount Bracket

• Applicable Installation Hardware

Network Requirement

Requires:

• CAT-5e or CAT-6 Ethernet connection

• Compatible network infrastructure

Power

Use either:

• IEEE 802.3af PoE

• 24VDC with PS-2420UL

For PoE pass-through, provide:

IEEE 802.3at Type 2 PoE+

to the IX-DV.

Recording

A compatible microSD Card is required for local audio/video recording and is sold separately.

Locking Hardware

Electric strikes, magnetic locks, external relays, and lock power supplies are sold separately.
