Commercial IP Video Intercom | Six Programmable Call Buttons | 1.23MP Camera | Weather & Vandal Resistant

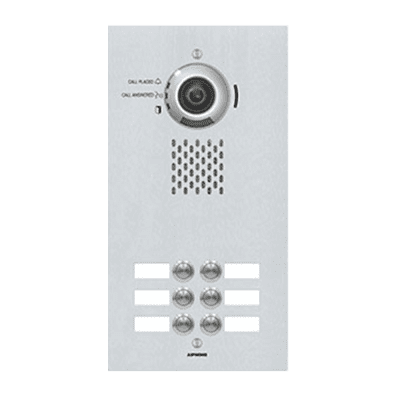

The Aiphone IX-DVF-6 IP Video Door Station is a professional-grade, network-based video intercom designed for commercial buildings, multi-tenant facilities, schools, healthcare facilities, and other properties requiring secure entrance communication and visitor management.

Featuring six individually labeled call buttons, a built-in 1.23-megapixel color camera, and hands-free two-way audio, the IX-DVF-6 allows visitors to contact different departments, offices, security personnel, or designated answering groups from a single entrance station.

Constructed with a durable satin stainless steel faceplate, this flush-mounted intercom provides exceptional performance in demanding indoor and outdoor environments. Its IP65 weather-resistant and IK08 impact-resistant ratings make it an excellent solution for high-traffic commercial entrances.

Compatible with Aiphone IX and IXG Series IP Intercom Systems, the IX-DVF-6 supports SIP communication, ONVIF Profile S video integration, and Power over Ethernet (PoE).

Key Features

• Six Programmable Call Buttons: Allows selective calling to six designated destinations or station groups.

• Customizable Button Labels: Six labeled call buttons with a blank label template included for department or tenant identification.

• 1.23-Megapixel Color Camera: Built-in video camera provides clear visitor identification and entrance monitoring.

• Adjustable Camera Angle: Manual vertical adjustment of +15°, 0°, or -8° accommodates various mounting locations.

• Two-Way Audio Communication: Integrated microphone and speaker provide convenient hands-free communication.

• Low-Light LED Illumination: Built-in white LED improves camera visibility in low-light conditions.

• Satin Stainless Steel Faceplate: Heavy-duty construction provides durability and a professional appearance.

• Weather-Resistant Design: IP65-rated protection against dust and water.

• Vandal-Resistant Construction: IK08 impact resistance helps protect against physical damage.

• SIP Compatible: Supports integration with compatible SIP-based communication systems.

• ONVIF Profile S Compliant: Enables video streaming to compatible third-party surveillance systems.

• RTSP Video Streaming: Supports integration with compatible IP video management and recording systems.

• Power over Ethernet (PoE): Simplifies installation by providing network communication and power through Ethernet cabling.

• PoE Pass-Through: Supported when using a compatible IEEE 802.3at Type 2 PoE+ power source.

• Audio & Video Recording: Supports recording active conversations to an optional microSD card.

• Programmable Contact Outputs: Two contact outputs support door release and other programmed functions.

• Visual & Audible Status Indicators: Provides notification of call initiation, active communication, and door-release status.

• Flush-Mount Installation: Includes a mounting back box for secure installation.

• UL Listed: Meets applicable UL 62368-1 and cUL 62368-1 safety standards.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: IX-DVF-6

• Product Type: IP Video Door Intercom Station

• Series: IX / IXG Series

• Finish: Satin Stainless Steel

• Call Buttons: 6 Labeled, Programmable Buttons

• Communication: Hands-Free Two-Way Audio

• Camera: 1/3" CMOS, 1.23 Megapixel

• Camera Adjustment: +15°, 0°, -8° (Manual)

• Minimum Camera Illumination: 5 Lux

• Video Compression: H.264/AVC, Motion JPEG

• Audio Codecs: G.711 (μ-law / A-law), G.722

• Network Compatibility: SIP, ONVIF Profile S, RTSP

• Power Requirements: IEEE 802.3af Class 0 PoE or 24V DC

• Compatible Power Supply: Aiphone PS-2420UL

• Power Consumption: 5.28 Watts

• PoE Pass-Through: Requires IEEE 802.3at Type 2 PoE+

• Contact Outputs: 2

• Network Security: IEEE 802.1X

• Ingress Protection: IP65

• Impact Resistance: IK08

• Operating Temperature: -40°F to 140°F (-40°C to 60°C)

• Dimensions: 13-11/16" H x 7-3/16" W

• Mounting Type: Flush Mount / Optional Surface Mount

• Included Mounting: Flush-Mount Back Box

• Optional Surface-Mount Box: SBX-IXGDM7

• Certifications: UL 62368-1, cUL 62368-1

• System Compatibility: Aiphone IX and IXG Series

Recommended Applications

• Commercial Office Buildings

• Multi-Tenant Commercial Properties

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Schools and Universities

• Government and Municipal Buildings

• Corporate Office Campuses

• Industrial and Manufacturing Facilities

• Secured Employee Entrances

• Security and Reception Areas

• Parking Facilities

• Commercial Buildings with Multiple Departments

• Institutional Facilities

Installation & Compatibility

The Aiphone IX-DVF-6 is designed for integration with compatible Aiphone IX and IXG Series IP Video Intercom Systems.

The station connects to the network using standard Cat-5e or Cat-6 Ethernet cabling and can be powered through a compatible IEEE 802.3af PoE connection or an approved 24V DC power supply.

The six call buttons are connected to the station's contact inputs and can be programmed to call different answering groups. This allows visitors to contact specific departments or designated personnel without requiring separate entrance stations.

The included flush-mount back box provides a secure installation into a prepared wall opening. For surface-mounted applications, the optional Aiphone SBX-IXGDM7 surface-mount enclosure can be used.

Important Installation Information

• Requires compatible Aiphone IX or IXG Series answering stations for intercom communication.

• Call buttons must be programmed to the appropriate calling groups.

• PoE pass-through requires a compatible IEEE 802.3at Type 2 PoE+ connection.

• Supports door release through programmable contact outputs when connected to compatible access control equipment.

• Local audio and video recording requires an optional microSD card.

• Network equipment, answering stations, electric locking hardware, and optional accessories are sold separately unless otherwise specified.

Why Choose the Aiphone IX-DVF-6?

The Aiphone IX-DVF-6 provides a dependable commercial entrance communication solution by combining six programmable call buttons, video identification, two-way audio, and advanced IP network integration into one durable stainless steel door station.

Its multi-button configuration makes it particularly useful for commercial buildings with multiple departments, offices, or answering destinations.

With IP65 weather protection, IK08 impact resistance, SIP and ONVIF compatibility, and PoE connectivity, the IX-DVF-6 delivers reliable entrance security and convenient visitor communication for modern commercial facilities.
