Commercial IP Video Intercom | Touchless Entry Communication | 1.23MP Camera | PoE+ | Weather & Vandal Resistant

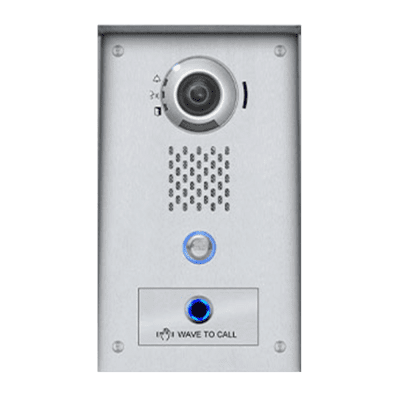

The Aiphone IX-DVF-HW IP Video Door Station is a commercial-grade, network-based video intercom featuring an integrated touchless hand-wave call sensor, allowing visitors to initiate communication without physically pressing a button.

Designed for commercial buildings, healthcare facilities, schools, government buildings, and other high-traffic entrances, the IX-DVF-HW combines contactless calling, high-quality video, and reliable two-way audio communication in one durable entrance station.

Featuring a 1.23-megapixel color video camera, built-in microphone and speaker, stainless steel faceplate, and traditional call button, the station provides flexible communication options while helping reduce physical contact at shared entrances.

Compatible with Aiphone IX and IXG Series IP Intercom Systems, the IX-DVF-HW supports SIP communication, ONVIF Profile S video integration, and Power over Ethernet connectivity.

Key Features

• Touchless Hand-Wave Call Sensor: Allows visitors to initiate intercom calls without touching the station.

• Infrared Proximity Detection: Detects hand movement within approximately 0–10 cm (0–4 inches).

• Traditional Call Button: Provides an additional physical calling option.

• 1.23-Megapixel Color Camera: Built-in video camera allows personnel to visually identify visitors.

• Adjustable Camera Angle: Manual vertical adjustment of +15°, 0°, or -8° accommodates installation requirements.

• Two-Way Audio Communication: Integrated microphone and speaker provide hands-free visitor communication.

• Low-Light LED Illumination: Built-in white LED improves camera visibility in low-light environments.

• Satin Stainless Steel Faceplate: Durable construction offers a professional appearance and enhanced protection against vandalism.

• Weather-Resistant Design: Suitable for indoor and outdoor commercial entrance applications.

• Vandal-Resistant Construction: Designed for demanding, high-traffic environments.

• SIP Compatible: Supports integration with compatible SIP-based communication systems.

• ONVIF Profile S Compliant: Supports video streaming to compatible third-party surveillance systems.

• Power over Ethernet: Supports PoE connectivity, with PoE+ required for the complete touchless sensor installation.

• Audio & Video Recording: Supports recording active conversations using an optional microSD card.

• Programmable Call Destinations: Can be configured to call up to 20 designated stations.

• Multiple Call Priority Levels: Supports three configurable calling levels.

• Programmable Inputs & Outputs: Includes two contact outputs and six trigger inputs, with one input used for the touchless sensor.

• Call Status Indicators: Provides audible and visual indications for calling, communication, and door release.

• Surface-Mount Installation: Includes the required surface-mount enclosure for convenient installation.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: IX-DVF-HW

• Product Type: IP Video Door Intercom Station

• Series: IX / IXG Series

• Finish: Stainless Steel

• Mounting Type: Surface Mount

• Call Activation: Touchless Hand-Wave Sensor / Physical Call Button

• Sensor Type: Infrared LED

• Sensor Detection Range: 0–10 cm

• Camera: 1/3" CMOS, 1.23 Megapixel

• Camera Adjustment: +15°, 0°, -8°

• Communication: Hands-Free Two-Way Audio

• Audio Codecs: G.711 (μ-law / A-law), G.722

• Video Codecs: H.264/AVC, Motion JPEG

• Network Compatibility: SIP, ONVIF Profile S, RTSP

• Power Source: IEEE 802.3af PoE or 24V DC for the door station

• Touchless Sensor Power: Included PS-POE module; PoE+ switch required for the specified installation

• Door Station Power Draw: 5.28 Watts

• Network Connection: Cat-5e / Cat-6 Ethernet

• Contact Outputs: 2

• Trigger Inputs: 6 (One Utilized by Touchless Sensor)

• Network Security: IEEE 802.1X

• Operating Temperature: -4°F to 131°F (-20°C to 55°C)

• Dimensions: Approximately 11-11/16" H x 7" W x 3-3/16" D

• System Compatibility: Aiphone IX and IXG Series

Included Components

• (1) Aiphone IX-DVF-HW Video Door Station with Touchless Sensor

• (1) PS-POE Sensor Power Module

• (1) SBX-IDVFRA Surface-Mount Box

• (4) Panel Mounting Speed Nuts

• (4) Panel Mounting Screws

• (1) 1-Foot Network Patch Cable

Recommended Applications

• Commercial Office Buildings

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Schools and Universities

• Government and Municipal Buildings

• Industrial and Manufacturing Facilities

• Corporate Security Entrances

• Parking Garages and Secured Parking Facilities

• Multi-Tenant Commercial Buildings

• Reception and Visitor Management Entrances

• High-Traffic Commercial Entrances

• Facilities Requiring Touchless Visitor Communication

Installation & Compatibility

The Aiphone IX-DVF-HW is designed for integration with compatible Aiphone IX and IXG Series IP Video Intercom Systems.

The station connects to a network using standard Cat-5e or Cat-6 Ethernet cabling and includes the SBX-IDVFRA surface-mount enclosure for installation.

The integrated touchless sensor connects through the door station's programmable contact input and uses the included PS-POE module for power.

Important Installation Requirements:

• A compatible PoE+ network switch is required for the standard touchless sensor installation.

• The touchless sensor must be programmed through the Aiphone IX Support Tool.

• The sensor's trigger input must be assigned to the appropriate calling group.

• Compatible Aiphone answering stations are required for normal intercom operation.

• Electric locking hardware and external system accessories are sold separately unless otherwise specified.

• A microSD card is required for local recording and is not included.

Why Choose the Aiphone IX-DVF-HW?

The Aiphone IX-DVF-HW provides an advanced commercial entrance communication solution by combining touchless calling, video identification, two-way audio, and IP network integration in one durable stainless steel station.

Its contactless operation helps reduce physical interaction with shared entrance hardware, making it especially beneficial for healthcare facilities, commercial offices, schools, and other buildings requiring convenient visitor communication.

With its weather-resistant construction, included surface-mount enclosure, 1.23MP camera, and compatibility with Aiphone IX and IXG systems, the IX-DVF-HW offers dependable entrance security and modern touchless communication technology.
