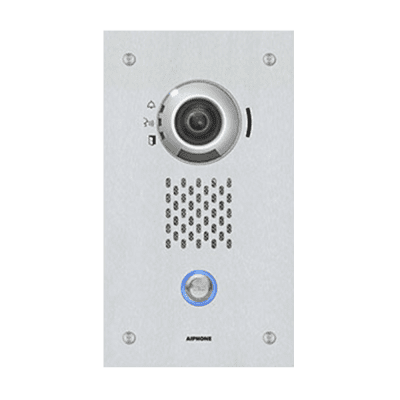

Combine IP video intercom communication and credential-based access control at a single secured entrance with the Aiphone IX-DVF-PR Flush-Mount IP Video Door Station with Built-In 125 kHz Wiegand Proximity Reader.

Designed for Aiphone IX and IXG Series IP intercom systems, the IX-DVF-PR combines a 1.23-megapixel color camera, hands-free audio communication, white low-light illumination, SIP integration, ONVIF video streaming, programmable relay outputs, trigger inputs, local microSD recording, and an integrated AC-PROX-1G proximity reader behind a vandal-resistant stainless-steel faceplate.

The intercom portion connects to the building IP network by CAT-5e or CAT-6, while the integrated proximity reader connects separately to a compatible access-control panel using a standard Wiegand interface.

Key Features

• Genuine Aiphone IX-DVF-PR

• Current IX | IXG Series

• Flush-mount IP video door station

• Integrated AC-PROX-1G proximity reader

• 125 kHz proximity technology

• Standard Wiegand reader output

• Compatible with applicable Aiphone, HID, AWID and Pyramid credentials

• Up to approximately 6" credential read range under ideal conditions

• Reader connects to compatible third-party or Aiphone access-control system

• Reader powered separately from intercom electronics

• 1/3" CMOS color camera

• 1.23-megapixel resolution

• Manual camera adjustment

• +15°, 0°, or -8°

• White LED for low-light illumination

• Minimum illumination approximately 5 lux

• Hands-free audio communication

• SIP compliant

• ONVIF Profile S compliant

• RTSP video streaming

• Compatible with IX | IXG Series devices

• microSD audio/video recording

• 2 Form C dry-contact outputs

• Relay rating 24V AC/DC, 1A

• 6 programmable trigger inputs

• PoE powered

• Optional 24VDC power

• PoE pass-through

• IEEE 802.1X network security

• CAT-5e / CAT-6 network connection

• Stainless-steel construction

• Weather resistant

• Vandal resistant

• IP65

• IK08

• Flush back box included

• Optional SBX-IDVFRA surface-mount box

Product Specifications

Manufacturer: Aiphone
Model: IX-DVF-PR
Series: IX | IXG Series
Product Type: IP Video Door Station with Proximity Reader
Mounting: Flush Mount
Communication: Hands-Free
Camera: 1/3" CMOS Color
Camera Resolution: 1.23 Megapixel
Camera Adjustment: +15°, 0°, or -8° Vertical
Minimum Illumination: 5 Lux
Low-Light Illumination: White LED
Audio Codecs: G.711 μ-law / A-law, G.722
Video Codecs: H.264/AVC, Motion JPEG
SIP: Yes
ONVIF Profile S: Yes
RTSP Streaming: Yes
Port Security: IEEE 802.1X
Speaker Volume: 73–96 dB
Power Source: IEEE 802.3af PoE or 24VDC
24VDC Supply: PS-2420UL
Power Draw: 5.28W
PoE Pass-Through: Yes
PoE Pass-Through Input: IEEE 802.3at Type 2 PoE+
Contact Outputs: 2
Output Type: Form C Dry Contact
Contact Rating: 24V AC/DC, 1A
Trigger Inputs: 6
Recording: microSD Card
microSD Included: No
Network Cable: CAT-5e or CAT-6
Maximum Network Drop: 330 ft / 100 m
Protection Rating: IP65
Impact Rating: IK08
Material: Stainless Steel
Intercom Operating Temperature: -40°F to 140°F (-40°C to 60°C)
Height: 11-11/16"
Width: 7"
Depth: 2-1/16"
Metric Dimensions: Approximately 297 × 178 × 52 mm

Integrated Proximity Reader Specifications

Reader Model: AC-PROX-1G
Reader Type: Proximity
Frequency: 125 kHz
Interface: Wiegand
Power Input: 5–14VDC
Power Draw: 45mA
Read Range: Up to approximately 6" under ideal conditions
Reader Operating Temperature: -31°F to 140°F (-35°C to 60°C)
Certifications: CSA, FCC, CE, C-Tick
Credential Compatibility: Aiphone 40-bit and compatible HID, AWID, Pyramid and supported Wiegand-format credentials

Video Intercom + Access Control

The IX-DVF-PR places two separate security functions on one entrance plate.

Aiphone IP Video Intercom

Provides:

• Visitor calling

• Video verification

• Hands-free two-way communication

• Entrance monitoring

• Door release

• Network video streaming

• Event recording

125 kHz Proximity Reader

Provides:

• Credential reading

• Wiegand output

• Connection to access-control controller

• Cardholder entry through compatible access-control programming

The two functions share the same physical station but remain separate electrically.

Reader Requires an Access-Control Controller

The built-in AC-PROX-1G is a credential reader.

It does not independently make access decisions.

The reader sends Wiegand credential information to a compatible:

• Aiphone AC Series controller

• Third-party Wiegand access-control panel

• Other compatible access-control host

The access-control system determines whether the credential is valid and whether the door should unlock.

Separate Reader Power

The proximity reader requires:

5–14VDC

at approximately:

45mA

from the access-control system or an appropriate reader power source.

Do not assume that PoE power supplied to the IX-DVF-PR intercom automatically powers the proximity-reader interface.

The intercom and card-reader sections should be treated as separate subsystems during wiring.

125 kHz Credential Technology

The IX-DVF-PR uses traditional:

125 kHz Proximity

credential technology.

This makes it suitable for facilities already using compatible low-frequency proximity cards or fobs.

Supported credential families can include applicable:

• Aiphone

• HID

• AWID

• Pyramid

credentials.

Actual card-format support is determined by the connected access-control controller and software.

Up to 6-Inch Read Range

Aiphone specifies up to approximately:

6"

of non-contact read range under ideal conditions with suitable credentials.

Actual read distance can vary based on:

• Credential type

• Credential construction

• Mounting surface

• Electrical interference

• Nearby metal

• Access-control installation conditions

Wiegand Interface

The AC-PROX-1G uses a standard:

Wiegand Interface

for communication with the access-control controller.

Typical reader connections include:

• Reader power

• Ground

• Data 0

• Data 1

• LED control

• Beeper / card-present functions

• Shield

Follow the installation requirements of both Aiphone and the connected access-control manufacturer.

1.23-Megapixel Camera

The IX-DVF-PR incorporates a:

1/3" CMOS 1.23-Megapixel Camera

This provides live visitor video to compatible IX / IXG answering equipment.

The camera can also be integrated with supported third-party video systems through:

• ONVIF Profile S

• RTSP

Adjustable Camera Angle

The camera can be manually adjusted to:

• +15°

• 0°

• -8°

This allows the installer to compensate for station mounting height and visitor position.

The adjustment is mechanical rather than motorized PTZ.

White LED Illumination

An integrated white LED provides additional illumination for the camera in lower-light conditions.

Minimum published illumination:

5 Lux

This is useful at:

• Exterior entrances

• Covered vestibules

• Parking facilities

• After-hours entrances

• Dim corridors

Hands-Free Communication

Visitors communicate through the station's integrated:

• Microphone

• Speaker

No handset is required.

Published speaker-volume range:

73–96 dB

depending on station settings.

SIP Compliance

The IX-DVF-PR is:

SIP Compliant

This provides integration possibilities with compatible:

• SIP servers

• IP PBX systems

• VoIP platforms

• Third-party communication systems

Available functions depend on the connected SIP environment and programming.

ONVIF Profile S

The IX-DVF-PR is:

ONVIF Profile S Compliant

This allows compatible video-management systems to access the station's camera stream.

Possible integrations include:

• Network video recorders

• Video management systems

• Security monitoring platforms

• Other compatible ONVIF systems

RTSP Streaming

The IX-DVF-PR can also provide video through:

RTSP

This allows compatible third-party software to use the entrance camera as a network video source.

microSD Recording

The station includes a microSD card slot for recording applicable:

• Audio

• Video

during active conversations.

The microSD card is:

Not Included

Recording capacity depends on the installed card and system configuration.

Two Form C Relay Outputs

The IX-DVF-PR provides:

2 Programmable Form C Dry Contacts

Each is rated:

24V AC/DC, 1A

Each Form C contact provides:

• Normally Open

• Common

• Normally Closed

These can be programmed for door-release or other supported functions.

Intercom Door Release vs. Card Access

The IX-DVF-PR can support two separate methods of authorizing entry.

Intercom Door Release

An operator answers the visitor call and activates a programmed Aiphone relay output.

Credential Access

An authorized user presents a proximity credential.

The integrated reader sends the credential to the access-control panel, which makes the access decision.

These two functions can control the same opening while remaining separate electrically and logically.

Secure Remote Relay Option

For installations where the door-release relay should not remain at the exterior station, consider:

IXW-MAA Multi-Purpose I/O Adaptor

The IXW-MAA can move applicable relay functions to a secure interior equipment location.

This is particularly useful where physical security of lock-control wiring is important.

Six Trigger Inputs

The station provides:

6 Programmable Trigger Inputs

These can be assigned to supported IX / IXG functions.

Possible applications include:

• External call activation

• Alarm contact

• Security-system interface

• Door contact

• Auxiliary control switch

• Other compatible dry-contact devices

Exact functionality is determined through system programming.

PoE Power

The intercom section can operate from:

IEEE 802.3af PoE

Power draw:

5.28W

This allows network communication and station operating power to use the same Ethernet cable.

Optional 24VDC Power

The intercom can alternatively operate from:

24VDC

using the Aiphone:

PS-2420UL

power supply.

This provides flexibility where PoE is not available or where the system design calls for dedicated local power.

PoE Pass-Through

The IX-DVF-PR provides network in/out connectivity with:

PoE Pass-Through

For pass-through operation, provide the appropriate:

IEEE 802.3at Type 2 PoE+

upstream source.

This can allow another compatible PoE device near the entrance to share the network connection.

CAT-5e / CAT-6 Network Wiring

The intercom portion connects using:

• CAT-5e

• CAT-6

Maximum standard Ethernet distance:

330 ft / 100 m

from station to network node.

Longer distances require suitable Ethernet infrastructure or extension equipment.

Network Security

The IX-DVF-PR supports:

IEEE 802.1X

network authentication.

Aiphone also documents network support including:

• IPv4

• IPv6

• TCP

• UDP

• SIP

• HTTP

• HTTPS

• RTSP

• RTP

• RTCP

• IGMP

• MLD

• SMTP

• SFTP

• DHCP

• NTP

• DNS

IP65 Weather Protection

The station is rated:

IP65

when properly installed.

This provides strong protection for properly installed exterior entrances.

IK08 Impact Protection

Impact rating:

IK08

The stainless-steel faceplate and tamper-resistant installation make the IX-DVF-PR suitable for demanding commercial entrances.

Stainless-Steel Construction

The exposed front panel is stainless steel for:

• Commercial durability

• Corrosion resistance

• Vandal resistance

• Professional appearance

Temperature Considerations

The intercom portion is rated:

-40°F to 140°F

while Aiphone's current specification for the integrated proximity reader lists:

-31°F to 140°F

Therefore, for applications that require both video intercom and card-reader operation, the reader's -31°F minimum should be considered the practical lower limit for full station functionality.

Flush-Mount Installation

The IX-DVF-PR is supplied with a:

Flush-Mount Back Box

The finished stainless-steel face measures approximately:

11-11/16" H × 7" W

with a published overall depth of approximately:

2-1/16"

Surface-Mount Option

For surface mounting, use:

SBX-IDVFRA – Stainless-Steel Surface-Mount Box

The SBX-IDVFRA provides:

• Stainless-steel construction

• Weather-resistant enclosure

• Vandal-resistant design

• Internal wiring space

• Flat-wall mounting

• Bottom drainage opening

Approximate dimensions:

11-11/16" H × 7" W × 3-5/16" D at Top

and:

2-5/16" D at Bottom

The SBX-IDVFRA is sold separately.

IX-DVF-PR vs. IX-DVF

IX-DVF-PR

Includes:

• IP video intercom

• Stainless-steel flush-mount construction

• 125 kHz proximity reader

• Wiegand access-control interface

IX-DVF

Includes:

• IP video intercom

• Stainless-steel flush-mount construction

but:

No Built-In Card Reader

Choose the IX-DVF-PR when proximity credential access is required at the same entrance.

IX-DVF-PR vs. IX-DVF-10KP

IX-DVF-PR

Provides:

• 125 kHz proximity reader

• Visitor call button

• Video intercom

• No numeric access keypad

IX-DVF-10KP

Provides:

• 125 kHz proximity reader

• Integrated access keypad

• Video intercom

Choose the IX-DVF-10KP when PIN-code entry is required in addition to proximity credentials.

IX-DVF-PR vs. IXG-DM7-HIDA

IX-DVF-PR

Designed as a compact IX / IXG door station with:

• Standard call button

• 125 kHz Wiegand proximity reader

• 1.23MP camera

IXG-DM7-HIDA

Designed as a larger multi-tenant entrance station with:

• Touchscreen directory

• Keypad

• Integrated HID reader

• More advanced entrance functions

Choose according to whether the project requires a basic single-button door station or a full multi-tenant entrance station.

Compatible Answering Stations

Compatible answering options include:

• IX-MV7-B – Black IP Video Answering Station

• IX-MV7-W – White IP Video Answering Station

• IX-MV7-HB – Black IP Video Answering Station with Handset

• IX-MV7-HB-L – Black Answering Station with T-Coil Supported Handset

• IX-SOFT – PC Answering Station Software

• IXG-MK – IP Video Guard Station

Actual available functions depend on system design and programming.

Compatible Access-Control Equipment

The integrated Wiegand reader can be connected to a compatible:

• Aiphone AC Series Controller

• Third-party Wiegand access-control panel

The controller must support the credential format being used.

Ideal Applications

• Commercial building entrances

• Corporate offices

• Schools and universities

• Healthcare facilities

• Government facilities

• Industrial facilities

• Employee entrances

• Restricted areas

• Corporate campuses

• Parking facilities

• Security vestibules

• Card-access entrances

• IX Series systems

• IXG Series systems

• SIP intercom systems

• ONVIF video-security systems

Important Ordering Information

This listing is for the:

Aiphone IX-DVF-PR IP Video Door Station with Built-In 125 kHz Proximity Reader

Included

• IX-DVF-PR Door Station

• Integrated AC-PROX-1G Reader

• Flush-Mount Back Box

• Applicable mounting hardware

Intercom Network / Power

Requires:

• CAT-5e or CAT-6 Ethernet connection

• IEEE 802.3af PoE

or:

• 24VDC using PS-2420UL

Card Reader

The integrated reader requires:

• Compatible access-control controller

• 5–14VDC reader power

• Wiegand wiring

• Compatible 125 kHz credential

Surface Mounting

Order:

SBX-IDVFRA

separately for surface-mount installations.

Recording

A compatible:

microSD Card

is required for local audio/video recording and is sold separately.

Locking Hardware

Electric strikes, magnetic locks, access-control panels, lock power supplies, and external relays are sold separately.
