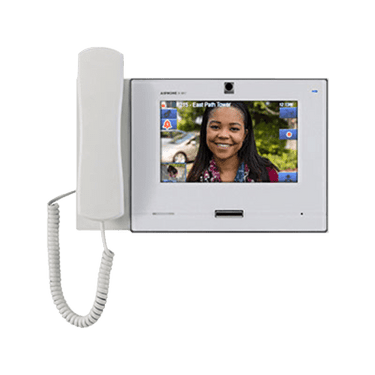

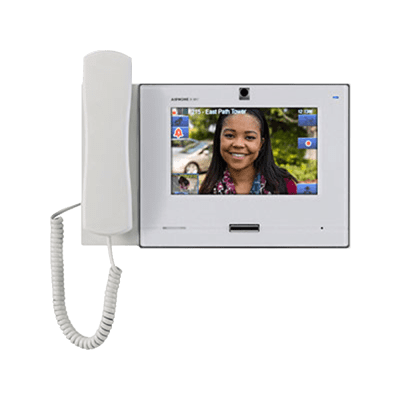

The Aiphone IX-MV7-HW-JP is a TAA-compliant IP video master station designed for Aiphone IX and IXG Series IP intercom systems. Featuring a large 7-inch LCD touchscreen, built-in camera, privacy handset, and flexible communication options, this station provides an advanced control point for commercial, institutional, security, and facility communication systems.

The IX-MV7-HW-JP can answer calls from entrance stations, door stations, and other answering stations while providing video identification, monitoring, paging, and door-release capabilities. Its included handset provides additional privacy when needed, while hands-free and push-to-talk modes offer flexibility for everyday operation.

Key Features

• TAA-compliant IP video master/answering station

• Designed for Aiphone IX | IXG Series

• 7" TFT LCD touchscreen

• Built-in video camera with privacy shutter

• Privacy handset included

• Hands-free, push-to-talk, or handset communication

• 8 customizable speed-dial buttons

• SIP compliant

• ONVIF Profile S compliant

• Supports picture-in-picture viewing

• Audio/video recording capability using optional microSD card

• 2 contact outputs

• 4 trigger inputs

• PoE powered for simplified network installation

• Supports wall or desktop mounting

• Multi-angle desktop stand included

• UL certified

• Made in Japan

Advanced Communication & Monitoring

The IX-MV7-HW-JP provides a central interface for managing IP-based intercom communications. Users can answer incoming station calls, monitor compatible stations, page individual or grouped stations, and control connected door-release equipment.

Picture-in-picture functionality allows an Aiphone intercom camera and compatible ONVIF Profile S IP camera to be viewed simultaneously, providing additional visual awareness at secured entrances.

Recording Capability

Active audio and video conversations can be captured and stored using a compatible microSD card. This provides additional documentation capabilities for security desks, reception areas, facility management stations, and other monitored locations.

microSD card not included.

Product Specifications

Manufacturer: Aiphone
Model: IX-MV7-HW-JP
Series: IX | IXG Series
Product Type: IP Video Master / Answering Station
Display: 7" TFT LCD Touchscreen
Power: PoE – IEEE 802.3af Class 0
Power Draw: 4.32W
Communication: Hands-Free, Push-to-Talk, or Handset
Audio Codecs: G.711 / G.722
Video Codecs: H.264/AVC / Motion JPEG
Network Security: IEEE 802.1X
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Dimensions: 8-1/16" H × 11" W × 2-3/16" D
Mounting: Wall Mount or Desktop
Compliance: TAA Compliant
Application: Indoor Use

Ideal Applications

The Aiphone IX-MV7-HW-JP is ideal for commercial and institutional facilities requiring centralized video intercom communication, including office buildings, healthcare facilities, educational facilities, government buildings, industrial facilities, secured entrances, reception desks, and security command areas.
