Commercial IP Audio Intercom | Single Call Button | Hands-Free Communication | Weather-Resistant Stainless Steel

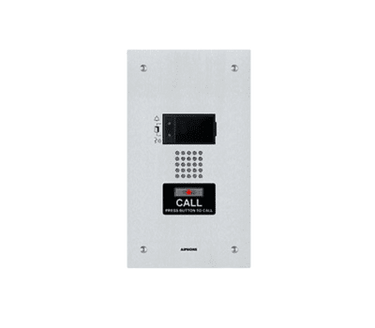

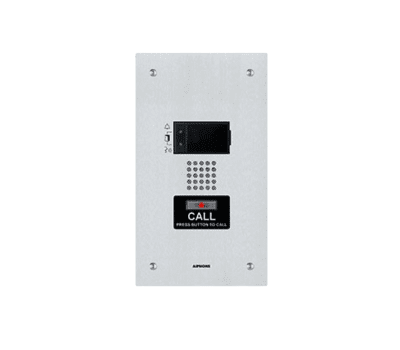

The Aiphone IX-SS IP Audio Door Station is a professional-grade, network-based intercom designed for secure entrance communication and access control in commercial and institutional facilities.

Featuring a single call button, built-in microphone and speaker, and durable stainless steel faceplate, the IX-SS allows visitors to communicate directly with designated Aiphone IX Series master stations using convenient hands-free, two-way audio.

Designed for demanding indoor and outdoor applications, the IX-SS combines weather-resistant construction, network connectivity, and integrated door-release capabilities in one dependable commercial entrance station.

With IEEE 802.3af Power over Ethernet (PoE) support, the IX-SS simplifies installation by providing power and network communication through a single Ethernet connection.

Key Features

• Single Call Button: Allows visitors to initiate communication with designated answering stations.

• Hands-Free Two-Way Audio: Built-in microphone and speaker provide convenient communication without a handset.

• IP-Based Communication: Connects to compatible Aiphone IX Series intercom systems through an Ethernet network.

• Stainless Steel Faceplate: Durable construction provides a professional appearance and protection against everyday wear.

• Weather-Resistant Design: IP55-rated protection supports properly installed indoor and outdoor applications.

• Power over Ethernet (PoE): IEEE 802.3af compatible for simplified wiring and installation.

• Remote Door Release: Built-in Form C dry contact supports operation of compatible electric locking hardware.

• Multiple Calling Destinations: Supports calling up to 20 designated master stations, with additional calling functionality available through the contact input.

• LED Status Indicators: Provides visual indications of station activity and communication status.

• Integrated Contact Input: Supports additional programmed calling functions.

• Auxiliary Audio Output: Supports connection to compatible external audio equipment.

• Flush-Mount Installation: Includes a mounting back box for a clean, secure appearance.

• Optional Surface Mounting: Compatible with the Aiphone SBX-ISDVF surface-mount enclosure.

• Audio-Only Communication: Ideal for commercial entrances where video identification is not required.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: IX-SS

• Product Type: IP Audio Door Station

• Series: IX Series

• Faceplate Material: Stainless Steel

• Call Buttons: 1

• Communication: Open-Voice, Hands-Free Two-Way Audio

• Camera: None – Audio Only

• Power Requirements: IEEE 802.3af PoE

• Network Connection: Cat-5e / Cat-6 Ethernet

• Maximum Wiring Distance: 330 Feet (100 Meters)

• Door Release Contact: Form C Dry Contact

• Door Release Rating: 24V AC/DC, 500mA

• Relay Connections: Normally Open, Common, Normally Closed

• Contact Input: Programmable Dry Contact

• Audio Output: 600Ω

• Call Destinations: Up to 20 Master Stations, with additional calling via contact input

• Status Indicators: LED Communication Indicators

• Ingress Protection: IP55

• Operating Temperature: -40°F to 140°F (-40°C to 60°C)

• Dimensions: 10-7/16" H x 5-7/8" W x 2" D

• Mounting Type: Flush Mount / Optional Surface Mount

• Included Mounting: Flush-Mount Back Box

• Optional Surface Box: SBX-ISDVF

• System Compatibility: Aiphone IX Series Intercom Systems

Recommended Applications

• Commercial Office Buildings

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Schools and Universities

• Government and Municipal Buildings

• Industrial and Manufacturing Facilities

• Warehouses and Distribution Centers

• Secured Employee Entrances

• Loading Dock Entrances

• Parking Garages and Parking Facilities

• Security Checkpoints

• Corporate Office Campuses

• Multi-Tenant Commercial Buildings

• Commercial Access Control Systems

Installation & Compatibility

The Aiphone IX-SS is designed for integration with compatible Aiphone IX Series IP Intercom Systems.

The station connects to a network using standard Cat-5e or Cat-6 Ethernet cabling and receives power through a compatible IEEE 802.3af PoE network connection.

Once properly configured, the single call button allows visitors to initiate communication with designated answering stations, while the integrated dry contact can provide remote door-release functionality when connected to compatible electric locking hardware.

Mounting Options

• Flush Mount: Uses the included mounting back box for installation into a prepared wall opening.

• Surface Mount: Optional Aiphone SBX-ISDVF surface-mount enclosure.

• Network Connection: Standard Cat-5e or Cat-6 Ethernet cable connected to compatible PoE equipment.

Important Installation Information

• Requires compatible Aiphone IX Series answering stations for standard intercom operation.

• Door-release functionality requires compatible electric locking hardware and proper electrical connections.

• A compatible PoE network connection is required.

• The station provides audio communication only and does not include a video camera.

• The included flush-mount back box is designed for installation into a properly prepared wall opening.

• Optional surface-mount enclosure, answering stations, electric locking hardware, and network equipment are sold separately unless otherwise specified.

Why Choose the Aiphone IX-SS?

The Aiphone IX-SS provides dependable commercial entrance communication through a combination of hands-free two-way audio, durable stainless steel construction, and integrated door-release capabilities.

Its IP-based communication, PoE connectivity, and weather-resistant design make it a practical solution for commercial buildings, secured entrances, industrial facilities, and institutional properties requiring reliable visitor communication.

With its single-button operation, integrated relay, and flexible mounting options, the IX-SS delivers convenient entrance management and dependable intercom functionality.
