Commercial & Multi-Tenant IP Video Intercom | 7-Inch Color Touchscreen | Hands-Free Communication | Remote Door Release

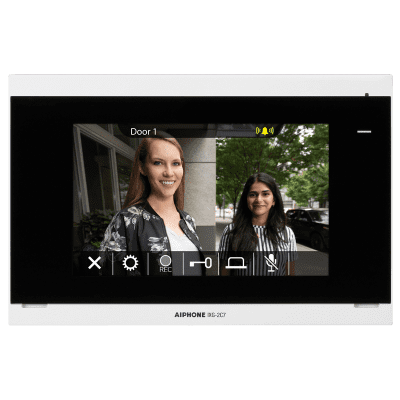

The Aiphone IXG-2C7 IP Video Tenant Station is a professional-grade, network-based video intercom answering station designed for apartment buildings, condominiums, commercial offices, mixed-use properties, and multi-tenant facilities requiring secure entrance communication and visitor management.

Featuring a 7-inch color LCD touchscreen, hands-free two-way audio, and remote door-release capabilities, the IXG-2C7 allows occupants to visually identify visitors, communicate with entrance stations, and grant authorized access directly from their tenant station.

Designed for the Aiphone IXG Series IP Multi-Tenant Video Intercom System, the IXG-2C7 supports communication with entrance stations, guard stations, and compatible individual door stations.

Each tenant unit can accommodate up to eight IXG-2C7 stations, allowing communication between stations within the same unit and integration with compatible Aiphone IXG mobile applications.

Its slim, modern design and convenient wall-mount installation make the IXG-2C7 an excellent solution for modern residential and commercial properties.

Key Features

• 7-Inch Color LCD Touchscreen: Large, easy-to-use display provides convenient visitor identification, video monitoring, and system operation.

• Hands-Free Two-Way Audio: Built-in microphone and speaker provide full-duplex communication with compatible intercom stations.

• Remote Door Release: Allows occupants to unlock compatible entrance doors directly from the touchscreen during communication.

• Video Visitor Identification: Displays live video from compatible entrance and door stations.

• Multi-Tenant Communication: Supports up to eight IXG-2C7 tenant stations within a single residential or commercial unit.

• Internal Station Communication: Allows occupants to selectively call other compatible tenant stations assigned to the same unit.

• Mobile App Integration: Supports communication with associated Aiphone IXG mobile applications when configured with compatible system equipment.

• Concierge & Guard Calling: Enables occupants to contact designated security or property management stations.

• Elevator Call Function: Supports requesting an elevator to the tenant's floor when integrated with compatible elevator control equipment.

• Video Monitoring: Allows users to monitor compatible connected entrance and door stations.

• Call History: Maintains a record of received calls for convenient review.

• MicroSD Recording: Supports expanded call history and audio/video recording with a compatible microSD card.

• Do Not Disturb Mode: Allows users to manage incoming calls based on their preferences.

• Programmable Inputs & Outputs: Provides integration with compatible external equipment and control functions.

• Power over Ethernet (PoE): IEEE 802.3af compatible for simplified network installation.

• Wall-Mount Installation: Includes a mounting bracket for a clean, secure installation.

• Optional Flush Mounting: Compatible with the Aiphone IXG-FMK-2C7 flush-mount kit.

• UL Certified: Designed to meet applicable electrical safety requirements.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: IXG-2C7

• Product Type: IP Video Tenant Station

• Series: IXG Series / IX | IXG Series

• Display: 7" TFT LCD Color Touchscreen

• Communication: Hands-Free Full-Duplex Audio

• Camera: No Built-In Camera – Displays Video from Compatible Door Stations

• Audio Codec: G.711 (μ-law / A-law)

• Video Codec: H.264/AVC, Motion JPEG

• Network: Ethernet / IP-Based Communication

• Network Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, DHCP, NTP, DNS

• Power Requirements: IEEE 802.3af Class 0 PoE

• Power Consumption: 1.9W Standby / 5.9W Maximum

• Network Cable: Cat-5e / Cat-6 Ethernet

• Maximum Network Cable Distance: 330 Feet (100 Meters)

• Tenant Station Capacity: Up to 8 Stations per Unit

• Mobile Application Support: Up to 8 Associated Mobile Applications per Unit with Compatible System Configuration

• Contact Inputs: 1 Programmable Dry Contact Input

• Relay Outputs: 2 Programmable Outputs

• Relay Rating: 24V AC/DC, 0.5A (Resistive Load)

• Recording Storage: Optional microSD Card

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Dimensions: 5-13/16" H x 8-15/16" W x 1" D

• Mounting Type: Surface Wall Mount / Optional Flush Mount

• Included Mounting: Wall-Mount Bracket

• Optional Flush-Mount Kit: IXG-FMK-2C7

• Installation Environment: Indoor

• System Compatibility: Aiphone IXG Series Multi-Tenant Intercom Systems

Recommended Applications

• Apartment Buildings

• Condominium Complexes

• Multi-Tenant Commercial Properties

• Mixed-Use Residential & Commercial Buildings

• High-Rise Residential Buildings

• Office Buildings and Corporate Suites

• Gated Residential Communities

• Senior Living and Assisted Living Facilities

• Student Housing and University Residences

• Luxury Residential Developments

• Property Management Facilities

• Secured Tenant Entrances

• Commercial Building Access Control Systems

Installation & Compatibility

The Aiphone IXG-2C7 is designed for integration with compatible Aiphone IXG Series IP Video Intercom Systems.

The station connects to the building's Ethernet network using standard Cat-5e or Cat-6 cabling and receives power through an IEEE 802.3af PoE network connection.

Once properly configured, the station allows occupants to receive video calls, communicate with visitors, release authorized doors, review call history, and contact designated security or management stations.

Mounting Options

• Wall Mount: Includes a mounting bracket for standard surface wall installation.

• Flush Mount: Optional IXG-FMK-2C7 flush-mount kit provides a recessed installation.

• Network Connection: Standard Ethernet cabling connected to compatible PoE equipment.

Important Installation Information

• Requires a compatible Aiphone IXG Series system for standard operation.

• Entrance stations, door stations, and guard stations are sold separately.

• Remote door release requires compatible electric locking hardware and proper system configuration.

• Mobile application functionality requires compatible IXG system equipment and application setup.

• Elevator control functionality requires compatible elevator interface equipment.

• Recording functionality requires a compatible microSD card, sold separately.

• A compatible PoE network connection is required.

• The station is intended for indoor installation.

• Optional flush-mount kit and additional accessories are sold separately unless otherwise specified.

Why Choose the Aiphone IXG-2C7?

The Aiphone IXG-2C7 provides a dependable video intercom answering solution for modern multi-tenant buildings by combining visitor identification, hands-free communication, remote door release, and advanced IP networking in one easy-to-use touchscreen station.

Its ability to support multiple stations within a tenant unit, communicate with property management, integrate with compatible mobile applications, and provide entrance monitoring makes it an excellent solution for residential and commercial properties requiring convenient access management.

With its 7-inch color touchscreen, PoE connectivity, slim wall-mounted design, and IXG Series compatibility, the IXG-2C7 delivers reliable communication and improved building security.
