Commercial & Multi-Tenant IP Video Intercom | Security & Concierge Station | Building-Wide Paging | Remote Door Release

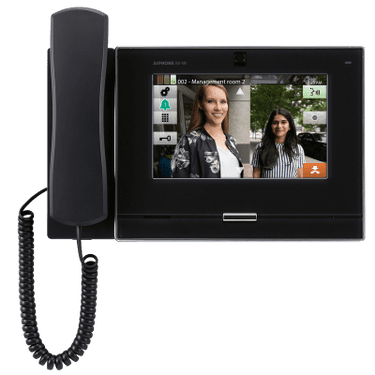

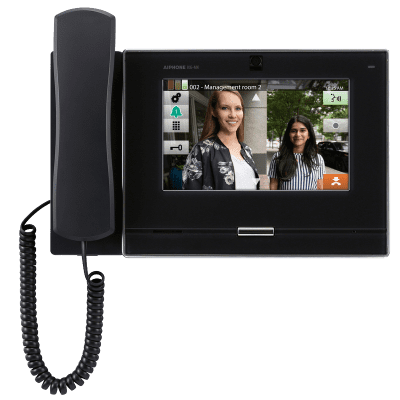

The Aiphone IXG-MK IP Video Guard Station is a professional-grade, network-based video intercom designed for security personnel, receptionists, concierge desks, and property management offices requiring reliable visitor communication and building access control.

Featuring a 7-inch color LCD touchscreen, built-in 720p video camera with privacy shutter, and hands-free or handset communication, the IXG-MK allows security personnel to communicate with visitors, tenants, and other designated stations throughout a building.

Designed specifically for Aiphone IXG Series Multi-Tenant Video Intercom Systems, the IXG-MK provides advanced functionality, including remote door release, building-wide announcements, visitor identification, and call management.

Its durable black housing, integrated privacy handset, and flexible desktop or wall-mount installation make it an excellent solution for apartment buildings, condominiums, commercial offices, corporate campuses, and secured multi-tenant properties.

Key Features

• 7-Inch Color LCD Touchscreen: Large, user-friendly display provides convenient video monitoring, call management, and system operation.

• Built-In 720p Video Camera: Integrated color camera supports two-way video communication with compatible stations.

• Camera Privacy Shutter: Allows users to cover the integrated camera when video transmission is not required.

• Hands-Free & Handset Communication: Supports full-duplex communication through the built-in speaker and microphone or privacy handset.

• Push-to-Talk Functionality: Provides an additional communication option for different operating environments.

• Multi-Tenant Guard Station: Designed for centralized security, reception, and concierge communication.

• Up to 8 Guard Stations: Supports up to eight IXG-MK stations within a single guard unit.

• 9,999-Unit Address Book: Provides extensive station directory capacity for larger multi-tenant properties.

• Remote Door Release: Allows authorized personnel to unlock compatible doors and entrance stations during communication.

• Building-Wide Paging: Enables security personnel to broadcast announcements throughout compatible building intercom systems.

• Reception Mode: Supports intercepting designated calls for centralized visitor screening and assistance.

• Picture-in-Picture Video: Simultaneously view compatible Aiphone video intercoms and ONVIF Profile S IP cameras.

• Call History: Maintains records of received calls for convenient review.

• Audio & Video Recording: Supports recording active conversations using an optional microSD card.

• SIP Compatible: Supports communication within compatible SIP-based IP intercom configurations.

• Power over Ethernet (PoE): Simplifies installation by providing power and network connectivity through Ethernet cabling.

• Programmable Inputs & Outputs: Includes two contact outputs and four trigger inputs for system integration.

• Adjustable Desktop Stand: Included stand supports 30°, 45°, and 60° viewing angles.

• Wall-Mount Installation: Includes mounting bracket for secure wall installation.

• UL Certified: Designed to meet applicable electrical safety requirements.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: IXG-MK

• Product Type: IP Video Guard / Concierge Station

• Series: IX / IXG Series

• Finish: Black

• Display: 7" TFT Color LCD Touchscreen

• Display Resolution: 800 x 400

• Camera: Built-In 1/3" CMOS, 720p

• Camera Privacy: Integrated Privacy Shutter

• Communication: Hands-Free Full-Duplex, Push-to-Talk, or Handset

• Handset: Integrated Privacy Handset

• Audio Codec: G.711 (μ-law / A-law)

• Video Codec: H.264/AVC, Motion JPEG

• Network Protocols: IPv4, IPv6, TCP, UDP, SIP

• Video Integration: ONVIF Profile S

• Power Requirements: IEEE 802.3af Class 0 PoE

• Power Consumption: 4.32 Watts

• Network Interface: 10BASE-T / 100BASE-TX Ethernet (RJ-45)

• Network Security: IEEE 802.1X

• Guard Station Capacity: Up to 8 per Guard Unit

• Address Book Capacity: Up to 9,999 Units

• Contact Outputs: 2

• Trigger Inputs: 4

• Door Release Contact: Normally Open Dry Contact

• Door Release Rating: 24V AC/DC, 1A

• Speaker Output: 8Ω, 0.5 Watt

• Audio Input: 600Ω

• Recording Storage: Optional microSD Card

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Dimensions: 8-1/16" H x 11" W x 2-3/16" D

• Mounting Type: Desktop or Wall Mount

• Desktop Stand Angles: 30°, 45°, 60°

• Included Mounting: Adjustable Desktop Stand and Wall-Mount Bracket

• Installation Environment: Indoor

• System Compatibility: Aiphone IX / IXG Series IP Intercom Systems

Recommended Applications

• Apartment Buildings

• Condominium Complexes

• Multi-Tenant Commercial Properties

• Mixed-Use Residential & Commercial Buildings

• High-Rise Residential Buildings

• Security and Concierge Desks

• Property Management Offices

• Commercial Office Buildings

• Corporate Office Campuses

• Hospitals and Healthcare Facilities

• Assisted Living Communities

• Student Housing Facilities

• Gated Residential Communities

• Government and Municipal Buildings

• Secured Building Entrances

Installation & Compatibility

The Aiphone IXG-MK is designed for integration with compatible Aiphone IXG Series Multi-Tenant Video Intercom Systems and supports communication with compatible IX / IXG Series devices.

The station connects to a network using standard Cat-5e or Cat-6 Ethernet cabling and receives power through a compatible IEEE 802.3af PoE network connection.

Once properly configured, security personnel can receive visitor calls, communicate with tenants, release authorized entrance doors, monitor compatible cameras, and make building-wide announcements.

Mounting Options

• Desktop Mount: Includes an adjustable stand supporting 30°, 45°, and 60° viewing angles.

• Wall Mount: Includes a wall-mount bracket for secure installation.

• Network Connection: Standard Ethernet connection to compatible PoE equipment.

Important Installation Information

• Requires a compatible Aiphone IXG Series system for full guard-station functionality.

• Programming and configuration are performed through the Aiphone IXG Support Tool.

• Door-release functionality requires compatible electric locking hardware and proper electrical connections.

• Compatible entrance stations, tenant stations, and door stations are sold separately.

• Audio and video recording requires an optional microSD card, sold separately.

• ONVIF camera monitoring requires compatible third-party IP cameras and proper network configuration.

• A compatible PoE network connection is required.

• The station is intended for indoor installation.

• Additional network equipment, locking hardware, and optional accessories are sold separately unless otherwise specified.

Why Choose the Aiphone IXG-MK?

The Aiphone IXG-MK provides a centralized video intercom and access management solution for modern commercial and multi-tenant buildings.

Its combination of 7-inch touchscreen operation, video visitor identification, privacy handset communication, remote door release, and building-wide paging allows security personnel and property managers to communicate efficiently while maintaining control over building entrances.

With its 9,999-unit address book capacity, SIP compatibility, PoE connectivity, and flexible mounting options, the IXG-MK is an excellent choice for properties requiring reliable, professional-grade security and concierge communication.
