Commercial Elevator Access Control | 20 Programmable Relays | Multi-Tenant Integration | Power over Ethernet

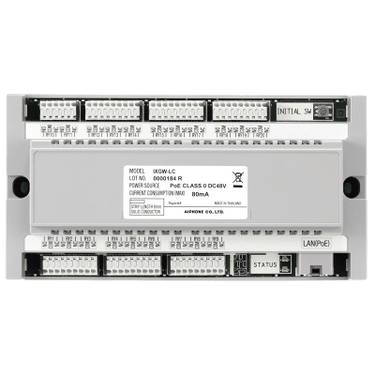

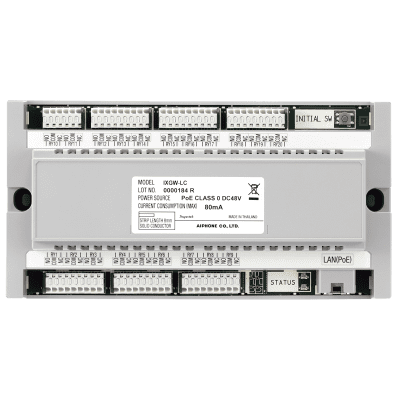

The Aiphone IXGW-LC Elevator Lift Control Adaptor is a commercial-grade, network-based control interface designed to integrate elevator systems with compatible Aiphone IXG Series IP Video Intercom Systems.

Featuring 20 programmable Form C dry contact relays, the IXGW-LC enables controlled elevator access based on visitor calls, tenant communication, and authorized access functions.

Designed for apartment buildings, condominiums, multi-tenant commercial properties, and high-rise facilities, the IXGW-LC helps improve building security by allowing visitors access to authorized floors while restricting access to other areas when properly integrated with a compatible elevator control system.

Supporting up to 16 lift control adaptors per building, the IXGW-LC provides a scalable solution for properties with multiple elevators and controlled-access floors.

Its compact design, flexible mounting options, and IEEE 802.3af Power over Ethernet (PoE) connectivity make it ideal for modern commercial elevator access control installations.

Key Features

• 20 Programmable Form C Relays: Provides 20 dry contact relay outputs for integration with compatible elevator control equipment.

• Elevator Floor Access Control: Helps restrict visitor elevator access to designated floors based on authorized tenant interactions.

• Multi-Tenant Intercom Integration: Works with compatible Aiphone IXG Series entrance stations, tenant stations, and intercom system components.

• Visitor Floor Authorization: Enables programmed access to the appropriate tenant floor after a visitor has been authorized.

• Elevator Call Functions: Can trigger compatible elevator control inputs to request an elevator at designated locations.

• Tenant-Controlled Elevator Calling: Supports elevator call functions initiated through compatible tenant stations or configured mobile applications.

• Scalable System Design: Supports up to 16 IXGW-LC adaptors per building.

• Form C Dry Contact Outputs: Each relay provides normally open, normally closed, and common connections.

• Power over Ethernet (PoE): IEEE 802.3af Class 0 support simplifies power and network installation.

• Low Power Consumption: Operates at approximately 2.1W standby and 4.4W maximum.

• Ethernet Network Connectivity: Supports 10BASE-T and 100BASE-TX network communication.

• Network Security: Supports TLS 1.2 encryption and IEEE 802.1X network security.

• Programmable Relay Functions: Allows relay assignments based on entrance calls, tenant actions, and configured control events.

• Wall-Mount Installation: Can mount directly to a suitable wall surface.

• DIN Rail Mounting Option: Supports installation on a compatible DIN rail, sold separately.

• Status Indicators: Integrated orange and green LEDs provide operating and communication status.

• UL Listed: Meets applicable UL 62368-1 and cUL 62368-1 electrical safety standards.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: IXGW-LC

• Product Type: Elevator Lift Control Adaptor

• Series: IXG Series / IX | IXG Series

• Application: Elevator Access Control Integration

• Relay Outputs: 20 Programmable Form C Dry Contacts

• Relay Configuration: Normally Open (NO), Normally Closed (NC), Common (COM)

• Relay Contact Rating: 24V AC/DC, 500mA (Resistive Load)

• Maximum Adaptors: 16 Per Building

• Power Source: IEEE 802.3af Class 0 PoE

• Standby Power Consumption: 2.1 Watts

• Maximum Power Consumption: 4.4 Watts

• Network Interface: Ethernet, 10BASE-T / 100BASE-TX

• Network Cable: Cat-5e / Cat-6

• Maximum Cable Distance: 330 Feet (100 Meters)

• Network Protocols: IPv4, IPv6, TCP, UDP, HTTP, HTTPS, IGMP, MLD, SFTP, DHCP, NTP, DNS, TLS

• Encryption: TLS 1.2

• Port Security: IEEE 802.1X

• Packet Transmission: Unicast / Multicast

• Operating Temperature: 14°F to 122°F (-10°C to 50°C)

• Enclosure Material: Flame-Retardant Resin

• Color: Gray

• Dimensions: 4-1/4" H x 8-1/4" W x 2-3/8" D

• Weight: Approximately 0.69 lbs.

• Mounting Type: Direct Wall Mount / Optional DIN Rail

• DIN Rail Size: 35mm x 170mm

• Installation Environment: Indoor

• Certifications: UL 62368-1, cUL 62368-1

• System Compatibility: Compatible Aiphone IXG Series Multi-Tenant Intercom Systems

Elevator Control Functions

The Aiphone IXGW-LC provides programmable relay functions that can be integrated with compatible elevator control equipment.

1. Visitor Elevator Calling

When a visitor initiates a call from a compatible entrance station, a programmed relay can signal the elevator control system to request an elevator at the designated pickup floor.

2. Authorized Floor Access

After a tenant authorizes a visitor, the adaptor can activate the appropriate relay output to permit access to the tenant's designated floor through the compatible elevator control system.

3. Tenant Elevator Requests

Tenants can initiate supported elevator call functions through compatible Aiphone tenant stations or configured intercom mobile applications.

4. Multiple Elevator Integration

With support for up to 16 adaptors per building, the IXGW-LC accommodates larger properties requiring additional relay outputs across multiple elevators or elevator groups.

Recommended Applications

• Apartment Buildings

• Condominium Complexes

• High-Rise Residential Buildings

• Multi-Tenant Commercial Properties

• Mixed-Use Residential & Commercial Buildings

• Commercial Office Towers

• Corporate Office Buildings

• Secured Elevator Lobbies

• Gated Residential Developments

• Luxury Residential Properties

• Property Management Facilities

• Buildings with Restricted Floor Access

• Commercial Elevator Access Control Systems

Installation & Compatibility

The Aiphone IXGW-LC is designed for integration with compatible Aiphone IXG Series IP Video Intercom Systems and third-party elevator control equipment.

The adaptor connects to the building's network using standard Cat-5e or Cat-6 Ethernet cabling and receives power through an IEEE 802.3af PoE network connection.

Its 20 Form C relay outputs connect to compatible elevator controller inputs, allowing programmed control functions based on system events and authorized tenant interactions.

Mounting Options

• Wall Mount: Installs directly to a suitable wall surface using the integrated mounting points.

• DIN Rail Mount: Compatible with a standard 35mm DIN rail for equipment room or control cabinet installation.

• Network Connection: Standard Ethernet connection to compatible PoE network equipment.

Important Installation Information

• Requires a properly configured Aiphone IXG Series intercom system.

• Compatible elevator control equipment is required for elevator access functionality.

• Relay outputs must be properly connected and programmed for the intended elevator control functions.

• IXGW-LC programming is performed through the appropriate Aiphone IXG Support Tool.

• A compatible IEEE 802.3af PoE network connection is required.

• Designed for indoor installation only.

• DIN rail, PoE network equipment, elevator controllers, entrance stations, and tenant stations are sold separately unless otherwise specified.

• This adaptor provides control signals to compatible elevator equipment; it does not independently operate elevator motors or replace the elevator's safety and control systems.

Why Choose the Aiphone IXGW-LC?

The Aiphone IXGW-LC provides a flexible and scalable solution for integrating elevator access control with commercial and multi-tenant IP intercom systems.

Its combination of 20 programmable Form C relays, authorized floor access control, PoE connectivity, and IXG Series compatibility helps property managers and security personnel improve building access management.

Whether used in a high-rise condominium, multi-tenant office tower, or mixed-use commercial building, the IXGW-LC provides dependable relay-based integration for controlled elevator access.
