Install a complete professional IP video intercom system without building and programming the system from individual components with the Aiphone IXS-HBDV Preprogrammed IX Series Video Intercom Box Set.

Designed as an easy-to-install introduction to Aiphone's powerful IX Series IP intercom platform, the IXS-HBDV arrives preconfigured with an IX-DV surface-mount video door station, IX-MV7-HB 7" color touchscreen answering station with handset, 8-port PoE switch, and USB drive containing the system configuration file and instructional videos.

The basic kit requires no initial IX system programming. Connect the included stations to the PoE switch using appropriate Ethernet cabling, complete the physical installation, and the preprogrammed door and answering stations are ready to communicate.

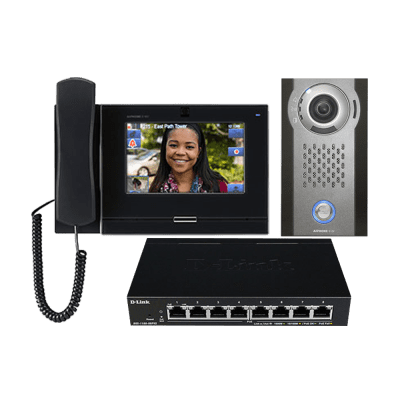

Kit Includes

• 1 × IX-DV – Surface-Mount IP Video Door Station

• 1 × IX-MV7-HB – 7" IP Video Answering Station with Handset

• 1 × 8-Port PoE Network Switch

• 1 × USB Drive with Configuration File and Instructional Videos

Key Features

• Genuine Aiphone IXS-HBDV

• Current Aiphone IX Series box set

• Preprogrammed before installation

• Plug-and-play basic video intercom system

• No initial IX programming required for included devices

• Complete door-to-answering-station solution

• Includes surface-mount IP video door station

• Includes 7" touchscreen IP video answering station

• Includes private handset communication

• Includes 8-port PoE switch

• Includes system configuration backup

• Includes instructional installation videos

• CAT-5e / CAT-6 IP architecture

• SIP-compatible IX components

• ONVIF Profile S video support

• PoE-powered stations

• Video visitor identification

• Hands-free communication

• Private handset communication

• Door-release capability

• Entrance monitoring

• microSD recording capability

• Expandable IX Series architecture

• Ideal for locksmiths and low-voltage installers moving into IP intercom systems

Included IX-DV Video Door Station

The included IX-DV is Aiphone's surface-mounted IP video door station for the IX | IXG platform.

It provides visitor calling, video identification, hands-free communication, entrance monitoring, door release, and network-video integration.

IX-DV Key Features

• Surface-mount IP video door station

• Aluminum die-cast enclosure

• 1/3" CMOS camera

• 1.23-megapixel video

• White LED for low-light illumination

• Minimum illumination approximately 5 lux

• Hands-free communication

• SIP compliant

• ONVIF Profile S compliant

• RTSP video streaming

• IEEE 802.1X network security

• PoE powered

• Optional 24VDC capability

• PoE pass-through capability

• 2 programmable contact outputs

• 6 programmable trigger inputs

• microSD audio/video recording capability

• Weather resistant

• Vandal resistant

• IP54

• IK08

• Operating temperature -40°F to 140°F

IX-DV Specifications

Model: IX-DV
Type: Surface-Mount IP Video Door Station
Camera: 1/3" CMOS
Resolution: 1.23 Megapixel
Minimum Illumination: 5 Lux
Communication: Hands-Free
Power: IEEE 802.3af PoE Class 0 or 24VDC
Power Draw: 5.28W
Audio Codecs: G.711 μ-law / A-law, G.722
Video Codecs: H.264/AVC, Motion JPEG
Relay Outputs: 2
Trigger Inputs: 6
Protection: IP54 / IK08
Operating Temperature: -40°F to 140°F
Height: 8-1/16"
Width: 4-1/2"
Depth: 2-1/16"
Mounting: Surface Mount
Mounting Bracket: Included

Included IX-MV7-HB Answering Station

The included IX-MV7-HB provides the operator interface for answering calls from the entrance.

It combines a large touchscreen with both hands-free and private handset communication.

IX-MV7-HB Key Features

• 7" TFT LCD touchscreen

• Black finish

• Privacy handset

• Full-duplex handset communication

• Full-duplex hands-free communication

• Push-to-talk simplex communication

• Built-in local camera

• Physical camera privacy shutter

• SIP compliant

• ONVIF Profile S compliant

• Picture-in-Picture capability

• 8 customizable speed-dial buttons

• Address book supporting up to 500 stations

• Station monitoring

• Scan monitoring

• Paging

• Line supervision

• Scheduled device checks

• Door release

• microSD recording capability

• 2 programmable contact outputs

• 4 programmable trigger inputs

• 600Ω audio input

• 8Ω external speaker output

• PoE powered

• Desk or wall mounting

IX-MV7-HB Specifications

Model: IX-MV7-HB
Type: IP Video Answering Station with Handset
Display: 7" TFT LCD Touchscreen
Camera: 1/3" CMOS
Communication: Full-Duplex Handset / Full-Duplex Hands-Free / Push-to-Talk
Power: IEEE 802.3af PoE Class 0
Power Draw: 4.32W
Network: 10BASE-T / 100BASE-TX
Audio Codecs: G.711 μ-law / A-law, G.722
Video Codecs: H.264/AVC, Motion JPEG
Contact Outputs: 2
Trigger Inputs: 4
Operating Temperature: 32°F to 104°F
Height: 8-1/16"
Width: 11"
Depth: 2-3/16"
Mounting: Desk or Wall

Multi-Angle Desk Stand

The IX-MV7-HB includes a desk stand that can be positioned at:

• 30°

• 45°

• 60°

A wall-mount bracket is also included with the answering station.

Included 8-Port PoE Switch

The IXS-HBDV includes an:

8-Port PoE Network Switch

The switch supplies the Ethernet connectivity and PoE required by the included IX devices.

Because the PoE switch is already included, a separate PoE switch is not required for the basic two-station kit.

Aiphone's current product page identifies the included equipment simply as an 8-port PoE switch and does not publish a specific switch model or detailed power budget as part of the IXS-HBDV product specification.

Why PoE Simplifies Installation

Power over Ethernet allows the system to transmit:

• Network data

• Intercom audio

• Intercom video

• Device power

using the network connection.

This reduces the need to provide a separate local power supply at each included station.

Preprogrammed Plug-and-Play Operation

The major advantage of the IXS-HBDV is that the included Aiphone stations are already configured to operate together.

Aiphone describes the kit as:

Plug N' Play

and:

Ready to Install

For the included basic system, the installer does not need to build the IX project from scratch in the IX Support Tool.

This significantly reduces commissioning time for a simple:

1 Door Station × 1 Answering Station

installation.

Typical System Layout

A basic IXS-HBDV installation is:

IX-DV Door Station

↓

CAT-5e / CAT-6

↓

Included 8-Port PoE Switch

↓

CAT-5e / CAT-6

↓

IX-MV7-HB Answering Station

When a visitor presses the IX-DV call button:

1. The IX-MV7-HB receives the call.

2. Video from the IX-DV appears on the 7" touchscreen.

3. The operator answers hands-free or with the privacy handset.

4. The operator communicates with the visitor.

5. The associated entrance can be released when appropriate.

USB Configuration Drive

Aiphone includes a USB drive containing the original system configuration and instructional material.

The USB drive includes:

• IX Series Kit Configuration File

• Video 1 – Import IX Series Configuration File

• Video 2 – Setting Date and Time

• Video 3 – Adding a Door Station

• Video 4 – Adding a Master Station

• Video 5 – Adding an IXW-MA

The configuration file provides an important backup of the factory-programmed system.

Keep the USB drive with the project's service documentation after installation.

Expandable IX Series Architecture

Although the IXS-HBDV begins as a simple two-station system, it uses standard IX Series equipment rather than proprietary kit-only devices.

That means a qualified installer can expand or modify the system using compatible IX equipment and the appropriate Aiphone programming tools.

Potential additions can include:

• Additional IX door stations

• Additional answering stations

• PC answering stations

• Remote relay adaptors

• Emergency stations

• Paging stations

• SIP integration

• Compatible ONVIF cameras

Additional equipment requires appropriate system programming.

Important Expansion Note

The original included pair is preprogrammed.

Adding equipment is different.

When adding another:

• Door station

• Answering station

• Relay adaptor

• Other IX component

the installer must update the system configuration using the applicable Aiphone programming procedure.

The plug-and-play description applies to the original preconfigured kit.

Video Visitor Identification

The IX-DV camera sends visitor video directly to the IX-MV7-HB answering station.

This allows the operator to visually identify a visitor before granting entry.

The system is suitable for:

• Front entrances

• Employee entrances

• Security vestibules

• Reception entrances

• Office doors

• Warehouse offices

• Commercial facilities

Hands-Free or Private Communication

The IX-MV7-HB provides three communication methods.

Hands-Free Full Duplex

Allows normal two-way conversation through the station speaker and microphone.

Push-to-Talk

Useful in noisy environments.

Privacy Handset

Allows the operator to communicate through the handset without broadcasting the conversation through the room speaker.

Door Release

The included IX-DV provides programmable contact outputs that can be used as part of a door-release system.

The operator can answer the visitor and activate door release from the IX-MV7-HB.

Compatible applications may include:

• Electric strikes

• Access-control inputs

• Gate interfaces

• External lock relays

Locking hardware and its required power supply are not included with the IXS-HBDV.

Always verify electrical load requirements before connecting door hardware directly to an IX relay.

Remote Secure Relay Option

For entrances where the release relay should be located inside the secured building rather than at the exterior station, an appropriate current Aiphone remote I/O adaptor such as the:

IXW-MAA

can be added.

This allows door-control wiring to terminate in a protected interior equipment location.

Additional programming is required.

Entrance Monitoring

The IX-MV7-HB can monitor compatible IX stations.

This allows an operator to view or listen at the entrance even when a visitor has not initiated a call, subject to system configuration.

ONVIF Integration

Both the IX platform and included stations support video-security integration.

The IX-DV can provide compatible network video, and the IX-MV7-HB supports Picture-in-Picture with an associated compatible:

ONVIF Profile S IP Camera

For example, the operator can view:

• Close-up video from the IX-DV

and:

• Wider surveillance video from a nearby IP camera

during the same entrance interaction.

Third-party camera compatibility should be verified before installation.

SIP Integration

The included IX components are SIP capable.

This makes future integration with compatible:

• SIP servers

• IP PBXs

• VoIP platforms

• Aiphone IXW-PBXA

possible where required.

SIP integration is not required to operate the basic IXS-HBDV kit.

Local Recording

The IX-DV and IX-MV7-HB support applicable recording functions using compatible:

microSD Cards

microSD cards are not included.

Recording capability can be useful for documenting entrance communication and visitor activity.

Network Cabling

Use suitable:

• CAT-5e

• CAT-6

Ethernet cable for the IP connections.

Standard Ethernet topology generally allows a maximum network segment of:

330 ft / 100 m

between a station and the applicable network node.

Network cabling is not listed by Aiphone as an included IXS-HBDV kit component.

IX-DV Environmental Protection

The included exterior door station is rated:

IP54

for applicable weather resistance and:

IK08

for impact resistance.

Operating temperature:

-40°F to 140°F

This makes the IX-DV suitable for many exterior commercial entrance applications when properly installed.

Indoor Answering Station

The IX-MV7-HB is an indoor station.

Operating temperature:

32°F to 104°F

Install the answering station in an appropriate protected interior location such as:

• Reception desk

• Security office

• Administrative office

• Guard desk

• Property-management office

IXS-HBDV vs. Buying Components Separately

The IXS-HBDV uses standard Aiphone products, but offers several advantages over purchasing them individually.

IXS-HBDV Kit

Includes:

• IX-DV

• IX-MV7-HB

• 8-port PoE switch

• Preloaded configuration

• Instructional USB drive

Primary advantage:

Preprogrammed and ready to install

Individual Components

Buying the IX-DV and IX-MV7-HB separately allows a completely custom system to be built but requires:

• Compatible PoE infrastructure

• IX system programming

• Device configuration

• Project commissioning

For a straightforward one-door application, the IXS-HBDV significantly simplifies the initial setup.

Excellent Entry Point for IP Intercom Installation

Aiphone introduced the IXS-HBDV in part to make the transition from traditional analog intercom systems to IP systems easier for:

• Locksmiths

• Security installers

• Door hardware contractors

• Low-voltage contractors

• Access-control installers

The kit removes the initial system-selection and configuration steps while still providing standard expandable IX hardware.

Ideal Applications

• Small commercial offices

• Front entrances

• Reception areas

• Warehouses

• Industrial offices

• Healthcare offices

• Schools

• Small government facilities

• Retail offices

• Employee entrances

• Property-management offices

• Security vestibules

• Single-door commercial intercom systems

• Locksmith-installed video intercoms

• Access-control integration

• First-time IX Series installations

Important Ordering Information

This listing is for the complete:

Aiphone IXS-HBDV Preprogrammed IX Video Intercom Box Set

Included

• 1 × IX-DV Surface-Mount IP Video Door Station

• 1 × IX-MV7-HB 7" IP Video Answering Station with Handset

• 1 × 8-Port PoE Switch

• 1 × USB Configuration / Instruction Drive

Not Included

Unless specifically added separately, the kit does not include:

• CAT-5e / CAT-6 field cabling

• Electric strike

• Magnetic lock

• Lock power supply

• Access-control panel

• microSD cards

• Additional IX stations

Programming

The original kit is:

Preprogrammed

and requires no initial programming for normal operation of the supplied stations.

Adding or changing devices may require use of the:

Aiphone IX Support Tool

and appropriate system programming procedures.
