Integrate Aiphone IX and IXG Series intercom stations with SIP phones, analog telephones, traditional telephone lines, and external telephone numbers using the Aiphone IXW-PBXA IP PBX Adaptor.

Based on the Grandstream UCM6302 IP PBX platform, the IXW-PBXA provides a centralized communications bridge between Aiphone IX | IXG Series devices and compatible third-party telephone systems.

The IXW-PBXA supports up to 500 registered SIP devices and 75 simultaneous calls, making it suitable for commercial buildings, campuses, healthcare facilities, schools, multi-tenant properties, and security applications that need intercom-to-telephone communication.

Key Features

• Genuine Aiphone IXW-PBXA

• Current IX | IXG Series IP PBX Adaptor

• Based on Grandstream UCM6302

• Connects IX / IXG stations with non-Aiphone SIP devices

• Allows intercom calls to compatible IP phones

• Supports calls to external telephone numbers through a VoIP trunk

• Supports up to 500 registered SIP devices

• Supports up to 75 concurrent calls

• Supports SIP video endpoints

• 2 FXO PSTN line ports

• 2 FXS analog telephone ports

• Gigabit Ethernet networking

• Integrated PoE+ networking capability

• Built-in voicemail

• Built-in call queues

• Built-in call recording server

• Call recordings accessible through web interface

• Built-in Call Detail Records

• Supports inbound and outbound calling routes

• Supports ring groups / multiple-extension calling

• Supports SIP trunks

• Supports analog telephone lines

• Supports analog telephones

• Supports H.264 video

• Supports H.263 / H.263+ video

• Supports H.265 video

• Supports VP8 video

• Secure SRTP communications

• TLS support

• HTTPS management

• SSH support

• IPv6 capable

• OpenVPN support

• Web-browser programming

• 12VDC power adapter included

Product Specifications

Manufacturer: Aiphone
Model: IXW-PBXA
Series: IX | IXG Series
Product Type: IP PBX Adaptor
Underlying Platform: Grandstream UCM6302
Maximum Registered SIP Devices: 500
Maximum Concurrent Calls: 75
SIP Video Endpoint Support: Yes
PSTN FXO Ports: 2
Analog FXS Ports: 2
Power Source: 12VDC, 1.5A
Power Adapter: Included
Network: Gigabit Ethernet
Integrated PoE+: IEEE 802.3at
Video Codecs: H.264, H.263, H.263+, H.265, VP8
Encryption: SRTP, TLS, HTTPS, SSH
Operating Temperature: 32°F to 113°F (0°C to 45°C)
Height: 1-1/8"
Width: 10-5/8"
Depth: 7"
Metric Dimensions: 28.6 × 269.9 × 177.8 mm

Connect IX / IXG Intercoms to Telephones

The IXW-PBXA allows compatible Aiphone stations to communicate beyond traditional intercom answering stations.

A properly configured system can route calls between Aiphone equipment and compatible:

• SIP desk phones

• IP phones

• SIP video phones

• Analog telephones

• External telephone numbers

• VoIP telephone services

• Traditional PSTN telephone lines

This gives installers considerably more flexibility when designing an IX or IXG system.

External Telephone Calling

With a properly configured VoIP trunk, compatible Aiphone stations can call:

External Telephone Numbers

This can allow an entrance or intercom station to reach:

• Security personnel

• Property managers

• After-hours personnel

• Receptionists

• Remote offices

• Other approved telephone destinations

Outgoing routes and trunk settings are configured through the IXW-PBXA web interface.

Incoming Telephone Integration

The PBX can also route applicable telephone calls toward registered endpoints.

The exact inbound calling behavior depends on:

• SIP trunk configuration

• Inbound routes

• Extension programming

• Ring groups

• Aiphone station configuration

500 Registered SIP Devices

The IXW-PBXA supports up to:

500 Registered SIP Devices

Possible registered endpoints can include compatible:

• Aiphone IX stations

• Aiphone IXG stations

• SIP desk phones

• SIP video phones

• Softphones

• Other supported SIP endpoints

This provides enough capacity for larger commercial and campus applications.

75 Concurrent Calls

The IXW-PBXA supports up to:

75 Concurrent Calls

This allows multiple independent conversations to occur simultaneously within the PBX infrastructure.

Actual system performance depends on:

• Network bandwidth

• Codec selection

• SIP configuration

• VoIP provider

• Registered endpoint types

• Security / encryption settings

SIP Video Endpoint Support

The IXW-PBXA supports compatible:

SIP Video Endpoints

Video codecs include:

• H.264

• H.263

• H.263+

• H.265

• VP8

This allows compatible Aiphone video intercom equipment to participate in supported SIP video applications.

Two FXO Ports

The IXW-PBXA includes:

2 FXO Ports

FXO ports are used to connect compatible traditional analog:

PSTN Telephone Lines

This can allow the PBX to place or receive calls through conventional analog telephone service where properly configured.

Typical applications include:

• Existing analog telephone lines

• Backup telephone service

• Traditional building telephone infrastructure

Two FXS Ports

The IXW-PBXA also includes:

2 FXS Ports

These ports can connect compatible analog telephone devices such as:

• Standard analog desk phones

• Certain analog telephone equipment

• Compatible legacy communication devices

The PBX supplies the analog telephone interface required by the connected device.

VoIP Trunk Support

The IXW-PBXA can communicate with external telephone networks through a compatible:

VoIP / SIP Trunk

This can eliminate the need for dedicated analog telephone lines where compatible internet-based telephone service is available.

VoIP service is obtained separately from the appropriate service provider.

SIP Trunk Configuration

Aiphone's current IXW-PBXA programming guide includes configuration for:

• SIP trunk settings

• Phone-line trunks

• Extensions

• Outbound routes

• Multi-extension calling

The trunk provider's credentials and network settings are entered through the PBX web interface.

Outbound Routes

Outbound routes determine which calls are sent through a selected:

• SIP trunk

• Analog telephone line

• Other configured telephone path

This allows different dialing patterns to be assigned to different communications routes.

Calling Multiple Extensions

The IXW-PBXA can be configured so an incoming intercom call reaches multiple telephone extensions.

This can be useful when a visitor needs to reach whichever employee or security operator is available.

Potential applications include:

• Security teams

• Reception groups

• Property-management staff

• After-hours personnel

• Facility teams

Call Queues

The IXW-PBXA includes:

Call Queue Management

Calls can be held and distributed to available operators when multiple calls arrive.

This is useful for locations such as:

• Security centers

• Reception departments

• Property-management offices

• Campus operations

• Healthcare security desks

Voicemail

Built-in:

Voicemail

allows registered extensions to receive recorded messages according to the configured telephone-system settings.

This is useful when calls cannot be answered immediately.

Built-In Call Recording

The IXW-PBXA includes a:

Built-In Call Recording Server

Applicable calls can be recorded and stored by the PBX.

Recordings can be accessed through the:

Web Management Interface

according to system permissions.

Call recording should always be configured and used in accordance with applicable privacy and recording laws.

Call Detail Records

The IXW-PBXA maintains:

Call Detail Records – CDR

These records can help administrators review information such as:

• Caller

• Called extension

• Call date

• Call time

• Call duration

• Call status

This is useful for troubleshooting and administrative review.

Web-Based Programming

The IXW-PBXA is programmed through a web browser.

Aiphone's current programming guide specifies access using the unit's:

IP Address

and management port:

8089

Example format:

https://[IXW-PBXA IP Address]:8089

The actual IP address is shown on the PBX display.

Initial Login

The initial administrator password is printed on a label on the IXW-PBXA.

During initial setup, the installer is prompted to:

• Change the administrator password

• Enter a recovery email address

• Complete the system setup wizard

The new credentials should be documented and stored securely.

IX / IXG Programming

IXW-PBXA integration also requires the appropriate Aiphone system configuration.

Aiphone currently provides integration instructions for:

• IX Support Tool

• IXG Support Tool

The IX / IXG stations must already be operational and properly associated before PBX integration is completed.

Gigabit Ethernet

The IXW-PBXA uses:

Gigabit Ethernet

for network connectivity.

Aiphone's current specification identifies self-adaptive Gigabit interfaces with integrated:

IEEE 802.3at PoE+

capability.

Use appropriate structured Ethernet cabling and managed network infrastructure for the installation.

Network Protocols

Supported protocols include:

• TCP

• UDP

• IPv4

• IPv6

• RTP

• RTCP

• ICMP

• ARP

• DNS

• DDNS

• DHCP

• NTP

• TFTP

• SSH

• HTTP

• HTTPS

• PPPoE

• SIP

• STUN

• SRTP

• TLS

• LDAP

• HDLC

• HDLC-ETH

• PPP

• OpenVPN

Secure Communications

Aiphone lists security support including:

• SRTP

• TLS

• HTTPS

• SSH

These technologies provide protection for applicable:

• SIP communication

• Media streams

• Web administration

• Remote command access

Security functionality depends on proper configuration of all connected devices.

12VDC Power Supply

The IXW-PBXA is supplied with a:

12VDC, 1.5A Power Adapter

The supplied adapter is the standard local power source specified by Aiphone.

Provide a suitable AC receptacle at the equipment location.

Indoor Installation

The IXW-PBXA is designed for protected indoor installation.

Operating temperature:

32°F to 113°F

or:

0°C to 45°C

Typical locations include:

• Telecommunications rooms

• Network closets

• Security offices

• Server rooms

• Equipment cabinets

• Property-management offices

It is not intended for direct outdoor exposure.

IXW-PBXA vs. IXW-PBX

The IXW-PBXA is the current IP PBX adaptor.

The earlier:

IXW-PBX

is a legacy / discontinued model.

IXW-PBXA

• Current model

• Grandstream UCM6302 platform

• Up to 500 registered SIP devices

• Up to 75 concurrent calls

• Current IX / IXG programming documentation

IXW-PBX

• Previous-generation PBX

• Legacy Aiphone product

• Up to 500 SIP devices

• Lower maximum concurrent-call capacity

• Superseded by IXW-PBXA

For new projects requiring an Aiphone-supported PBX adaptor, specify the:

IXW-PBXA

IXW-PBXA vs. IXW-MAA

The two adaptors perform completely different functions.

IXW-PBXA

IP PBX Adaptor

Used for:

• SIP telephone integration

• External telephone calls

• Analog telephone lines

• Analog phones

• VoIP trunks

• Voicemail

• Call queues

IXW-MAA

Multi-Purpose I/O Adaptor

Used for:

• Secure remote door-release relays

• 10 Form C relay outputs

• 4 contact inputs

• Lock-control integration

A complete IX / IXG project can use both adaptors when both telephone integration and secure relay control are required.

Compatible IX / IXG Equipment

The IXW-PBXA is designed for integration with compatible:

• Aiphone IX Series stations

• Aiphone IXG Series stations

• SIP answering equipment

• SIP telephone endpoints

Common equipment can include:

• IX-DV – Surface-Mount IP Video Door Station

• IX-DVF – Flush-Mount IP Video Door Station

• IX-DVM – Mullion IP Video Door Station

• IX-EA – Compact IP Video Door Station

• IX-MV7-B – IP Video Answering Station

• IX-MV7-W – IP Video Answering Station

• IX-MV7-HB – IP Video Answering Station with Handset

• IXG-MK – IP Video Guard Station

• IXG-DM7-HIDA – IP Video Entrance Station

• Other compatible IX / IXG SIP equipment

Ideal Applications

• Commercial office buildings

• Corporate campuses

• Schools and universities

• Healthcare facilities

• Government facilities

• Industrial facilities

• Multi-tenant properties

• Security operations centers

• Property-management offices

• Reception desks

• Remote building entrances

• SIP telephone integration

• Analog telephone integration

• VoIP telephone systems

• IX Series systems

• IXG Series systems

Important Ordering Information

This listing is for the:

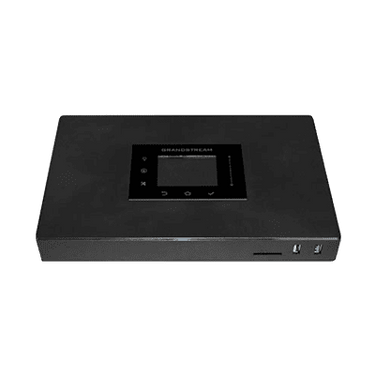

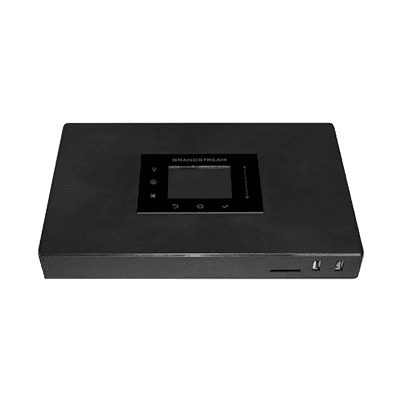

Aiphone IXW-PBXA IP PBX Adaptor

Included Power

Includes:

12VDC, 1.5A Power Adapter

Telephone Service

External telephone service is not included.

Depending on the project, the system may require:

• SIP / VoIP trunk service

• PSTN analog telephone line

• Compatible IP phones

• Compatible analog phones

• Network infrastructure

Programming

IXW-PBXA and IX / IXG programming is required before telephone integration will operate.

Network

Provide compatible Ethernet infrastructure and appropriate network configuration.

VoIP service, SIP phones, analog telephones, network switches, and Aiphone intercom stations are sold separately.
