Commercial Audio Intercom | Single Call Button | Hands-Free Communication | 2-Wire Connection | Gray Finish

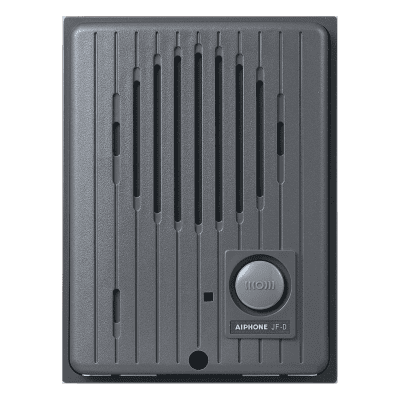

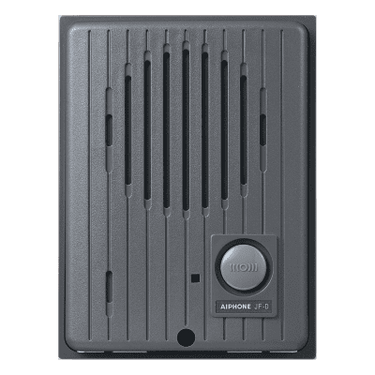

The Aiphone JF-D Audio Door Station is a compact, surface-mounted intercom designed for reliable entrance communication with compatible Aiphone JF Series master stations.

Featuring a single call button, built-in microphone and speaker, and hands-free two-way audio, the JF-D allows visitors to initiate communication with an interior master station without requiring a handset.

Constructed with a durable fire-retardant plastic housing in a gray finish, the JF-D features weather-resistant construction suitable for protected commercial and residential entrance applications.

Designed specifically for use with the Aiphone JF-2MED Video Master Station, the JF-D provides an audio-only second-door option when video monitoring is not required at both entrances.

Its compact design, simple two-wire connection, and convenient surface-mount installation make the JF-D an ideal replacement component for maintaining existing Aiphone JF Series intercom systems.

Key Features

• Single Call Button: Allows visitors to initiate communication with the connected JF Series master station.

• Hands-Free Two-Way Audio: Built-in microphone and speaker provide convenient open-voice communication.

• Audio-Only Operation: Ideal for secondary entrances where video identification is not required.

• JF Series Compatibility: Designed for use with the Aiphone JF-2MED master station as a second-door audio station.

• Simple Two-Wire Connection: Uses standard compatible two-conductor intercom wiring.

• Master Station Powered: Receives operating power directly from the compatible JF Series master station.

• No Separate Door Station Power Supply: Eliminates the need for a dedicated power supply at the door station.

• Compact Surface-Mount Design: Provides a clean, professional appearance for commercial and residential entrances.

• Single-Gang Box Mounting: Can be installed directly onto a suitable wall surface or standard single-gang electrical box.

• Weather-Resistant Construction: Designed to withstand normal outdoor environmental exposure when properly installed.

• Fire-Retardant Plastic Housing: Durable construction provides dependable everyday operation.

• Locator LED: Red indicator beside the call button remains illuminated when the master station is powered.

• Integrated Speaker & Microphone: Supports communication without additional audio equipment.

• Commercial & Residential Applications: Suitable for existing offices, apartment buildings, and secured entrances.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: JF-D

• Product Type: Audio-Only Door Intercom Station

• Series: JF Series

• Finish / Color: Gray

• Housing Material: Fire-Retardant Plastic

• Call Buttons: 1

• Communication: Open-Voice, Hands-Free Two-Way Audio

• Camera: None – Audio Only

• Power Source: Supplied by Compatible JF Master Station

• Power Requirements: Approximately 4.5–6V DC; approximately 9V DC during communication

• Wiring: 2-Conductor, Polyethylene-Insulated Intercom Cable

• Recommended Wire: Aiphone #871802

• Maximum Wiring Distance, 22 AWG: 165 Feet

• Maximum Wiring Distance, 18 AWG: 330 Feet

• Mounting Type: Surface Wall Mount

• Electrical Box: Standard Single-Gang Box

• Weather Protection: Weather Resistant, JIS C 0920 Protection Class 3 Equivalent

• Operating Temperature: 14°F to 140°F (-10°C to 60°C)

• Dimensions: 5-1/8" H x 3-7/8" W x 1-1/8" D

• Weight: Approximately 0.44 lbs.

• Status Indicator: Red Call Button Locator LED

• Compatible Master Station: Aiphone JF-2MED

• Installation Position: Second Door Station

Recommended Applications

• Commercial Office Buildings

• Residential Entrance Intercoms

• Apartment Buildings

• Condominium Properties

• Small Commercial Facilities

• Secondary Building Entrances

• Employee and Service Entrances

• Security and Reception Areas

• Secured Residential Entrances

• Property Management Facilities

• Existing Aiphone JF Series System Repairs

• Replacement Intercom Installations

Installation & Compatibility

The Aiphone JF-D is designed for integration with an existing Aiphone JF-2MED Video Intercom Master Station.

The station connects using compatible two-conductor intercom wiring and receives operating power directly from the master station.

When the visitor presses the call button, the station initiates an audio call to the connected master station, allowing personnel to communicate through its built-in speaker and microphone.

Mounting Options

• Surface Wall Mount: Installs directly to a suitable wall surface.

• Single-Gang Box Mount: Compatible with standard single-gang electrical boxes.

• Wiring Connection: Two-conductor cable connected to the appropriate JF-2MED terminal connections.

Important Installation Information

• The JF-D is intended for use with the JF-2MED master station as Door 2 only, in place of a color video door station.

• This product provides audio communication only and does not include a video camera.

• It does not use Ethernet, PoE, SIP, or IP networking.

• The door station receives operating power from the connected master station.

• Remote door release, when used, depends on the compatible master station and associated electric locking hardware.

• Properly route and seal wiring while keeping the station's drainage openings unobstructed.

• Compatible master stations, power supplies for the overall system, electric locking hardware, and other accessories are sold separately.

Product Availability Notice

Discontinued by Manufacturer – September 30, 2023

The Aiphone JF-D is a discontinued JF Series product. Availability may be limited to remaining distributor inventory or existing stock.

This station is intended primarily for repair or replacement of existing compatible JF Series installations. Verify availability and compatibility before ordering.

Why Choose the Aiphone JF-D?

The Aiphone JF-D provides a straightforward solution for maintaining dependable audio communication at secondary entrances equipped with an existing Aiphone JF Series intercom system.

Its single-button operation, hands-free audio, weather-resistant construction, and simple two-wire installation make it a practical replacement for existing JF-D stations.

For facilities maintaining legacy Aiphone equipment, the JF-D offers a direct model replacement without requiring a complete intercom system conversion, provided the existing JF-2MED master station and wiring remain compatible.
