Complete IP Video Intercom System | 170° Wide-Angle Camera | 3.5" Color Monitor | PC-Based Access Control

The Aiphone JKS-IPEF IP Video Intercom Kit is a complete video entrance communication system designed for commercial offices, schools, institutional facilities, and secured building entrances requiring visitor identification and remote door-release capabilities.

Featuring a stainless steel flush-mount video door station, 3.5-inch color master monitor with picture memory, and JKW-IP network adaptor, the JKS-IPEF allows authorized personnel to view visitors, communicate using hands-free audio, and control compatible electric locking hardware.

The system incorporates a 170-degree wide-angle camera with digital PanTilt and Zoom, providing enhanced entrance visibility and allowing users to adjust their view for improved visitor identification.

With the included JKW-IP network adaptor and legacy PC software, authorized users can receive visitor calls, monitor entrance activity, record audio and video, and remotely release connected doors from compatible networked computers.

Designed for facilities maintaining existing Aiphone JK Series intercom installations, the JKS-IPEF provides a complete legacy intercom solution with network-enabled functionality.

Key Features

• Complete Video Intercom Kit: Includes video door station, master monitor, IP network adaptor, power supply, and software.

• Stainless Steel Door Station: Heavy-duty JK-DVF flush-mount entrance station provides excellent durability.

• 170° Wide-Angle Camera: Provides expanded viewing coverage for improved visitor identification.

• Digital PanTilt & Zoom: Allows users to adjust the camera view from the master station or compatible PC software.

• 3.5" Color LCD Monitor: JK-1MED master station provides convenient video monitoring and intercom controls.

• Built-In Picture Memory: Records up to 40 visitor image sequences, with six images per sequence.

• Hands-Free Communication: Supports open-voice and push-to-talk operation.

• PC-Based Intercom Operation: Included JKW-IP network adaptor supports communication and monitoring through compatible computer software.

• Remote Door Release: Allows authorized personnel to unlock compatible electric locking devices.

• Email Notifications: Supports visitor call notifications with images through properly configured legacy PC software.

• PC Video Recording: Supports recording visitor audio and video to a connected compatible computer.

• Up to 10 Networked PCs: Allows multiple authorized computers to communicate with connected JK Series systems.

• Multiple System Networking: Supports configurations involving up to 20 JK Series systems.

• Low-Light Camera Illumination: Integrated white LED assists visitor identification in low-light conditions.

• Weather-Resistant Entrance Station: JK-DVF is designed for properly installed outdoor entrance applications.

• Vandal-Resistant Construction: Stainless steel door station helps protect against physical damage.

• Two-Wire Door Station Connection: Simplifies installation between the door station and master monitor.

• 18V DC Power Supply Included: PS-1820UL provides operating power for the system.

Included Components

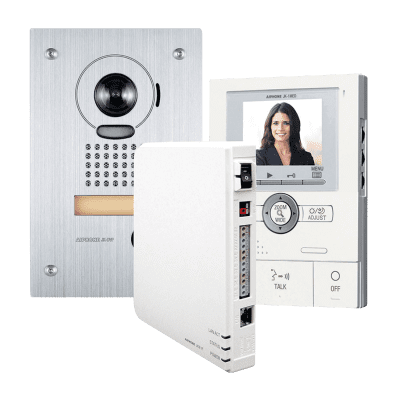

The Aiphone JKS-IPEF boxed set includes:

1. JK-DVF Video Door Station

   • Stainless steel flush-mount construction

   • 170° wide-angle color camera

   • Digital PanTilt and Zoom

   • Single call button

   • Hands-free audio communication

   • Flush-mount back box

2. JK-1MED Video Master Station

   • 3.5" TFT color LCD display

   • Built-in picture memory

   • Hands-free and push-to-talk communication

   • Remote door-release control

   • Video monitoring and camera adjustment

3. JKW-IP Network Adaptor

   • Ethernet network connectivity

   • PC-based video intercom functionality

   • Remote monitoring and door-release capabilities

   • Four sensor inputs and one auxiliary contact output

4. PS-1820UL Power Supply

   • 18V DC output

   • 2A capacity

   • UL-listed power supply

5. JKW-IP PC Software

   • Legacy Windows-based intercom software

   • Visitor communication and monitoring

   • Email notification and video recording functionality

Product Specifications

General Specifications

• Manufacturer: Aiphone

• Model / SKU: JKS-IPEF

• Product Type: Complete IP-Enabled Video Intercom Kit

• Series: JK Series

• Door Stations Included: 1

• Master Stations Included: 1

• System Capacity: 1 Door / Up to 2 Indoor Stations

• PC Connectivity: Up to 10 PCs

• Networked System Capacity: Up to 20 JK Series Systems

• Power Requirements: 18V DC

• Included Power Supply: PS-1820UL, 18V DC, 2A

JK-DVF Video Door Station

• Construction: Stainless Steel

• Finish: Stainless Steel

• Mounting: Flush Mount

• Camera: 1/4" CMOS Color Camera

• Viewing Angle: Approximately 170° Horizontal

• Camera Control: Digital PanTilt & Zoom

• Minimum Illumination: 5 Lux

• Night Viewing: Integrated White LED

• Communication: Hands-Free Audio

• Call Buttons: 1

• Wiring: 2-Conductor

• Maximum Wiring Distance: 165' at 22 AWG / 330' at 18 AWG

• Operating Temperature: 14°F to 140°F (-10°C to 60°C)

• Faceplate Dimensions: 8-1/4" H x 5-5/16" W x 5/16" D

JK-1MED Master Station

• Display: 3.5" TFT Color LCD

• Communication: Hands-Free VOX / Push-to-Talk

• Picture Memory: 40 Image Sequences / Up to 240 Images

• Camera Functions: PanTilt, Zoom, Wide View

• Door Release: Normally Open Dry Contact

• Contact Rating: 24V AC/DC, 500mA

• Power Source: 18V DC

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Dimensions: 7-5/16" H x 5-5/16" W x 1-1/16" D

JKW-IP Network Adaptor

• Network Interface: 10BASE-T / 100BASE-TX Ethernet

• Connection: RJ-45

• Protocols: TCP/IP, UDP/IP, SIP

• Network Bandwidth: 320 Kbps to 8 Mbps

• Power Source: Supplied by JK Series Master Station

• Sensor Inputs: 4

• Auxiliary Contact Outputs: 1

• Output Contact Rating: 24V AC/DC, 0.5A

• Dimensions: 5-5/16" H x 7-7/8" W x 1-3/8" D

• Software Platform: Legacy Windows-Based PC Software

Recommended Applications

• Commercial Office Buildings

• Schools and Universities

• Government and Municipal Facilities

• Hospitals and Healthcare Facilities

• Small Commercial Properties

• Corporate Security Entrances

• Security and Reception Desks

• Secured Employee Entrances

• Institutional Facilities

• Existing Aiphone JK Series System Replacements

• Legacy Video Intercom System Maintenance

• Commercial Access Control Installations

Installation & Compatibility

The Aiphone JKS-IPEF combines a hardwired JK Series video intercom system with Ethernet connectivity through the included JKW-IP network adaptor.

The JK-DVF door station connects to the JK-1MED master station through compatible two-conductor wiring, while the JKW-IP adaptor interfaces with the master station and the building's Ethernet network.

The included PS-1820UL power supply provides 18V DC power to the system.

Installation Requirements

• Door Station: Flush-mounted JK-DVF with included back box.

• Master Station: Wall-mounted JK-1MED indoor video monitor.

• Network Adaptor: JKW-IP connected to the master station and Ethernet network.

• Power Supply: PS-1820UL, 18V DC.

• Intercom Wiring: Aiphone #871802 or compatible specified two-conductor cable.

• Network Connection: Ethernet connection to appropriate network equipment.

• Software: Compatible legacy Windows-based JKW-IP application.

Important Installation Information

• The JKS-IPEF is a legacy JK Series system and is not directly interchangeable with Aiphone IX or IXG Series equipment.

• The JK-DVF door station is hardwired to the master monitor; it is not a standalone Ethernet or PoE door station.

• PC-based features require the JKW-IP adaptor, appropriate system configuration, and compatible software.

• Original software was developed for older Windows operating systems. Compatibility with current Windows versions is not guaranteed.

• Door-release functionality requires compatible electric locking hardware and appropriate lock power.

• Electric locks, lock transformers, additional stations, and network equipment are sold separately unless otherwise specified.

• Verify all components are present when purchasing remaining inventory or replacement stock.

Product Availability Notice

Manufacturer Discontinued – September 30, 2019

The Aiphone JKS-IPEF was discontinued as part of the JK Series product discontinuation.

This product is intended primarily for replacement, maintenance, or continued operation of existing compatible installations.

Availability is subject to remaining distributor or warehouse inventory. Confirm system requirements, software compatibility, and product condition before ordering.

Why Choose the Aiphone JKS-IPEF?

The Aiphone JKS-IPEF provides a complete legacy video intercom solution combining wide-angle visitor identification, hands-free communication, picture memory, remote door release, and PC-based monitoring.

Its stainless steel flush-mount entrance station, 3.5-inch color master monitor, and IP network adaptor make it a valuable option for maintaining existing Aiphone JK Series installations.

For facilities requiring replacement of discontinued JK Series equipment, the JKS-IPEF offers the original compatible system configuration without necessarily replacing an entire existing installation.
