Commercial & Residential Video Intercom | Secondary Answering Monitor | Hands-Free Communication | Remote Door Release

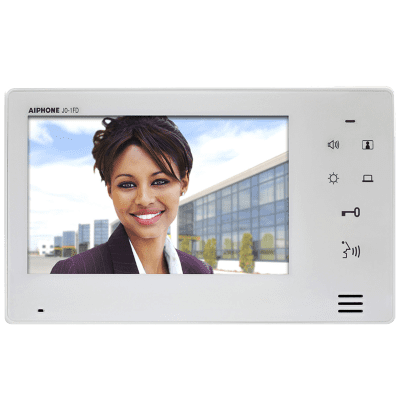

The Aiphone JO-1FD Video Expansion Station is a professional-grade indoor video intercom monitor designed to expand compatible Aiphone JO Series systems with an additional answering location.

Featuring a 7-inch color TFT LCD display, capacitive touch buttons, and hands-free two-way audio, the JO-1FD allows users to view visitors, communicate with individuals at the entrance, monitor connected door cameras, and activate compatible electric door locks from a secondary location.

Designed for integration with the Aiphone JO-1MDW video master station, the JO-1FD provides additional convenience for commercial offices, reception areas, residential properties, and facilities requiring intercom access from multiple indoor locations.

Its slim white housing, intuitive touch-button controls, adjustable communication volume, and flexible wall or desktop mounting options make it an excellent addition to existing Aiphone JO Series video intercom systems.

The JO Series supports one JO-1FD expansion station per system, providing a maximum of two indoor answering stations.

Key Features

• 7-Inch Color LCD Display: Large TFT monitor provides convenient video identification of visitors at connected door stations.

• Capacitive Touch Buttons: Modern touch-sensitive controls allow easy operation of communication, monitoring, and door-release functions.

• Secondary Answering Station: Expands a compatible JO Series system to provide communication from a second indoor location.

• Hands-Free Two-Way Audio: Built-in microphone and speaker provide convenient open-voice communication.

• Push-to-Talk Operation: Allows manual control of audio communication when needed.

• Remote Door Release: Activates compatible electric locking hardware through a normally open dry contact.

• Entrance Video Monitoring: Allows users to view video from compatible connected JO Series door stations without initiating a call.

• Adjustable Communication Volume: Provides control over incoming audio and call tone levels.

• Adjustable Screen Brightness: Allows users to customize display brightness for indoor lighting conditions.

• Integrated Call Status Indicator: Built-in LED provides visual notification of station operation.

• Door Call Notification: Sounds an audible chime when a visitor activates the connected door station.

• Option Button: Provides control of supported external functions when properly configured.

• Slim, Modern Housing: White flame-resistant ABS construction complements professional and residential interiors.

• Simple Intercom Wiring: Connects to compatible JO Series stations using specified low-capacitance intercom cable.

• 18V DC Operation: Compatible with the Aiphone PS-1820UL power supply.

• Wall-Mount Installation: Designed for installation on a suitable interior wall or 3-gang electrical box.

• Optional Desktop Mounting: Compatible with the Aiphone MCW-S/B desktop stand.

• JO Series Compatibility: Designed to work with compatible Aiphone JO Series master and video door stations.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: JO-1FD

• Product Type: Video Expansion / Secondary Answering Station

• Series: JO Series

• Color: White

• Housing Material: Flame-Resistant ABS Resin

• Display: 7" TFT Color LCD

• Controls: Capacitive / Electrostatic Touch Buttons

• Communication: Hands-Free VOX / Push-to-Talk

• Microphone: Built-In

• Speaker: Built-In

• Video Camera: None – Displays Video from Compatible Door Stations

• Power Requirements: 18V DC

• Compatible Power Supply: PS-1820UL

• Maximum Current Consumption: 420mA

• Door Release: Normally Open Dry Contact

• Door Release Contact Rating: 24V AC/DC, 500mA

• Wiring: Specified Multi-Conductor JO Series Intercom Wiring

• Recommended Cable: Aiphone #871802 for 2-Conductor Connections

• Maximum Door-to-Farthest-Station Distance, 22 AWG: 165 Feet

• Maximum Door-to-Farthest-Station Distance, 18 AWG: 330 Feet

• Maximum Expansion Stations: 1 per JO Series System

• Total Answering Stations: 2 (One Master + One Expansion)

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Dimensions: 5-1/8" H x 9-1/16" W x 13/16" D

• Weight: Approximately 1.06 lbs. (480g)

• Mounting Type: Indoor Wall Mount / Optional Desktop Mount

• Electrical Box: 3-Gang

• Optional Desktop Stand: MCW-S/B

• Compatible Master Stations: JO-1MDW; JO-1MD per Manufacturer Specification

• Installation Environment: Indoor

Recommended Applications

• Commercial Office Buildings

• Residential Properties

• Apartment and Condominium Buildings

• Medical and Dental Offices

• Professional Office Suites

• Reception and Security Desks

• Property Management Offices

• Schools and Educational Facilities

• Secured Building Entrances

• Secondary Indoor Answering Locations

• Home and Small Business Security

• Existing Aiphone JO Series System Expansions

• Commercial Visitor Management Systems

Video Monitoring & Communication Functions

1. Secondary Visitor Answering

The JO-1FD provides an additional indoor answering location, allowing authorized personnel or occupants to respond to visitors without returning to the primary master station.

2. Live Entrance Monitoring

The dedicated monitor button allows users to view video from compatible connected door stations without first receiving a visitor call.

3. Hands-Free Communication

The built-in microphone and speaker support convenient open-voice communication. Users can also select push-to-talk operation when additional audio control is preferred.

4. Remote Door Release

The integrated door-release button activates the station's normally open dry contact, allowing compatible electric locking hardware to be released when properly connected.

5. Adjustable Display & Audio

Users can adjust monitor brightness, communication volume, and call tone volume to suit the installation environment.

Installation & Compatibility

The Aiphone JO-1FD is designed to operate as a secondary answering station within a compatible Aiphone JO Series Video Intercom System.

The expansion monitor is installed between the video door station and the primary master station, following the manufacturer's specified wiring configuration.

The station operates from an approved 18V DC power supply and uses traditional intercom wiring rather than Ethernet or Power over Ethernet.

Mounting Options

• Wall Mount: Installs directly onto a suitable indoor wall.

• 3-Gang Electrical Box: Supports installation using a compatible 3-gang box.

• Desktop Mount: Optional MCW-S/B desktop stand provides an alternative installation.

Compatible Equipment

• JO-1MDW: Wi-Fi-enabled 7" video master station

• JO-1MD: JO Series video master station identified in manufacturer documentation

• JO-DA: Surface-mount video door station

• JO-DV: Vandal-resistant surface-mount video door station

• JO-DVF: Stainless steel flush-mount video door station

• PS-1820UL: 18V DC power supply

• MCW-S/B: Optional desktop stand

Important Installation Information

• The JO-1FD is an expansion answering station only, not a complete video intercom kit.

• Requires a compatible Aiphone JO Series master station and video door station for normal visitor communication.

• Maximum system configuration supports one JO-1FD expansion station and one primary answering station.

• The JO-1FD features a 7-inch LCD with touch-sensitive control buttons; the LCD itself is not a touchscreen.

• Does not contain a built-in video camera.

• Does not independently provide Wi-Fi, Ethernet, or mobile application connectivity.

• Mobile application functionality, when available, is provided through the compatible JO-1MDW master station.

• Does not support Power over Ethernet (PoE).

• Requires compatible 18V DC power and the manufacturer's specified wiring arrangement.

• Door-release functionality requires compatible electric locking hardware and an appropriate lock power supply.

• The station is intended for indoor installation only.

• Master station, door station, power supplies, electric locking hardware, and optional desktop mounting accessories are sold separately unless otherwise specified.

Why Choose the Aiphone JO-1FD?

The Aiphone JO-1FD provides a practical and dependable solution for expanding an existing Aiphone JO Series video intercom installation.

Its combination of 7-inch color video monitoring, capacitive touch controls, hands-free communication, and remote door release allows users to conveniently manage building entrances from a second indoor location.

Whether installed in a reception office, security area, residential property, or secondary answering location, the JO-1FD delivers added convenience, reliable communication, and improved entrance management without requiring a completely separate intercom system.
