Complete JO Series Video Intercom System | Smartphone Access | Two-Way Audio | Visitor Recording | Remote Door Release

The Aiphone JOS-1AW Wi-Fi Video Intercom Kit is a complete video entrance communication system designed for commercial offices, small businesses, residential properties, and secured building entrances requiring reliable visitor identification and remote access control.

Featuring a 7-inch color touchscreen master station, surface-mounted video door station, and integrated Wi-Fi connectivity, the JOS-1AW allows users to see and speak with visitors, monitor building entrances, and remotely release compatible electric door locks.

The included JO-DA video door station features a built-in color camera, hands-free audio communication, illuminated call button, and weather-resistant IP54-rated plastic housing. Its compact surface-mount design makes it ideal for professional office entrances, small commercial buildings, and residential applications.

The JO-1MDW master station supports up to 8 mobile devices using the Aiphone Intercom App Type B, allowing authorized users to answer visitor calls, view entrance activity, and unlock compatible doors using a smartphone.

With its simple two-wire door station connection, built-in visitor recording, and included 18V DC power supply, the JOS-1AW provides a convenient video intercom solution for commercial and residential security applications.

Key Features

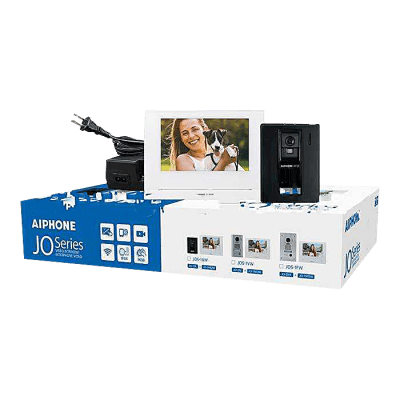

• Complete Video Intercom Kit: Includes the JO-DA video door station, JO-1MDW touchscreen master station, and PS-1820UL power supply.

• 7-Inch Color Touchscreen: Large TFT LCD provides convenient visitor identification, video monitoring, and system operation.

• Built-In Wi-Fi Connectivity: Connects the master station to a compatible 2.4 GHz wireless network.

• Smartphone App Integration: Supports the Aiphone Intercom App Type B for remote visitor communication and door release.

• Up to 8 Mobile Devices: Allows multiple authorized users to receive visitor calls through compatible smartphones.

• Remote Door Release: Unlock compatible electric locking hardware from the indoor monitor or mobile application.

• Surface-Mount Video Door Station: JO-DA features a compact, fire-resistant plastic housing for convenient installation.

• Weather-Resistant Construction: IP54-rated door station helps protect against dust and water exposure.

• Integrated Color Video Camera: Built-in 1/4-inch CMOS camera allows visual identification of visitors.

• Adjustable Camera View: Manual camera-angle adjustment accommodates different installation requirements.

• Hands-Free Two-Way Audio: Built-in microphone and speaker provide convenient visitor communication.

• Push-to-Talk Operation: Offers an additional communication method for noisy environments.

• Automatic LED Illumination: Door station activates its white LED in low-light conditions.

• Illuminated Call Button: Makes the entrance call button easier to locate.

• Built-In Visitor Recording: Stores up to 10 visitor call recordings in internal memory.

• Expandable Recording Storage: Optional microSDHC card supports up to 1,000 recorded calls.

• Recorded Call Playback: Review recorded entrance activity using compatible system features.

• Door-Release Contacts: Two normally open dry contact outputs support compatible electric locking equipment.

• Simple Two-Wire Installation: Door station connects to the master station using compatible two-conductor wiring.

• Single-Gang Mounting: Door station can be installed on a suitable wall or standard single-gang electrical box.

• 18V DC Power Supply Included: Provides the required operating power for the intercom system.

• Expandable System: Supports an optional JO-1FD secondary answering station.

Included Components

1. Aiphone JO-DA Video Door Station

• Fire-resistant PC + ABS plastic construction

• Surface-mount installation

• Built-in 1/4" CMOS color camera

• Manual camera-angle adjustment

• Integrated microphone and speaker

• Single illuminated call button

• Automatic white LED illumination

• IP54 weather-resistant rating

• Two-conductor wiring connection

• Standard single-gang mounting compatibility

2. Aiphone JO-1MDW Video Master Station

• 7" TFT color touchscreen

• Built-in 2.4 GHz Wi-Fi connectivity

• Hands-free and push-to-talk communication

• Aiphone Intercom App Type B compatibility

• Up to 8 registered mobile devices

• Internal visitor recording memory

• Optional microSDHC recording expansion

• Remote door-release capability

• Two normally open dry contact outputs

• Surface wall-mount installation

• Optional desktop stand compatibility

3. Aiphone PS-1820UL Power Supply

• Input: 100–240V AC, 50/60Hz

• Output: 18V DC

• Output Current: 2A

• Class II power supply

• UL and CSA listed

Product Specifications

General Specifications

• Manufacturer: Aiphone

• Model / SKU: JOS-1AW

• Product Type: Wi-Fi-Enabled Video Intercom Kit

• Series: JO Series

• Door Station Included: JO-DA

• Master Station Included: JO-1MDW

• Power Supply Included: PS-1820UL

• Communication: Hands-Free / Push-to-Talk

• Mobile Application: Aiphone Intercom App Type B

• Maximum Mobile Devices: 8

• System Power: 18V DC

• Door Station Wiring: 2-Conductor

• Wireless Network: 2.4 GHz Wi-Fi at Master Station

JO-1MDW Master Station

• Display: 7" TFT LCD Touchscreen

• Display Resolution: 800 x 480

• Communication: Hands-Free VOX / Push-to-Talk

• Wi-Fi Frequency: 2.4 GHz

• Wireless Protocol: IEEE 802.11b/g/n

• Internal Recording: Up to 10 Calls

• Recording Duration: 10 Seconds Per Call

• Expandable Memory: microSDHC, 4GB–32GB

• Maximum Recording Capacity: 1,000 Calls

• Door Release: Normally Open Dry Contacts

• Contact Rating: 24V AC/DC, 1A

• Power Requirements: 18V DC

• Maximum Current Consumption: 450mA

• Standby Current Consumption: 80mA

• Mounting: Surface Wall Mount

• Optional Desktop Stand: MCW-S/B

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Dimensions: 6-1/8" H x 8-1/4" W x 1-1/16" D

JO-DA Video Door Station

• Construction: Fire-Resistant PC + ABS Plastic

• Mounting Type: Surface Mount

• Camera: 1/4" CMOS Color Camera

• Camera Adjustment: Manual Angle Adjustment

• Minimum Illumination: 5 Lux

• Communication: Hands-Free Two-Way Audio

• Speaker Volume: 69.7 dB

• Call Buttons: 1

• Night Illumination: Built-In White LED

• Weather Protection: IP54

• Power Source: Supplied by Master Station

• Wiring: 2-Conductor, Low-Capacitance, Non-Shielded

• Recommended Cable: Aiphone #871802

• Maximum Distance, 22 AWG: 165 Feet

• Maximum Distance, 18 AWG: 330 Feet

• Mounting Box: Standard Single-Gang Electrical Box

• Dimensions: 5-1/16" H x 3-13/16" W x 1-3/8" D

Recommended Applications

• Commercial Office Buildings

• Small Businesses and Retail Facilities

• Residential Properties

• Apartment and Condominium Entrances

• Professional Office Suites

• Medical and Dental Offices

• Property Management Facilities

• Secured Employee Entrances

• Reception and Visitor Management Areas

• Commercial Building Entrances

• Home and Small Business Security

• Commercial Access Control Systems

• Building Entrance Video Monitoring

Smartphone App & Remote Access

The Aiphone JOS-1AW supports remote communication through the JO-1MDW Wi-Fi master station and Aiphone Intercom App Type B.

When properly configured, authorized users can:

• Receive visitor calls on compatible smartphones.

• View live video from the connected door station.

• Communicate with visitors using two-way audio.

• Activate compatible electric door locks remotely.

• Monitor entrance activity.

• Access supported visitor recording functions.

• Answer calls while away from the building.

The system supports up to 8 registered mobile devices, making it convenient for business owners, office personnel, and residential occupants.

Network Requirement: The JO-1MDW master station must connect to a compatible 2.4 GHz Wi-Fi network. Mobile devices require Wi-Fi or cellular internet access for remote operation.

Installation & Compatibility

The Aiphone JOS-1AW is a complete JO Series video intercom system using traditional hardwired door station connections with Wi-Fi-enabled mobile functionality.

The JO-DA door station connects directly to the JO-1MDW master station using compatible two-conductor wiring. The master station receives power from the included PS-1820UL 18V DC power supply.

Installation Requirements

• Door Station: JO-DA surface-mounted video entrance station.

• Master Station: JO-1MDW indoor touchscreen monitor.

• Power Supply: Included PS-1820UL.

• Intercom Wiring: Two-conductor low-capacitance cable.

• Wi-Fi Network: 2.4 GHz wireless connection for mobile app operation.

• Door Release: Compatible electric locking equipment and independent lock power supply.

• Mobile App: Aiphone Intercom App Type B.

Optional System Expansion

• JO-1FD: Secondary indoor video answering station.

• JOW-2D: Adaptor for adding a second compatible JO Series video door station.

• MCW-S/B: Optional desktop stand for the master station.

• microSDHC Card: Optional expandable visitor recording storage.

Important Installation Information

• This is a hardwired JO Series intercom system with Wi-Fi-enabled mobile access, not a PoE or standalone IP door station.

• The JO-DA door station does not independently connect to Wi-Fi or Ethernet.

• Wi-Fi functionality is provided through the JO-1MDW indoor master station.

• The JO-DA features a fire-resistant plastic housing rather than the vandal-resistant zinc die-cast construction used on the JO-DV.

• Electric locking hardware and its power supply are sold separately.

• A microSDHC card is optional and not included.

• Mobile app registration and network configuration are required for remote operation.

• Proper mounting and weather sealing are required for outdoor door station applications.

• Additional indoor stations and expansion accessories are sold separately.

Why Choose the Aiphone JOS-1AW?

The Aiphone JOS-1AW combines dependable video entrance communication, convenient smartphone connectivity, and remote access management in one complete intercom system.

Its 7-inch color touchscreen, weather-resistant JO-DA door station, built-in visitor recording, and support for up to 8 mobile devices provide an effective solution for monitoring and managing commercial and residential entrances.

With its simple two-wire door station installation, included 18V DC power supply, and mobile application integration, the JOS-1AW delivers modern video intercom functionality without requiring a complete IP-based door station network.
