Complete JO Series Video Intercom System | Smartphone Access | Remote Door Release | Surface-Mount Video Door Station

The Aiphone JOS-1VW Wi-Fi Video Intercom Kit is a complete video entrance communication system designed for commercial offices, small businesses, residential properties, and secured building entrances requiring dependable visitor identification and remote access control.

Featuring a 7-inch color touchscreen master station, rugged zinc die-cast video door station, and integrated Wi-Fi connectivity, the JOS-1VW allows users to see and speak with visitors, monitor entrances, and release compatible electric door locks from the indoor monitor or a connected smartphone.

The included JO-DV surface-mount video door station features a built-in color camera, hands-free audio communication, illuminated nameplate, and durable vandal-resistant construction. Its IP54 weather-resistant and IK08 impact-resistant ratings provide reliable protection for demanding entrance applications.

The JO-1MDW master station supports up to 8 mobile devices using the Aiphone Intercom App Type B, allowing authorized users to answer visitor calls, view recorded activity, and remotely unlock compatible doors from virtually anywhere with an internet connection.

With its simple two-wire door station connection, built-in recording capabilities, and included 18V DC power supply, the JOS-1VW provides a convenient and dependable video intercom solution for modern commercial and residential security applications.

Key Features

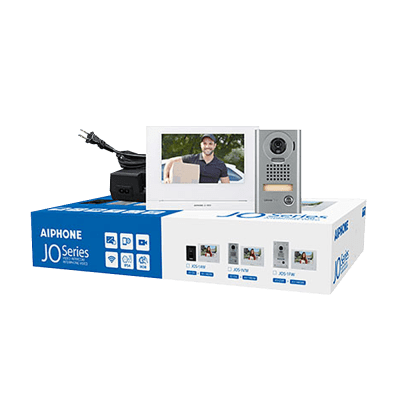

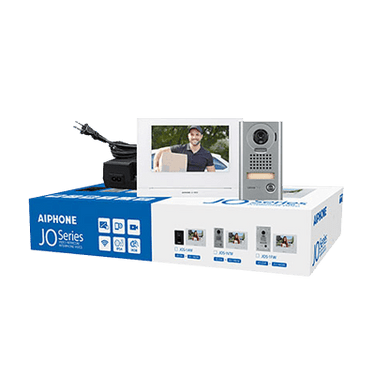

• Complete Video Intercom Kit: Includes the JO-DV video door station, JO-1MDW touchscreen master station, and PS-1820UL power supply.

• 7-Inch Color Touchscreen: Large TFT LCD display provides convenient visitor identification, monitoring, and intercom operation.

• Wi-Fi Connectivity: The indoor master station connects to compatible 2.4 GHz wireless networks for mobile application functionality.

• Smartphone App Integration: Supports the Aiphone Intercom App Type B for remote visitor communication and door release.

• Up to 8 Mobile Devices: Allows multiple authorized users to access intercom functions through compatible smartphones.

• Remote Door Release: Unlock compatible electric locking hardware from the indoor touchscreen or mobile application.

• Vandal-Resistant Door Station: Heavy-duty zinc die-cast construction provides durability and enhanced resistance to physical damage.

• Weather-Resistant Design: JO-DV door station features IP54-rated environmental protection.

• Impact-Resistant Construction: IK08 rating helps protect the door station against physical impact.

• Integrated Color Video Camera: Built-in 1/4-inch CMOS camera provides clear visitor identification.

• Hands-Free Two-Way Audio: Communicate with visitors through the built-in microphone and speaker.

• Push-to-Talk Operation: Provides an alternate communication mode when needed.

• Low-Light LED Illumination: Integrated white LED automatically activates in low-light conditions.

• Illuminated Nameplate: Backlit nameplate provides improved visibility at building entrances.

• Built-In Video Recording: Stores up to 10 visitor call recordings using internal memory.

• Expandable Recording Capacity: Optional microSDHC card supports up to 1,000 recorded calls.

• Recorded Call Playback: Review recorded visitor calls on the master station or compatible mobile application.

• Two Normally Open Door-Release Contacts: Supports compatible electric locking and access control equipment.

• Simple Two-Wire Installation: Door station connects to the master station using compatible two-conductor cable.

• Surface-Mount Door Station: Designed for installation onto a suitable wall or single-gang electrical box.

• 18V DC Power Supply Included: Provides the required operating power for the intercom system.

Included Components

1. Aiphone JO-DV Video Door Station

• Rugged zinc die-cast construction

• Surface-mount installation

• Built-in 1/4" CMOS color camera

• Integrated microphone and speaker

• Single illuminated call button

• Backlit visitor nameplate

• Automatic white LED illumination

• IP54 weather-resistant rating

• IK08 impact-resistant rating

• Two-conductor wiring connection

2. Aiphone JO-1MDW Video Master Station

• 7" TFT color touchscreen

• Built-in 2.4 GHz Wi-Fi

• Hands-free and push-to-talk communication

• Smartphone app integration

• Up to 8 connected mobile devices

• Internal visitor recording memory

• Optional microSDHC recording expansion

• Remote door-release capability

• Two normally open dry contacts

• Wall-mount installation

• Optional desktop stand compatibility

3. Aiphone PS-1820UL Power Supply

• Input: 100–240V AC, 50/60Hz

• Output: 18V DC

• Output Current: 2A

• Class II power supply

• UL and CSA listed

Product Specifications

General Specifications

• Manufacturer: Aiphone

• Model / SKU: JOS-1VW

• Product Type: Wi-Fi-Enabled Video Intercom Kit

• Series: JO Series

• Door Station Included: JO-DV

• Master Station Included: JO-1MDW

• Power Supply Included: PS-1820UL

• Communication: Hands-Free / Push-to-Talk

• Mobile Application: Aiphone Intercom App Type B

• Maximum Mobile Devices: 8

• System Power: 18V DC

• Door Station Wiring: 2-Conductor

• Network Connection: 2.4 GHz Wi-Fi at Master Station

JO-1MDW Master Station

• Display: 7" TFT LCD Touchscreen

• Display Resolution: 800 x 480

• Communication: Hands-Free VOX / Push-to-Talk

• Wi-Fi Frequency: 2.4 GHz

• Wireless Protocol: IEEE 802.11b/g/n

• Internal Recording: Up to 10 Calls

• Internal Recording Duration: 10 Seconds Per Call

• Expandable Memory: microSDHC, 4GB–32GB

• Maximum Recording Capacity: 1,000 Calls

• Door Release: Normally Open Dry Contacts

• Door Release Contact Rating: 24V AC/DC, 500mA

• Power Requirements: 18V DC

• Maximum Current Consumption: 450mA

• Standby Current Consumption: 80mA

• Mounting: Surface Wall Mount

• Optional Desktop Stand: MCW-S/B

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Dimensions: 6-1/8" H x 8-1/4" W x 1-1/16" D

JO-DV Video Door Station

• Construction: Zinc Die-Cast

• Mounting Type: Surface Mount

• Camera: 1/4" CMOS Color Camera

• Communication: Hands-Free Two-Way Audio

• Speaker Volume: 72.1 dB

• Call Buttons: 1

• Night Illumination: Built-In White LED

• Nameplate: LED Backlit

• Weather Protection: IP54

• Impact Protection: IK08

• Power Source: Supplied by Master Station

• Wiring: 2-Conductor, Low-Capacitance, Non-Shielded

• Recommended Cable: Aiphone #871802

• Maximum Distance, 22 AWG: 165 Feet

• Maximum Distance, 18 AWG: 330 Feet

• Mounting Box: Standard Single-Gang Electrical Box

• Dimensions: 6-13/16" H x 3-7/8" W x 1-1/16" D

Recommended Applications

• Commercial Office Buildings

• Small Businesses and Retail Facilities

• Residential Properties

• Apartment and Condominium Entrances

• Professional Office Suites

• Medical and Dental Offices

• Property Management Facilities

• Secured Employee Entrances

• Reception and Visitor Management Areas

• Gated Residential Entrances

• Commercial Access Control Systems

• Home and Small Business Security

• Building Entrance Video Monitoring

Smartphone App & Remote Access

The Aiphone JOS-1VW supports smartphone connectivity through the JO-1MDW Wi-Fi master station and the Aiphone Intercom App Type B.

When properly connected and configured, users can:

• Receive visitor calls on compatible smartphones.

• View video from the connected door station.

• Communicate with visitors using two-way audio.

• Activate compatible electric door locks remotely.

• Monitor the entrance camera.

• Review recorded visitor calls.

• Manage communication from within the building or remotely.

The system supports up to 8 registered mobile devices, providing flexible communication for building owners, employees, or authorized occupants.

Network Requirement: The JO-1MDW master station must connect to a compatible 2.4 GHz Wi-Fi network. Smartphones require an internet connection through Wi-Fi or cellular service for remote operation.

Installation & Compatibility

The Aiphone JOS-1VW is a complete JO Series video intercom kit designed for straightforward installation using traditional intercom wiring with Wi-Fi-enabled mobile functionality.

The JO-DV door station connects directly to the JO-1MDW master station using compatible two-conductor wiring. The master station receives power from the included PS-1820UL 18V DC power supply.

Installation Requirements

• Door Station: JO-DV surface-mounted video entrance station.

• Master Station: JO-1MDW indoor touchscreen.

• Power Supply: Included PS-1820UL.

• Intercom Wiring: Two-conductor low-capacitance cable.

• Wi-Fi Network: 2.4 GHz wireless connection for mobile app functionality.

• Door Release: Compatible electric locking equipment and required lock power supply.

• Mobile App: Aiphone Intercom App Type B.

Important Installation Information

• This is a hardwired analog JO Series intercom system with Wi-Fi-enabled mobile access, not a PoE or standalone IP door station.

• The JO-DV door station does not connect directly to Wi-Fi.

• The indoor JO-1MDW master station provides the Wi-Fi connection for smartphone functionality.

• A compatible electric strike, magnetic lock, or other electric locking device is required for remote door release.

• Electric locking devices and their power supplies are sold separately.

• A microSDHC memory card is optional and sold separately.

• Wi-Fi configuration and mobile app registration are required for remote access.

• Proper installation and weather sealing are required for outdoor door station applications.

• Additional indoor stations and expansion accessories are sold separately.

Why Choose the Aiphone JOS-1VW?

The Aiphone JOS-1VW combines dependable video entrance communication with convenient smartphone access, making it an excellent choice for commercial offices, small businesses, and residential security applications.

Its 7-inch touchscreen monitor, rugged zinc die-cast door station, built-in visitor recording, remote door release, and support for up to 8 mobile devices provide a practical solution for monitoring and managing secured entrances.

With its IP54 weather resistance, IK08 impact protection, simple two-wire installation, and included 18V DC power supply, the JOS-1VW delivers reliable visitor communication and flexible access management in one complete video intercom package.
