Commercial Video Intercom Expansion | Home-Run Wiring | 7 JP-4HD Station Connections | Cat5e/6 | 24V DC

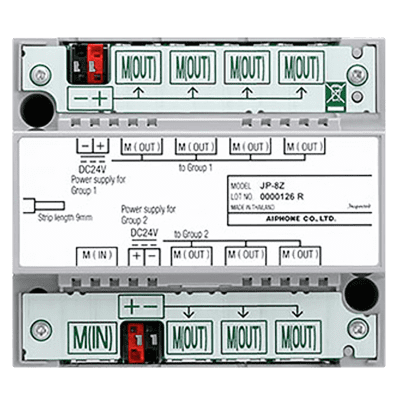

The Aiphone JP-8Z Video Distribution Adaptor is a professional-grade intercom accessory designed to simplify wiring and expand compatible Aiphone JP Series Video Intercom Systems.

Featuring seven dedicated video sub master station connections, the JP-8Z allows up to seven Aiphone JP-4HD video answering stations to connect directly to a single distribution point rather than requiring traditional daisy-chain wiring.

Designed for commercial offices, schools, healthcare facilities, government buildings, and larger residential properties, the JP-8Z provides a convenient solution for installations requiring multiple indoor video answering locations.

The adaptor connects to the Aiphone JP-4MED Video Master Station using Cat5e or Cat6 cable and distributes communication signals and 24V DC power to the connected JP-4HD sub master stations.

Depending on the number of connected stations, the JP-8Z uses one or two Aiphone PS-2420UL power supplies, allowing reliable operation of expanded JP Series intercom systems.

Its compact design, direct surface-mount capability, and DIN rail mounting compatibility make the JP-8Z an excellent solution for structured commercial intercom installations.

Key Features

• Seven Video Sub Master Connections: Supports up to seven Aiphone JP-4HD video answering stations.

• Home-Run Wiring Configuration: Allows each sub master station to connect directly to a central distribution adaptor.

• JP Series Compatibility: Designed for integration with compatible Aiphone JP Series video intercom systems.

• JP-4MED Master Station Connection: Provides the central connection between the primary master station and additional answering stations.

• Cat5e / Cat6 Connectivity: Uses standard category cable for compatible proprietary intercom communication.

• Centralized Power Distribution: Distributes 24V DC operating power to connected JP-4HD stations.

• Dual Power Supply Capability: Supports one or two PS-2420UL power supplies depending on system size.

• Four-Station Power Group: Group 1 accommodates up to four JP-4HD sub master stations.

• Three-Station Power Group: Group 2 accommodates three additional JP-4HD stations.

• Expandable System Capacity: Supports a total of eight indoor answering stations when combined with the JP-4MED master.

• Simplified Wiring Layout: Eliminates the need to route intercom cable sequentially between sub master stations.

• Centralized Equipment Installation: Provides a convenient connection point for larger commercial intercom systems.

• 165-Foot Sub Master Connections: Supports wiring distances up to 165 feet between the adaptor and each JP-4HD station.

• 650-Foot Master Connection: Supports connection to the JP-4MED master station at distances up to 650 feet.

• 24V DC Operation: Compatible with Aiphone PS-2420UL power supplies.

• Surface-Mount Installation: Integrated mounting points allow installation directly onto a suitable wall or equipment panel.

• DIN Rail Mounting Compatibility: Can be installed using compatible Aiphone W-DIN11 mounting hardware.

• Compact Commercial Design: Suitable for installation in protected equipment rooms and intercom control enclosures.

• TAA Compliant: Meets applicable Trade Agreements Act requirements.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: JP-8Z

• Product Type: Video Intercom Distribution Adaptor

• Series: JP Series

• Application: Video Sub Master Station Distribution

• Color: Gray

• Housing Material: Fire-Retardant ABS Plastic

• Master Station Inputs: 1

• Sub Master Station Outputs: 7

• Group 1 Outputs: 4

• Group 2 Outputs: 3

• Maximum JP-4HD Stations: 7

• Maximum Total Indoor Stations: 8 (1 JP-4MED + 7 JP-4HD)

• Power Requirements: 24V DC

• Compatible Power Supply: Aiphone PS-2420UL

• Power Supplies for 1–4 JP-4HD Stations: 1

• Power Supplies for 5–7 JP-4HD Stations: 2

• Power Supply Included: No

• Station Wiring: Cat5e / Cat6, Non-Shielded

• Power Wiring: 18 AWG, 2-Conductor

• Recommended Power Cable: Aiphone #871802

• Master to Distribution Adaptor Distance: Up to 650 Feet

• Distribution Adaptor to Each JP-4HD: Up to 165 Feet

• Power Supply to Distribution Adaptor: Up to 33 Feet with 18 AWG

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Dimensions: Approximately 4-5/16" H x 4-7/8" W x 2-3/8" D

• Dimensions (Metric): 109mm H x 123mm W x 61mm D

• Weight: Approximately 0.46 lbs. (210g)

• Mounting Type: Surface Wall Mount / DIN Rail

• Compatible DIN Rail Accessory: W-DIN11

• Installation Environment: Protected Indoor Location

• Compliance: TAA Compliant

• System Compatibility: Aiphone JP Series Video Intercom Systems

Compatible Aiphone Equipment

Master & Expansion Stations

• JP-4MED: 7" Color Touchscreen Video Master Station

• JP-4HD: 7" Color Touchscreen Video Sub Master Station

Power Supplies & Mounting Accessories

• PS-2420UL: 24V DC, 2A Power Supply

• W-DIN11: Compatible DIN Rail Mounting Accessory

Compatible JP Series Systems

The JP-8Z can be used to expand compatible JP Series installations, including:

• JPS-4AED: Video Intercom Kit with JP-DA Surface-Mount Door Station

• JPS-4AEDV: Video Intercom Kit with JP-DV Vandal-Resistant Door Station

• JPS-4AEDF: Video Intercom Kit with JP-DVF Stainless Steel Flush-Mount Door Station

Recommended Applications

• Commercial Office Buildings

• Corporate Office Campuses

• Schools and Universities

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Government and Municipal Buildings

• Industrial and Manufacturing Facilities

• Warehouse and Distribution Centers

• Apartment and Condominium Buildings

• Large Residential Properties

• Professional Office Suites

• Reception and Security Desks

• Multi-Floor Commercial Facilities

• Property Management Facilities

• Building Security Control Rooms

• Multi-Station Video Intercom Systems

• Commercial Access Control Installations

Home-Run Wiring & Power Distribution

1. Centralized Video Intercom Connections

The Aiphone JP-8Z allows multiple JP-4HD answering stations to connect directly to one central adaptor.

This home-run wiring configuration simplifies cable routing and provides a convenient alternative to connecting each sub master station sequentially.

2. Seven Independent Station Connections

The adaptor provides seven dedicated sub master outputs divided into two groups:

Group 1 – Four Sub Master Stations

• Connects up to four JP-4HD stations.

• Uses a compatible 24V DC PS-2420UL power supply.

• Provides centralized power and communication connections.

Group 2 – Three Additional Sub Master Stations

• Connects up to three additional JP-4HD stations.

• Requires a second compatible PS-2420UL power supply when five to seven sub masters are installed.

3. Master Station Integration

The JP-8Z connects to the JP-4MED primary master station using Cat5e or Cat6 cable.

This arrangement allows the connected indoor stations to participate in supported JP Series visitor communication, monitoring, door-release, and internal calling functions.

These functions are provided by the connected intercom stations, not by the distribution adaptor independently.

4. Flexible Commercial Installation

By centralizing the sub master connections, the JP-8Z helps simplify installation in offices, schools, medical facilities, and buildings with multiple indoor answering locations.

5. Expanded System Capability

When used with compatible JP Series equipment, the JP-8Z supports a system consisting of:

• One JP-4MED primary master station

• Up to seven JP-4HD sub master stations

• Up to four compatible video door stations within the complete JP Series system

Installation & Compatibility

The Aiphone JP-8Z is designed specifically for compatible Aiphone JP Series Video Intercom Systems.

The adaptor connects to the JP-4MED master station using Cat5e or Cat6 cable, while each JP-4HD sub master station connects directly to an available distribution output.

The JP-8Z uses one or two Aiphone PS-2420UL 24V DC power supplies to power connected sub master stations. The JP-4MED master station requires its own properly configured power supply.

Mounting Options

• Direct Surface Mount: Installs onto a suitable wall or equipment panel using integrated mounting holes.

• DIN Rail Mount: Supports installation using compatible W-DIN11 mounting hardware.

• Protected Equipment Enclosure: Suitable for protected indoor installations with restricted access.

Important Installation Information

• This listing is for the JP-8Z distribution adaptor only.

• The JP-8Z supports a maximum of seven JP-4HD video sub master stations.

• Requires a compatible JP-4MED primary master station.

• One PS-2420UL power supply is required for up to four connected JP-4HD stations.

• Two PS-2420UL power supplies are required for five to seven connected JP-4HD stations.

• Power supplies are sold separately.

• Wiring distances must remain within Aiphone's specifications.

• The JP-8Z uses Cat5e/Cat6 cable for proprietary intercom signals and is not an Ethernet network switch.

• Does not support Power over Ethernet (PoE), SIP, or standalone IP networking.

• Does not include a camera, touchscreen, speaker, microphone, or door-release relay.

• Does not independently provide video recording or visitor monitoring.

• Only compatible with supported Aiphone JP Series equipment.

• Must be installed in a protected indoor location.

• Master stations, sub master stations, video door stations, power supplies, mounting accessories, and cables are sold separately unless otherwise specified.

Why Choose the Aiphone JP-8Z?

The Aiphone JP-8Z Video Distribution Adaptor provides a dependable and efficient solution for expanding commercial and residential JP Series video intercom systems.

Its combination of seven sub master connections, centralized home-run wiring, dual power supply capability, Cat5e/Cat6 connectivity, and compact mounting options helps simplify installation while supporting communication from multiple indoor locations.

Whether installed in a commercial office, school, healthcare facility, or larger residential property, the JP-8Z provides the flexibility and connectivity needed for a professionally organized multi-station video intercom system.
