Commercial & Residential Video Intercom | Hands-Free Communication | Digital PanTilt & Zoom | Weather-Resistant Plastic Housing

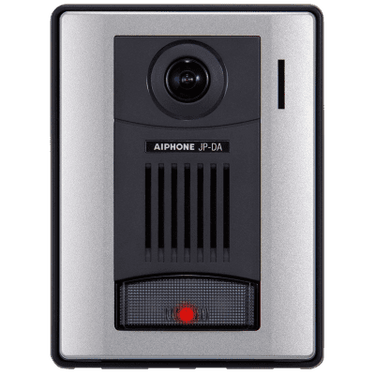

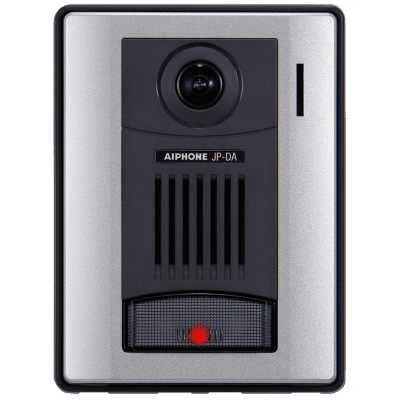

The Aiphone JP-DA Video Door Station is a professional-grade, surface-mounted video intercom designed for reliable entrance communication and visitor identification in commercial buildings, offices, schools, healthcare facilities, and residential properties.

Featuring a built-in color CMOS camera, 170° wide-angle viewing capability, single call button, and integrated microphone and speaker, the JP-DA provides dependable video monitoring and hands-free two-way communication with compatible Aiphone JP Series answering stations.

Designed with a durable fire-resistant plastic housing, the JP-DA offers weather-resistant construction for properly installed indoor and outdoor entrance applications.

When connected to the Aiphone JP-4MED Video Master Station, users can electronically pan, tilt, and zoom the camera image to focus on visitors and areas surrounding the entrance.

The JP-DA also includes automatic white LED illumination for low-light conditions, simple two-wire connectivity, and convenient single-gang surface mounting, making it an excellent choice for commercial and residential entrance security.

Key Features

• 170° Wide-Angle Color Camera: Provides approximately 170° horizontal and 100° vertical viewing coverage for improved visitor identification.

• Digital PanTilt & Zoom: Allows users to electronically adjust the video image through compatible JP Series answering stations.

• Integrated CMOS Camera: Built-in color video camera provides reliable visitor identification.

• Single Call Button: Allows visitors to initiate communication with designated indoor answering stations.

• Hands-Free Two-Way Audio: Integrated microphone and speaker provide convenient open-voice communication.

• Durable Plastic Housing: Fire-resistant plastic construction provides reliable performance for everyday commercial and residential use.

• Weather-Resistant Design: Suitable for properly installed exterior entrance applications.

• Automatic White LED Illumination: Activates in low-light conditions to improve camera visibility.

• Illuminated Call Button: Helps visitors locate the call button at entrances.

• Surface-Mount Installation: Installs directly onto a suitable wall or standard single-gang electrical box.

• Compact Design: Provides a clean, professional appearance for building entrances.

• Simple Two-Wire Connection: Connects to compatible JP Series equipment using two-conductor intercom wiring.

• Master Station Powered: Receives operating power from the connected compatible answering station.

• Entrance Video Monitoring: Allows authorized users to view the entrance camera from compatible indoor monitors.

• Remote Door Release Support: Works with compatible master stations and electric locking hardware for controlled entrance access.

• JP Series System Expansion: Compatible with systems supporting multiple video door stations and indoor answering locations.

• Long-Distance Wiring Support: Compatible with the optional JPW-BA adaptor for extended cable runs.

• Replacement Door Station: Suitable for maintaining or expanding existing Aiphone JP Series installations.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: JP-DA

• Product Type: Color Video Door Intercom Station

• Series: JP Series

• Housing Material: Fire-Resistant Plastic / ABS

• Mounting Type: Surface Mount

• Call Buttons: 1

• Communication: Open-Voice, Hands-Free Two-Way Audio

• Camera: 1/2.9" Color CMOS

• Horizontal Viewing Angle: Approximately 170°

• Vertical Viewing Angle: Approximately 100°

• Video Functions: Digital PanTilt & Zoom through Compatible Master Station

• Low-Light Illumination: Automatic White LED

• Call Button: Illuminated

• Power Source: Supplied by Compatible JP Series Answering Station

• Wiring: 2-Conductor, Low-Capacitance, Non-Shielded

• Recommended Cable: Aiphone #871802

• Wiring Distance, 22 AWG: Up to 165 Feet

• Wiring Distance, 18 AWG: Up to 300 Feet per Current Product Specifications

• Extended Wiring: Supported with Compatible JPW-BA Long-Distance Adaptor

• Weather Protection: Weather Resistant

• Operating Temperature: -40°F to 140°F (-40°C to 60°C), per current manufacturer product listing

• Dimensions: 5-1/16" H x 3-13/16" W x 1-3/16" D

• Dimensions (Metric): 129mm H x 97mm W x 30.5mm D

• Mounting: Direct Wall Mount / Single-Gang Electrical Box

• Installation Environment: Indoor / Outdoor

• System Compatibility: Aiphone JP Series Video Intercom Systems

Compatible Aiphone Equipment

Video Master & Expansion Stations

• JP-4MED: 7" Color Touchscreen Video Master Station

• JP-4HD: 7" Color Touchscreen Video Sub Master Station

• JP-8Z: Video Distribution Adaptor

Compatible System Accessories

• JPW-BA: Long-Distance / CCTV Camera Adaptor

• PS-2420UL: 24V DC Power Supply for Compatible JP Series Systems

• RY-3DL: Multiple Door Release Adaptor

Compatible Boxed Kit

• JPS-4AED: Complete JP Series Video Intercom Kit Including JP-DA Door Station, JP-4MED Master Station, and PS-2420UL Power Supply

Recommended Applications

• Commercial Office Buildings

• Small Businesses and Retail Facilities

• Schools and Universities

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Government and Municipal Buildings

• Residential Properties

• Apartment and Condominium Entrances

• Professional Office Suites

• Secured Employee Entrances

• Warehouse and Service Entrances

• Reception and Security Areas

• Property Management Facilities

• Commercial Visitor Management Systems

• Existing Aiphone JP Series System Replacements

• Commercial Access Control Installations

Video Monitoring & Communication Functions

1. Wide-Angle Visitor Identification

The JP-DA features a color camera with approximately 170° horizontal viewing coverage.

This wide-angle design helps users identify visitors and monitor activity surrounding commercial and residential entrances.

2. Digital PanTilt & Zoom

When connected to a compatible JP Series master station, users can digitally pan, tilt, and zoom the camera image.

This allows operators to focus on visitor faces, identification badges, and specific areas around the entrance.

Note: PanTilt and Zoom are digital image functions. The camera does not physically rotate.

3. Hands-Free Two-Way Communication

When a visitor presses the call button, the station initiates a call to the connected JP Series answering station.

Once the call is answered, the integrated microphone and speaker provide hands-free communication.

4. Automatic Low-Light Illumination

The built-in white LED automatically activates when additional illumination is needed, helping improve visitor visibility during low-light conditions.

5. Remote Door Release

When connected to a compatible JP Series master station and electric locking hardware, authorized users can release the entrance door directly from the indoor monitor.

6. Visitor Picture Recording

When paired with the Aiphone JP-4MED master station, the system supports visitor picture recording and playback.

Picture memory is provided by the master station, not the JP-DA door station itself.

7. Multiple Entrance Expansion

The Aiphone JP Series supports up to four compatible video door stations and eight indoor answering stations, allowing the JP-DA to be incorporated into larger intercom systems.

Installation & Compatibility

The Aiphone JP-DA is designed for integration with compatible Aiphone JP Series Video Intercom Systems.

The door station connects to the JP-4MED master station through specified two-conductor intercom wiring and receives operating power through the compatible system.

The compact surface-mount housing allows installation directly onto a suitable wall or standard single-gang electrical box.

Mounting Options

• Direct Surface Mount: Mounts directly onto a properly prepared wall.

• Single-Gang Box Mount: Compatible with a standard single-gang electrical box or mounting ring.

• Wiring Connection: Two-conductor intercom cable connected to the designated JP Series terminals.

Important Installation Information

• This listing is for the JP-DA video door station only, not a complete video intercom kit.

• Requires a compatible Aiphone JP Series master station for normal operation.

• The JP-DA does not include an independent power supply.

• This is a traditional hardwired video intercom station, not a standalone IP, Ethernet, Wi-Fi, or PoE device.

• Digital PanTilt and Zoom functions are controlled through compatible JP Series answering stations.

• Remote door release requires compatible electric locking hardware and an appropriate lock power supply.

• The JP-DA features a plastic housing and should not be confused with the vandal-resistant metal JP-DV or stainless steel JP-DVF models.

• Outdoor installations must follow the manufacturer's weather-protection and mounting requirements.

• Do not direct high-pressure water at the door station.

• Master stations, system power supplies, electric locking hardware, and optional accessories are sold separately unless otherwise specified.

Why Choose the Aiphone JP-DA?

The Aiphone JP-DA combines reliable entrance communication, wide-angle video monitoring, and convenient hands-free operation in one compact surface-mounted video door station.

Its 170° color camera, digital PanTilt and Zoom functionality, automatic low-light LED illumination, and durable plastic construction make it an excellent solution for commercial offices, small businesses, and residential entrances.

With its simple two-wire installation, single-gang mounting compatibility, and integration with Aiphone JP Series video intercom systems, the JP-DA provides dependable visitor identification and secure entrance communication at an economical alternative to vandal-resistant metal door stations.
