Complete Commercial Video Intercom System | 170° Wide-Angle Camera | Hands-Free & Handset Communication | Visitor Picture Memory | Remote Door Release

The Aiphone JPS-4AEDV Video Intercom Kit is a professional-grade entrance communication system designed for commercial offices, schools, healthcare facilities, residential properties, and secured building entrances requiring dependable visitor identification and access control.

Featuring a 7-inch color touchscreen master station, vandal-resistant surface-mount video door station, and 24V DC power supply, the JPS-4AEDV provides a complete solution for monitoring visitors, communicating with individuals at building entrances, and controlling compatible electric door locks.

The included JP-DV video door station features a wide-angle color camera with approximately 170° horizontal and 100° vertical viewing coverage, digital PanTilt and Zoom functionality, hands-free audio, and automatic white LED illumination for improved visibility in low-light conditions.

The JP-4MED master station provides a large color touchscreen, built-in privacy handset, selective door-release controls, and visitor picture memory. Its expandable JP Series architecture accommodates up to four video door stations and eight indoor answering stations total when equipped with compatible additional components.

With its IP54 weather-resistant and IK08 impact-resistant door station, the JPS-4AEDV is an excellent choice for high-traffic commercial and residential entrances.

Key Features

• Complete Video Intercom Kit: Includes JP-DV video door station, JP-4MED touchscreen master station, and PS-2420UL power supply.

• 7-Inch Color Touchscreen: Large TFT LCD display provides convenient visitor identification, monitoring, and system operation.

• Vandal-Resistant Door Station: Heavy-duty die-cast metal faceplate provides enhanced durability against physical damage.

• IK08 Impact Resistance: Door station is designed for demanding commercial entrance environments.

• IP54 Weather Protection: Helps protect the exterior door station against dust and water exposure.

• 170° Wide-Angle Camera: Provides expanded entrance visibility with approximately 100° vertical viewing coverage.

• Digital PanTilt & Zoom: Allows users to electronically adjust the camera view and focus on specific areas.

• Hands-Free Communication: Built-in microphone and speaker provide open-voice communication.

• Privacy Handset: Integrated handset supports private, simultaneous two-way communication.

• Hearing Aid T-Mode Compatibility: Master station supports compatible hearing aid communication.

• Remote Door Release: Allows authorized personnel to activate compatible electric locking hardware.

• Selective Door Release: Supports control of designated entrances when expanded with compatible system components.

• Automatic LED Illumination: Door station activates its white LED in low-light conditions.

• Illuminated Nameplate: Makes the entrance identification area easier to locate.

• Built-In Picture Memory: Stores images from up to 20 visitor calls, with six images per call.

• Expandable Memory: Optional SD/SDHC card supports up to 1,000 visitor calls with 40 images per call.

• Entrance Monitoring: Allows users to view connected door station cameras without receiving an incoming call.

• Room-to-Room Communication: Supports calling between compatible indoor JP Series stations.

• Expandable System: Supports up to four door stations and eight indoor answering stations total.

• Simple Two-Wire Door Connection: Compatible with specified Aiphone two-conductor intercom cable.

• 24V DC Power Supply Included: Provides operating power for the intercom system.

• TAA Compliant: Meets applicable Trade Agreements Act requirements.

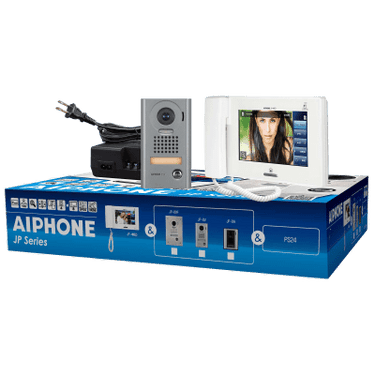

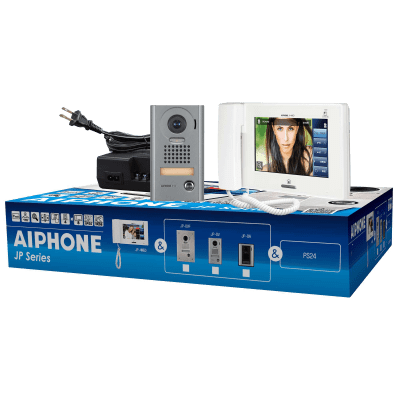

Included Components

1. Aiphone JP-DV Video Door Station

• Vandal-resistant die-cast metal faceplate

• Surface-mount installation

• Integrated CMOS color camera

• Approximately 170° horizontal viewing angle

• Approximately 100° vertical viewing angle

• Digital PanTilt and Zoom control through master station

• Built-in microphone and speaker

• Single call button

• Automatic white LED illumination

• Illuminated nameplate

• IP54 weather-resistant enclosure

• IK08 impact-resistant construction

• Two-conductor wiring connection

2. Aiphone JP-4MED Video Master Station

• 7" TFT color touchscreen

• Built-in privacy handset

• Hands-free and full-duplex handset communication

• Digital camera PanTilt and Zoom controls

• Selective remote door release

• Built-in visitor picture memory

• Optional SD/SDHC recording expansion

• Entrance monitoring capabilities

• Room-to-room calling

• Hearing aid T-Mode compatibility

• Indoor wall-mount installation

3. Aiphone PS-2420UL Power Supply

• Input: 100–240V AC, 50/60Hz

• Output: 24V DC

• Output Current: 2A

• UL-listed power supply

• Supplies operating power to the compatible JP Series system

Product Specifications

General Specifications

• Manufacturer: Aiphone

• Model / SKU: JPS-4AEDV

• Product Type: Complete Video Intercom Kit

• Series: JP Series

• Door Station Included: JP-DV

• Master Station Included: JP-4MED

• Power Supply Included: PS-2420UL

• Communication: Hands-Free / Handset

• Display: 7" Color Touchscreen

• Camera Viewing Angle: Approximately 170° Horizontal x 100° Vertical

• Camera Functions: Digital PanTilt and Zoom

• System Power: 24V DC

• Door Station Wiring: 2-Conductor

• Maximum Door Stations: 4

• Maximum Indoor Answering Stations: 8 Total

• System Type: Hardwired Analog Video Intercom

JP-4MED Master Station

• Display: 7" TFT Color LCD Touchscreen

• Communication: Hands-Free VOX / Handset Full-Duplex

• Handset: Built-In Privacy Handset

• Hearing Aid Compatibility: T-Mode

• Internal Picture Memory: Up to 20 Calls

• Images Per Stored Call: 6

• Expandable Memory: SD / SDHC Card

• Maximum Expanded Memory: 1,000 Calls

• Images Per Call with SD/SDHC: 40

• Door Release: Normally Open Dry Contact

• Door Release Rating: 24V AC/DC, 500mA

• Power Consumption: 340mA Maximum

• Power Requirements: 24V DC

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Dimensions: 5-11/16" H x 10-1/16" W x 1-7/8" D

• Mounting: Indoor Wall Mount

JP-DV Video Door Station

• Construction: Vandal-Resistant Die-Cast Metal Faceplate

• Finish: Silver

• Mounting Type: Surface Mount

• Camera: CMOS Color Camera

• Viewing Angle: Approximately 170° Horizontal x 100° Vertical

• Camera Adjustment: Digital PanTilt & Zoom from Master Station

• Communication: Hands-Free Two-Way Audio

• Call Buttons: 1

• Night Illumination: Built-In White LED

• Nameplate: Illuminated

• Weather Protection: IP54

• Impact Protection: IK08

• Power Source: Supplied by Master Station

• Wiring: 2-Conductor, Low-Capacitance, Non-Shielded

• Recommended Cable: Aiphone #871802

• Maximum Door-to-Master Distance, 22 AWG: 165 Feet

• Maximum Door-to-Master Distance, 18 AWG: 330 Feet

• Operating Temperature: -4°F to 140°F (-20°C to 60°C)

• Dimensions: 6-13/16" H x 3-7/8" W x 1" D

• Electrical Box: Optional MKW-P Mounting Plate for Single-Gang Box Installation

Recommended Applications

• Commercial Office Buildings

• Corporate Office Campuses

• Schools and Universities

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Government and Municipal Buildings

• Apartment and Condominium Entrances

• Professional Office Suites

• Industrial and Manufacturing Facilities

• Warehouse and Distribution Centers

• Secured Employee Entrances

• Reception and Security Desks

• Multi-Entrance Commercial Facilities

• Residential Building Security

• Visitor Management Systems

• Commercial Access Control Installations

Video Monitoring & Communication Functions

1. Wide-Angle Visitor Identification

The JP-DV door station features a wide-angle color camera providing approximately 170° horizontal viewing coverage.

Authorized users can digitally pan, tilt, and zoom the camera image from the JP-4MED touchscreen to focus on visitors, identification badges, or specific areas around the entrance.

2. Hands-Free & Handset Communication

The JP-4MED allows convenient hands-free communication through its integrated microphone and speaker.

For private conversations, users can lift the built-in handset to communicate directly with visitors.

3. Remote Door Release

When properly connected to compatible electric locking hardware, the master station allows authorized personnel to release the entrance door from the touchscreen controls.

4. Visitor Picture Memory

The JP-4MED automatically captures visitor images and stores up to 20 call records in its internal memory.

Each stored call can contain up to six images.

An optional SD/SDHC memory card expands capacity to up to 1,000 call records with 40 images per call.

5. Low-Light Visitor Monitoring

The JP-DV features automatic white LED illumination to improve visibility when monitoring visitors under low-light conditions.

6. Multi-Entrance Expansion

The JP Series supports up to four compatible video door stations and eight indoor answering stations total when expanded with appropriate system components.

This allows the JPS-4AEDV to serve as the foundation for larger commercial and residential intercom installations.

Installation & Compatibility

The Aiphone JPS-4AEDV is a complete JP Series hardwired video intercom system.

The JP-DV door station connects directly to the JP-4MED master station using compatible two-conductor intercom wiring.

The master station receives operating power from the included PS-2420UL 24V DC power supply.

Installation Requirements

• Door Station: JP-DV vandal-resistant surface-mounted video station

• Master Station: JP-4MED indoor 7" touchscreen monitor

• Power Supply: Included PS-2420UL

• Door Station Wiring: Two-conductor low-capacitance cable

• Indoor Expansion Wiring: Cat-5e or Cat-6 cabling for compatible JP Series expansion stations

• Door Release: Compatible electric locking equipment with the required lock power supply

Optional System Expansion

• JP-4HD: Additional indoor video answering station

• JP-8Z: Video distribution adaptor for expansion stations

• JP-DA: Standard surface-mount video door station

• JP-DV: Additional vandal-resistant surface-mount video door station

• JP-DVF: Stainless steel flush-mount video door station

• JPW-BA: Long-distance / CCTV camera adaptor

• MKW-P: Optional mounting plate for JP-DV single-gang installations

Important Installation Information

• This listing is for the complete JPS-4AEDV boxed kit, consisting of the JP-DV, JP-4MED, and PS-2420UL.

• The system uses traditional hardwired intercom connections and does not feature built-in Wi-Fi or smartphone app connectivity.

• The JP-DV is not a standalone IP or PoE video door station.

• The door station is designed for surface mounting.

• Digital PanTilt and Zoom adjusts the displayed camera view electronically; the camera is not motorized.

• The JP-4MED must be installed indoors.

• A compatible electric strike, magnetic lock, or other electric locking device is required for door release.

• Electric locking hardware and its operating power supply are sold separately.

• An SD/SDHC memory card is optional and not included.

• Additional door stations, expansion monitors, distribution adaptors, and mounting accessories are sold separately.

• Outdoor installations must follow Aiphone's mounting and weather-sealing requirements.

Why Choose the Aiphone JPS-4AEDV?

The Aiphone JPS-4AEDV combines professional-grade video entrance security, vandal-resistant construction, and flexible system expansion in one complete commercial intercom package.

Its 7-inch touchscreen, wide-angle camera, digital PanTilt and Zoom, visitor picture memory, hands-free and handset communication, and remote door-release capabilities provide dependable access management for commercial and residential properties.

With the IP54 weather-resistant and IK08 impact-resistant JP-DV door station, simple two-wire installation, and included 24V DC power supply, the JPS-4AEDV is an excellent solution for facilities requiring reliable visitor identification and secure entrance communication.
