Commercial Video Intercom Expansion | Extended Door Station Wiring | Analog CCTV Camera Integration | 24V DC | JP Series Compatible

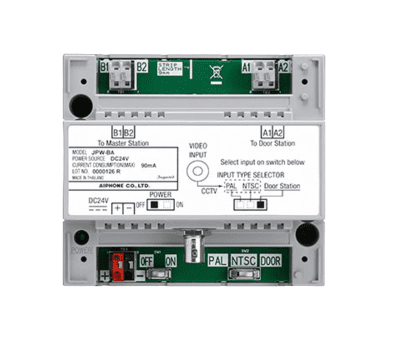

The Aiphone JPW-BA Long-Distance / CCTV Camera Adaptor is a professional-grade intercom accessory designed to expand the capabilities of compatible Aiphone JP Series Video Intercom Systems.

Engineered for commercial buildings, schools, healthcare facilities, industrial properties, and secured entrances, the JPW-BA provides two valuable integration options: extending video door station wiring distances up to 980 feet or connecting a compatible analog CCTV camera to a JP Series intercom system.

When used as a long-distance adaptor, the JPW-BA extends the connection between an Aiphone JP video door station and the JP-4MED master station, allowing greater flexibility when installing entrance stations at remote gates, detached buildings, security checkpoints, and distant commercial entrances.

Alternatively, the adaptor can be configured to integrate an analog CCTV camera with an Aiphone GT-D audio door station, allowing users to view the camera image while communicating with visitors through the intercom system.

The JPW-BA operates on 24V DC power, features selectable door station and analog video input modes, and supports surface or DIN rail mounting.

Its compact design and flexible wiring capabilities make the JPW-BA an excellent solution for commercial installations requiring expanded entrance communication or integration with existing analog security cameras.

Key Features

• Long-Distance Video Intercom Expansion: Extends compatible JP Series video door station wiring up to 980 feet.

• 650-Foot Door Station Connection: Supports up to 650 feet between the JPW-BA and a compatible JP video door station using specified 18 AWG cable.

• 330-Foot Master Station Connection: Supports up to 330 feet between the JPW-BA and JP-4MED master station using specified 18 AWG cable.

• Analog CCTV Camera Integration: Allows a compatible analog CCTV camera to be connected to the JP Series system.

• GT-D Audio Door Station Compatibility: Supports combined CCTV video and visitor audio communication when paired with an Aiphone GT-D.

• BNC Video Input: Provides a coaxial connection for compatible analog video cameras.

• Selectable Video Input Modes: Supports door station video or analog NTSC/PAL camera input.

• JP Series Compatibility: Designed specifically for compatible Aiphone JP Series equipment.

• Dedicated Door Station Adaptor: One JPW-BA is used for each video door station requiring extended wiring.

• Dedicated CCTV Integration: Each adaptor can be configured for analog CCTV integration.

• 24V DC Operation: Compatible with the Aiphone PS-2420UL power supply.

• Low Power Consumption: Maximum current consumption of approximately 90mA.

• Two-Conductor Intercom Wiring: Uses specified low-capacitance, non-shielded cable.

• Surface-Mount Installation: Mounts directly to a suitable protected wall or equipment panel.

• DIN Rail Mounting: Compatible with the Aiphone W-DIN11 mounting rail.

• Compact Construction: Fire-retardant ABS housing designed for protected indoor installations.

• Power Status Indicator: Integrated green LED provides visual power status.

• Integrated Power Switch: Allows the adaptor to be switched on or off.

• Commercial System Expansion: Useful for larger buildings, remote entrances, and extended wiring applications.

• TAA Compliant: Meets applicable Trade Agreements Act requirements.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: JPW-BA

• Product Type: Long-Distance / CCTV Camera Adaptor

• Series: JP Series

• Application: Extended Intercom Wiring / Analog CCTV Integration

• Housing Material: Fire-Retardant ABS Plastic

• Housing Color: Gray

• Compatible Master Station: JP-4MED

• Compatible Door Stations: Aiphone JP Series Video Door Stations

• Compatible Audio Door Station: GT-D, for CCTV Camera Integration

• Power Requirements: 24V DC

• Compatible Power Supply: PS-2420UL

• Maximum Current Consumption: 90mA

• Door Station Connection: 2-Conductor

• Master Station Connection: 2-Conductor

• Wiring Type: Low-Capacitance, Solid, Non-Shielded

• Cable Reference: Aiphone #871802 per March 2026 Data Sheet

• Analog Camera Connection: BNC / Coaxial

• Analog Video Input: 1 Vp-p / 75 Ohms

• Video Input Modes: Door Station / NTSC / PAL

• Maximum Extended Wiring Distance: 980 Feet

• JPW-BA to Video Door Station, 18 AWG: Up to 650 Feet

• JPW-BA to JP-4MED Master, 18 AWG: Up to 330 Feet

• JPW-BA to Video Door Station, 22 AWG: Up to 330 Feet

• JPW-BA to JP-4MED Master, 22 AWG: Up to 165 Feet

• Maximum JPW-BA to Power Supply, 18 AWG: 330 Feet

• Maximum JPW-BA to Power Supply, 22 AWG: 165 Feet

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Dimensions: 4-5/16" H x 4-7/8" W x 2-3/8" D

• Dimensions (Metric): 109mm H x 123mm W x 61mm D

• Weight: Approximately 0.44 lbs. (200g)

• Mounting Type: Surface Mount / DIN Rail

• DIN Rail Reference: W-DIN11

• Installation Environment: Protected Indoor Location

• Compliance: TAA Compliant

• System Compatibility: Aiphone JP Series Video Intercom Systems

Compatible Aiphone Equipment

Video Master & Expansion Stations

• JP-4MED: 7" Color Touchscreen Video Master Station

• JP-4HD: 7" Video Sub Master Station, operating as part of a compatible JP Series system

Compatible Video Door Stations

• JP-DA: Standard Surface-Mount Video Door Station

• JP-DV: Vandal-Resistant Surface-Mount Video Door Station

• JP-DVF: Stainless Steel Flush-Mount Video Door Station

• JP-DVF-PR: Flush-Mount Video Door Station with Proximity Reader

Audio Door Station

• GT-D: Audio Door Station for Compatible Analog CCTV Camera Integration

Power Supplies & Accessories

• PS-2420UL: 24V DC Power Supply

• W-DIN11: DIN Rail Mounting Accessory

• Aiphone #871802: Two-Conductor Intercom Cable

Compatible JP Series Boxed Systems

The JPW-BA can be incorporated into compatible JP Series video intercom installations, including:

• JPS-4AED: Video Intercom Kit with JP-DA Door Station

• JPS-4AEDV: Video Intercom Kit with JP-DV Vandal-Resistant Door Station

• JPS-4AEDF: Video Intercom Kit with JP-DVF Stainless Steel Flush-Mount Door Station

Recommended Applications

• Commercial Office Buildings

• Corporate Office Campuses

• Schools and Universities

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Government and Municipal Buildings

• Industrial and Manufacturing Facilities

• Warehouse and Distribution Centers

• Gated Commercial Properties

• Remote Building Entrances

• Detached Office Buildings

• Security Guard Booths

• Parking Facility Entrances

• Secured Employee Entrances

• Manufacturing Plant Entry Gates

• Commercial Visitor Management Systems

• Existing Analog CCTV Integration

• Long-Distance Intercom Installations

• Commercial Access Control Systems

Long-Distance Wiring & CCTV Integration

1. Extended Video Door Station Wiring

The JPW-BA allows a compatible Aiphone JP Series video door station to be installed farther from the JP-4MED master station than standard direct wiring permits.

Using specified 18 AWG cable, the connection can be divided into two sections:

• JP Video Door Station to JPW-BA: Up to 650 feet

• JPW-BA to JP-4MED Master Station: Up to 330 feet

• Maximum Combined Distance: 980 feet

This configuration is especially useful when video door stations must be located at distant entrances, security gates, or separate buildings.

2. Analog CCTV Camera Integration

The JPW-BA can also operate as a CCTV camera adaptor.

When configured with a compatible analog CCTV camera and Aiphone GT-D audio door station, the adaptor allows the camera image to be displayed through the JP Series master station.

The GT-D provides visitor calling and audio communication, while the connected CCTV camera supplies the video image.

Important: When using an analog CCTV camera, digital PanTilt, Zoom, and Wide functions are disabled for that input.

3. Selectable Video Input Modes

The adaptor includes a video selection switch with three operating positions:

• DOOR STATION: For connection to a compatible JP Series video door station.

• NTSC: For a compatible NTSC analog CCTV camera.

• PAL: For a compatible PAL analog CCTV camera.

The selected mode must match the installed video source.

4. Dedicated Adaptor Configuration

Each JPW-BA can be configured for one of its two primary applications:

• Long-distance video door station extension

• Analog CCTV camera integration

A single JPW-BA cannot independently perform both functions simultaneously.

Separate adaptors are required when an installation needs multiple long-distance connections, multiple CCTV cameras, or both types of functionality.

5. Compact Commercial Installation

The adaptor can be mounted directly onto a wall or suitable equipment panel, or installed using compatible DIN rail mounting hardware.

Its compact construction allows placement near associated intercom equipment and 24V DC power supplies in a protected control enclosure.

Installation & Compatibility

The Aiphone JPW-BA is designed for integration with compatible Aiphone JP Series Video Intercom Systems.

For long-distance applications, the video door station connects to the JPW-BA, which connects to the JP-4MED master station.

For analog CCTV applications, the CCTV camera connects to the adaptor through its BNC video input, while the compatible GT-D audio door station provides the associated visitor communication functions.

The JPW-BA requires 24V DC power from a compatible power supply.

Installation Requirements

• Video Master Station: JP-4MED

• Video Source: Compatible JP Series door station or analog CCTV camera

• Audio Door Station for CCTV Applications: GT-D

• Power: 24V DC, compatible PS-2420UL

• Intercom Cable: Specified two-conductor, low-capacitance cable

• Analog Camera Connection: Coaxial cable with BNC connector

• Mounting: Protected surface or DIN rail

• Installation Location: Protected indoor equipment area

Important Installation Information

• This listing is for the JPW-BA adaptor only, not a complete video intercom system.

• The JPW-BA is compatible with the Aiphone JP Series and is not a universal intercom extender.

• Maximum wiring distances depend on conductor size and the approved wiring configuration.

• The full 980-foot distance requires the appropriate wire gauge and installation conditions.

• The adaptor requires 24V DC power.

• The PS-2420UL power supply is sold separately unless otherwise specified.

• A single adaptor provides either long-distance extension or analog CCTV integration, not both simultaneously.

• Analog CCTV operation requires a compatible GT-D audio door station for visitor calling and voice communication.

• The CCTV camera requires its own compatible operating power source.

• The adaptor does not include a video camera, touchscreen, microphone, or speaker.

• The adaptor does not provide independent recording or video storage.

• It is not an Ethernet, Wi-Fi, SIP, or PoE network device.

• Analog CCTV integration does not provide digital PanTilt or Zoom functionality.

• The JPW-BA must be installed in a protected indoor location or suitable restricted-access enclosure.

• DIN rail inclusion should be confirmed with the supplier before publishing package contents.

• Installation must follow Aiphone's JP Series wiring diagrams and power supply requirements.

Why Choose the Aiphone JPW-BA?

The Aiphone JPW-BA Long-Distance / CCTV Camera Adaptor provides a dependable solution for extending JP Series video intercom installations and integrating compatible analog security cameras.

Its combination of 980-foot maximum wiring capability, analog CCTV camera support, selectable video inputs, compact construction, and 24V DC operation makes it a valuable accessory for commercial buildings, gated properties, institutions, and facilities requiring extended entrance communication.

Whether extending a video door station to a remote entrance or incorporating an existing analog CCTV camera into a JP Series intercom system, the JPW-BA provides the flexibility needed for professional commercial security installations.
