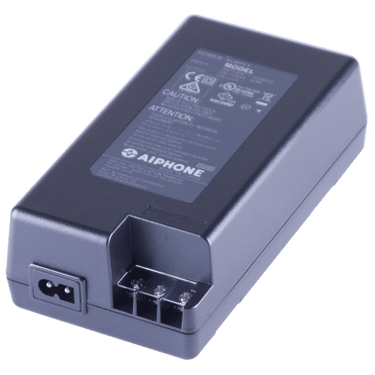

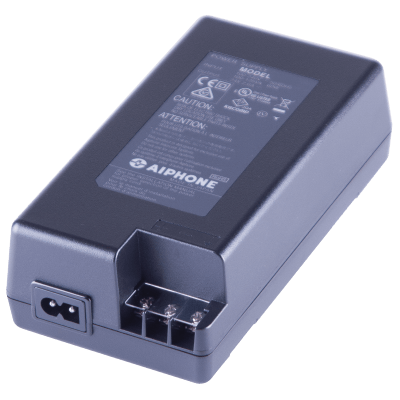

Provide reliable power for compatible Aiphone intercom and access-control equipment with the Aiphone PS-2420UL 24VDC Power Supply.

Designed specifically for Aiphone communication systems, the PS-2420UL accepts universal 100–240VAC input and provides a regulated 24VDC, 2A output for compatible master stations, exchange units, intercom components, and accessories.

Its compact wall-mount design, screw-terminal DC connections, and broad Aiphone system compatibility make it an ideal replacement or new-installation power supply for commercial intercom applications.

Key Features

• Genuine Aiphone PS-2420UL

• 24VDC output

• 2A output current

• 48W secondary output capacity

• Universal 100–240VAC, 50/60Hz input

• Class II DC power supply

• UL listed

• CSA listed

• Screw-terminal DC output connections

• Compact wall-mount design

• Wide compatibility with Aiphone intercom systems

• Designed for indoor use

• Suitable for new installations and replacement applications

Product Specifications

Manufacturer: Aiphone
Model: PS-2420UL
Product Type: DC Power Supply
Input Voltage: 100–240VAC
Input Frequency: 50/60Hz
Output Voltage: 24VDC
Output Current: 2A
Output Power: 48W
Power Consumption: Approximately 60W / 100–125VA
Connection: Screw Terminals
Mounting: Wall Mount
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Dimensions: Approximately 6-9/16" H x 3-9/16" W x 2-1/16" D
Application: Indoor Use
Listings: UL / CSA

Compatible Aiphone Systems

The PS-2420UL is designed for use with compatible Aiphone equipment including:

• AX Series

• GT Series

• IM Series

• IX Series

• JP Series

• JV Series

• KB Series

• MC Series

• NHX Series

• Compatible Aiphone emergency wall-box and tower beacon applications

Always verify the power requirements of the specific Aiphone equipment before installation.

Universal AC Input

The PS-2420UL accepts 100–240VAC at 50/60Hz, allowing it to operate across a broad range of standard AC power conditions.

The unit converts the incoming AC voltage to regulated 24VDC power required by compatible Aiphone equipment.

24VDC / 2A Output

The power supply provides:

Output Voltage: 24VDC
Maximum Output Current: 2A
Output Capacity: 48W

This makes it suitable for powering compatible Aiphone system components requiring a regulated 24VDC source.

Installation

The PS-2420UL mounts to a wall or compatible electrical box using the supplied mounting bracket.

DC wiring connects through clearly identified positive (+) and negative (-) screw terminals.

Correct polarity must be observed when connecting Aiphone equipment.

Indoor Use

The PS-2420UL is designed for indoor installation only.

Install the power supply in a dry, protected location within its specified operating temperature range.

Ideal Applications

• Commercial intercom systems

• Apartment and multi-tenant buildings

• Office buildings

• Schools and universities

• Healthcare facilities

• Government buildings

• Security stations

• Video intercom systems

• Access-control entrances

• Aiphone system repairs

• Replacement power-supply installations

Important Ordering Information

Before ordering, verify:

• Existing Aiphone system model

• Required voltage

• Required current capacity

• Number of devices being powered

• System wiring requirements

This listing is for the PS-2420UL power supply only. Intercom stations, exchange units, door stations, wiring, and other accessories are sold separately unless specifically stated.
