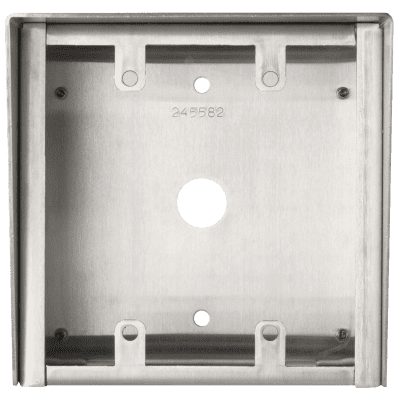

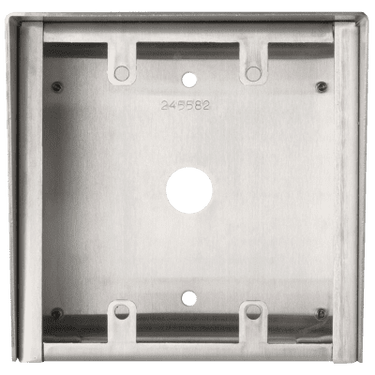

Surface mount a compatible Aiphone 2-gang door or sub station with the Aiphone SBX-2G/A Stainless Steel Surface Mount Box.

Constructed from heavy-duty 18-gauge polished stainless steel, the SBX-2G/A provides a rugged surface-mount solution when a recessed 2-gang installation is not practical.

The enclosure is designed for demanding commercial and institutional environments, providing weather- and vandal-resistant construction, interior wiring space, and tamper-resistant mounting hardware.

Key Features

• Genuine Aiphone SBX-2G/A

• Surface-mount enclosure for compatible 2-gang Aiphone stations

• 18-gauge stainless-steel construction

• Polished stainless-steel finish

• Weather resistant

• Vandal resistant

• Interior space for cabling

• Mounts directly to a flat wall

• Can mount over a 1-gang box or ring

• Includes station mounting hardware

• Tamper-resistant Torx mounting screws

• Ideal for commercial and institutional entrances

• TAA compliant

• Made in USA

Product Specifications

Manufacturer: Aiphone
Model: SBX-2G/A
Product Type: 2-Gang Surface Mount Box
Material: 18-Gauge Stainless Steel
Finish: Polished Stainless Steel
Mounting: Surface Mount / 1-Gang Box or Ring
Height: 4-13/16"
Width: 4-7/8"
Maximum Depth – Top: 4"
Depth – Bottom: Approximately 3-5/8"
Interior Depth: Approximately 3-3/8"
Mounting Hardware: 8-32 Screws with T-15 Torx Head
Application: Aiphone 2-Gang Door & Sub Stations

Current IX Series Application

The SBX-2G/A is the specified surface-mount enclosure for the:

IX-SS-2G – IP Audio Door Station

The IX-SS-2G normally flush mounts into a locally supplied 2-gang box. Using the SBX-2G/A allows the station to be mounted directly to the wall instead.

The IX-SS-2G is:

• SIP compliant

• PoE powered

• IP65 weather resistant

• IK08 impact resistant

• Designed for indoor or outdoor use

Compatible Aiphone Stations

Aiphone documentation lists the SBX-2G/A for compatible stations including:

IX Series

• IX-SS-2G

LEF / IX-1AS / IX-10AS Applications

• LE-SS/A

• LE-SSR

• LE-DA

IE / AX Series

• IE-SS/A

• IE-SSR

• IE-JA

IS Series

• IS-SS-2G

• IS-SSR-2G

Some listed stations are legacy or discontinued products.

Always verify the exact station model before ordering.

Surface-Mount Installation

The SBX-2G/A is ideal when:

• A recessed 2-gang box is unavailable

• Cutting into the wall is impractical

• Existing construction requires surface mounting

• Additional wiring space is needed

• An existing intercom installation is being retrofitted

• A vandal-resistant exterior enclosure is preferred

The enclosure can mount directly to the wall or over a compatible 1-gang electrical box or ring.

Interior Wiring Space

The enclosure provides approximately 3-3/8" of usable interior depth, providing room behind the station for compatible:

• Intercom wiring

• Network cabling

• PoE connections

• Door-release wiring

• Relay connections

• Trigger wiring

Stainless-Steel Construction

The SBX-2G/A is manufactured from 18-gauge stainless steel with a polished finish.

This construction provides a durable enclosure suitable for:

• Exterior entrances

• High-traffic areas

• Commercial buildings

• Institutional facilities

• Security-controlled openings

Weather & Vandal Resistance

The enclosure is designed for use with compatible weather- and vandal-resistant Aiphone stations.

Its rugged construction helps protect the installation against:

• Weather exposure

• Impact

• Tampering

• Heavy commercial use

Always follow the environmental rating and installation instructions of the connected door station.

Included Hardware

The SBX-2G/A package includes:

• SBX-2G/A Stainless Steel Enclosure

• Four mounting screws

• Four speed nuts

• T-15 Torx security bit

Ideal Applications

• Commercial office buildings

• Schools and universities

• Healthcare facilities

• Government buildings

• Industrial facilities

• Apartment buildings

• Condominium entrances

• Security vestibules

• Exterior intercom locations

• IP audio intercom systems

• Existing Aiphone system retrofits

Important Ordering Information

This listing is for the SBX-2G/A surface-mount box only.

The following are sold separately unless specifically stated:

• Aiphone door or sub station

• Network cabling

• PoE equipment

• Power supply

• Electric strike

• Door-release relay

• Access-control hardware

• Intercom wiring

Verify compatibility with the exact Aiphone station before ordering.
