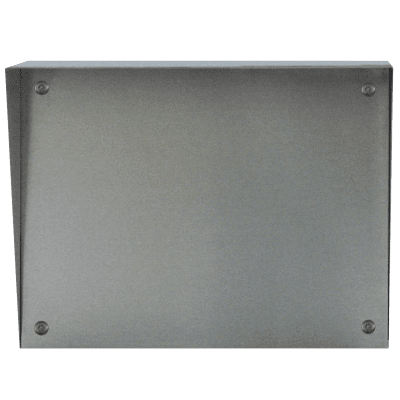

Combine an Aiphone intercom door station and an access-control device in one rugged surface-mount enclosure with the Aiphone SBX-ACE Stainless Steel Device Enclosure.

The SBX-ACE provides space for one compatible 1-gang Aiphone door station and one access-control device, such as a proximity reader, card reader, or keypad.

Constructed from heavy-duty 18-gauge polished stainless steel, the enclosure features a protective hood, vandal-resistant construction, internal wiring space, conduit knockouts, and bottom drainage openings for demanding commercial entrance applications.

Key Features

• Genuine Aiphone SBX-ACE

• Intercom and access-control surface-mount enclosure

• Accommodates one Aiphone 1-gang door station

• Accommodates one access-control device

• Suitable for card readers, proximity readers, and keypads

• 18-gauge polished stainless-steel construction

• Vandal-resistant design

• Hood provides additional weather protection

• Blank stainless-steel faceplate allows flexible device placement

• Interior space for wiring

• Three conduit knockouts

• Bottom drainage openings

• Mounts directly to a wall

• Can mount over a standard 1-gang or 2-gang box

• Tamper-resistant mounting hardware included

• TAA compliant

• Made in USA

Product Specifications

Manufacturer: Aiphone
Model: SBX-ACE
Product Type: Intercom & Access Control Device Enclosure
Material: 18-Gauge Stainless Steel
Finish: Polished Stainless Steel
Mounting: Surface Mount
Gang Box Compatibility: 1-Gang or 2-Gang
Overall Height: 7-1/16"
Overall Width: 9-1/8"
Maximum Depth – Top: 4-1/4"
Depth – Bottom: 1-5/8"
Interior Depth: 1-1/2"
Faceplate: 6-15/16" H x 8-15/16" W
Conduit Knockouts: Three 7/8" Knockouts
Application: Intercom Door Station + Access Control Device

Dual-Device Installation

The SBX-ACE is specifically designed to place two entrance-control components side by side:

Position 1: Compatible Aiphone door station
Position 2: Access-control device

Common access-control devices include:

• Proximity readers

• Smart-card readers

• Keypads

• Credential readers

• Other compact entrance-control devices

This provides a clean, integrated appearance without requiring separate surface boxes for the intercom and reader.

Current Compatible Aiphone Door Stations

Current Aiphone documentation lists the SBX-ACE for:

• GT-D – GT Series Audio Door Station

• JO-DA – JO Series Audio/Video Door Station

• JP-DA – JP Series Audio/Video Door Station

Always verify the dimensions and installation requirements of the exact station before drilling the blank faceplate.

Additional / Legacy Door Station Applications

Aiphone installation documentation also identifies compatibility with select stations including:

• LE-D

• IF-DA

• IX-BA

• JF-DA

• JK-DA

• IX-DA

• KB-DAR

Some of these models are legacy or discontinued products.

For new installations, verify current manufacturer compatibility before ordering.

Blank Stainless-Steel Faceplate

Unlike an enclosure pre-cut for one specific reader, the SBX-ACE includes a blank stainless-steel faceplate.

The installer positions the intercom and access-control device on the faceplate and field-drills the required:

• Mounting holes

• Wire openings

• Device cutouts where required

This allows the enclosure to accommodate a wide variety of access-control readers and keypads.

Standalone Access Control Enclosure

The SBX-ACE can also be used without an intercom station as a hooded surface-mount enclosure for compatible:

• Card readers

• Proximity readers

• Keypads

• Other access-control devices

This makes the enclosure useful for retrofit and custom entrance-control installations.

Weather-Resistant Hood

The enclosure's hood extends over the faceplate to help protect installed equipment from weather exposure.

Additional features include:

• Polished stainless-steel construction

• Protected interior wiring area

• Bottom moisture-drain openings

• Hooded device mounting area

Always follow the environmental ratings of the installed intercom and access-control devices.

Conduit & Wiring Access

The SBX-ACE includes three 7/8" conduit knockouts for routing intercom and access-control wiring.

Its approximately 1-1/2" interior depth provides space behind the devices for:

• Intercom wiring

• Network cable

• Reader wiring

• Door-release wiring

• Request-to-exit wiring

• Power wiring

• Relay connections

Mounting Options

The enclosure can be surface mounted:

• Directly to a wall

• Over a 1-gang electrical box

• Over a 2-gang electrical box

• To an appropriate entrance stanchion or mounting surface

Tamper-Resistant Hardware

The SBX-ACE includes:

• Four 8-32 tamper-resistant screws

• T-15 Torx security bit/tool

The security hardware helps discourage unauthorized removal of the enclosure faceplate.

Ideal Applications

• Commercial office entrances

• Schools and universities

• Healthcare facilities

• Government buildings

• Apartment buildings

• Condominium entrances

• Industrial facilities

• Security vestibules

• Gated entrances

• Card-reader entrances

• Intercom and access-control combination installations

What's Included

• Aiphone SBX-ACE Stainless Steel Enclosure

• Blank stainless-steel faceplate

• Four tamper-resistant screws

• T-15 Torx security tool

• Mounting hardware as supplied by Aiphone

Important Ordering Information

This listing is for the SBX-ACE enclosure only.

The following are sold separately unless specifically stated:

• Aiphone door station

• Card reader

• Proximity reader

• Keypad

• Access-control controller

• Power supply

• Electric strike

• Magnetic lock

• Wiring

The faceplate is supplied blank and requires field drilling for the specific intercom and access-control equipment being installed.
