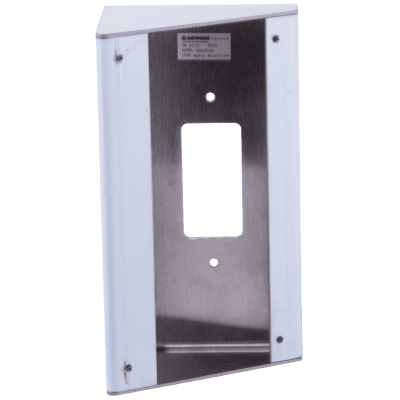

Improve the camera viewing angle at wide or double-door entrances with the Aiphone SBX-DV30 30° Angle Box.

Designed for compatible Aiphone vandal-resistant video door stations including the JF-DV and JK-DV, the SBX-DV30 positions the door station outward at approximately 30 degrees, helping provide a better view of visitors when the station must be installed to the side of the doorway.

Constructed from durable 18-gauge stainless steel, the SBX-DV30 provides a rugged, professional mounting solution for commercial and institutional entrances.

Key Features

• Genuine Aiphone SBX-DV30

• 30° angle mounting box

• Designed for Aiphone video door stations

• Originally designed for JF-DV and JK-DV

• Improves camera viewing angle

• Ideal for wide and double-door entrances

• 18-gauge stainless-steel construction

• Surface-mount design

• Mounts directly to a flat wall or compatible 1-gang box

• Internal space for wiring

• Weather-resistant construction

• Vandal-resistant design

• Bottom drainage opening

• Mounting hardware included

• Polished stainless-steel appearance

Product Specifications

Manufacturer: Aiphone
Model: SBX-DV30
Product Type: 30° Video Door Station Angle Box
Mounting Angle: 30 Degrees
Material: 18-Gauge Stainless Steel
Finish: Polished Stainless Steel
Mounting: Surface Mount / 1-Gang Box
Height: 6-13/16"
Width: 3-5/8"
Maximum Depth: Approximately 2-7/8"
Application: Video Intercom Door Station Mounting

Improved Camera Viewing Angle

Video door stations are often mounted beside an entrance rather than directly in front of the visitor.

On wide or double-door openings, this can cause the camera to point away from the person standing at the entrance.

The SBX-DV30 angles the video door station outward by 30°, helping reposition the camera toward the visitor for improved identification and monitoring.

Compatible Door Stations

The SBX-DV30 was specifically designed for legacy Aiphone models including:

• JF-DV

• JK-DV

It is also used with compatible newer Aiphone vandal-resistant stations including:

• JO-DV

• JP-DV

• JV-DV

Always verify the dimensions and mounting pattern of the existing door station before ordering.

Mounting

The SBX-DV30 can be installed:

• Directly to a flat wall surface

• Over a compatible 1-gang electrical box

Wiring passes through the rear opening and remains concealed inside the angle box.

The video door station then mounts directly to the front of the SBX-DV30 using the supplied machine screws.

Stainless-Steel Construction

The 18-gauge stainless-steel housing provides a durable mounting platform for demanding commercial entrance applications.

The enclosure is designed to complement Aiphone's vandal-resistant stainless-steel video door stations while providing additional protection and a professional finished appearance.

Ideal Applications

• Commercial storefront entrances

• Double-door entrances

• Wide door openings

• Office buildings

• Schools and universities

• Healthcare facilities

• Government buildings

• Apartment and multi-tenant entrances

• Security entrances

• Exterior video intercom installations

What's Included

• Aiphone SBX-DV30 30° Angle Box

• Mounting screws

Important Ordering Information

This listing is for the angle mounting box only.

The video door station, intercom master station, power supply, wiring, and other system components are sold separately unless specifically stated.

Verify compatibility with your specific Aiphone video door station before ordering.
