Provide a secure mounting point for compatible Aiphone intercom control and distribution modules with the Aiphone W-DIN11 DIN Rail Mounting Bracket.

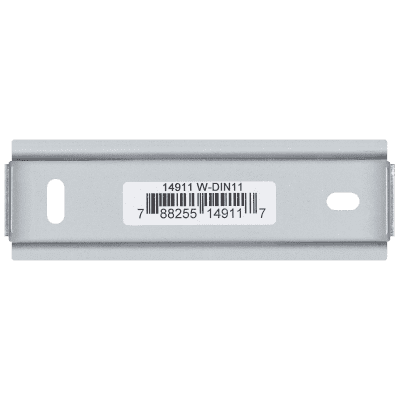

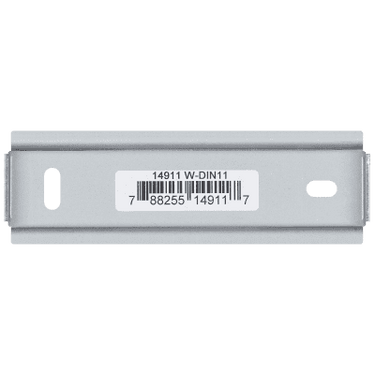

The W-DIN11 is an approximately 11 cm steel mounting rail designed for compatible Aiphone components that support DIN rail installation. It provides a clean, organized mounting solution for control, distribution, and interface equipment installed inside equipment cabinets, communication closets, or other protected system locations.

Key Features

• Genuine Aiphone W-DIN11

• 11 cm DIN rail mounting bracket

• Steel construction

• Designed for compatible Aiphone DIN rail devices

• Provides secure mounting for control and distribution modules

• Attaches to a suitable support structure

• Helps organize intercom system components

• Compact installation footprint

• No electrical power required

• TAA compliant

• Ideal for commercial Aiphone intercom installations

Product Specifications

Manufacturer: Aiphone
Model: W-DIN11
Product Type: DIN Rail Mounting Bracket
Material: Steel
Rail Length: Approximately 11 cm / 4.33"
Mounting: Attach to Support Structure
Electrical Requirements: None
TAA Compliant: Yes
Application: Aiphone Control & Distribution Equipment

DIN Rail Mounting

The W-DIN11 provides the mounting rail required by select Aiphone modules designed for DIN rail installation.

The rail is first secured to the appropriate support structure. The compatible Aiphone module can then be attached to the rail for a compact and organized installation.

This arrangement makes system components easier to:

• Position

• Organize

• Service

• Replace

• Expand

Compatible Aiphone Equipment

Current applications include compatible Aiphone components such as:

• GT-4Z – 4-Way Video Distribution Adaptor

• GT-4ZP – 4-Way Video & Power Distribution Adaptor

The W-DIN11 may also be used with other Aiphone equipment specifically identified by the manufacturer as requiring an external DIN mounting rail.

Always confirm the installation requirements of the specific component before ordering.

GT-4Z Application

The Aiphone GT-4Z is a 4-way video distribution adaptor used in GT Series multi-tenant video intercom systems.

The GT-4Z can be surface mounted using the W-DIN11, providing a convenient method for organizing video distribution equipment inside the system installation area.

GT-4ZP Application

The Aiphone GT-4ZP distributes both video and power to compatible GT Series tenant stations.

Aiphone specifies the:

W-DIN11 – DIN Rail Mounting Bracket

for mounting the GT-4ZP. The W-DIN11 is not included with the GT-4ZP and should be ordered separately when required.

Ideal Applications

• Aiphone GT Series systems

• Multi-tenant intercom installations

• Equipment cabinets

• Communication closets

• Apartment buildings

• Condominium buildings

• Commercial facilities

• Schools and universities

• Healthcare facilities

• Intercom system retrofits and expansions

Important Ordering Information

This listing is for the W-DIN11 mounting rail only.

The following are not included unless specifically stated:

• GT-4Z

• GT-4ZP

• Intercom control equipment

• Power supplies

• Wiring

• Enclosures

• Other DIN rail devices

Verify that the Aiphone component being installed requires the W-DIN11 before ordering.
