Commercial Electromagnetic Door Locks | Fail-Safe Operation | Access Control Compatible | Optional LED & Bond Monitoring | Clear Anodized Aluminum

Secure commercial entrances, industrial facilities, and controlled-access openings with the Alarm Controls 1200 Series Heavy-Duty Electromagnetic Locks, designed to deliver 1,200 pounds of rated magnetic holding force per locking assembly.

Manufactured by Alarm Controls, an ASSA ABLOY company, the 1200 Series provides reliable electromagnetic locking solutions for commercial offices, schools, healthcare facilities, warehouses, government buildings, and institutional properties.

Available in single-door, double-door, and weatherproof gate configurations, the series offers flexible solutions for a wide range of commercial access-control applications.

Choose from basic electromagnetic locking, LED status indication, integrated magnetic bond and door-position monitoring, or a heavy-duty weather-resistant gate lock.

The standard 1200 Series models support field-selectable 12V DC or 24V DC operation and feature fail-safe magnetic locking technology.

When electrical power is applied, the electromagnet creates a magnetic bond with the matching armature plate, securing the entrance. When power is removed, the magnetic holding force releases.

Select models also feature Alarm Controls' E-Z Mount System, built-in arc suppression, instant-release technology, and corrosion-resistant construction for professional commercial installations.

With their heavy-duty holding force, multiple monitoring options, and compatibility with properly designed access-control systems, Alarm Controls 1200 Series maglocks provide dependable electronic door security.

Key Features

• 1,200 LB Rated Holding Force: Each magnet provides 1,200 pounds of rated magnetic holding strength.

• Single & Double-Door Options: Choose the correct locking configuration for one door or a pair of doors.

• Weatherproof Gate Model: The 1200WP provides a sealed magnetic locking solution for compatible exterior gates.

• Fail-Safe Operation: Magnetic holding force releases when electrical power is interrupted.

• Selectable 12/24V DC: Supports field-configurable low-voltage DC operation.

• Commercial Access Control Compatibility: Integrates with properly rated readers, keypads, controllers, and release devices.

• LED Indicator Options: Selected models provide visual lock-status indication.

• Magnetic Bond Monitoring: Available on the 1200LB and 1200D models.

• Door Status Monitoring: Available on the 1200LB and 1200D models.

• Bi-Color Status Indicators: The 1200D provides LED feedback for monitored double-door applications.

• Built-In Arc Suppression: Helps protect associated control circuitry against switching transients on standard models.

• Instant-Release Technology: Designed to minimize residual magnetic holding after power interruption.

• E-Z Mount Installation: Standard door models include a mounting bracket and template for easier installation.

• Clear Anodized Aluminum Finish: US28 finish is standard.

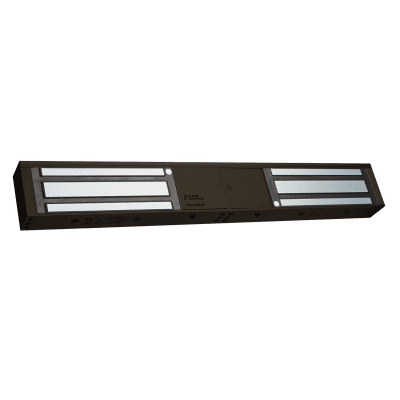

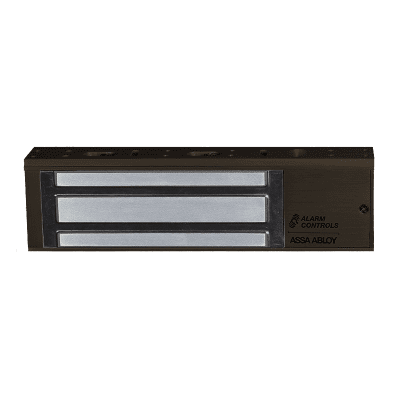

• Optional Duranodic Finish: US40 dark bronze configurations are available on selected models.

• Mounting Accessories: Compatible L-brackets, Z-brackets, drop-down plates, and dress covers are available separately.

• Commercial-Grade Construction: Designed for demanding electronic door security applications.

• Limited Lifetime Warranty: Subject to Alarm Controls' applicable warranty terms.

Available Models & Variants

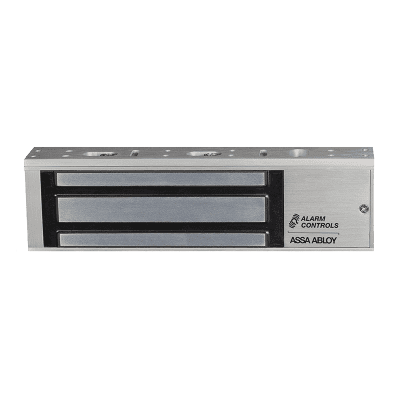

Alarm Controls 1200S – Standard Single-Door Magnetic Lock

The 1200S is the standard 1,200 lb electromagnetic lock for a single commercial door.

Ideal for installations requiring strong magnetic holding without integrated monitoring or indicator features.

Specifications:

• SKU: 1200S

• Door Configuration: Single Door

• Holding Force: 1,200 lbs.

• Voltage: 12/24V DC, Field Selectable

• Current Draw at 12V DC: 505mA

• Current Draw at 24V DC: 260mA

• LED Indicator: No

• Bond Sensor: No

• Door Status Sensor: No

• Finish: US28 Clear Anodized Aluminum

• Magnet Dimensions: 10-1/2" L x 2-7/8" H x 1-1/2" D

Best For: Standard commercial single-door access-control installations.

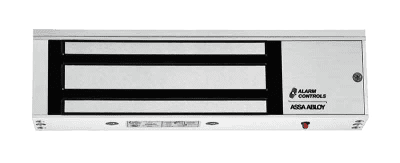

Alarm Controls 1200L – Single-Door Magnetic Lock with LED

The 1200L provides the same 1,200 lb holding force as the 1200S but adds a red status LED for visual indication.

This model is suitable for entrances where personnel or technicians benefit from a visible lock-status indicator.

Specifications:

• SKU: 1200L

• Door Configuration: Single Door

• Holding Force: 1,200 lbs.

• Voltage: 12/24V DC, Field Selectable

• Current Draw at 12V DC: 505mA

• Current Draw at 24V DC: 260mA

• LED Indicator: Yes, Red

• Bond Sensor: No

• Door Status Sensor: No

• Finish: US28 Clear Anodized Aluminum

• Magnet Dimensions: 10-1/2" L x 2-7/8" H x 1-1/2" D

Best For: Commercial entrances requiring standard magnetic locking with visual status indication.

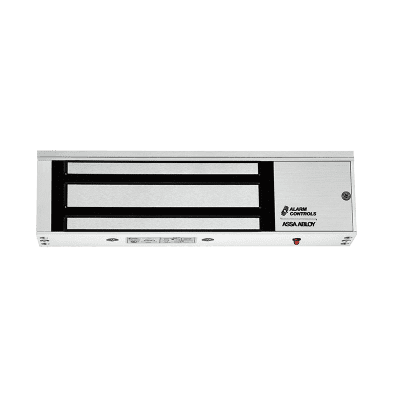

Alarm Controls 1200LB – Single-Door Magnetic Lock with Bond & Door Status Monitoring

The 1200LB adds advanced security monitoring to the standard 1,200 lb single-door maglock.

Featuring an integrated bond sensor, door-position sensor, and status LED, this model allows compatible access-control equipment to monitor both the magnetic holding condition and the physical position of the door.

Specifications:

• SKU: 1200LB

• Door Configuration: Single Door

• Holding Force: 1,200 lbs.

• Voltage: 12/24V DC, Field Selectable

• Current Draw at 12V DC: 505mA

• Current Draw at 24V DC: 260mA

• LED Indicator: Yes

• Bond Sensor: Included

• Door Status Sensor: Included

• Bond Sensor Relay: SPDT, 3A

• Finish: US28 Clear Anodized Aluminum

• Magnet Dimensions: 10-1/2" L x 2-7/8" H x 1-1/2" D

Best For: Monitored commercial entrances, security-controlled doors, and access-control systems requiring lock and door-position feedback.

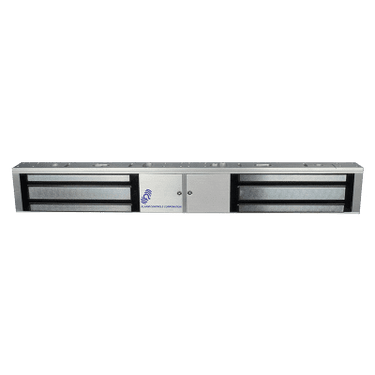

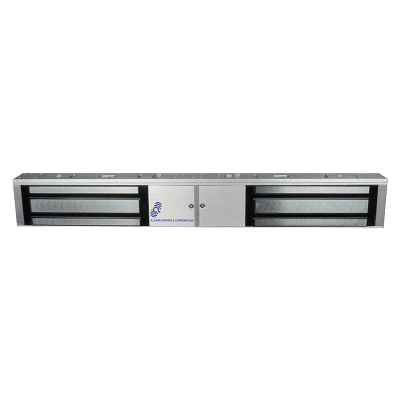

Alarm Controls 1200D – Double-Door Magnetic Lock with Bond & Door Status Monitoring

The 1200D is a heavy-duty double electromagnetic lock designed for pairs of commercial doors.

It features two magnetic locking assemblies within a single 21-inch housing, providing 1,200 pounds of holding force per magnet.

Each locking assembly includes magnetic bond monitoring, door status sensing, and LED indication.

Specifications:

• SKU: 1200D

• Door Configuration: Double Door

• Number of Magnets: 2

• Holding Force: 1,200 lbs. Per Door

• Voltage: 12/24V DC, Field Selectable

• Current Draw at 12V DC: 505mA Per Magnet / 1,010mA Total

• Current Draw at 24V DC: 260mA Per Magnet / 520mA Total

• LED Indicator: Yes, Bi-Color

• Bond Sensors: Included, Each Magnet

• Door Status Sensors: Included

• Bond Sensor Relays: SPDT, 3A Per Magnet

• Finish: US28 Clear Anodized Aluminum

• Magnet Assembly Dimensions: 21" L x 2-7/8" H x 1-1/2" D

Best For: Commercial double doors, institutional entrances, and monitored paired-door access-control applications.

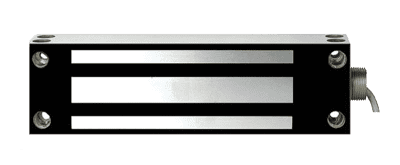

Alarm Controls 1200WP – Weather-Resistant Magnetic Gate Lock

The 1200WP is a weather-resistant electromagnetic lock designed for compatible outdoor swinging and sliding gates.

Its magnetic assembly is sealed in a stainless steel case to provide protection in exposed perimeter-security applications.

Specifications:

• SKU: 1200WP

• Door/Gate Configuration: Single Gate

• Holding Force: Up to 1,200 lbs.

• Voltage: 12/24V DC, Field Configurable

• Current Draw at 12V DC: 505mA per newer manufacturer comparison chart

• Current Draw at 24V DC: 260mA per newer manufacturer comparison chart

• LED Indicator: Not Listed as a Standard Feature

• Bond Sensor: Not Listed as a Standard Feature

• Door Status Sensor: Not Listed as a Standard Feature

• Construction: Sealed Stainless Steel Magnet Case

• Standard Exterior Finish: US28 Clear Anodized Aluminum

• Magnet Dimensions: 9-1/16" L x 2-5/8" H x 1-1/16" D

• Application: Compatible Sliding or Swinging Gates

• Mounting: Top Mount or Side Mount with Appropriate Brackets

Best For: Outdoor gates, perimeter access control, secured industrial yards, and commercial gate-security installations.

Model Comparison

All five models provide 1,200 lbs of rated holding force per magnet and support 12/24V DC operation.

Product Specifications – Series Overview

• Manufacturer: Alarm Controls

• Parent Company: ASSA ABLOY

• Product Series: 1200 Series

• Product Type: Heavy-Duty Electromagnetic Locks

• Holding Force: 1,200 lbs. Per Magnet

• Locking Operation: Fail-Safe

• Operating Voltage: 12V DC or 24V DC

• Voltage Selection: Field Configurable

• Single-Door Models: 1200S, 1200L, 1200LB

• Double-Door Model: 1200D

• Weather-Resistant Gate Model: 1200WP

• Standard Finish: US28 Clear Anodized Aluminum

• Optional Finish: US40 Duranodic on Selected Models

• Monitoring Options: LED, Bond Sensor, and Door Status Sensor Depending on Model

• Power Supply: Compatible Regulated DC Power Supply Required

• Temperature Range for Standard Models: 14°F to 131°F (-10°C to 55°C)

• Installation: Frame/Header Mount or Model-Appropriate Gate Mount

• Mounting Accessories: Model and Door Configuration Dependent

• Application: Commercial Access Control & Electronic Door Security

Standard Single-Door Magnet Dimensions

For models 1200S, 1200L, and 1200LB:

• Magnet: 10-1/2" L x 2-7/8" H x 1-1/2" D

• Armature Plate: 7-1/4" L x 2-3/8" H x 5/8" D

Double-Door Magnet Dimensions

For model 1200D:

• Magnet Assembly: 21" L x 2-7/8" H x 1-1/2" D

• Armature Plates: 7-1/2" L x 2-3/8" H x 5/8" D, Each

Weather-Resistant Gate Magnet Dimensions

For model 1200WP:

• Magnet: 9-1/16" L x 2-5/8" H x 1-1/16" D

• Armature Plate: 7-9/32" L x 2-5/8" H x 5/8" D

Access Control & Monitoring Features

Fail-Safe Magnetic Locking

The Alarm Controls 1200 Series uses electromagnetic locking technology.

When power is applied, the magnetic field attracts the corresponding armature plate, holding the door or gate closed.

When power is removed, the magnetic holding force releases.

This operating principle allows the locks to integrate with properly designed access-control and emergency-release equipment.

Magnetic Bond Monitoring

The 1200LB and 1200D provide magnetic bond sensing.

Bond monitoring helps connected security systems determine whether the armature plate has established the required magnetic bond with the energized magnet.

This provides more detailed security information than a basic lock-power indication.

Door Position Monitoring

The 1200LB and 1200D also include door status sensors.

These sensors allow appropriately connected monitoring equipment to detect door-position changes, helping distinguish between a door that is physically closed and a door that is magnetically secured.

LED Status Indication

LED indication is available on selected models:

• 1200L: Red indicating LED.

• 1200LB: Status LED with bond-monitoring functions.

• 1200D: Bi-color LED indicators.

The standard 1200S and 1200WP do not list integrated LED status indication.

Compatible Access Control Equipment

Alarm Controls 1200 Series magnetic locks can be incorporated into appropriately designed commercial access-control systems using compatible:

• Access-control panels and controllers

• Proximity card readers

• Keypad entry systems

• Request-to-exit sensors

• Push-to-exit buttons

• Emergency release switches

• Key-operated switches

• Door status monitoring systems

• Fire alarm release interfaces

• Regulated 12V DC and 24V DC power supplies

• Security annunciation equipment

Equipment compatibility, required release methods, and code requirements depend on the opening and installation.

Compatible Mounting Accessories

Single-Door Mounting Accessories

• AM6320 / AM6320C / AM6325: Compatible L-brackets for selected 1200 Series configurations.

• AM6370 / AM6370C: Compatible Z-bracket configurations for selected inswinging door installations.

• AM6300: 1/2" single-lock drop-down plate.

• AM6305: 5/8" single-lock drop-down plate.

• AM6330: 1/4" single-lock drop-down plate.

Double-Door Mounting Accessories

• AM6375: Compatible double-door Z-bracket.

• AM6331: 1/2" double-lock drop-down plate.

• AM6332: 5/8" double-lock drop-down plate.

Decorative Finishes & Covers

• US28 Clear Anodized Aluminum: Standard finish.

• US40 Duranodic: Available on selected separately ordered DURO configurations.

• Decorative Dress Covers: Selected polished brass and polished chrome options.

Important: Verify the exact accessory compatibility for the selected lock model, door handing, frame construction, and mounting configuration.

Recommended Applications

• Commercial Office Buildings

• Hollow Metal Commercial Doors

• Commercial Double-Door Entrances

• Aluminum Storefront Entrances

• Schools and Universities

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Government and Institutional Buildings

• Industrial and Manufacturing Facilities

• Warehouses and Distribution Centers

• Corporate Office Campuses

• Secured Employee Entrances

• Commercial Sliding and Swinging Gates

• Outdoor Perimeter Security

• Restricted Access Areas

• Commercial Access Control Installations

• Building Security Systems

Installation & Compatibility

Alarm Controls 1200 Series magnetic locks should be installed by qualified access-control or commercial door hardware professionals.

The electromagnetic lock assembly is mounted to the appropriate frame, header, or gate structure, while the armature plate is attached to the matching moving door or gate leaf.

Correct alignment is critical to achieving the specified holding force.

Electrical Requirements

Each standard single-door magnet requires approximately:

• 12V DC: 505mA

• 24V DC: 260mA

The 1200D contains two magnets and requires approximately:

• 12V DC: 1.01A total

• 24V DC: 0.52A total

The selected power supply must be properly rated for the total system load, including any additional controllers or connected devices.

Important Installation Information

• Select the correct model for single-door, double-door, or weather-resistant gate applications.

• The 1,200 lb rating applies to each individual magnet.

• For the 1200D, the rating is 1,200 lbs per door leaf, not 1,200 lbs divided between two doors.

• LED, bond-monitoring, and door-status features vary by model.

• All locks require an appropriate regulated DC power source.

• Fail-safe maglocks release magnetic holding force upon loss of power.

• Required request-to-exit devices, emergency-release controls, and fire alarm interfaces depend on the installation and applicable codes.

• Do not assume that a standard 1200S, 1200L, 1200LB, or 1200D has the same weather-resistant construction as the 1200WP.

• Inswinging doors and nonstandard frames may require special mounting brackets.

• Electric locking systems must be installed according to manufacturer instructions and applicable life-safety requirements.

• Power supplies, access-control devices, mounting brackets, and specialty accessories are sold separately unless expressly included.

Why Choose Alarm Controls 1200 Series Maglocks?

The Alarm Controls 1200 Series combines heavy-duty magnetic holding power, flexible access-control compatibility, and multiple door-security configurations in a professional commercial electromagnetic lock family.

Whether selecting a standard 1200S, LED-equipped 1200L, monitored 1200LB, double-door 1200D, or weather-resistant 1200WP, the series offers a suitable locking configuration for many commercial entrance and perimeter-security applications.

With 1,200 lb rated holding force per magnet, selectable 12/24V DC operation, and manufacturer-supported mounting accessories, the Alarm Controls 1200 Series provides a dependable foundation for professionally designed commercial access-control systems.
