Commercial Magnetic Door Locks | Fail-Safe Operation | Access Control Compatible | LED & Bond Monitoring Options | US28 Aluminum Finish

Secure commercial entrances, offices, warehouses, and controlled-access openings with the Alarm Controls 600 Series Electromagnetic Locks, featuring 600 pounds of rated holding force per magnet and dependable fail-safe operation.

Manufactured by Alarm Controls, an ASSA ABLOY company, the 600 Series is designed for commercial access-control applications requiring reliable magnetic locking, convenient installation, and multiple monitoring options.

Available in single-door, double-door, and weather-resistant gate configurations, the 600 Series allows customers to select the appropriate electromagnetic lock for their specific opening.

Choose from standard magnetic locking, LED indication, integrated bond and door-position monitoring, or a weather-resistant model for sliding and swinging gates.

The standard 600 Series magnetic locks feature field-selectable 12V DC or 24V DC operation, built-in arc suppression, instant-release technology, and Alarm Controls' E-Z mounting system.

When electrical power is applied, the electromagnet attracts the corresponding steel armature plate to secure the opening. When power is interrupted, magnetic holding force releases, allowing the lock to integrate into appropriately designed access-control and emergency-egress systems.

With clear anodized aluminum finishes, optional Duranodic configurations, and compatible mounting accessories, the Alarm Controls 600 Series provides flexible security solutions for commercial buildings and institutional facilities.

Key Features

• 600 LB Rated Holding Force: Each magnet provides 600 pounds of rated magnetic holding strength.

• Single & Double-Door Models: Available for individual commercial doors and pairs of doors.

• Weather-Resistant Gate Option: The 600WP is designed for compatible exterior sliding and swinging gates.

• Fail-Safe Operation: Releases magnetic holding force when electrical power is removed.

• Selectable 12/24V DC: Supports field-configurable low-voltage DC operation.

• Commercial Access Control Compatibility: Works with properly rated card readers, keypads, controllers, and release equipment.

• LED Status Indication: Available on selected models for convenient visual monitoring.

• Magnetic Bond Monitoring: Available on 600LB and 600DLB models.

• Door Position Monitoring: Available on 600LB and 600DLB models.

• SPDT Monitoring Contacts: Bond sensors provide 3A rated relay contacts on monitored models.

• Built-In Arc Suppression: Helps reduce electrical switching transients.

• Instant Release: Designed to minimize residual magnetic holding after power interruption.

• E-Z Mounting System: Standard single- and double-door models include a header bracket and mounting template.

• Self-Drilling TEC Screws: Included with applicable models for convenient installation.

• Corrosion-Resistant Components: Non-aluminum components are plated for additional protection.

• US28 Clear Anodized Finish: Standard architectural finish for commercial applications.

• Optional US40 Duranodic Finish: Available on selected separately ordered configurations.

• Commercial-Grade Construction: Designed for high-use access-controlled openings.

• Manufacturer Limited Lifetime Warranty: Subject to Alarm Controls warranty terms.

Available Models & Variants

Alarm Controls 600S – Standard Single-Door Magnetic Lock

The 600S is a standard 600 lb electromagnetic lock designed for interior commercial doors.

It provides reliable magnetic holding without integrated LED indication or electronic bond and door-position monitoring.

Specifications:

• SKU: 600S

• Door Configuration: Single Door

• Holding Force: 600 lbs.

• Voltage: 12/24V DC, Field Selectable

• Current Draw at 12V DC: 505mA

• Current Draw at 24V DC: 260mA

• LED Indicator: No

• Bond Sensor: No

• Door Position Sensor: No

• Finish: US28 Clear Anodized Aluminum

• Magnet Dimensions: 9-7/8" L x 1-11/16" H x 1" D

Recommended Application: Standard interior commercial doors requiring basic electromagnetic locking.

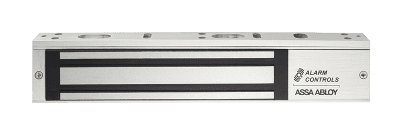

Alarm Controls 600L – Single-Door Magnetic Lock with LED

The 600L provides 600 pounds of holding force with an integrated status LED for visual operating indication.

It is designed for commercial door applications where a visible lock status indicator is preferred without the additional monitoring features of the 600LB.

Specifications:

• SKU: 600L

• Door Configuration: Single Door

• Holding Force: 600 lbs.

• Voltage: 12/24V DC, Field Selectable

• Current Draw at 12V DC: 505mA

• Current Draw at 24V DC: 260mA

• LED Indicator: Included

• Bond Sensor: No

• Door Position Sensor: No

• Finish: US28 Clear Anodized Aluminum

• Magnet Dimensions: 9-7/8" L x 1-11/16" H x 1" D

Recommended Application: Interior commercial doors requiring magnetic locking with visual status indication.

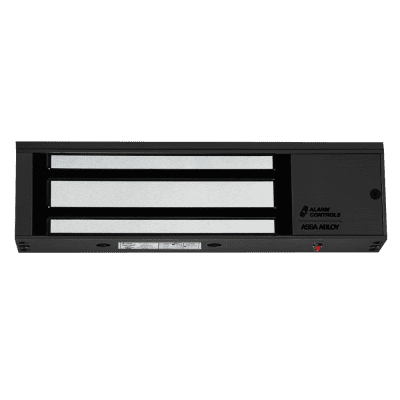

Alarm Controls 600LB – Single-Door Magnetic Lock with LED, Bond & Door Status Monitoring

The 600LB combines 600 pounds of holding force with integrated magnetic bond monitoring, door-position sensing, and an LED status indicator.

This model provides additional security feedback for facilities that need to monitor whether an entrance is physically closed and securely magnetically bonded.

Specifications:

• SKU: 600LB

• Door Configuration: Single Door

• Holding Force: 600 lbs.

• Voltage: 12/24V DC, Field Selectable

• Current Draw at 12V DC: 505mA

• Current Draw at 24V DC: 260mA

• LED Indicator: Included

• Bond Sensor: Included

• Door Position Sensor: Included

• Bond Sensor Contact: SPDT

• Bond Sensor Relay Rating: 3A

• Finish: US28 Clear Anodized Aluminum

• Magnet Dimensions: 9-7/8" L x 1-11/16" H x 1" D

Recommended Application: Monitored commercial entrances, secured offices, and access-controlled interior doors requiring lock and door-position feedback.

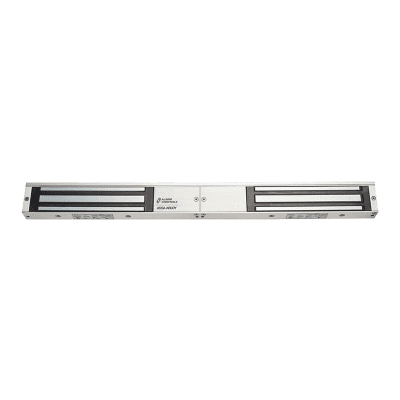

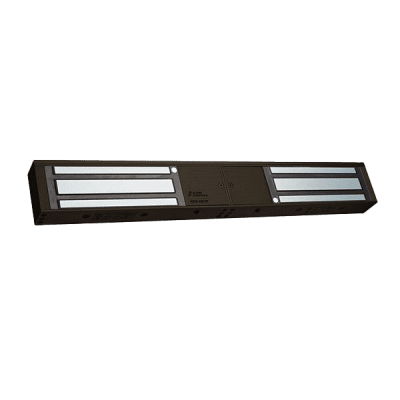

Alarm Controls 600D – Standard Double-Door Magnetic Lock

The 600D is a double electromagnetic lock designed for commercial pairs of doors.

Featuring two magnetic locking assemblies in a single housing, the 600D provides 600 pounds of rated holding force to each door leaf.

This model offers standard magnetic locking without integrated bond-monitoring or LED features.

Specifications:

• SKU: 600D

• Door Configuration: Double Door

• Number of Magnets: 2

• Holding Force: 600 lbs. Per Magnet

• Voltage: 12/24V DC, Field Selectable

• Current Draw at 12V DC: 505mA Per Magnet / 1,010mA Total

• Current Draw at 24V DC: 260mA Per Magnet / 520mA Total

• LED Indicator: No

• Bond Sensors: No

• Door Position Sensors: No

• Finish: US28 Clear Anodized Aluminum

• Magnet Assembly Dimensions: 19-3/4" L x 1-7/8" H x 1" D

Recommended Application: Interior commercial double doors requiring reliable electromagnetic locking.

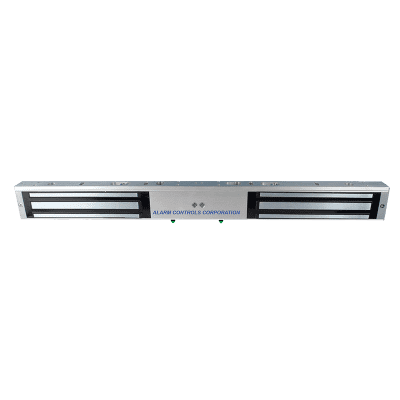

Alarm Controls 600DLB – Double-Door Magnetic Lock with LED, Bond & Door Status Monitoring

The 600DLB is the monitored double-door model within the Alarm Controls 600 Series.

Featuring two magnetic locking assemblies, the unit provides 600 pounds of holding force per door, along with LED indicators, bond sensors, and door-position monitoring.

This configuration is suitable for commercial entrances requiring feedback from both doors in a pair.

Specifications:

• SKU: 600DLB

• Door Configuration: Double Door

• Number of Magnets: 2

• Holding Force: 600 lbs. Per Magnet

• Voltage: 12/24V DC, Field Selectable

• Current Draw at 12V DC: 505mA Per Magnet / 1,010mA Total

• Current Draw at 24V DC: 260mA Per Magnet / 520mA Total

• LED Indicators: Included

• Bond Sensors: Included

• Door Position Sensors: Included

• Bond Sensor Contact: SPDT

• Bond Sensor Relay Rating: 3A Per Magnet

• Finish: US28 Clear Anodized Aluminum

• Magnet Assembly Dimensions: 19-3/4" L x 1-7/8" H x 1" D

Recommended Application: Monitored commercial double-door entrances requiring magnetic bond and door-position status.

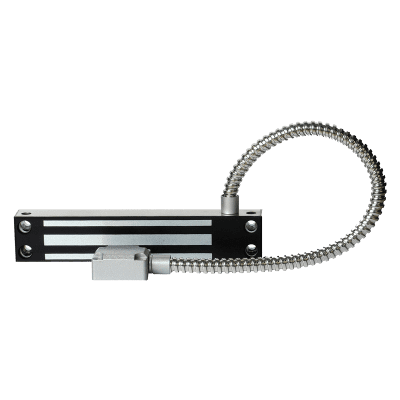

Alarm Controls 600WP – Weather-Resistant Magnetic Gate Lock

The 600WP is a weather-resistant electromagnetic lock designed for exterior gate-security applications.

Featuring a sealed stainless steel magnetic enclosure and protected cable connection, the 600WP provides 600 pounds of rated holding force for properly installed sliding or swinging gates.

Specifications:

• SKU: 600WP

• Door/Gate Configuration: Single Gate

• Holding Force: 600 lbs.

• Voltage: 12/24V DC, Field Configurable

• Current Draw at 12V DC: 500mA Per Model Data Sheet

• Current Draw at 24V DC: 250mA Per Model Data Sheet

• LED Indicator: Not Listed as Standard

• Bond Sensor: Not Listed as Standard

• Door Position Sensor: Not Listed as Standard

• Construction: Sealed Stainless Steel Magnet Case

• Finish: US28 Clear Anodized Aluminum

• Cable: 12" Color-Coded Leads in Armored Cable

• Mounting: Top or Side Mount with Appropriate Brackets

• Magnet Dimensions: 8-21/32" L x 1-9/32" H x 1-1/8" D

• Armature Dimensions: 7-9/32" L x 1-21/32" H x 1/2" D

Recommended Application: Commercial perimeter gates, industrial security gates, and compatible outdoor sliding or swinging gate installations.

Model Comparison

Model	Application	LED	Bond Sensor	Door Status
600S	Single Door	No	No	No
600L	Single Door	Yes	No	No
600LB	Single Door	Yes	Yes	Yes
600D	Double Door	No	No	No
600DLB	Double Door	Yes	Yes	Yes
600WP	Weather-Resistant Gate	Not Standard	Not Standard	Not Standard

All six models provide 600 pounds of rated holding force per magnet.

Product Specifications – Series Overview

• Manufacturer: Alarm Controls

• Parent Company: ASSA ABLOY

• Product Series: 600 Series

• Product Type: Electromagnetic Locks

• Holding Force: 600 lbs. Per Magnet

• Operating Principle: Fail-Safe

• Operating Voltage: 12V DC or 24V DC

• Voltage Selection: Field Configurable

• Single-Door Models: 600S, 600L, 600LB

• Double-Door Models: 600D, 600DLB

• Weather-Resistant Gate Model: 600WP

• Standard Finish: US28 Clear Anodized Aluminum

• Optional Finish: US40 Duranodic on Selected Models

• Monitoring Features: Model Dependent

• Operating Temperature: 14°F to 131°F (-10°C to 55°C)

• Power Supply: Compatible Regulated DC Supply Required

• Mounting: Surface / Header or Gate Mount Depending on Model

• Applications: Commercial Door Security & Electronic Access Control

• Warranty: Manufacturer Limited Lifetime Warranty

Access Control & Monitoring Features

1. Fail-Safe Electromagnetic Locking

The Alarm Controls 600 Series uses electromagnetic locking technology.

When electrical power is applied, the magnet creates a magnetic bond with the matching steel armature plate.

When power is interrupted, the magnetic holding force releases.

This fail-safe design allows integration with properly configured access-control and emergency-release systems.

2. Magnetic Bond Monitoring

The 600LB and 600DLB include bond sensors that provide information about the connection between the energized magnet and corresponding armature plate.

The sensors feature SPDT relay contacts rated at 3A, allowing compatible security systems to monitor magnetic bond status.

3. Door Position Monitoring

The monitored models also include door-position sensors.

When connected to compatible monitoring equipment, these sensors can help distinguish between a door that is physically closed and one that is magnetically secured.

4. LED Status Indication

LED indicators are included on:

• 600L

• 600LB

• 600DLB

The 600S and 600D are standard locking models without integrated status LEDs.

The 600WP is not advertised as including an LED indicator.

5. Instant-Release Technology

Standard 600 Series door models feature instant-release technology designed to reduce residual magnetic holding after electrical power is removed.

This helps permit prompt opening following an authorized release command.

6. Built-In Arc Suppression

Standard single- and double-door models feature built-in arc suppression to help control electrical transients associated with switching electromagnetic loads.

Compatible Access Control Equipment

Alarm Controls 600 Series maglocks can be incorporated into properly designed commercial access-control systems using compatible:

• Access-Control Panels

• Card Readers

• Keypad Entry Systems

• Request-to-Exit Sensors

• Push-to-Exit Buttons

• Emergency Release Switches

• Key Switches

• Remote Door-Release Controls

• Fire Alarm Release Interfaces

• Door Position Monitoring Systems

• Security Annunciation Equipment

• Regulated 12V DC and 24V DC Power Supplies

Important: Required release controls, fire-system connections, and electrical configurations depend on the installed doorway and applicable life-safety regulations.

Compatible Mounting Accessories

Single-Door Maglock Accessories

• AM3320: Fixed L-Bracket for 600 Series Single Magnetic Locks

• AM3320C: L-Bracket with Cover

• AM3325: Adjustable L-Bracket

• AM3370: Z-Bracket for Compatible Inswinging Door Applications

• AM3300: 1/2" Mounting Spacer Plate

• AM3305: 5/8" Mounting Spacer Plate

• AM3330: Additional Header Plate

Double-Door Maglock Accessories

• AM3326: L-Bracket for 600D and 600DLB

• AM3375: Z-Bracket for Compatible Double-Door Inswinging Applications

• AM3331: Double-Lock Spacer Plate

• AM3332: Double-Lock Spacer Plate

Weather-Resistant Gate Lock Accessories

• AM3301: Compatible Spacer for the 600WP

• Gate Mounting Brackets: Model-Appropriate Top- or Side-Mount Hardware

Note: Verify individual accessory compatibility and dimensions before ordering. Specialty brackets and mounting plates are sold separately unless specifically included.

Recommended Applications

• Commercial Office Buildings

• Interior Hollow Metal Doors

• Aluminum Storefront Entrances

• Commercial Double-Door Entrances

• Schools and Universities

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Government and Institutional Buildings

• Industrial and Manufacturing Facilities

• Warehouses and Distribution Centers

• Corporate Office Campuses

• Secured Employee Entrances

• Professional Office Suites

• Commercial Sliding Gates

• Commercial Swinging Gates

• Perimeter Security Systems

• Access-Controlled Interior Doors

• Commercial Electronic Security Systems

Installation & Compatibility

Alarm Controls 600 Series electromagnetic locks should be installed by qualified commercial door hardware and access-control professionals.

The magnet is mounted to the appropriate fixed frame, header, or gate structure, while the corresponding steel armature plate is mounted to the moving door or gate.

Correct alignment and full magnetic contact are essential to obtaining rated holding force.

Electrical Requirements

Single-Door Models 600S, 600L & 600LB

• 12V DC: 505mA

• 24V DC: 260mA

Double-Door Models 600D & 600DLB

• 12V DC: 1,010mA total

• 24V DC: 520mA total

Weather-Resistant Model 600WP

• 12V DC: 500mA

• 24V DC: 250mA

These electrical values follow Alarm Controls' model-specific data sheets. Supply sizing should include appropriate capacity for additional access-control devices and the actual equipment revision.

Mounting Considerations

For standard commercial door applications:

• Verify the door swing and frame configuration.

• Confirm sufficient header mounting space.

• Use the manufacturer's installation template.

• Mount the electromagnet and armature so their contact surfaces align.

• Select compatible L-brackets or Z-brackets where necessary.

• Use the appropriate regulated DC power supply.

• Configure the correct operating voltage before applying power.

• Integrate required access-control and emergency-release controls.

• Test magnetic holding, lock release, and monitoring functions.

Important Installation Information

• Select the correct model based on single-door, double-door, or weather-resistant gate use.

• Double-door models provide 600 lbs of holding force per magnet, not 600 lbs shared between both doors.

• LED indication, bond monitoring, and door-position monitoring are model-specific features.

• Standard 600S, 600L, 600LB, 600D, and 600DLB models are recommended primarily for interior commercial doors.

• The 600WP is specifically designed for weather-resistant gate applications.

• All models require an appropriate regulated DC power supply.

• Fail-safe maglocks release magnetic holding force when power is interrupted.

• A lock's fail-safe operation alone does not establish that an installed doorway meets applicable egress codes.

• Request-to-exit, emergency-release, fire alarm, and access-control connections must comply with the approved life-safety design.

• Door and gate construction must be suitable for the selected lock and mounting hardware.

• Specialty brackets may be required for inswinging or nonstandard configurations.

• Electric locks do not independently operate a mechanical latch or door closer.

• Power supplies, controllers, card readers, release switches, specialty brackets, and other equipment are sold separately unless explicitly included.

• Installations must follow Alarm Controls' instructions and the requirements of the local Authority Having Jurisdiction.

Why Choose Alarm Controls 600 Series Maglocks?

The Alarm Controls 600 Series combines dependable electromagnetic holding strength, flexible access-control integration, and a variety of installation configurations in one commercial locking product family.

Whether selecting the standard 600S, LED-equipped 600L, monitored 600LB, double-door 600D, monitored double-door 600DLB, or weather-resistant 600WP, the series offers practical solutions for interior entrances and commercial perimeter-security applications.

With 600 lb rated holding force per magnet, configurable 12/24V DC operation, optional electronic monitoring, and manufacturer-supported mounting hardware, the Alarm Controls 600 Series provides reliable security for professionally designed commercial access-control installations.
