Professional Maglock Installation Kit | Jack Nut Setting Tool | 25/64" Drill Bit | 50 M5 Jack Nuts & Screws | M3–M6 Mandrels

The Alarm Controls JN-1 Jack Nut Installation Tool Kit provides a reliable, professional solution for mounting electromagnetic locks to compatible hollow metal door frames and headers.

Manufactured by Alarm Controls, an ASSA ABLOY company, the JN-1 is designed for installing expandable threaded jack nuts into metal door frames measuring 3/16 inch thick or less.

Jack nuts create secure threaded mounting points where access to the back of the metal surface is limited or unavailable, making them a practical option for commercial magnetic-lock installations.

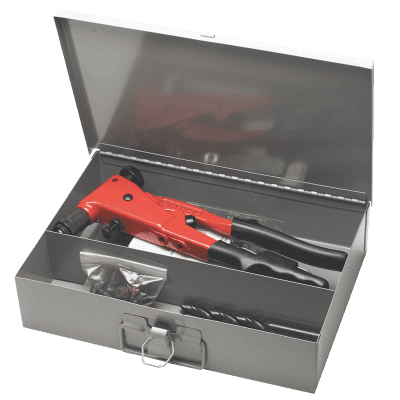

The kit includes a specialized jack nut installation tool, 25/64-inch drill bit, interchangeable M3, M4, M5, and M6 mandrels, 50 M5 jack nuts, 50 matching 3/4-inch Phillips machine screws, and a metal storage toolbox.

Designed for locksmiths, commercial door installers, access-control technicians, and maintenance professionals, the JN-1 provides the essential tools and fasteners needed for compatible electromagnetic lock mounting applications.

Key Features

• Complete Jack Nut Installation Kit: Includes tools, mandrels, fasteners, and storage box.

• Hollow Metal Frame Installation: Designed for suitable metal door frames up to 3/16" thick.

• Expandable Threaded Anchors: Jack nuts expand behind the mounting surface for secure attachment.

• Professional Installation Tool: Allows controlled compression of jack nuts.

• 25/64" Drill Bit Included: Sized for the supplied M5 jack nuts.

• Interchangeable Mandrels: Includes M3, M4, M5, and M6 sizes.

• 50 M5 Jack Nuts: Provides installation hardware for multiple mounting points.

• 50 M5 Machine Screws: Includes matching 3/4" flat-head Phillips screws.

• Blind Installation Capability: Suitable where the back of a hollow metal frame is inaccessible.

• Metal Storage Toolbox: Keeps the tools and fasteners organized.

• Commercial Magnetic Lock Applications: Suitable for properly specified 600 and 1200 Series maglock mounting installations.

• Reusable Installation Tool: Replenish fasteners using the separately available JN-50 refill pack.

Kit Includes

• 1 Jack Nut Installation Tool

• 1 25/64" Drill Bit

• 1 M5 Mandrel – Installed in Tool

• 1 M3 Mandrel

• 1 M4 Mandrel

• 1 M6 Mandrel

• 50 M5 Jack Nuts

• 50 M5 x 3/4" Flat-Head Phillips Machine Screws

• 1 Metal Storage Toolbox

Product Specifications

• Manufacturer: Alarm Controls

• Parent Company: ASSA ABLOY

• Model / SKU: JN-1

• Product Type: Jack Nut Installation Tool Kit

• Application: Magnetic Lock Installation

• Compatible Mounting Material: Suitable Metal Door Frames

• Maximum Frame Thickness: 3/16"

• Drill Bit Size: 25/64"

• Jack Nut Thread Size: M5

• Jack Nut Quantity: 50

• Machine Screw Size: M5 x 3/4"

• Machine Screw Head: Flat-Head Phillips

• Machine Screw Quantity: 50

• Mandrel Sizes: M3, M4, M5, M6

• Storage Toolbox: Included

• Power Requirements: None

• Replacement Hardware: Alarm Controls JN-50

• UPC: 604840877541

How the JN-1 Works

Step 1 – Prepare the Frame

Mark the approved magnetic-lock mounting locations and drill the required holes using the supplied 25/64-inch drill bit.

Step 2 – Insert the Jack Nut

Thread an M5 jack nut onto the installation tool's mandrel and insert the fastener into the drilled hole.

Step 3 – Expand the Anchor

Squeeze the installation tool handles to compress the jack nut. The fastener expands behind the metal surface, forming retaining legs that grip the frame.

Step 4 – Remove the Tool

Unscrew the installation tool's mandrel, leaving the expanded jack nut securely positioned in the frame.

Step 5 – Attach the Mounting Hardware

Install the compatible maglock mounting plate using the supplied M5 flat-head machine screws and the magnetic lock manufacturer's installation instructions.

Recommended Applications

• Alarm Controls 600 Series Magnetic Locks

• Alarm Controls 1200 Series Magnetic Locks

• Hollow Metal Door Frame Installation

• Commercial Maglock Installation

• Door Header Mounting

• Electronic Access-Control Installation

• Commercial Door Hardware Service

• Locksmith Installation Work

• Industrial Facility Maintenance

• Magnetic Lock Retrofits

Installation Notes

• Intended for compatible metal door frames 3/16" thick or less.

• Verify the mounting surface is structurally suitable.

• Follow the selected magnetic lock manufacturer's mounting instructions.

• Use the correct mandrel and drill size for each jack nut.

• Ensure the jack nut is completely set before attaching hardware.

• Confirm fastener engagement and required mounting strength.

• The magnetic lock, armature plate, and electrical access-control equipment are not included.

• Replacement fasteners are available separately under part number JN-50.

Why Choose the Alarm Controls JN-1?

The Alarm Controls JN-1 Jack Nut Installation Tool Kit provides commercial door hardware professionals with a convenient, reusable solution for installing threaded mounting anchors in thin metal frames.

With its complete selection of installation tools, 50 jack nuts, matching screws, and protective metal toolbox, the JN-1 is an essential addition to professional magnetic-lock installation equipment.
