Upgrade commercial entrance security with the Alarm Controls KP Series Digital Keypads, a family of self-contained electronic access-control devices designed for controlled entry into commercial, industrial, and institutional facilities.

Manufactured by Alarm Controls, an ASSA ABLOY company, the KP Series provides reliable keyless entry through programmable personal identification numbers (PINs), with a built-in proximity credential reader on the KP-300 model.

Available in single-gang, surface-mount, and narrow-stile configurations, these keypads can be integrated with appropriately rated electric strikes, electromagnetic locks, electric locking hardware, and access-control systems.

Choose from the versatile KP-100A indoor keypad, the KP-200 vandal-resistant indoor keypad, the KP-300 weather-resistant mullion keypad with built-in card reader, or the KP-400 heavy-duty weather-resistant keypad.

Selected models feature IP65 or IP66 environmental protection, multiple programmable relay outputs, visitor credentials, tamper detection, status LEDs, request-to-exit inputs, and programmable access-control functions.

Whether securing a warehouse entrance, controlling employee access, or installing keypad entry on a commercial storefront door, the Alarm Controls KP Series offers practical solutions for a wide range of security applications.

Key Features

• Keyless Commercial Entry: Allows authorized users to unlock compatible electronic door hardware using programmed access codes.

• Multiple Models Available: Choose from KP-100A, KP-200, KP-300, and KP-400.

• Self-Contained Operation: Programming and access-control functions are built into each keypad.

• Programmable User Codes: Depending on model, supports up to 1,000 primary user credentials.

• Backlit Keys: Illuminated keys improve visibility in low-light conditions.

• LED Status Indicators: Visual indicators assist with operation, access feedback, and programming.

• Built-In Tamper Switches: Provide security-monitoring connections for compatible equipment.

• Request-to-Exit Compatibility: Supports appropriate exit-control input connections.

• Programmable Passage Mode: Selected configurations allow authorized passage-mode operation.

• False-Code Lockout: Helps reduce repeated unauthorized code-entry attempts.

• Multiple Relay Outputs: Available on selected models for controlling up to two compatible devices.

• Fail-Safe / Fail-Secure Control: Can operate properly connected locking equipment according to the supported relay configuration.

• Card Reader Option: KP-300 supports proximity credentials, PIN entry, or card-and-PIN access.

• Weather-Resistant Models: KP-300 is rated IP65, while KP-400 is rated IP66.

• Vandal-Resistant Construction: Metal-key and reinforced-housing options available.

• Flexible Mounting: Single-gang, surface-mount, and narrow-stile mullion configurations.

• 12/24V Power Options: Available on selected models; KP-300 specifically requires nominal 12V DC.

• Three-Year Manufacturer Warranty: Applies to these models subject to manufacturer terms.

Available Models & Variants

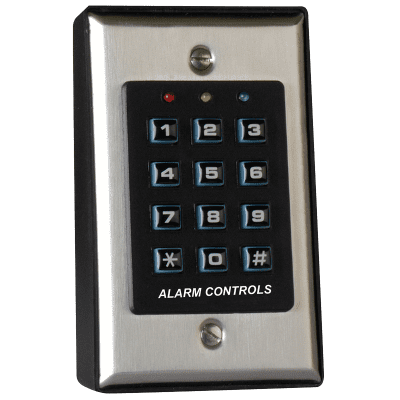

Alarm Controls KP-100A – Indoor Single-Gang Digital Keypad

The KP-100A is a self-contained programmable digital keypad suitable for commercial offices, secured employee entrances, and other indoor applications.

It features a stainless steel single-gang wall plate, an included surface-mount back box, illuminated keys, and flexible user-code programming.

Key Features:

• Up to 1,000 user codes

• 50 temporary visitor codes

• Four- to eight-digit user codes

• Backlit keypad

• Built-in tamper switch

• Red, green, and yellow status LEDs

• Programmable passage mode

• False-code lockout

• Request-to-exit input

• One SPDT output relay

• Single-gang flush or surface mounting

• Indoor use only

Specifications:

• SKU: KP-100A

• Operating Voltage: 12–24V AC/DC

• Relay Output: 1 SPDT, 5A at 30V DC maximum

• Tamper Contact: N/C, 50mA at 24V DC maximum

• Keypad Dimensions: 2-3/4" W x 4-1/2" H x 5/32" D

• Back Box Dimensions: 2-13/16" W x 4-5/8" H x 1-7/16" D

• Environmental Application: Indoor

• Warranty: 3 Years

Recommended For: Commercial interior doors, office entrances, and facilities requiring high user-code capacity.

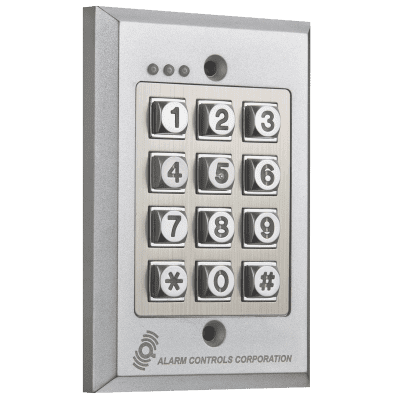

Alarm Controls KP-200 – Vandal-Resistant Indoor Digital Keypad

The KP-200 is a compact, self-contained keypad featuring durable die-cast metal keys and a surface-mounted design.

Its illuminated keypad, programmable access functions, and two relay outputs make it suitable for commercial entrance-control installations.

Key Features:

• Up to 100 user codes

• Four- to eight-digit codes

• Durable backlit metal keys

• Vandal-resistant construction

• Two programmable SPDT relay outputs

• Built-in tamper switch

• Red, green, and yellow LEDs

• Request-to-exit input

• Programmable passage mode

• False-code lockout

• Surface-mount installation

• Indoor use

Specifications:

• SKU: KP-200

• Operating Voltage: 12V or 24V AC/DC, Auto-Sensing

• Operating Current: 16mA Standby / 78mA During Relay Operation

• Output 1: SPDT, 1A at 24V DC

• Output 2: SPDT, 1A at 24V DC

• Dimensions: 3-1/5" W x 4-3/4" H x 3/5" D

• Environmental Application: Indoor

• Warranty: 3 Years

Recommended For: Indoor commercial access-control installations requiring durable metal keys and dual relay outputs.

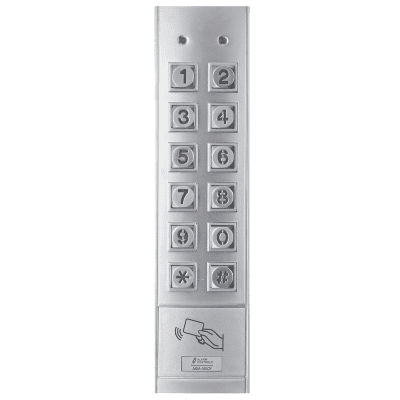

Alarm Controls KP-300 – Weather-Resistant Mullion Keypad with Card Reader

The KP-300 combines a narrow-stile digital keypad with an integrated proximity card reader.

Designed for commercial storefront mullions and narrow mounting locations, the KP-300 allows access using a PIN code, compatible proximity card, or a combination of both.

Its die-cast zinc alloy housing, backlit metal keys, and IP65 environmental protection make it suitable for compatible indoor and outdoor applications.

Key Features:

• Integrated proximity card reader

• PIN-only, card-only, or card-and-PIN operation

• Up to 1,000 credentials on Output 1

• Up to 100 credentials on Output 2

• 50 programmable visitor credentials

• Two programmable SPDT relay outputs

• Backlit metal keys

• Die-cast zinc alloy housing

• Built-in tamper switch

• Green and yellow LED indicators

• Programmable passage mode

• False-code lockout

• Narrow-stile mullion mounting

• IP65 weather-resistant construction

• Two EM proximity cards included

Specifications:

• SKU: KP-300

• Operating Voltage: 12V DC Nominal (11–15V DC)

• Current Draw: 60mA Standby / 95mA Active

• Output 1: SPDT, 2A at 24V DC Maximum

• Output 2: SPDT, 1A at 24V DC Maximum

• Dimensions: 7-5/64" H x 1-13/16" W x 1" D

• Environmental Rating: IP65

• Housing Material: Die-Cast Zinc Alloy

• Included Credentials: 2 EM Proximity Cards

• Warranty: 3 Years

Compatible Credential Accessories:

• EM-10: Package of 10 compatible proximity cards

• EM-04: Compatible proximity key fob

Recommended For: Aluminum storefront entrances, narrow-stile mullions, warehouses, secured employee access, and exterior locations requiring both keypad and proximity credential capability.

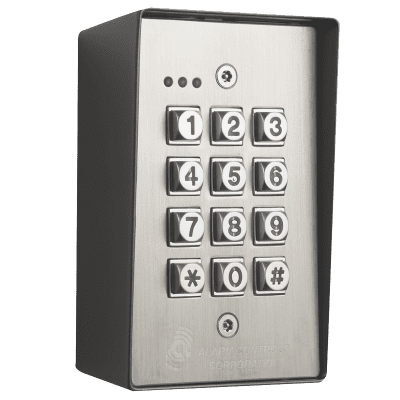

Alarm Controls KP-400 – Weather-Resistant Vandal-Resistant Digital Keypad

The KP-400 is a heavy-duty, self-contained digital keypad featuring an IP66 weather-resistant design for compatible commercial exterior entrances.

Built with a 302 stainless steel faceplate, tamper-resistant mounting screws, backlit die-cast metal keys, and a black powder-coated aluminum back box, the KP-400 is designed for demanding access-control installations.

Key Features:

• Up to 100 user codes on Output 1

• Up to 10 user codes on Output 2

• Two programmable SPDT relay outputs

• Weather-resistant IP66 construction

• Vandal-resistant metal housing

• 302 stainless steel faceplate

• Backlit metal keys

• Tamper-resistant mounting screws

• Built-in tamper switch

• Red, green, and yellow status LEDs

• Request-to-exit input

• Programmable passage mode

• False-code lockout

• Duress output

• Door-prop-open alarm function

• Surface-mount black back box

• Indoor or outdoor applications

Specifications:

• SKU: KP-400

• Operating Voltage: 12V or 24V AC/DC, Auto-Sensing

• 12V DC Current: 10mA Standby / 100mA Active

• 24V DC Current: 22mA Standby / 120mA Active

• Output 1: SPDT, 5A at 24V DC

• Output 2: SPDT, 1A at 24V DC

• Environmental Rating: IP66

• Faceplate: 302 Stainless Steel

• Back Box: Black Powder-Coated Die-Cast Aluminum

• Dimensions with Back Box: 3-1/8" W x 4-1/2" H x 1-3/4" to 2-1/2" D

• Warranty: 3 Years

Recommended For: Exterior commercial entrances, warehouses, industrial facilities, institutional buildings, and access-controlled locations requiring durable weather-resistant keypad construction.

Compatible Electronic Locking Equipment

Alarm Controls KP Series keypads can be incorporated into appropriately designed systems using compatible:

• Electromagnetic Door Locks

• Electric Strikes

• Electric Door-Locking Equipment

• Fail-Safe Locking Devices

• Fail-Secure Locking Devices

• Request-to-Exit Push Buttons

• Request-to-Exit Motion Sensors

• Regulated Low-Voltage Power Supplies

• Door-Release Controllers

• Security Monitoring Equipment

• Compatible Proximity Credentials for KP-300

Important: Electrical compatibility depends on the selected keypad's relay rating, input voltage, power requirements, and the connected locking system.

Keypad Operation & Access Control Functions

1. PIN-Based Access

Authorized users enter their programmed access codes into the keypad.

Once a valid code is accepted, the keypad operates its corresponding output relay to permit access through the connected electronic locking equipment.

The configured access duration depends on the keypad's programming.

2. Multiple User Codes

Selected KP Series models support separate credentials for multiple users.

Depending on the model, installers can configure up to 100 or 1,000 user codes, along with temporary visitor credentials where supported.

This is useful for buildings requiring individual employee codes or temporary access for authorized visitors.

3. Proximity Card Access – KP-300 Only

The KP-300 incorporates a compatible proximity card reader.

The keypad supports:

• PIN-only entry

• Card-only entry

• Card-and-PIN authentication

This allows facilities to select the access method most appropriate for their security requirements.

The KP-100A, KP-200, and KP-400 do not include a proximity reader as a standard feature.

4. Programmable Relay Outputs

KP Series keypads provide one or two relay outputs, depending on the selected model.

These outputs allow the keypad to operate appropriately rated access-control equipment, such as an electric strike or magnetic-lock release circuit.

The connected locking equipment may require a separate power supply or interface relay.

5. Request-to-Exit Integration

The keypads include support for compatible request-to-exit connections.

When configured correctly, external exit-control equipment can activate the appropriate access-control release function.

The keypad itself does not replace required emergency-egress hardware or independent emergency-release provisions.

6. Tamper Monitoring

Built-in tamper switches can provide electrical feedback when a keypad enclosure is disturbed or removed.

A compatible monitoring system is required to make use of this information.

7. Weather-Resistant Access Control

For entrances exposed to weather, choose the model designed for the installation:

• KP-300: IP65, mullion-mounted keypad with proximity reader

• KP-400: IP66, heavy-duty surface-mount keypad

Both models are suitable for appropriately installed indoor or outdoor access-control applications.

The KP-100A and KP-200 are specified for indoor installation.

Recommended Applications

• Commercial Office Buildings

• Employee Access-Control Entrances

• Hollow Metal Commercial Doors

• Aluminum Storefront Doors

• Warehouse and Distribution Facilities

• Industrial and Manufacturing Buildings

• Schools and Universities

• Healthcare Administrative Areas

• Government and Institutional Facilities

• Commercial Retail Stores

• Secured Office Suites

• Service and Maintenance Entrances

• Restricted Access Areas

• Keyless Entry Systems

• Electronic Door Security

• Proximity Credential Access

• Commercial Access-Control Retrofits

Installation & Compatibility

The Alarm Controls KP Series should be installed by qualified personnel familiar with commercial electronic access-control systems.

Installation Considerations

• Select the appropriate keypad based on mounting space and environmental exposure.

• Verify the voltage requirements of the chosen model.

• Confirm that the connected locking equipment is within the keypad relay's electrical rating.

• Provide a correctly sized power supply and any required interface relays.

• Mount the keypad securely using manufacturer-approved hardware.

• Route and protect electrical wiring appropriately.

• Connect compatible access-control and request-to-exit equipment.

• Program authorized user codes, visitor credentials, and relay timing.

• Test authorized entry and rejected-code operation.

• Verify tamper detection, exit control, and emergency-release functions.

Important Installation Information

• The KP Series includes multiple electrically and physically different keypad models.

• The KP-300 requires nominal 12V DC and must not be connected directly to 24V power.

• Only the KP-300 includes a proximity card reader in this four-model selection.

• The KP-100A and KP-200 are for indoor installation.

• The KP-300 conforms to IP65, and the KP-400 conforms to IP66.

• Relay contact ratings vary between models.

• A keypad does not independently supply all power required by an electromagnetic lock or electric strike.

• Magnetic locks, electric strikes, controllers, additional credentials, wiring, and external power supplies are sold separately unless specifically included.

• Access-control installations must comply with applicable building, fire, accessibility, and emergency-egress requirements.

• Manufacturer instructions and the requirements of the local Authority Having Jurisdiction must be followed.

Why Choose Alarm Controls KP Series Keypads?

The Alarm Controls KP Series provides versatile electronic access-control solutions for commercial facilities requiring reliable keyless entry.

From the high-capacity indoor KP-100A to the durable KP-200, proximity-enabled KP-300, and weather-resistant KP-400, this product family offers solutions for a variety of commercial door applications.

With programmable credentials, backlit keys, tamper detection, relay outputs, and model-specific environmental protection, Alarm Controls KP Series keypads provide dependable entry-control functionality for professionally installed commercial security systems.
