Commercial Touchless Exit Sensors | Battery or DC Powered | Red/Green LED Halo | DPDT Relay | Single-Gang, Double-Gang & Narrow-Stile Models

Upgrade commercial entrance security with the Alarm Controls NTB Series Battery-Powered No-Touch Request-to-Exit Stations, designed to provide convenient hands-free operation of compatible electronic door-release systems.

Manufactured by Alarm Controls, an ASSA ABLOY company, the NTB Series uses infrared motion-sensing technology to activate a connected door-release circuit when a hand is waved within approximately four inches of the sensor.

Unlike conventional push-to-exit buttons, NTB Series stations allow users to request door release without physically touching the faceplate, making them practical for healthcare facilities, schools, restrooms, commercial offices, warehouses, and institutional buildings.

Each station operates using two AA alkaline batteries, included with the product, or an optional 12V DC or 24V DC hardwired power connection.

The NTB Series features a durable stainless steel, vandal-resistant faceplate, a configurable red/green Halo LED indicator, adjustable relay activation timing, low-battery notification, and audible operating feedback.

Its DPDT electrical relay allows integration with compatible access-control systems, electromagnetic locks, electric strikes, and automatic door activation equipment.

Available in six configurations, the NTB Series includes standard WAVE TO OPEN plates and versions with the international wheelchair accessibility symbol.

For commercial facilities seeking convenient touchless operation and flexible installation options, the Alarm Controls NTB Series provides a reliable electronic request-to-exit solution.

Key Features

• Touchless Infrared Activation: Activate a compatible door-release circuit by waving a hand near the sensor.

• Up to 4" Detection Range: Provides close-range hand detection to reduce unintentional activation.

• Battery-Powered Operation: Uses two standard AA alkaline batteries.

• Batteries Included: Two AA alkaline batteries supplied with the product.

• Optional 12/24V DC Operation: Can operate from a compatible external regulated DC power source.

• Wired Relay Output: Electrical contacts connect to the door's access-control or release system.

• DPDT Relay: Provides two sets of changeover contacts for compatible control applications.

• Adjustable Relay Timing: Jumper-configurable activation intervals.

• Red/Green Halo LED: Provides configurable visual feedback on sensor operation.

• Low-Battery Warning: LED notification indicates when batteries need replacement.

• Audible Activation Feedback: Configurable audible tone confirms sensor activation.

• Obstruction Detection: Detects prolonged activity in front of the sensor and generates a warning.

• Stainless Steel Faceplate: Durable construction for commercial environments.

• Vandal-Resistant Design: Suitable for high-use institutional and commercial applications.

• Multiple Mounting Configurations: Available in single-gang, double-gang, and narrow-stile versions.

• ADA Symbol Options: Selected models include a wheelchair symbol on the faceplate.

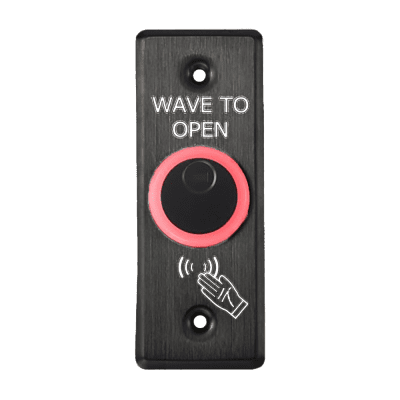

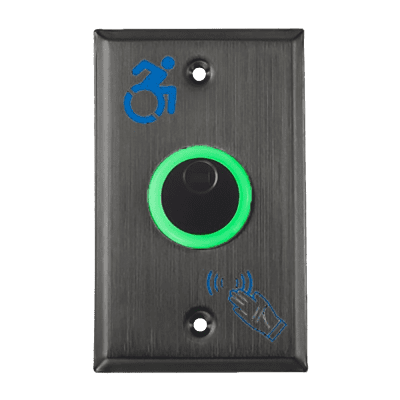

• Black Finish Options: Available for selected configurations using the manufacturer's -BK suffix.

• Swinging & Sliding Door Applications: Suitable for properly designed compatible access-control and automatic door systems.

• UL 294 Listed: Manufacturer-listed access-control equipment.

• CE Certified: Manufacturer-listed certification.

Available Models & Variants

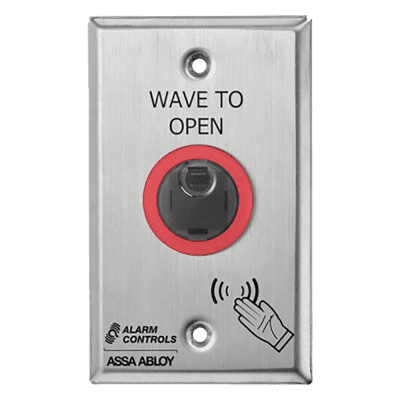

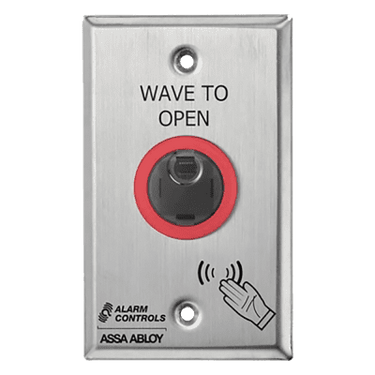

NTB-1 – Single-Gang Battery-Powered No-Touch Exit Sensor

The Alarm Controls NTB-1 is a single-gang touchless request-to-exit station featuring a stainless steel faceplate, WAVE TO OPEN marking, and red/green Halo LED.

Specifications:

• SKU: NTB-1

• Mounting: Single Gang

• Faceplate Dimensions: 2-3/4" W x 4-1/2" H

• Faceplate Finish: Satin Stainless Steel

• Marking: WAVE TO OPEN

• Sensor: Infrared

• Power: Two AA Batteries or Optional 12/24V DC

• Output: DPDT Relay

• Indicator: Red/Green Halo LED

• Battery Warning: Included

Recommended For: Standard commercial single-gang request-to-exit installations.

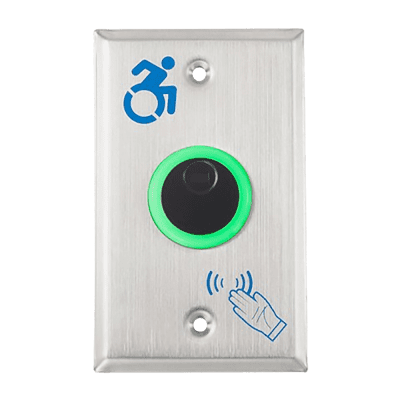

NTB-1A – Single-Gang No-Touch Exit Sensor with ADA Symbol

The Alarm Controls NTB-1A provides the same general function and mounting configuration as the NTB-1, with a faceplate featuring the international wheelchair accessibility symbol.

Specifications:

• SKU: NTB-1A

• Mounting: Single Gang

• Faceplate Dimensions: 2-3/4" W x 4-1/2" H

• Faceplate Finish: Satin Stainless Steel

• Marking: Wheelchair Accessibility Symbol

• Power: Two AA Batteries or Optional 12/24V DC

• Output: DPDT Relay

• Indicator: Red/Green Halo LED

Recommended For: Touchless door activation installations where an accessibility-symbol faceplate is desired.

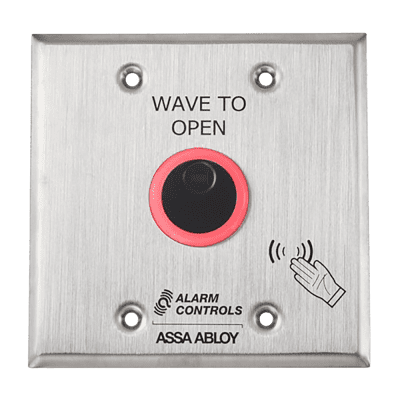

NTB-2 – Double-Gang Battery-Powered No-Touch Exit Sensor

The Alarm Controls NTB-2 provides touchless door-release activation in a larger square, double-gang stainless steel faceplate.

Specifications:

• SKU: NTB-2

• Mounting: Double Gang

• Faceplate Dimensions: 4-1/2" W x 4-1/2" H

• Faceplate Finish: Satin Stainless Steel

• Marking: WAVE TO OPEN

• Power: Two AA Batteries or Optional 12/24V DC

• Output: DPDT Relay

• Indicator: Red/Green Halo LED

Recommended For: Commercial entrances and existing double-gang exit-control locations.

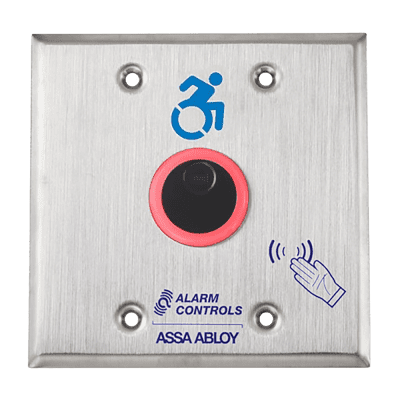

NTB-2A – Double-Gang No-Touch Exit Sensor with ADA Symbol

The Alarm Controls NTB-2A combines a double-gang mounting configuration with a wheelchair accessibility symbol.

Specifications:

• SKU: NTB-2A

• Mounting: Double Gang

• Faceplate Dimensions: 4-1/2" W x 4-1/2" H

• Faceplate Finish: Satin Stainless Steel

• Marking: Wheelchair Accessibility Symbol

• Power: Two AA Batteries or Optional 12/24V DC

• Output: DPDT Relay

• Indicator: Red/Green Halo LED

Recommended For: Automatic door activation and compatible commercial access-control applications requiring a double-gang plate.

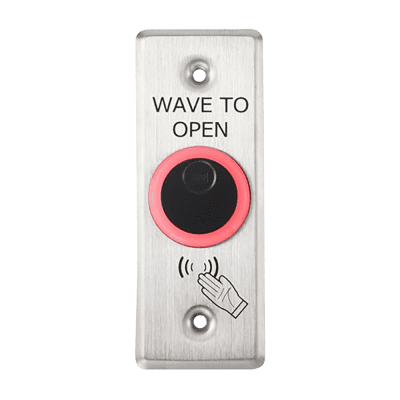

NTB-3 – Narrow-Stile Battery-Powered No-Touch Exit Sensor

The Alarm Controls NTB-3 is designed for locations with limited mounting space, including compatible aluminum storefront mullions and narrow commercial framing.

Specifications:

• SKU: NTB-3

• Mounting: Narrow Stile

• Faceplate Dimensions: 1-3/4" W x 4-1/2" H

• Faceplate Finish: Satin Stainless Steel

• Marking: WAVE TO OPEN

• Power: Two AA Batteries or Optional 12/24V DC

• Output: DPDT Relay

• Indicator: Red/Green Halo LED

Recommended For: Commercial storefront mullions, narrow-stile applications, and restricted mounting spaces.

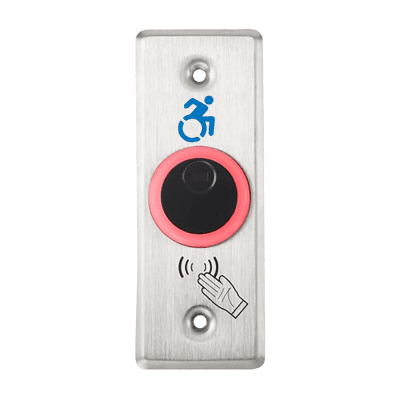

NTB-3A – Narrow-Stile No-Touch Exit Sensor with ADA Symbol

The Alarm Controls NTB-3A offers a narrow-stile design with a wheelchair accessibility symbol.

Specifications:

• SKU: NTB-3A

• Mounting: Narrow Stile

• Faceplate Dimensions: 1-3/4" W x 4-1/2" H

• Faceplate Finish: Satin Stainless Steel

• Marking: Wheelchair Accessibility Symbol

• Power: Two AA Batteries or Optional 12/24V DC

• Output: DPDT Relay

• Indicator: Red/Green Halo LED

Recommended For: Narrow storefront entrance applications requiring touchless activation and an accessibility-symbol faceplate.

Technical Specifications – NTB Series

• Manufacturer: Alarm Controls

• Parent Company: ASSA ABLOY

• Product Series: NTB

• Product Type: Battery-Powered No-Touch Request-to-Exit Station

• Model Options: NTB-1, NTB-1A, NTB-2, NTB-2A, NTB-3, NTB-3A

• Sensor Technology: Infrared Motion Detection

• Detection Range: Up to 4" (10 cm)

• Activation: Hands-Free Wave

• Battery Supply: 3V DC from Two 1.5V AA Alkaline Batteries

• Batteries Included: Yes

• External Power Option: 12V DC or 24V DC, ±10%

• Estimated Battery Life: Approximately 1 Year, Depending on Usage

• Hardwired Power Consumption: Approximately 66mA at 12V DC or 24V DC

• Relay Configuration: One DPDT Relay

• Published Relay Rating: 2A at 30V DC, 1A Per Contact in Installation Instructions

• Relay Timing: Jumper Selectable

• Status LED: Bi-Color Red/Green Halo

• Low-Battery Indicator: Included

• Audible Feedback: Configurable

• Obstruction Detection: Included

• Faceplate Construction: Stainless Steel

• Standard Finish: Satin Stainless Steel

• Optional Finish: Black on Selected Models

• Mounting: Single Gang, Double Gang, or Narrow Stile

• Operating Temperature: -13°F to 131°F (-25°C to 55°C)

• Certifications: UL 294 Listed, CE Certified

• Communication: Wired Relay Output

• Application: Commercial Access Control and Door Activation

How the NTB Series Works

1. Touchless Infrared Detection

The NTB sensor detects a hand presented within approximately four inches of the activation area.

When activated, the sensor changes the state of its electrical relay to initiate a compatible door-release or door-activation circuit.

2. Battery or Hardwired Power

The NTB Series can operate using two included AA alkaline batteries.

For installations where a regulated DC supply is available, the sensor can alternatively operate using the manufacturer's supported 12/24V DC connection.

The electrical door-release output remains wired in either power configuration.

3. Adjustable Relay Activation

Relay activation time can be selected using the device's jumper settings.

The manufacturer installation instructions identify four timing choices:

• 0.6 Seconds

• 2 Seconds

• 6 Seconds

• 13 Seconds

The manufacturer's general catalog describes this as a selectable timer of approximately 1–10 seconds. Installers should refer to the instructions supplied with the actual device revision.

4. Red/Green LED Halo

The sensor includes a dual-color LED ring that provides visual feedback when activated.

The display color is configurable, helping communicate sensor status to users.

5. Low-Battery Notification

The NTB Series includes a low-battery warning.

When approximately 20% or less of battery life remains, the LED provides additional flashing indications to alert users that replacement is needed.

6. Obstruction Detection

If an object remains in front of the sensor for an extended period, the NTB can deactivate the relay and provide audible and visual warning indications.

This function helps identify prolonged sensor obstruction.

Compatible Access Control Equipment

The NTB Series may be integrated with appropriately designed systems using:

• Electromagnetic Door Locks

• Electric Strikes

• Electronic Door-Release Controllers

• Commercial Access-Control Panels

• Automatic Door Operators

• Electrified Door Hardware

• Request-to-Exit Circuits

• Compatible Low-Voltage Relays

• Regulated 12V DC or 24V DC Power Supplies

Important: The sensor provides electrical control contacts. It does not independently power or mechanically unlock the door.

Compatible Mounting Accessories

• SMB-01: Single-Gang Surface-Mount Box with N/O Tamper Switches

• SMB-01A: Single-Gang Surface-Mount Box with N/C Tamper Switches

• SMB-3: Narrow-Stile Surface-Mount Box, Clear Anodized Aluminum

• SMB-3D: Narrow-Stile Surface-Mount Box, Duranodic Dark Bronze

• 30203: Single-Gang Weather-Resistant Surface-Mount Back Box

Accessories are sold separately unless specifically included.

Recommended Applications

• Hospitals and Healthcare Facilities

• Medical Laboratories

• Assisted Living Facilities

• Commercial Restrooms

• Schools and Universities

• Commercial Office Buildings

• Aluminum Storefront Entrances

• Warehouses and Distribution Centers

• Manufacturing Facilities

• Government and Institutional Buildings

• Automatic Door Activation Systems

• Electronic Magnetic Lock Release

• Employee Access-Control Entrances

• Touchless Commercial Door Upgrades

Shipping & Packaging Information

The Alarm Controls NTB Series is sold individually, with each model representing one request-to-exit station.

Manufacturer-Listed Package Contents:

• One NTB no-touch activation station

• Two AA alkaline batteries

• Two crimp-style connectors

• Two #6-32 mounting screws

• Installation and operating instructions

The installation manual also identifies a DC line-power adapter harness among the supplied components, while the general catalog presents it as an optional accessory. Confirm whether the harness is included in the currently supplied package.

Shipping Considerations:

• Compact electronic access-control accessory

• Protect the stainless steel plate and infrared sensor during shipping

• Package to prevent movement or damage

• Protect included AA batteries against short circuits

• Verify packaged weight and carton dimensions before generating the shipping label

• Shipping costs depend on carrier, package dimensions, destination, and selected delivery service

Important Installation Information

• Standard NTB models require batteries or an external DC supply.

• The relay connection to the locking system is wired, even when the sensor operates on batteries.

• The NTB Series is not a completely wireless door-control product.

• Standard NTS and NTB Series devices have different power and relay configurations.

• The adjustable relay timer is not a delayed-egress timer.

• An ADA symbol on a faceplate does not independently establish that the completed doorway meets accessibility requirements.

• The NTB sensor is not a substitute for required panic hardware or other code-mandated mechanical egress equipment.

• An appropriately designed electronic release system is required.

• Follow applicable building, fire, accessibility, and emergency-egress requirements.

• Verify environmental suitability before installing in wet or exposed outdoor locations.

Why Choose the Alarm Controls NTB Series?

The Alarm Controls NTB Series Battery-Powered No-Touch Request-to-Exit Stations offer flexible and convenient hands-free activation for commercial electronic access-control systems.

With infrared detection, two included AA batteries, optional 12/24V DC operation, DPDT relay contacts, configurable Halo LED indication, obstruction detection, and six mounting configurations, the NTB Series provides practical solutions for both new commercial installations and existing door-security upgrades.
