Commercial Wireless Access Control | Remote Maglock & Electric Strike Release | 12/24V AC/DC Receiver | Rolling-Code Security | Single- and Three-Door Options

Provide convenient wireless control of commercial entrances with the Alarm Controls RT Series Wireless Transmitters and Receivers, designed to operate compatible electronic locks, gate operators, automatic door systems, and access-control equipment.

Manufactured by Alarm Controls, an ASSA ABLOY company, the RT Series provides an effective solution for reception desks, security stations, offices, warehouses, and other locations where running control wiring to a remote push button would be difficult or impractical.

The series offers wireless control for one or up to three independently selected doors, depending on the transmitter and receiver configuration.

The RT-1 kit includes one wireless receiver and two remote transmitters for single-door applications. The RT-3 kit includes three receivers and one three-button transmitter for controlling up to three separate door-release circuits.

Both systems use 433.92 MHz radio communication with rolling-code technology, providing more than one billion code combinations.

The compact receiver operates on 12V or 24V AC/DC power and includes a single-pole, double-throw (SPDT) relay rated at 1 amp at 30V DC or 120V AC.

A standard five-second momentary relay output is provided, with an optional latching configuration for applications requiring maintained relay activation.

With a manufacturer-rated wireless range of up to 300 feet, expandable transmitter capacity, and compact mounting options, the Alarm Controls RT Series offers a practical remote-control solution for professional commercial access-control installations.

Key Features

• Wireless Door Release: Operate a compatible electronic door-release circuit without a wired connection to the handheld transmitter.

• Up to 300-Foot Range: Provides remote control within the manufacturer's specified maximum operating range.

• 433.92 MHz Communication: Dedicated radio-frequency operation for compatible RT Series components.

• Rolling-Code Technology: More than one billion code combinations.

• Single-Door Control: RT-1 includes one receiver and two transmitters.

• Three-Door Control: RT-3 includes three receivers and one three-button transmitter.

• Expandable Transmitter Capacity: Each receiver can recognize up to 30 paired transmitters.

• 12V or 24V AC/DC Receiver Power: Compatible with appropriately rated commercial low-voltage supplies.

• Low Current Consumption: Receiver draws a maximum of 50mA.

• SPDT Relay Contacts: Provides common, normally open, and normally closed switching connections.

• 1A Relay Rating: Rated at 1A at 30V DC or 120V AC.

• Five-Second Momentary Output: Standard receiver operation provides a five-second relay activation.

• Optional Latching Mode: Allows the receiver relay to maintain its state until activated again.

• Receiver Status LED: Red and green indicator shows power and relay status.

• Compact Receiver Housing: Small off-white enclosure fits conveniently into suitable access-control locations.

• 12-Inch Receiver Antenna: Supports wireless reception within the specified range.

• Convenient Remote Mounting: Compatible transmitters can be mounted under a desk or on a wall.

• Keychain Operation: Portable transmitter arrangement available.

• Additional Transmitters: Expand compatible installations using RT-1T or RT-1TW accessories.

• Additional Receiver: RT-3R allows expansion of supported installations.

• Commercial Security Applications: Designed for use with maglocks, electric strikes, access-control panels, gate operators, and automatic door controls.

• CE Certified: Manufacturer-listed certification.

• RoHS Compliant: Meets the manufacturer's stated RoHS requirements.

Available Models & Variants

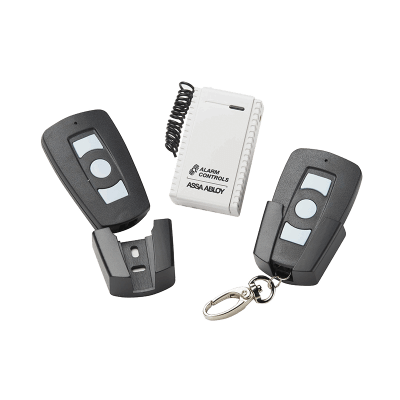

Alarm Controls RT-1 – Single-Door Wireless Transmitter & Receiver Kit

The Alarm Controls RT-1 is a complete wireless remote-control package for a single compatible door-release circuit.

It provides an easy way for authorized personnel to unlock a secured door from a reception desk, office, or other remote location.

Package Includes:

• One wireless receiver

• Two wireless transmitters

• Remote mounting holder

• Keychain accessory

Specifications:

• SKU: RT-1

• Configuration: Single Door

• Receivers Included: 1

• Transmitters Included: 2

• Frequency: 433.92 MHz

• Maximum Range: Up to 300 Feet

• Receiver Voltage: 12/24V AC or DC

• Maximum Receiver Current: 50mA

• Relay Output: SPDT

• Relay Rating: 1A at 30V DC or 120V AC

• Standard Activation: Five-Second Momentary

• Optional Activation: Latching

• Maximum Paired Transmitters: 30 Per Receiver

Recommended For: Single-door remote release, reception desks, offices, commercial entrances, and employee access-control stations.

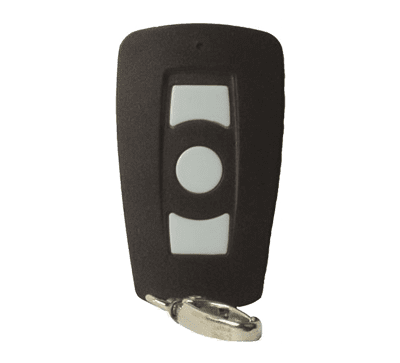

Alarm Controls RT-1T – Additional Wireless Transmitter

The RT-1T is an additional wireless transmitter designed to expand a compatible RT-1 installation.

It allows another authorized user to operate the existing receiver after proper pairing.

Specifications:

• SKU: RT-1T

• Product Type: Additional Wireless Transmitter

• Primary Compatibility: RT-1

• Frequency: 433.92 MHz

• Battery Type: Two CR2016 Coin Cells

• Communication: Rolling Code

• Wireless Range: Up to 300 Feet Under Suitable Conditions

• Installation: Pair with Existing Compatible Receiver

Recommended For: Additional staff members, replacement remotes, and expanded authorized operation of a single-door system.

Important: The RT-1T is an accessory transmitter, not a complete receiver-and-transmitter kit.

Alarm Controls RT-1TW – Additional Transmitter with Wire Leads

The RT-1TW is an expansion transmitter with wire leads, intended for compatible RT-1 and RT-3 installations.

It provides an alternative method of initiating wireless transmission from suitable externally connected control equipment.

Specifications:

• SKU: RT-1TW

• Product Type: Wireless Transmitter Accessory

• Connection: Wire Leads

• Compatible Systems: RT-1 and RT-3

• Frequency: 433.92 MHz

• Application: Compatible External Control Integration

Recommended For: Specialized remote-control installations requiring an externally connected transmitter input.

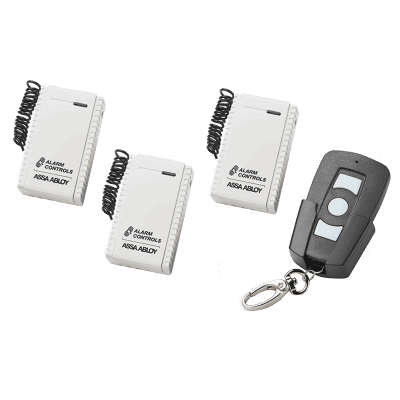

Alarm Controls RT-3 – Three-Door Wireless Transmitter & Receiver Kit

The Alarm Controls RT-3 is designed for applications requiring wireless control of up to three independent door-release circuits.

The kit includes three receivers and one transmitter with three selectable buttons.

Each transmitter button can be paired with a different receiver to operate its corresponding door or control circuit.

Package Includes:

• Three wireless receivers

• One three-button transmitter

• Mounting holder

• Keychain accessory

Specifications:

• SKU: RT-3

• Configuration: Up to Three Doors

• Receivers Included: 3

• Transmitters Included: 1

• Transmitter Buttons: A, B, and C

• Frequency: 433.92 MHz

• Maximum Range: Up to 300 Feet

• Receiver Voltage: 12/24V AC or DC

• Maximum Current: 50mA Per Receiver

• Relay Output: One SPDT Relay Per Receiver

• Relay Rating: 1A at 30V DC or 120V AC Per Receiver

• Standard Relay Activation: Five-Second Momentary

• Optional Relay Function: Latching

• Maximum Paired Transmitters: 30 Per Receiver

Recommended For: Security desks, reception offices, warehouses, multi-door commercial entrances, and installations requiring independent remote control of multiple doors.

Alarm Controls RT-3R – Additional Wireless Receiver

The Alarm Controls RT-3R is an additional receiver for expansion of compatible RT Series wireless access-control systems.

It provides an extra receiver relay output that can be paired with an appropriate RT transmitter.

Specifications:

• SKU: RT-3R

• Product Type: Additional Wireless Receiver

• Operating Voltage: 12V or 24V AC/DC

• Maximum Current Consumption: 50mA

• Relay: SPDT

• Contact Rating: 1A at 30V DC or 120V AC

• Operating Frequency: 433.92 MHz

• Receiver Dimensions: 2-1/2" L x 1-1/4" W x 3/4" D

• Maximum Paired Transmitters: 30

• Standard Relay Output: Five-Second Momentary

• Optional Relay Function: Latching

Recommended For: Expanding compatible RT-1 and RT-3 installations.

Technical Specifications – RT Series Overview

• Manufacturer: Alarm Controls

• Parent Company: ASSA ABLOY

• Series: RT

• Product Type: Wireless Transmitter and Receiver Access Control

• Models: RT-1, RT-1T, RT-1TW, RT-3, RT-3R

• Wireless Frequency: 433.92 MHz

• Maximum Operating Range: Up to 300 Feet

• Security Technology: Rolling Code

• Code Combinations: More Than One Billion

• Receiver Supply Voltage: 12V or 24V AC/DC

• Receiver Maximum Current Draw: 50mA

• Relay Configuration: SPDT

• Relay Contact Rating: 1A at 30V DC or 120V AC

• Standard Relay Mode: Momentary

• Standard Momentary Duration: Five Seconds

• Optional Relay Mode: Latching

• Maximum Transmitters Per Receiver: 30

• Receiver Housing: Off-White

• Receiver Status Indicator: Bi-Color Red/Green LED

• Receiver Antenna: Approximately 12"

• Receiver Length: 2-1/2"

• Receiver Width: 1-1/4"

• Receiver Depth: 3/4"

• Transmitter Battery: Two CR2016 Coin Cells Per Standard Handheld Transmitter

• Operating Temperature: -4°F to 140°F (-20°C to 60°C)

• Certification: CE

• Environmental Compliance: RoHS

• Control Output: Hardwired Relay Contacts

• Installation: Low-Voltage Access Control

• Application: Commercial Door Release and Remote Access Control

How the RT Series Works

1. Wireless Remote Activation

When an authorized user presses a programmed transmitter button, the transmitter sends a rolling-code radio signal to its paired receiver.

The receiver recognizes the signal and activates its output relay.

The relay then operates the connected door-release controller or other compatible device.

2. Momentary Door Release

The standard receiver setting provides a five-second momentary relay output.

This can be used to initiate a temporary release through a properly configured access-control system.

Actual unlocking and relocking depend on the connected lock, controller, and door hardware.

3. Optional Latching Operation

The receiver can be configured for alternate-action latching operation.

In this mode, pressing the transmitter button changes and maintains the relay state.

Pressing the button again changes the state back.

Important: Latching operation must be evaluated for the application, particularly when it affects required emergency egress or building security.

4. Rolling-Code Communication

The RT Series uses rolling-code technology with more than one billion code combinations.

This provides a changing transmitter signal rather than a permanently repeated fixed code.

The rolling-code feature should not be interpreted as providing a complete encrypted network-access-control system.

5. Multiple Transmitter Pairing

Each receiver supports pairing with up to 30 compatible transmitters.

This is useful when several authorized users need to operate the same door-release circuit.

The pairing procedure is performed using the receiver's learning button.

6. Three-Door Operation – RT-3

The RT-3 transmitter has three buttons labeled A, B, and C.

Each button can be paired with a corresponding receiver, providing independent wireless control of up to three door-release circuits.

The system requires correct pairing and wiring at each receiver.

7. Receiver Status Indication

The receiver features a bi-color LED:

• Green: Power On

• Red: Relay Activated

The indicator also provides feedback during transmitter pairing.

Compatible Access Control Equipment

Alarm Controls RT Series receivers can interface with properly rated:

• Electromagnetic Door Locks

• Electric Strikes

• Access-Control Controllers

• Electric Door-Release Relays

• Automatic Swing Door Operators

• Automatic Sliding Door Operators

• Commercial Gate Operators

• Keypad Access Systems

• Remote Security Controls

• Reception Desk Door-Release Systems

Important: The RT receiver provides a 1A SPDT relay contact. Equipment exceeding that rating must be controlled through an appropriately rated interface relay or controller.

The receiver does not independently supply power to an electromagnetic lock or electric strike.

Recommended Applications

• Commercial Reception Desks

• Security Guard Stations

• Office Building Entrances

• Commercial Storefront Entrances

• Warehouse Personnel Doors

• Industrial Facilities

• Employee Access-Control Entrances

• Healthcare Reception Areas

• School Administrative Offices

• Commercial Gate Control

• Automatic Door Activation

• Remote Magnetic Lock Release

• Electric Strike Release

• Commercial Building Security

• Hard-to-Wire Access-Control Retrofits

• Multiple Door Control Stations

Installation & Compatibility

Alarm Controls RT Series equipment should be installed by qualified personnel familiar with commercial electronic door hardware and access-control systems.

The wireless transmitter does not require a control cable to the receiver.

However, the receiver must be connected to a suitable low-voltage power source and wired to the compatible door-release equipment.

Installation Considerations

• Determine whether one-door or three-door control is required.

• Select RT-1 for a standard single-door kit or RT-3 for up to three separate receiver outputs.

• Provide 12V or 24V AC/DC power to the receiver.

• Connect the SPDT relay contacts according to the approved access-control diagram.

• Verify that the relay's 1A contact rating is not exceeded.

• Install an appropriately rated interface relay where required.

• Mount the receiver in an appropriate protected location.

• Position the receiver antenna for suitable radio reception.

• Pair each transmitter with the intended receiver.

• Select momentary or latching operation as required.

• Test operation at the intended transmitter location.

• Verify all required independent exit and emergency-release equipment.

Important Installation Information

• RT-1 includes one receiver and two transmitters.

• RT-3 includes three receivers and one three-button transmitter.

• RT-1T, RT-1TW, and RT-3R are accessories, not complete kits.

• Receiver electrical power is required for system operation.

• The system's wireless feature applies to communication between transmitter and receiver; the receiver itself must be wired.

• Maximum radio range depends on building construction, interference, receiver location, and antenna positioning.

• The stated 300-foot range is a maximum, not a guaranteed range through all walls and structures.

• The receiver's 1A contacts must not be overloaded.

• Wireless activation does not independently provide lock power.

• Remote release equipment must not be used as a substitute for required emergency-egress controls.

• An RT receiver or transmitter alone does not establish code compliance for an electromagnetic locking system.

• Additional power supplies, interface relays, locks, controllers, wiring, and installation accessories are sold separately unless explicitly included.

• Install according to the manufacturer's instructions and applicable electrical and life-safety requirements.

Why Choose the Alarm Controls RT Series?

The Alarm Controls RT Series Wireless Transmitters and Receivers provides flexible remote operation for commercial electronic door-control systems.

Its combination of rolling-code wireless communication, up to 300-foot operating range, 12/24V AC/DC receivers, five-second momentary outputs, optional latching operation, and support for multiple transmitters makes it a practical solution for reception desks, security stations, and hard-to-wire access-control applications.

Whether selecting the RT-1 for single-door control, RT-3 for three-door operation, or individual RT accessories for system expansion, the Alarm Controls RT Series provides convenient wireless access-control functionality for professionally installed commercial security systems.
