Commercial Electrified Lock Control Stations | DPDT Switching | Red Status LEDs | 12/24V AC/DC Illumination | Single-Gang Through Four-Gang Models

Provide convenient centralized control of commercial electronic door-locking systems with the Alarm Controls SLP Series Monitoring & Control Stations, designed to operate and monitor one or more compatible electrified locks.

Manufactured by Alarm Controls, an ASSA ABLOY company, the SLP Series features illuminated green push buttons, individual red LED indicators, and durable stainless steel wall plates.

Available with one to eight illuminated control buttons, these stations provide flexible operation for commercial security installations requiring one or multiple lock-control points.

Choose between momentary-action (M) and latching-action (L) configurations to match the specific electrical and operational requirements of the installation.

Each button features a DPDT (Double-Pole, Double-Throw) switch rated at 3 amps at 35V DC or 120V AC, allowing appropriately designed electronic control circuits to operate compatible magnetic locks, electric strikes, and other electrified door hardware.

A separate 1/2-inch red LED status indicator accompanies each illuminated green push button, providing visual feedback when properly connected to the system's monitoring circuitry.

The illuminated buttons and indicator LEDs operate on 12V or 24V AC/DC, while 12-inch color-coded wire leads simplify connection to appropriate control equipment.

With single-gang, double-gang, three-gang, and four-gang configurations, the Alarm Controls SLP Series is suited to commercial offices, security stations, reception areas, warehouses, institutional buildings, and facilities requiring centralized electronic door control.

Key Features

• Multiple Control Configurations: Available with 1 through 8 individual illuminated push buttons.

• Momentary or Latching Operation: Select the correct switching function for the application.

• DPDT Switch Contacts: Each push button provides two independent changeover contact sets.

• 3A Contact Rating: Rated at 3A at 35V DC or 120V AC per switch.

• Illuminated Green Buttons: High-brightness illumination improves control identification.

• Red LED Status Indicators: One 1/2-inch red LED accompanies each button.

• 12/24V AC/DC Illumination: Supports compatible low-voltage illumination circuits.

• Stainless Steel Wall Plates: Durable, professional appearance for commercial installations.

• Single-Through Four-Gang Mounting: Plate size corresponds to the number of controls.

• Color-Coded Wiring Leads: 12-inch leads simplify installation and identification.

• Compact Switch Assembly: Requires approximately 1-1/2 inches of depth behind the plate.

• Multi-Door Applications: Supports central control of multiple compatible electrified locks.

• Access Control Integration: Suitable for properly designed access-control and door-release circuits.

• Optional LED Colors: Custom green and yellow status indicators available.

• Custom Legends: Manufacturer can supply selected customized station markings.

• Commercial Security Applications: Designed for security offices, control rooms, reception areas, and institutional facilities.

Available Models & Variants

Momentary Models – SLP-1M Through SLP-8M

Momentary SLP stations activate their switch contacts only while the green push button is pressed.

When the button is released, the switch returns to its original electrical position.

Available models:

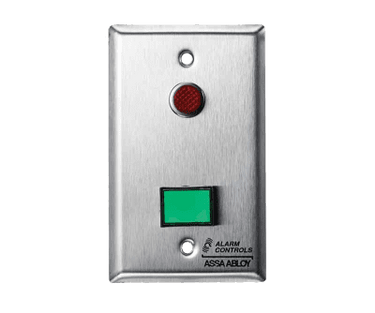

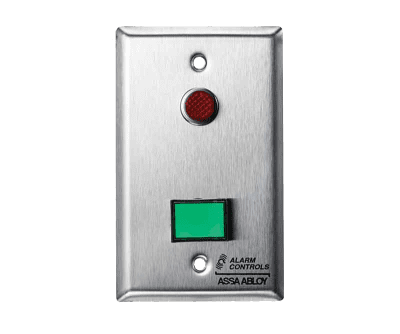

• SLP-1M: One illuminated momentary button, one red LED, single-gang plate

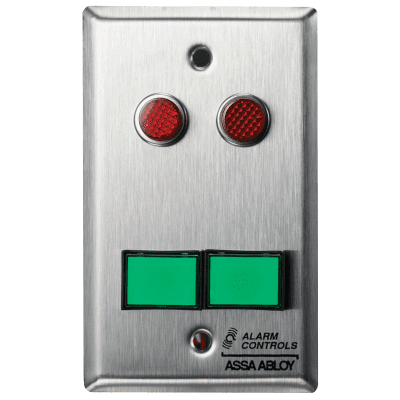

• SLP-2M: Two illuminated momentary buttons, two red LEDs, single-gang plate

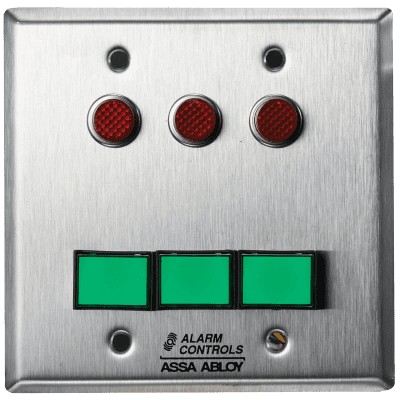

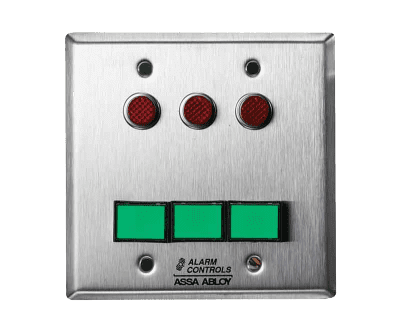

• SLP-3M: Three illuminated momentary buttons, three red LEDs, double-gang plate

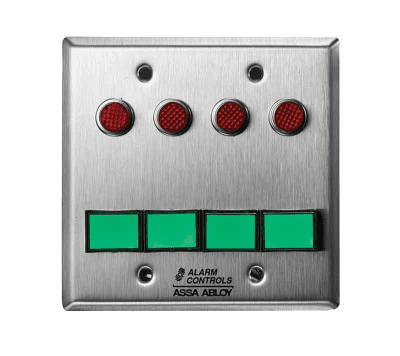

• SLP-4M: Four illuminated momentary buttons, four red LEDs, double-gang plate

• SLP-5M: Five illuminated momentary buttons, five red LEDs, three-gang plate

• SLP-6M: Six illuminated momentary buttons, six red LEDs, three-gang plate

• SLP-7M: Seven illuminated momentary buttons, seven red LEDs, four-gang plate

• SLP-8M: Eight illuminated momentary buttons, eight red LEDs, four-gang plate

Recommended Applications: Momentary door release, request-to-exit control inputs, remote unlocking, and access-control functions requiring temporary switch activation.

Latching Models – SLP-1L Through SLP-8L

Latching SLP stations feature alternate-action switches.

Pressing a button changes its electrical state, which remains maintained after the button is released. Pressing the button again returns the switch to its previous state.

Available models:

• SLP-1L: One illuminated latching button, one red LED, single-gang plate

• SLP-2L: Two illuminated latching buttons, two red LEDs, single-gang plate

• SLP-3L: Three illuminated latching buttons, three red LEDs, double-gang plate

• SLP-4L: Four illuminated latching buttons, four red LEDs, double-gang plate

• SLP-5L: Five illuminated latching buttons, five red LEDs, three-gang plate

• SLP-6L: Six illuminated latching buttons, six red LEDs, three-gang plate

• SLP-7L: Seven illuminated latching buttons, seven red LEDs, four-gang plate

• SLP-8L: Eight illuminated latching buttons, eight red LEDs, four-gang plate

Recommended Applications: Maintained electronic security control, authorized lock enable/disable functions, and applications requiring an alternate-action control switch.

Product Specifications

• Manufacturer: Alarm Controls

• Parent Company: ASSA ABLOY

• Product Series: SLP

• Product Type: Monitoring & Control Station

• Switch Configurations: Momentary (M) / Latching (L)

• Number of Switches: 1–8 Depending on Model

• Switch Contact Arrangement: DPDT Per Button

• Switch Contact Rating: 3A at 35V DC or 120V AC

• Push Button Style: Rectangular

• Push Button Color: Green

• Push Button Illumination: High-Brightness LED

• Status Indicators: 1/2" Red LED Per Button

• LED Operating Voltage: 12V or 24V AC/DC

• Wall Plate Material: Stainless Steel

• Plate Finish: Stainless Steel

• Mounting: Single, Double, Three, or Four Gang

• Switch Depth Behind Plate: 1-1/2"

• Electrical Connections: 12" Color-Coded Leads

• Custom LED Options: Green / Yellow

• Custom Legends: Available

• Overall Dimensions: Vary by Model and Gang Configuration

• External Power: Required for LED Illumination

• Built-In Lock: No

• Built-In Power Supply: No

• Built-In Electronic Timer: No

• Application: Commercial Access Control and Electrified Lock Monitoring

How the SLP Series Works

1. Electronic Door Release

The SLP control station allows personnel to operate compatible electronic door-release equipment from a convenient wall-mounted location.

Pressing a green push button changes the associated DPDT switch contacts.

Depending on the wiring configuration, the switch can operate an access-control input, interface relay, or appropriately rated electric locking circuit.

2. Momentary Switching – M Models

Momentary SLP models activate only while the button is depressed.

These stations are well suited to applications requiring a temporary electrical control signal.

3. Latching Switching – L Models

Latching SLP models maintain their electrical switch position after the button is released.

Each additional press alternates the switch state.

This is useful for selected security-control applications where an authorized operator must maintain an electrical control condition.

4. LED Status Monitoring

Each SLP button is paired with an individual red LED indicator.

When wired to appropriate external status signals, the LED can provide visual indication of an associated door or lock condition.

Important: The LEDs are indicators, not built-in magnetic bond sensors or door-position sensors. Actual monitoring requires suitable external sensors, controllers, or relay feedback.

5. Multiple Electrified Lock Control

SLP stations with multiple buttons provide control points for several locking circuits from one wall-mounted station.

Depending on the system design, each button may be assigned to a separate controlled door or function.

6. Custom Indication

Alarm Controls offers optional LED colors and custom legends for installations requiring specialized identification.

These configurations should be specified when ordering and may have separate manufacturer part numbers.

Compatible Access Control Equipment

The SLP Series can be integrated with appropriately rated:

• Electromagnetic Door Locks

• Electric Strikes

• Electrified Locking Hardware

• Commercial Access-Control Controllers

• Security Monitoring Panels

• Door-Position Switches

• Magnetic Bond Sensors

• Electronic Door-Release Relays

• Regulated 12V/24V Illumination Power Supplies

• Building Security Control Systems

The SLP station provides switching and indication functions. Compatibility depends on the complete system's electrical design.

Recommended Applications

• Security Guard Stations

• Commercial Office Buildings

• Reception and Front Desk Areas

• Centralized Door Control Stations

• Warehouses and Distribution Facilities

• Industrial Manufacturing Buildings

• Schools and Universities

• Hospitals and Healthcare Facilities

• Government and Institutional Buildings

• Building Security Control Rooms

• Commercial Access-Control Systems

• Multiple Magnetic-Lock Installations

• Electronic Door Security Upgrades

• Controlled Employee Entrances

Installation & Compatibility

Alarm Controls SLP Series stations are intended for professional installation with compatible commercial access-control equipment.

Installation Considerations

• Select the appropriate momentary or latching switch function.

• Determine the number of buttons and corresponding mounting plate size.

• Provide an appropriate electrical wall box or mounting enclosure.

• Allow sufficient depth for the 1-1/2-inch switch projection and wiring.

• Wire the DPDT contacts according to the approved control-system diagram.

• Provide the appropriate 12V or 24V AC/DC illumination power.

• Connect status LEDs to suitable monitoring signals.

• Verify the connected electrical loads remain within switch ratings.

• Test every switch and corresponding LED indicator.

• Confirm proper operation of connected electronic locks and emergency-release systems.

Important Installation Information

• The SLP Series is offered in momentary and latching configurations.

• Each button includes one DPDT switch assembly.

• Each button is accompanied by a red status LED.

• The indicator does not independently detect whether a door is locked.

• LED illumination requires a suitable external voltage supply.

• These stations do not independently power magnetic locks.

• Individual switches are not electronic delayed-egress controllers.

• The SLP Series does not provide built-in access credentials, door-position sensors, or magnetic bond monitoring.

• The station is not a substitute for required mechanical panic hardware or other code-mandated egress equipment.

• Latching controls must not be installed in a manner that restricts required emergency egress.

• Weatherproof ratings are not specified for the standard SLP Series.

• Mounting boxes, external controllers, power supplies, and other equipment are not automatically included.

• All installations must follow manufacturer instructions and applicable electrical and life-safety requirements.

Why Choose the Alarm Controls SLP Series?

The Alarm Controls SLP Series Monitoring & Control Stations combines dependable electrical switching, illuminated controls, and multiple mounting configurations for professional commercial door-security installations.

With one to eight green illuminated push buttons, individual red LED status indicators, DPDT contacts, stainless steel wall plates, and momentary or latching operation, the SLP Series provides flexible control for one or multiple electrified locking systems.

Whether managing a single secured entrance or coordinating several doors from a centralized security station, Alarm Controls SLP stations offer practical electronic control and monitoring capabilities.
