Commercial Emergency Exit Alarm | 9V Battery Operated | 2-Minute Alarm Cutoff or Key Reset | Mechanical Deadbolt & Deadlatch

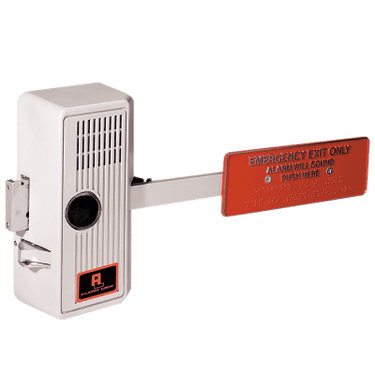

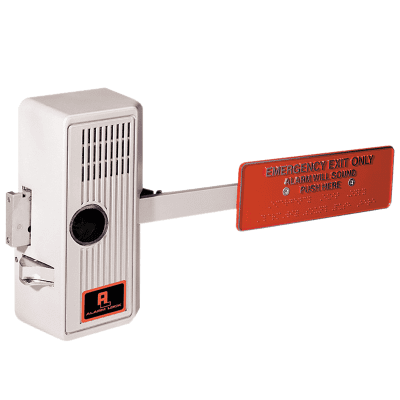

Help prevent unauthorized use of emergency exits with the Alarm Lock 250XUS28 Sirenlock Alarmed Panic Exit Lock, a commercial-grade exit security device combining mechanical locking hardware with a built-in audible alarm.

Manufactured by Alarm Lock, a division of NAPCO Security Technologies, the 250XUS28 features a paddle-style clapper plate designed to provide immediate mechanical egress while sounding an alarm when the device is activated in its armed condition.

The Sirenlock 250 Series incorporates a heavy-duty 1-inch-throw deadbolt, an additional deadlatch, and a 95 dB dual-tone piezo siren to discourage unauthorized exit through secured commercial doors.

The alarm can be configured for either a two-minute automatic alarm cutoff or a continuous alarm requiring key reset. In the two-minute mode, the device checks whether the door is closed before silencing the alarm.

Powered by an included 9V alkaline battery, the 250XUS28 operates without requiring a hardwired power connection for standard battery operation.

An audible low-battery warning helps alert maintenance personnel when the battery needs replacement.

The device features non-handed, surface-mounted construction, allowing installation on compatible left- or right-hand commercial doors.

Finished in US28 Aluminum, the Alarm Lock 250XUS28 is suitable for properly designed warehouse exits, retail back doors, commercial offices, schools, industrial facilities, and other protected emergency-exit applications.

Important: A compatible standard rim cylinder is required for key operation and is sold separately. This is the standard Sirenlock 250 model, not the weather-resistant 250WP version.

Key Features

• Paddle-Style Emergency Exit: Large clapper plate provides convenient mechanical exit activation.

• 95 dB Dual-Tone Alarm: Audible warning helps deter unauthorized emergency-exit use.

• Immediate Mechanical Egress: Releasing the deadbolt through the paddle does not require a delayed-egress countdown.

• Selectable Alarm Modes: Choose two-minute automatic cutoff or continuous alarm requiring key reset.

• 1" Deadbolt Throw: Heavy-duty die-cast bolt with reinforced steel inserts.

• Additional Deadlatch: Provides mechanical relatching functionality.

• 9V Battery Operation: Standard operation does not require hardwired electrical power.

• Battery Included: Uses one 9V alkaline battery.

• Low-Battery Warning: Audible notification indicates when battery replacement is required.

• Key-Operated Arming: Compatible rim cylinder operates the deadbolt and alarm arming function.

• Optional Exterior Key Control: Can be configured with appropriate exterior cylinder and pull hardware.

• Non-Handed Construction: Compatible with left- or right-hand applications.

• Surface-Mount Installation: Suitable for properly prepared commercial single doors and selected double-door configurations.

• US28 Aluminum Finish: Commercial architectural hardware appearance.

• Die-Cast Metal Housing: Durable construction for commercial installations.

• Optional AC Power: Compatible with specified Alarm Lock AC-9 or PP100 accessories.

• UL-Listed Product Family: Sirenlock 250 Series is identified by Alarm Lock as UL-listed panic alarm deadbolt equipment.

Technical Specifications

• Manufacturer: Alarm Lock

• Parent Company: NAPCO Security Technologies

• Model / SKU: 250XUS28

• Series: Sirenlock 250

• Product Type: Alarmed Panic Exit Lock

• Activation Style: Paddle / Clapper Plate

• Alarm Type: Dual-Tone Piezo Siren

• Published Alarm Level: 95 dB, Manufacturer Current Product Overview

• Alarm Options: Two-Minute Automatic Cutoff or Continuous Key-Reset Alarm

• Power: 9V DC Alkaline Battery

• Battery Included: Yes

• Battery Monitoring: Audible Low-Battery Warning

• Locking Mechanism: Deadbolt and Deadlatch

• Deadbolt Throw: 1"

• Deadbolt Construction: Die-Cast Metal with Reinforced Steel Inserts

• Housing: Die-Cast Zinc and Aluminum Construction

• Finish: US28 Aluminum

• Handing: Non-Handed

• Installation: Surface Mount

• Door Application: Compatible Single Doors or Properly Configured Paired Doors

• Device Width: 18"

• Device Height: 8-1/2"

• Device Depth: 3-1/4"

• Rim Cylinder: Required, Sold Separately

• Exterior Cylinder Operation: Optional

• Built-In Delayed Egress: No

• Weather-Resistant Construction: No – Standard Model

• Optional External Power: AC-9 or PP100

• Manufacturer Shipping Reference: Approximately 9–10 lb, Depending on Literature Revision

How the Alarm Lock 250XUS28 Works

1. Armed Operation

The device is armed by extending the mechanical deadbolt using a compatible rim cylinder.

When the door is secured and the alarm is armed, the device monitors the exit mechanism.

2. Emergency Exit Activation

When the paddle is depressed, the deadbolt releases mechanically and allows the door to open.

If the unit is armed, the built-in siren sounds immediately.

Mechanical exit is not delayed by the alarm.

3. Two-Minute Alarm Cutoff

The Sirenlock 250 can be set to automatically silence its alarm after approximately two minutes.

If the door remains open, the alarm continues and the device rechecks the door condition at additional two-minute intervals.

Once the door is closed, the alarm can stop at the end of the appropriate interval.

4. Continuous Alarm Mode

The device can alternatively be configured to sound continuously after activation.

The alarm remains active until the authorized key-reset procedure is performed.

5. Authorized Key Operation

A compatible rim cylinder permits authorized personnel to arm or disarm the locking mechanism.

When the deadbolt is retracted using the key, the device provides an audible disarming indication.

6. Low-Battery Warning

The unit provides an audible warning when the battery needs replacement.

Routine inspection and battery maintenance help preserve alarm reliability.

Standard Package

The standard Sirenlock 250 installation uses:

• Alarm Lock 250XUS28 Exit Lock Assembly

• Paddle / Clapper Plate

• 9V Alkaline Battery

• Door Warning Sign

• Manufacturer-Specified Mounting Hardware

• Single-Door Keeper for Applicable Installations

• Installation Instructions

Rim cylinder and keys are not included. The exact keeper and mounting components should be checked against the supplied package and intended door configuration.

Compatible Accessories

Alarm Lock CER-OKC Rim Cylinder

Compatible rim cylinder for authorized locking and unlocking functions.

Available for applicable inside or outside key-control configurations.

Alarm Lock 730 Single-Door Keeper

Keeper for compatible single-door installations or paired doors with a suitable mullion.

Alarm Lock 732 Double-Door Keeper

Keeper for selected pairs of doors without a conventional mullion arrangement.

Alarm Lock 707 Exterior Door Pull

Provides an exterior pulling point in appropriately configured installations.

Alarm Lock 711 Cylinder Finger Pull

Compact exterior finger pull for compatible outside key-access installations.

Alarm Lock 44 Double-Door Holder

Accessory for selected double-door mounting arrangements.

Alarm Lock AC-9 / PP100 Power Accessories

Optional external power equipment for compatible installations requiring an alternative to standard battery-only operation.

Accessories are sold separately unless specifically included in the product package.

Recommended Applications

• Warehouse Emergency Exits

• Retail Store Back Doors

• Commercial Office Buildings

• Manufacturing Facilities

• Distribution Centers

• Restaurant Rear Exits

• Theater Emergency Exits

• Schools and Educational Facilities

• Government and Institutional Buildings

• Commercial Service Entrances

• Secured Employee Exits

• Unauthorized Exit Deterrence

• Commercial Door Security Retrofits

Installation & Compatibility

The Alarm Lock 250XUS28 is designed for professional commercial door hardware installation.

Installation Considerations

• Verify the door and frame are compatible with the selected device.

• Confirm sufficient space for the 18-inch-wide assembly.

• Install the device according to the manufacturer's approved mounting template.

• Select the correct keeper for the door configuration.

• Install a compatible rim cylinder for authorized key operation.

• Verify proper deadbolt engagement and deadlatch operation.

• Connect the 9V battery after mechanical installation is complete.

• Select the required alarm operation mode.

• Test mechanical exit release, alarm activation, and key reset.

• Verify emergency-egress performance and applicable life-safety requirements.

Important Product Information

• The 250XUS28 is a standard non-weatherproof Sirenlock 250.

• It should not be substituted for the 250WP model where weather-resistant construction is required.

• It uses paddle-style activation, not a full-length exit bar.

• A standard rim cylinder is required and sold separately.

• The standard alarm is battery-powered.

• The device allows immediate mechanical exit.

• It is not a 15-second delayed-egress device.

• The 250 model is not the same as the 260 retriggering alarm model.

• The alarm does not independently transmit notifications to a remote monitoring station.

• Fire-rating and egress suitability must be verified for the specific door opening.

• Follow the manufacturer's instructions and applicable fire, accessibility, and building codes.

Why Choose the Alarm Lock 250XUS28?

The Alarm Lock 250XUS28 Sirenlock Alarmed Panic Exit Lock combines dependable mechanical security with an audible warning to help discourage unauthorized use of emergency exits.

Featuring a paddle-style release, 95 dB dual-tone siren, 9V battery operation, 1-inch deadbolt, selectable alarm modes, and US28 aluminum finish, the Sirenlock 250 is a practical solution for commercial facilities seeking an alarmed exit lock for protected installations.
