Commercial Emergency Exit Alarm | Battery-Operated Panic Bar | Two-Minute Alarm Cutoff or Manual Reset | Surface Mount | Non-Handed

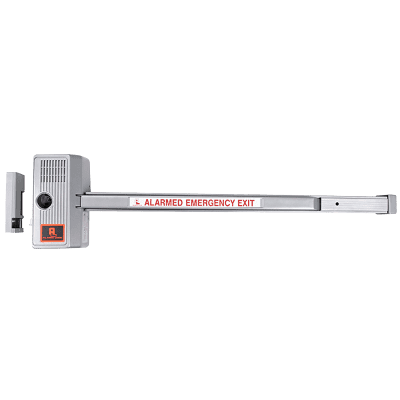

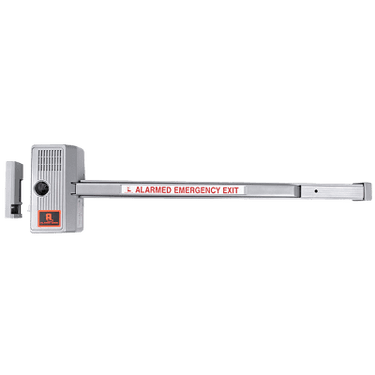

Help protect commercial emergency exits from unauthorized use with the Alarm Lock 700X28 Sirenlock Alarmed Panic Exit Device, a heavy-duty, surface-mounted panic-style exit lock that combines immediate mechanical egress with a high-volume audible alarm.

Manufactured by Alarm Lock, a division of NAPCO Security Technologies, the 700X28 features a 36-inch nominal push-bar configuration, a durable die-cast metal lock housing, and an extruded aluminum push bar finished in US28 Aluminum.

The device incorporates a mechanical deadbolt and deadlatch to secure the opening while permitting immediate exit when the push bar is depressed.

When the device is armed, pressing the push bar mechanically releases the deadbolt and activates the built-in 95 dB dual-tone piezo alarm, alerting nearby personnel to an unauthorized exit.

The alarm offers two selectable operating modes: a two-minute automatic alarm cutoff or a continuous alarm requiring key reset.

Powered by a standard 9V alkaline battery, the 700X28 operates without hardwired electrical power in its standard configuration. An audible low-battery warning helps maintenance personnel identify when battery replacement is required.

The non-handed design supports compatible right- or left-hand commercial doors and can be installed on single doors or properly configured pairs of doors using the appropriate keeper hardware.

Ideal for warehouses, retail stores, restaurants, industrial facilities, schools, commercial offices, and other protected building exits, the Alarm Lock 700X28 helps deter unauthorized exit without introducing a delayed-egress countdown.

Important: This is the standard 700 Series model. It is not the weather-resistant 700X28WP. A compatible rim cylinder is required for keyed arming and disarming and is sold separately.

Key Features

• 36" Nominal Push Bar: Full-length channel-style exit device for compatible commercial openings.

• 95 dB Dual-Tone Alarm: Audible warning activates when the armed device is operated.

• Immediate Mechanical Egress: Push-bar activation releases the deadbolt without an electronic delay.

• Two-Minute Alarm Cutoff: Selectable mode provides automatic silencing when the door condition permits.

• Continuous Alarm Mode: Maintains the alarm until the device is reset using a key.

• Mechanical Deadbolt & Deadlatch: Provides positive locking and relatching.

• 1" Deadbolt Throw: Heavy-duty locking bolt with reinforced steel inserts.

• 9V Battery Operation: No hardwired power required for standard alarm operation.

• Battery Included: Standard 9V alkaline battery supplied with the device.

• Low-Battery Warning: Audible alert indicates battery maintenance is needed.

• Non-Handed Construction: Suitable for compatible left- or right-hand installations.

• Surface-Mount Design: Designed for properly prepared commercial single or double doors.

• Extruded Aluminum Push Bar: Durable channel construction for commercial use.

• Die-Cast Metal Housing: Heavy-duty construction for institutional and commercial installations.

• US28 Aluminum Finish: Satin aluminum appearance suitable for commercial door hardware.

• Key-Operated Arming & Disarming: Uses a compatible standard rim cylinder.

• Optional Exterior Key Control: Can be configured with separately purchased exterior accessories.

• Optional External Power: Compatible power accessories are available, subject to equipment revision.

• Door Warning Sign: Manufacturer identifies warning signage as included.

• UL-Listed Product Family: Identified by Alarm Lock as UL-listed alarmed panic deadbolt equipment.

Technical Specifications

• Manufacturer: Alarm Lock

• Parent Company: NAPCO Security Technologies

• Model / SKU: 700X28

• Series: Sirenlock 700

• Product Type: Alarmed Panic Exit Device

• Activation: Full-Length Push Bar

• Nominal Push-Bar Configuration: 36"

• Manufacturer-Listed Device Width: Approximately 33"

• Device Height: 8-1/2"

• Device Depth: 3-1/4"

• Finish: US28 Aluminum

• Housing Material: Die-Cast Zinc and Aluminum

• Push-Bar Material: Extruded Aluminum

• Locking Mechanism: Mechanical Deadbolt and Deadlatch

• Deadbolt Throw: 1"

• Alarm Type: Dual-Tone Piezo Siren

• Current Manufacturer Alarm Rating: 95 dB

• Alarm Modes: Two-Minute Automatic Cutoff or Continuous Alarm

• Alarm Reset: Key Operated

• Standard Power: 9V DC Alkaline Battery

• Battery Included: Yes

• Low-Battery Warning: Audible

• Typical Battery Life: Approximately One Year, According to Manufacturer Product Literature

• Handing: Non-Handed

• Mounting: Surface Mount

• Door Configuration: Compatible Single Doors and Paired Doors

• Key Control: Standard Rim Cylinder

• Rim Cylinder Included: No

• Alarmed Delayed Egress: No

• Weatherproof Version: 700X28WP, Sold Separately

• Fire Rating: Not Specified as a Fire-Rated Exit Device

• Manufacturer-Referenced Shipping Weight: Approximately 12 lb

How the Alarm Lock 700X28 Works

1. Arming the Device

The Sirenlock 700 is armed using a compatible rim cylinder.

Turning the key extends the mechanical deadbolt, securing the exit against unauthorized entry.

The device is then ready to sound an alarm if the push bar is activated while armed.

2. Emergency Exit Activation

When someone presses the push bar, the mechanical deadbolt releases immediately.

If the device is armed, the built-in dual-tone siren sounds to alert personnel that the exit has been activated.

The mechanical release is immediate. The device does not impose a 15-second delayed-egress period.

3. Two-Minute Alarm Cutoff

When configured for automatic alarm shutdown, the siren operates for approximately two minutes after activation.

The device then checks whether the door has been closed.

If the door is closed, the siren can stop. If the door remains open, the alarm continues and the device checks again at the next interval.

4. Continuous Alarm Mode

The device can be configured to maintain the alarm until an authorized user performs the appropriate key-reset procedure.

This mode is useful where a continuous warning is preferred following unauthorized exit.

5. Key-Operated Disarming

Authorized personnel can retract the deadbolt using the compatible rim cylinder.

The device provides an audible disarming indication when the bolt is retracted with the key.

6. Low-Battery Detection

The 700X28 includes an audible low-battery signal to alert maintenance personnel when the battery needs replacement.

Battery operation should be tested during scheduled facility inspections.

Compatible Alarm Lock Accessories

CER-KD / CER-OKC Rim Cylinder

Compatible rim-cylinder options for authorized key operation.

Sold separately.

Alarm Lock 730 – Single-Door Keeper

Keeper for compatible single-door installations or paired openings with an appropriate mullion.

Alarm Lock 732 – Double-Door Keeper

Keeper designed for selected double-door configurations.

Alarm Lock 707 – Exterior Door Pull

Provides exterior door-pulling capability in properly configured installations.

Alarm Lock 711 – Exterior Finger Pull

Compact exterior finger pull for compatible outside key access.

Alarm Lock 767 – Mounting Back Plate

Accessory used on selected glass-door and aluminum-door applications requiring a mounting back plate.

Alarm Lock 44 – Double-Door Holder

Accessory for certain paired-door installations.

Alarm Lock PP100 – Optional External Power Supply

Provides an alternative power arrangement for compatible Sirenlock installations.

Accessories are sold separately unless specifically included in the selected product package. Verify compatibility and required keeper hardware before ordering.

Recommended Applications

• Warehouse Emergency Exits

• Retail Store Back Doors

• Commercial Office Buildings

• Manufacturing Facilities

• Distribution Centers

• Restaurant Rear Exits

• Theater Emergency Exits

• Schools and Universities

• Government Buildings

• Industrial Facilities

• Commercial Service Entrances

• Secured Employee Exits

• Unauthorized Exit Deterrence

• Commercial Door Security Retrofits

• Institutional Exit Security

Installation & Compatibility

The Alarm Lock 700X28 is designed for professional installation on compatible commercial doors.

Installation Considerations

• Verify the door and frame construction.

• Confirm that the nominal 36" device configuration is appropriate for the opening.

• Use the manufacturer's mounting template.

• Select the appropriate keeper for the door arrangement.

• Install a compatible rim cylinder for authorized key operation.

• Confirm correct deadbolt engagement.

• Install the included 9V battery after mechanical installation.

• Select the required alarm mode.

• Test push-bar operation and immediate mechanical release.

• Test alarm activation, automatic cutoff, and manual reset.

• Verify required emergency-egress and fire-safety functions.

Important Product Information

• This listing is for the standard Alarm Lock 700X28.

• It uses a push bar, not the paddle-style plate found on the 250 Series.

• A standard rim cylinder is required and is sold separately.

• The standard device is battery-powered.

• The device does not include remote monitoring or cellular notifications.

• It does not include a 15-second delayed-egress function.

• The 700 Series does not provide the automatic retriggering function of the 710 Series.

• The 700X28 is not the weather-resistant 700X28WP.

• Keeper selection depends on the installation.

• Installation on fire-rated or code-required egress openings must be approved for the specific application.

• The device should not be represented as a fire-rated exit device without documentation supporting that rating.

• Follow Alarm Lock instructions and applicable building, fire, and accessibility requirements.

Why Choose the Alarm Lock 700X28?

The Alarm Lock 700X28 Sirenlock Alarmed Panic Exit Device combines heavy-duty commercial mechanical security with immediate emergency-exit operation and a loud audible alarm.

Featuring a 36-inch nominal push bar, dual-tone siren, 9V battery power, mechanical deadbolt and deadlatch, two-minute alarm cutoff or key-reset options, and US28 aluminum finish, the 700X28 is a practical solution for facilities seeking to discourage unauthorized use of protected emergency exits.
