Commercial Emergency Exit Alarm | Automatic 2-Minute Alarm Reset | 95 dB Dual-Tone Siren | 9V Battery Operated | Non-Handed

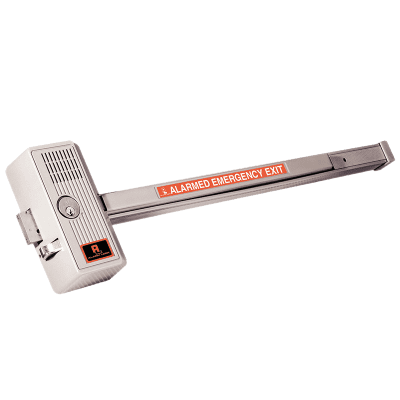

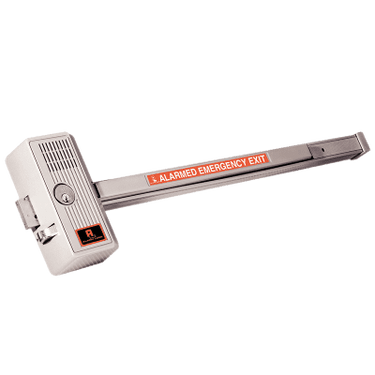

Help protect commercial emergency exits against unauthorized use with the Alarm Lock 710X28 Sirenlock Alarmed Panic Exit Device, a heavy-duty exit security system featuring a retriggering audible alarm and immediate mechanical exit operation.

Manufactured by Alarm Lock, a division of NAPCO Security Technologies, the 710X28 combines a full-length aluminum push bar, mechanical deadbolt and deadlatch, and a powerful 95 dB dual-tone siren to provide an audible warning when an armed exit is used.

Unlike the standard 700 Series alarm, the 710 Series features automatic alarm reactivation. When the two-minute automatic shutdown mode is selected and the door is subsequently closed, the siren can sound again if the door is reopened. This retriggering capability remains active until the deadbolt is relocked with a key.

The alarm can alternatively be configured for continuous operation requiring an authorized key reset.

The 710X28 features a nominal 36-inch push-bar configuration, with actual device dimensions of approximately 33" wide × 8-1/2" high × 3-1/4" deep.

Constructed with a die-cast metal housing, extruded aluminum push bar, and US28 Aluminum finish, the device is designed for non-handed, surface-mounted installation on compatible single doors or properly configured pairs of doors.

Powered by one 9V alkaline battery, the 710X28 operates without a standard hardwired electrical connection. A built-in low-battery warning provides an audible maintenance notification.

Ideal for warehouses, retail stores, restaurants, schools, industrial facilities, and commercial buildings, the Alarm Lock 710X28 provides an effective unauthorized-exit deterrent while allowing immediate mechanical egress.

Important: A compatible standard rim cylinder is required for keyed operation and is sold separately. This is the standard 710X28 model, not the weather-resistant 710X28WP.

Key Features

• Retriggering Exit Alarm: Automatically reactivates when the door is opened again following a completed two-minute alarm cycle and door closure.

• 36" Nominal Push Bar: Full-length exit-control design for compatible commercial doors.

• 95 dB Dual-Tone Siren: High-volume audible alarm helps discourage unauthorized exit.

• Selectable Alarm Modes: Two-minute automatic shutdown or continuous alarm with manual key reset.

• Immediate Mechanical Egress: Push-bar activation retracts the locking mechanism without an electronic exit delay.

• Mechanical Deadbolt & Deadlatch: Provides positive mechanical locking and relatching.

• 1" Deadbolt Throw: Heavy-duty die-cast bolt with reinforced steel inserts.

• 9V Battery Operation: Standard operation does not require a separate hardwired power connection.

• Battery Included: Supplied with a standard 9V alkaline battery.

• Low-Battery Warning: Audible beep indicates when battery replacement is needed.

• Non-Handed Construction: Suitable for compatible left- and right-hand doors.

• Surface-Mount Installation: Designed for commercial single-door and appropriately prepared paired-door openings.

• Extruded Aluminum Push Bar: Durable channel-style construction.

• Die-Cast Metal Housing: Built for demanding commercial applications.

• US28 Aluminum Finish: Professional architectural finish.

• Key-Operated Arming & Disarming: Requires a compatible rim cylinder.

• Optional Exterior Key Control: Available with suitable separately purchased hardware.

• Optional AC Power Accessories: Compatible external power equipment available separately.

• Door Warning Sign: Manufacturer identifies warning signage as part of the standard installation package.

• UL-Listed Product Family: Alarm Lock identifies the 710 Series as UL-listed panic alarm deadbolt equipment.

Technical Specifications

• Manufacturer: Alarm Lock

• Parent Company: NAPCO Security Technologies

• Model / SKU: 710X28

• Series: Sirenlock 710

• Product Type: Retriggering Alarmed Panic Exit Lock

• Activation Type: Full-Length Push Bar

• Nominal Push-Bar Size: 36"

• Actual Device Width: Approximately 33"

• Device Height: 8-1/2"

• Device Depth: 3-1/4"

• Finish: US28 Aluminum

• Housing Construction: Die-Cast Zinc and Aluminum

• Push-Bar Construction: Extruded Aluminum

• Locking Mechanism: Mechanical Deadbolt and Deadlatch

• Deadbolt Throw: 1"

• Deadbolt Reinforcement: Hardened Steel Insert

• Alarm Type: Dual-Tone Piezo Siren

• Current Advertised Sound Rating: 95 dB

• Alarm Mode 1: Two-Minute Automatic Shutdown with Retriggering

• Alarm Mode 2: Continuous Alarm with Key Reset

• Retriggering Function: Yes

• Battery Type: 9V Alkaline

• Battery Included: Yes

• Low-Battery Indicator: Audible Warning

• Handing: Non-Handed

• Installation: Surface Mount

• Door Application: Compatible Single or Double Doors

• Rim Cylinder: Required, Sold Separately

• Exterior Key Control: Optional

• Optional External Power: AC-9 or PP100, Subject to Compatibility

• Weather-Resistant Version: 710X28WP, Sold Separately

• Built-In Delayed Egress: No

• Approximate Device Weight: 11 lb, Per Manufacturer Literature

• Approximate Manufacturer Shipping Weight: 12 lb

• UPC: 785026011802

How the Alarm Lock 710X28 Works

1. Armed Condition

The device is armed by projecting the mechanical deadbolt using a compatible rim cylinder and key.

Once armed, the exit remains mechanically secured against unauthorized entry while permitting exit through the push bar.

2. Emergency Exit Activation

When the push bar is depressed, the mechanical deadbolt releases immediately.

If the device is armed, the integrated dual-tone siren sounds to alert nearby personnel.

The 710X28 does not delay mechanical egress.

3. Two-Minute Automatic Alarm Shutdown

When the automatic shutdown mode is selected, the siren sounds for approximately two minutes following activation.

The device then checks the door condition.

• If the door is closed, the audible alarm can stop.

• If the door remains open, the alarm continues and checks the door condition again at the next interval.

This provides controlled alarm operation without requiring personnel to manually silence every alarm event.

4. Automatic Retriggering

The distinguishing feature of the Alarm Lock 710 Series is its retriggering alarm circuit.

After the first alarm cycle has ended and the door is closed, the alarm remains capable of sounding again when the door is reopened.

This function continues until the deadbolt is relocked using the key.

Important: Automatic alarm retriggering does not mean the device automatically projects or relocks its mechanical deadbolt.

5. Continuous Alarm with Manual Reset

The device can alternatively be configured for continuous alarm operation.

In this mode, the alarm remains active until the authorized key-reset procedure is completed.

6. Authorized Disarming

When the deadbolt is retracted using the key, the device provides an audible indication that it is disarmed.

The door can then be operated without triggering an unauthorized-exit alarm while in the appropriate disarmed condition.

7. Low-Battery Warning

The 710X28 provides a periodic audible warning when the battery becomes weak.

Alarm Lock recommends replacing a weak battery promptly and checking device operation during routine maintenance.

Standard Package

A typical Alarm Lock 710X28 installation package includes:

• Alarm Lock 710X28 Alarmed Exit Device Assembly

• Aluminum Push-Bar Assembly

• Mechanical Deadbolt and Deadlatch Mechanism

• 9V Alkaline Battery

• Manufacturer-Specified Mounting Hardware

• Single-Door Keeper for Applicable Installations

• Door Warning Sign

• Installation and Operating Instructions

The compatible rim cylinder and keys are not included.

Confirm the actual package contents before fulfillment, particularly when supplying hardware for double-door installations.

Compatible Accessories

Alarm Lock CER-OKC Rim Cylinder

Compatible rim cylinder for authorized arming and disarming of the Sirenlock.

Available separately.

Alarm Lock 730 – Single-Door Keeper

Keeper for standard compatible single-door installations and selected paired-door openings with mullions.

Alarm Lock 732 – Double-Door Keeper

Designed for selected double-door configurations where a suitable keeper must be mounted to the inactive leaf.

Alarm Lock 707 – Exterior Door Pull

Allows authorized exterior access when used with compatible outside key-control hardware.

Alarm Lock 711 – Cylinder Finger Pull

Compact exterior finger pull for suitable outside-key applications.

Alarm Lock 767 – Finish Back Plate

Provides a finished appearance for selected narrow-stile aluminum and glass-door mounting arrangements.

Alarm Lock 44 – Double-Door Holder

Accessory for compatible paired-door installations.

Alarm Lock AC-9 / PP100 Power Accessories

Optional electrical power accessories for compatible Sirenlock applications requiring an alternative to standard battery-only operation.

All optional accessories are sold separately unless specifically included in the selected package.

Recommended Applications

• Warehouse Emergency Exits

• Retail Store Back Doors

• Commercial Office Buildings

• Manufacturing Facilities

• Distribution Centers

• Restaurant Rear Exits

• Theater Emergency Exits

• Schools and Universities

• Government Facilities

• Industrial Buildings

• Commercial Service Entrances

• Secured Employee Exits

• Unauthorized Exit Deterrence

• Commercial Door Security Retrofits

• Facilities Requiring Retriggering Exit Alarms

Installation & Compatibility

The Alarm Lock 710X28 is intended for professional commercial door hardware installation.

Installation Considerations

• Verify that the door and frame are suitable for the selected exit lock.

• Confirm the nominal 36" push-bar configuration fits the opening.

• Use Alarm Lock's approved installation template.

• Select the correct keeper arrangement for single or double doors.

• Install a compatible rim cylinder for keyed operation.

• Verify correct deadbolt and deadlatch engagement.

• Connect the 9V battery after the mechanical installation is complete.

• Select two-minute retriggering or continuous-alarm operation.

• Test immediate mechanical exit release.

• Verify alarm activation, door-status sensing, automatic shutdown, and retriggering.

• Confirm all required emergency-egress and fire-safety functions.

Important Product Information

• This listing is for the standard 710X28 retriggering Sirenlock.

• The 710X28 is not the same as the standard 700X28 cutoff-alarm model.

• It uses a full-length push bar rather than the 250/260 Series paddle-style plate.

• A compatible rim cylinder is required and sold separately.

• The alarm is powered by a 9V battery under standard operation.

• The device is not an electronic delayed-egress system.

• Retriggering affects alarm operation, not automatic mechanical relocking.

• The device does not include cellular notification or remote monitoring.

• The 710X28 is not the weather-resistant 710X28WP.

• Fire-rating and egress suitability must be confirmed for each opening.

• Do not substitute the device for separately required fire-exit hardware without appropriate manufacturer documentation and approvals.

• Install according to Alarm Lock instructions and applicable building, fire, and accessibility requirements.

Why Choose the Alarm Lock 710X28?

The Alarm Lock 710X28 Sirenlock Retriggering Panic Exit Alarm combines commercial-grade mechanical security with dependable, repeatable audible exit monitoring.

Featuring a 36-inch nominal push bar, 95 dB siren, automatic two-minute alarm shutdown with retriggering, continuous-alarm option, 9V battery operation, and US28 aluminum finish, the 710X28 is an effective option for commercial facilities that need repeated warning when an emergency exit is used without authorization.
