Commercial Delayed Egress Exit Lock | 33" Push Bar | 95 dB Alarm | Fire Alarm Interface | Remote Monitoring Output | AC Powered with 9V Battery Backup

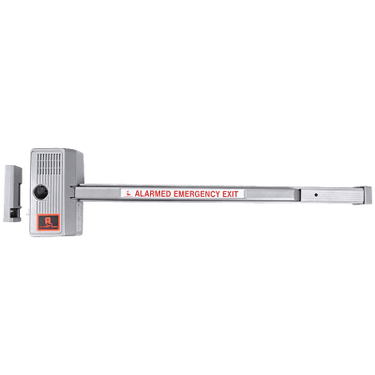

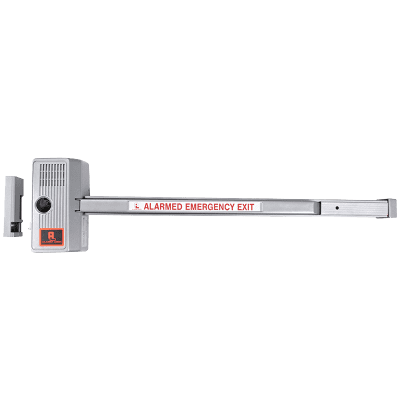

Help control unauthorized use of commercial emergency exits with the Alarm Lock 715X28X88 Sirenlock Delayed Egress Panic Exit Device.

Manufactured by Alarm Lock, a division of NAPCO Security Technologies, the 715X28X88 combines a mechanical deadbolt and deadlatch with a 15-second delayed-egress release system and an immediate 95 dB dual-piezo audible alarm.

When the device is armed and someone presses the push bar, the deadbolt retracts and the alarm sounds immediately. The electronic control system temporarily holds the deadlatch, preventing the door from opening until the prescribed 15-second release period expires.

For qualifying emergencies, the system provides an input for connection to an approved fire-alarm or supervised life-safety system, allowing immediate release without the normal delay.

The 715X28X88 includes the Option 88 remote interface and alarm-indicator relay, providing connections for compatible remote monitoring equipment, auxiliary alarms, and other security-system functions.

Featuring a 33-inch actual-length aluminum push bar, heavy-duty die-cast lock housing, and US28 Satin Aluminum finish, the device is designed for surface installation on compatible commercial single doors and properly configured paired-door openings.

The system is powered by an included 12V AC, 20VA transformer and uses a 9V alkaline battery for standby alarm operation.

The Alarm Lock 715X28X88 is designed for commercial facilities requiring professionally installed delayed-egress security, subject to approval by the applicable authority having jurisdiction.

Key Features

• 15-Second Delayed Egress: Temporarily delays door release when the armed push bar is activated.

• Immediate 95 dB Alarm: Dual-piezo siren sounds when an attempted exit activates the device.

• 33" Actual Push-Bar Length: Standard configuration marketed for nominal 36-inch applications.

• Emergency Release Interface: Supports immediate release through approved fire-alarm or supervised emergency equipment.

• Option 88 Monitoring Interface: Includes remote interface and alarm-indicator relay.

• Selectable Alarm Operation: Continuous alarm requiring key reset or automatic two-minute alarm shutdown.

• Heavy-Duty Mechanical Locking: Incorporates a deadbolt and electronically controlled deadlatch.

• 1" Deadbolt Throw: Reinforced mechanical locking bolt with steel inserts.

• 12V AC Power: Supplied 20VA transformer provides normal operating power.

• 9V Battery Backup: Maintains specified alarm standby functions during a loss of AC power.

• Audible Low-Battery Warning: Alerts maintenance personnel when battery replacement is required.

• Visual Armed Indicator: Control-box LED displays the armed condition.

• Non-Handed Design: Supports compatible left- or right-hand reverse-door installations.

• Surface-Mount Installation: Designed for commercial door security applications.

• US28 Aluminum Finish: Satin aluminum architectural appearance.

• Die-Cast Metal Housing: Durable commercial hardware construction.

• Extruded Aluminum Push Bar: Heavy-duty push-bar assembly.

• Smoke Detector Input: Provides additional integration options for compatible emergency-release equipment.

• Warning Signage Included: Supplied with manufacturer-specified delayed-egress warning labels.

• Rim Cylinder Operation: Requires a separately purchased compatible rim cylinder.

Technical Specifications

• Manufacturer: Alarm Lock

• Parent Company: NAPCO Security Technologies

• Model / SKU: 715X28X88

• Series: Sirenlock 715

• Product Type: Delayed Egress Panic Exit Device

• Function: 15-Second Delayed Egress with Immediate Alarm

• Remote Interface: Included – Option 88

• Alarm Indicator Relay: Included – Option 88

• Nominal Door/Device Configuration: 36"

• Actual Device Length: 33"

• Device Height: 8-1/2"

• Device Depth: 3-1/4"

• Minimum Manufacturer-Published Cut Length: 29-1/2", Subject to Approved Modification Instructions

• Finish: US28 / 628 Satin Aluminum

• Housing Construction: Die-Cast Metal

• Push-Bar Material: Extruded Aluminum

• Handing: Non-Handed

• Mounting Type: Surface Mount

• Deadbolt Throw: 1"

• Locking Mechanism: Deadbolt and Electrically Controlled Deadlatch

• Alarm Type: Dual-Piezo Siren

• Alarm Sound Level: 95 dB at 10 Feet

• Exit Release Delay: Nominal 15 Seconds

• Manufacturer-Published Latch Release Time: Approximately 13–15 Seconds

• Alarm Mode 1: Continuous Alarm Until Key Reset

• Alarm Mode 2: Automatic Two-Minute Alarm Shutdown

• Primary Power: 12V AC, 20VA Transformer

• Primary Transformer Included: Yes

• Backup Power: 9V Alkaline Battery for Alarm Standby

• 9V Battery Included: Yes

• Low-Battery Warning: Audible

• Control Box: Included

• Armed Status Indicator: LED on Control Box

• Fire Alarm Interface: Supported

• Local Smoke Detector Input: Supported

• Remote Monitoring: Via Included Option 88 Interface

• Cable: 10-Foot, 5-Conductor Cable Included

• Armored Door Cord: Model 271 Included

• Cylinder Type: Standard 1-1/8" Rim Cylinder

• Cylinder Included: No

• Operating Temperature: 20°F to 135°F (-7°C to 57°C)

• Manufacturer Historical Shipping Weight: Approximately 13.5 lb

How the Alarm Lock 715X28X88 Works

1. Armed Condition

An authorized user arms the exit device by projecting the mechanical deadbolt using the required rim cylinder.

When armed, the control-box LED indicates the secured operating condition.

2. Push-Bar Activation

When the push bar is depressed while the device is armed:

• The mechanical deadbolt retracts.

• The 95 dB dual-piezo alarm sounds immediately.

• The electrically controlled deadlatch temporarily holds the exit closed.

• The delayed-egress countdown begins.

3. Fifteen-Second Delayed Release

After the designated 15-second delay, the control system releases the deadlatch, permitting the door to open.

This delay is intended to provide an audible warning and an opportunity for security personnel to respond.

The delayed-release feature may be used only where approved by applicable life-safety and building regulations.

4. Emergency Fire Alarm Release

When properly connected to an approved, supervised fire-detection or sprinkler system, the Model 715 supports immediate release during a qualifying emergency.

The required emergency-release interface bypasses the normal delayed-egress period.

The fire-alarm connection is a required part of a compliant installation under the manufacturer's NFPA 101 instructions.

5. Remote Monitoring – Option 88

The included Option 88 configuration provides a remote interface and alarm-indicator relay.

This enables integration with compatible equipment such as:

• Remote security monitoring systems

• Auxiliary audible alarms

• CCTV event interfaces

• Other appropriately designed security-control equipment

Additional equipment and wiring are sold separately.

6. Alarm Reset

The 715 Series provides two selectable alarm operating configurations.

Continuous alarm: The alarm remains active until an authorized user performs the required key-reset procedure.

Two-minute shutdown: The audible alarm automatically stops after approximately two minutes, according to the selected configuration.

7. Battery Backup

The included 9V alkaline battery provides alarm standby capability if primary AC power is interrupted.

The battery must remain installed for proper operation, even when the transformer is supplying normal power.

8. Low-Battery Indication

The device produces an audible warning when battery voltage becomes low.

Periodic maintenance and testing are recommended to maintain reliable performance.

Package Includes

The manufacturer identifies the following components in the Model 715 package:

• 1 Alarm Lock 715 Lock Assembly

• 1 Push-Bar and Channel Assembly

• 1 Single-Door Keeper Assembly – Model 725

• 1 Control Box Assembly

• 1 Power Transformer – 12V AC, 20VA

• 1 Armored Door Cord – Model 271

• 1 Five-Conductor Cable – 10 Feet

• 1 Hardware Package

• 1 End Cap and Retaining Bracket

• 1 Door Warning Label

• 1 Push-Bar Warning Label

• 1 9V Alkaline Backup Battery

• Manufacturer Installation Instructions and Mounting Template

The 715X28X88 configuration also includes the Option 88 remote monitoring interface and alarm-indicator relay.

Rim cylinder and keys are not included.

Compatible Accessories

Alarm Lock CER-KD Rim Cylinder

Recommended standard rim cylinder for arming and disarming the device.

A compatible 1-1/8" rim cylinder is required.

Alarm Lock 735 Double-Door Keeper

Used for selected paired-door installations where the standard single-door keeper is unsuitable.

Alarm Lock 44 Double-Door Holder

Accessory for properly configured double-door applications.

Alarm Lock SWK715 Surface Wiring Kit

Provides a wiring solution for installations where wiring cannot be concealed within the door construction.

Alarm Lock 277-12 Transformer

Optional transformer for specified 277V AC supply applications.

Compatible Fire Alarm Interface Equipment

Approved fire-detection, sprinkler, and life-safety equipment may be required for emergency-release integration.

Accessories are sold separately unless specifically listed as included.

Recommended Applications

• Commercial Warehouse Emergency Exits

• Retail Store Emergency Exit Doors

• Industrial Facilities

• Manufacturing Plants

• Distribution Centers

• Commercial Office Buildings

• Secured Employee Entrances

• Institutional Facilities

• Government Buildings

• Schools and Educational Buildings

• Hospitals and Healthcare Facilities

• Controlled Emergency Exit Applications

• Commercial Security Retrofits

• Facilities Requiring Approved Delayed-Egress Hardware

Installation & Life-Safety Requirements

The Alarm Lock 715X28X88 must be professionally installed and approved for the particular opening.

Delayed-egress hardware is subject to stricter requirements than conventional alarmed panic hardware.

Important considerations include:

• Confirm delayed-egress hardware is permitted at the intended opening.

• Obtain approval from the applicable authority having jurisdiction.

• Provide the required connection to an approved, supervised fire-detection or sprinkler system.

• Install all manufacturer-specified delayed-egress signage.

• Verify the proper door closer, keeper, and mechanical operation.

• Install the compatible rim cylinder.

• Connect the supplied transformer to an appropriate continuous power source.

• Install and connect the 9V backup battery.

• Wire and test the fire-alarm emergency-release interface.

• Configure and test the Option 88 remote monitoring interface where used.

• Confirm correct delayed release and immediate emergency-release operation.

• Verify the installation complies with applicable building, fire, electrical, accessibility, and emergency-egress codes.

Important: This product must not be installed on an opening where delayed egress is prohibited. Its suitability for fire-rated doors and specific occupancy classifications must be verified before purchase and installation.

Why Choose the Alarm Lock 715X28X88?

The Alarm Lock 715X28X88 Sirenlock Delayed Egress Panic Exit Device provides advanced exit control for commercial facilities that require more than a conventional audible exit alarm.

Featuring a 15-second delayed release, immediate 95 dB warning siren, 33-inch push bar, emergency-release integration, Option 88 remote monitoring output, and AC power with battery alarm backup, the 715X28X88 provides a purpose-built solution for approved commercial delayed-egress installations.
