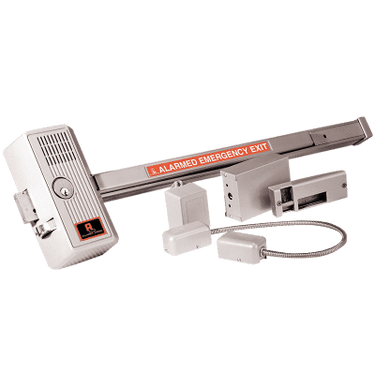

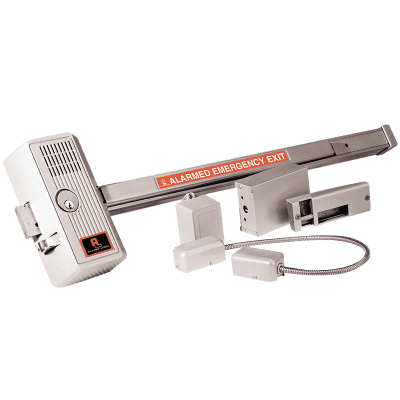

The Alarm Lock 715X28X88X48 Sirenlock Delayed Egress Exit Alarm is a commercial-grade electronic exit security device designed to discourage unauthorized exits while maintaining emergency egress capabilities. Featuring a 48-inch nominal push bar, 15-second delayed release, 95 dB dual piezo alarm, and remote monitoring output, this heavy-duty device provides exit control for commercial, institutional, retail, and healthcare facilities.

Part of the Alarm Lock 715 Series, this surface-mounted exit device combines a mechanical deadbolt, electronically controlled deadlatch, audible alarm, and electronic control system into one integrated solution.

When armed, depressing the push bar immediately activates the audible alarm and initiates the 15-second release sequence. The door remains secured during the delay, allowing security personnel to respond before the door can be opened. Following the delay, the locking mechanism releases to permit exit.

The device also supports integration with approved fire alarm and smoke detection systems to bypass the delay during emergencies.

Finished in US28 / 628 Satin Aluminum, the 715X28X88X48 provides reliable functionality and a professional appearance for commercial openings.

Key Features and Benefits

15-Second Delayed Egress Security

• Delays door release for approximately 15 seconds after activation.

• Immediately activates the audible alarm when the push bar is depressed.

• Helps discourage unauthorized use of emergency exits.

• Provides additional response time for facility security personnel.

95 dB Dual Piezo Audible Alarm

• High-output electronic siren provides an immediate audible warning.

• Selectable continuous alarm or automatic two-minute alarm shutdown.

• Audible low-battery warning helps identify maintenance requirements.

• Key-operated resetting and arming system.

Remote Security Monitoring

• Equipped with monitoring interface capabilities.

• Supports connection to compatible remote alarm systems.

• Can provide alarm signaling to CCTV systems.

• Supports integration with remote security monitoring stations and secondary alarm equipment.

Emergency Release and Life Safety

• Supports connections to supervised fire detection systems.

• Accepts compatible smoke detector inputs.

• Provides immediate egress when activated by properly connected emergency release equipment.

• Designed for delayed-egress applications subject to applicable NFPA 101 and local building code requirements.

Heavy-Duty Commercial Construction

• Durable die-cast metal lock housing.

• Extruded aluminum push bar and channel.

• Heavy-duty 1-inch throw deadbolt with reinforced steel inserts.

• Mechanical deadlatch works with the electronic delay mechanism.

• Surface-mounted construction for commercial door applications.

Non-Handed Installation

• Compatible with left-hand and right-hand outswinging door configurations.

• Suitable for compatible single-door applications.

• Double-door applications are possible with appropriate additional hardware.

• Can be used on certain narrow-stile glass storefront door configurations when properly equipped.

Technical Specifications

How the Delayed Egress System Operates

1. Armed Mode

The device is armed using a compatible rim cylinder. When armed, the deadbolt engages and the electronic delay system becomes active. An LED on the control box indicates that the device is armed.

2. Push Bar Activation

When a person depresses the push bar, the 95 dB audible alarm sounds immediately. The deadbolt retracts, but the electronically controlled deadlatch prevents the door from opening during the programmed delay period.

3. Delayed Door Release

After approximately 15 seconds, the electronic mechanism releases the deadlatch, allowing the door to open.

4. Emergency Release

When properly connected emergency release equipment is activated, the device bypasses the delay to permit immediate egress.

5. Alarm Reset

Authorized personnel can disarm and reset the system using the required rim cylinder and key.

Power Supply and Battery Backup

The Alarm Lock 715X28X88X48 operates using an included 12VAC, 20VA transformer connected to a suitable continuous electrical power source.

The included 9V alkaline battery supports the alarm circuit during interruptions in AC power.

Typical battery performance published for the 715 Series includes:

• Approximately one year of standby battery life.

• Approximately 200 alarm activations.

• Approximately seven hours of continuous alarm operation.

Actual performance depends on operating conditions and battery condition.

The device incorporates electrically fail-safe emergency-egress functionality. The backup battery should not be treated as an uninterrupted power source for the normal electronic locking function.

Included Components

The Alarm Lock 715X28X88X48 package includes:

1. Alarm Lock 715 electronic lock assembly

2. 48-inch nominal aluminum push bar and channel assembly

3. Model 725X28 single-door keeper assembly

4. Electronic control box – Model S5912

5. Model 271 flexible armored door cord

6. 10-foot, 5-conductor connection cable

7. 12VAC, 20VA power transformer

8. 9V alkaline backup battery

9. Mounting hardware package

10. Push bar end cap and retaining bracket

11. Emergency exit warning labels

12. Installation documentation and mounting template

Additional Hardware Requirements

Rim Cylinder – Sold Separately

A compatible 1-1/8-inch rim cylinder is required to arm, disarm, and reset the device.

Alarm Lock recommends the CER-KD rim cylinder or an equivalent compatible model.

An additional rim cylinder may be required when exterior keyed control is desired.

Other optional installation accessories include:

• Model 735X28 double-door keeper

• SWK715 surface wiring kit

• Compatible smoke detectors or building fire alarm connections

• Additional wiring for remote monitoring applications

Recommended Applications

The Alarm Lock 715X28X88X48 is suitable for properly approved delayed-egress installations in:

• Hospitals and healthcare facilities

• Assisted living and memory care facilities

• Retail stores and shopping centers

• Warehouses and distribution centers

• Schools and educational buildings

• Commercial offices

• Government and institutional facilities

• Secured emergency exit doors

Installation and Code Compliance

The 715 Series is designed for commercial delayed-egress applications where controlled exit functionality is permitted.

Installation requires proper mounting, electrical connections, emergency release integration, and system testing.

Important: Delayed-egress devices are regulated by applicable building and fire codes. The device must be installed in accordance with manufacturer instructions and approved by the local Authority Having Jurisdiction (AHJ). Applicable requirements may include supervised fire alarm connections, emergency release operation, required signage, and restrictions on permitted occupancy types.

Installation by a qualified commercial door hardware or access control professional is recommended.

Why Choose the Alarm Lock 715X28X88X48?

The Alarm Lock 715X28X88X48 combines mechanical locking strength, electronic exit delay, audible alarm protection, and remote monitoring capability in a durable commercial door security solution.

Its 48-inch nominal push bar, non-handed construction, and aluminum finish make it an excellent option for commercial facilities that need to monitor emergency exits and discourage unauthorized door use while maintaining required emergency egress functionality.
