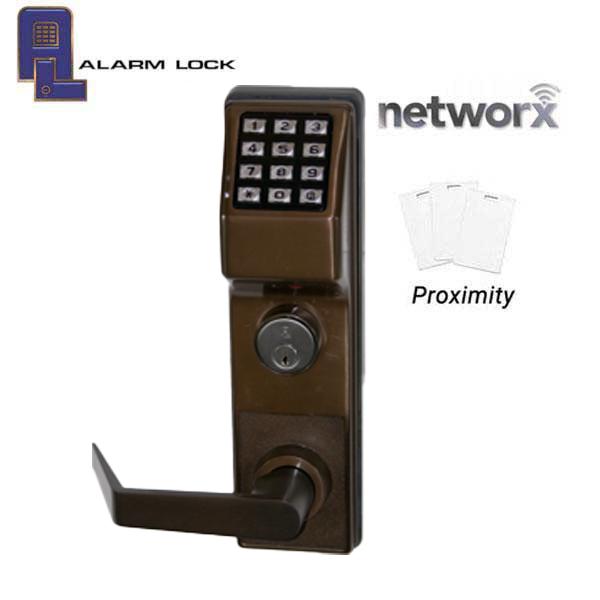

The Alarm Lock ETPDLS1G/10BM99 Trilogy Electronic Exit Device Trim is a heavy-duty, Grade 1 commercial access control solution designed to provide secure, keyless exterior entry for doors equipped with compatible Marks USA M9900 Series rim panic exit devices.

Featuring a rugged 12-button digital keypad, integrated HID proximity card reader, straight lever handle, mechanical key override, and programmable access control functions, this electronic exit trim combines advanced security with convenient door operation.

Part of the Alarm Lock Trilogy ETPDL Series, the ETPDLS1G/10BM99 supports up to 2,000 users, 40,000 time-and-date-stamped audit trail events, and 500 programmable lock/unlock schedules.

The integrated proximity reader accepts compatible HID proximity cards and key fobs, allowing authorized personnel to gain access using a PIN code, proximity credential, or a combination of both for enhanced security.

Designed specifically for the Marks M9900 rim exit device, this model provides electronically controlled exterior entry while retaining the normal mechanical emergency egress operation of the compatible interior panic device.

The US10B / 613 Oil Rubbed Bronze finish provides a professional dark bronze appearance suitable for commercial offices, schools, healthcare facilities, warehouses, retail establishments, and institutional buildings.

Battery-powered operation using five AA alkaline batteries eliminates the need for external electrical power or door-frame wiring for basic standalone operation.

Important: This product includes the electronic exterior exit trim assembly. The Marks M9900 panic exit device is sold separately.

Key Features and Benefits

Integrated Digital Keypad Access

• Heavy-duty 12-button metal keypad.

• Supports up to 2,000 programmable users.

• Provides keyless entry using authorized PIN codes.

• Supports multiple user authorization levels.

• Programmable access privileges for different personnel.

• Weather-resistant keypad construction.

• Suitable for high-traffic commercial applications.

HID Proximity Card Reader

• Built-in proximity reader for compatible HID credentials.

• Accepts most supported HID proximity cards and key fobs.

• Supports card-only operation.

• Supports PIN-code-only operation.

• Supports combination card-and-PIN authentication.

• Individual users can be assigned different authentication requirements.

• Proximity credentials can be managed through compatible Alarm Lock programming tools.

Advanced User Management

The Trilogy ETPDL Series provides four primary user authorization levels:

Master Users

• Primary system administration.

• Control programming and access configuration.

Manager Users

• Manage authorized users and designated access functions.

• Useful for building managers and security supervisors.

Supervisor Users

• Provide additional control for authorized operational personnel.

• Suitable for department supervisors and facility managers.

Standard Users

• Access using individually programmed credentials.

• May be assigned PIN codes, proximity cards, or both.

40,000-Event Audit Trail

• Stores up to 40,000 access and programming events.

• Records events with time and date information.

• Integrated real-time clock.

• Helps administrators review access activity.

• Audit records can be managed using compatible Alarm Lock software and transfer equipment.

• Useful for facilities requiring documented entrance activity.

500 Programmable Access Schedules

• Supports up to 500 scheduled lock/unlock events.

• Programmable time zones.

• Allows scheduled access during business hours.

• Can automatically restore secured operation after scheduled access periods.

• Helps reduce manual door unlocking and locking procedures.

• Suitable for buildings with predictable operating schedules.

Mechanical Key Override

• Mechanical key override for authorized access.

• Generic rim cylinder and adapter configuration.

• Supports compatible standard rim and interchangeable-core cylinder arrangements.

• Provides an alternative access method when the electronic system is unavailable.

• Keyed override operates independently of electronic credential verification.

Heavy-Duty Clutch Lever

• Straight commercial lever design.

• Clutch mechanism helps protect the lock from excessive force.

• Provides durable operation for high-traffic entrances.

• Non-handed and fully field reversible.

• Suitable for left-hand and right-hand door applications.

• Designed for compatible commercial rim exit devices.

Battery-Powered Operation

• Operates on five AA alkaline batteries.

• Batteries mounted on the interior side of the door.

• No external power supply required for standalone operation.

• No continuous hardwired connection to the frame required.

• Battery-powered construction is suitable for retrofit installations.

• Mechanical key override provides alternative exterior entry if electronic power is unavailable.

Weather-Resistant Construction

• Weather-resistant metal keypad.

• High-strength, impact-resistant proximity reader housing.

• Designed for compatible interior and exterior commercial door applications.

• Manufacturer-published operating temperature range of approximately -31°F to +151°F.

• Durable commercial construction for frequently used entrances.

Technical Specifications

Model Number Breakdown

How the Alarm Lock ETPDLS1G/10BM99 Works

1. Secured Exterior Operation

The compatible Marks M9900 rim panic device remains mechanically latched while the electronic exterior trim restricts unauthorized lever operation.

2. PIN Code Entry

An authorized user enters a programmed PIN code on the 12-button keypad.

The electronic control verifies the credential and enables permitted exterior lever operation.

3. Proximity Card Access

A programmed HID proximity card or key fob is presented to the integrated reader.

When the credential is accepted, the lock permits authorized entry.

4. Dual Authentication

For enhanced security, individual users can be programmed to require both a proximity credential and a valid PIN code.

5. Door Entry

Following successful authorization, the exterior lever operates the compatible exit device mechanism, allowing the door to open.

6. Automatic Securing

After the programmed access interval, the exterior trim returns to its secured condition unless another operating mode or schedule is active.

7. Interior Emergency Egress

The interior Marks M9900 panic device continues to operate mechanically, independently of the exterior electronic access control function.

Programmable Access Control Features

The Alarm Lock Trilogy ETPDL system supports:

• Individual user codes.

• Proximity card enrollment.

• Card and PIN authentication.

• User authorization levels.

• Scheduled access periods.

• Time-zone programming.

• Automatic lock/unlock schedules.

• Audit trail recording.

• Time-and-date event tracking.

• Keypad programming.

• PC-based programming with compatible DL-WINDOWS software and transfer equipment.

The ETPDL is a standalone electronic exit trim, not a standard Wi-Fi or cloud-managed wireless lock. Remote network management requires a different compatible Alarm Lock platform.

Compatible Exit Device

Marks USA M9900 Series Rim Panic Exit Device

The ETPDLS1G/10BM99 is manufactured with the specific mounting and operating configuration required for compatible Marks M9900 rim exit hardware.

Important Compatibility Information

• Designed for the Marks M9900 exit device configuration.

• Does not include the panic device.

• Not automatically interchangeable with Von Duprin, Yale, Corbin Russwin, Sargent, or other manufacturers' trim preparations.

• Other Alarm Lock ETPDL models are available for those applications.

• Confirm the exact exit device model, door preparation, and thickness before purchasing.

Typical Commercial Applications

Commercial Office Buildings

• Employee entrances

• Secured building entrances

• Department access doors

• Restricted office areas

Schools and Universities

• Faculty entrances

• Administrative buildings

• Maintenance access doors

• Secured educational facilities

Hospitals and Healthcare Facilities

• Staff-only entrances

• Service corridors

• Administrative departments

• Restricted access areas

Warehouses and Distribution Centers

• Employee entrances

• Shipping and receiving areas

• Restricted storage rooms

• Warehouse access control doors

Retail Stores and Shopping Centers

• Rear employee entrances

• Stockroom doors

• Service corridor openings

• Controlled building entrances

Government and Institutional Facilities

• Controlled facility entrances

• Restricted building access

• Administrative access points

• Security-monitored commercial openings

Included Components

The manufacturer's standard ETPDL configuration provides:

• Electronic exterior trim assembly with straight lever

• Integrated digital keypad

• HID proximity reader

• Interior battery housing and connection components

• Five AA alkaline batteries

• Generic rim cylinder / adapter configuration

• Device-specific mounting and operating components for the designated exit device preparation

• Installation and programming documentation

Important: Confirm the exact factory kit contents and cylinder keying configuration before shipment.

The following are not included as part of the complete panic device installation:

• Marks M9900 panic exit device

• Door and frame

• Proximity credentials for additional users

• Optional PC programming and transfer equipment

Installation Information

The Alarm Lock ETPDLS1G/10BM99 is designed for compatible Marks M9900 exit device installations.

1. Verify Device Compatibility

Confirm that the existing or proposed panic hardware is a compatible Marks M9900 rim exit device.

2. Confirm Door Thickness

The standard configuration accommodates approximately 1-5/8" through 1-7/8" door thickness. Thicker doors may require manufacturer-specified extension components.

3. Prepare the Door

Use the Alarm Lock installation template for the specific M9900 configuration. Confirm all mounting and spindle preparations before drilling.

4. Install Exterior Trim

Mount the keypad, proximity reader, and lever assembly on the exterior face of the door.

5. Connect Interior Components

Install and connect the interior battery assembly according to the manufacturer instructions.

6. Install Batteries

Install the five AA alkaline batteries and confirm that the electronic trim powers on properly.

7. Program Access Credentials

Configure the Master Code, authorized users, PIN codes, and compatible proximity credentials.

8. Configure Operating Schedules

Set access time zones, audit trail settings, and scheduled lock/unlock functions as required.

9. Test Exterior Operation

Verify keypad access, proximity card operation, combination authentication, and key override.

10. Verify Emergency Egress

Confirm that the interior panic device operates freely and properly without dependence on electronic authorization.

Important Installation Notes

• Designed specifically for compatible Marks M9900 rim exit devices.

• Panic exit device sold separately.

• Exterior electronic access control must not interfere with required emergency egress.

• Confirm the correct door thickness and handing arrangement.

• Verify credential compatibility before enrolling existing HID cards.

• Use manufacturer-approved mounting hardware and installation templates.

• Fire-rated openings must maintain approved hardware configurations.

• Installation by a qualified commercial door hardware or access control professional is recommended.

Why Choose the Alarm Lock ETPDLS1G/10BM99?

The Alarm Lock ETPDLS1G/10BM99 Trilogy Proximity and Keypad Exit Device Trim provides a powerful access control upgrade for compatible Marks M9900 commercial rim exit devices.

With 2,000-user capacity, 40,000-event audit history, 500 programmable schedules, HID proximity compatibility, PIN code access, and mechanical key override, this electronic trim offers advanced entry management without requiring a complete hardwired access control installation.

Its durable straight lever design, US10B oil-rubbed bronze finish, weather-resistant construction, and battery-powered operation make it an excellent solution for commercial properties requiring dependable exterior access control while preserving normal interior emergency egress.
