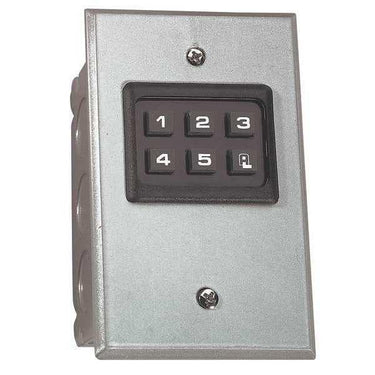

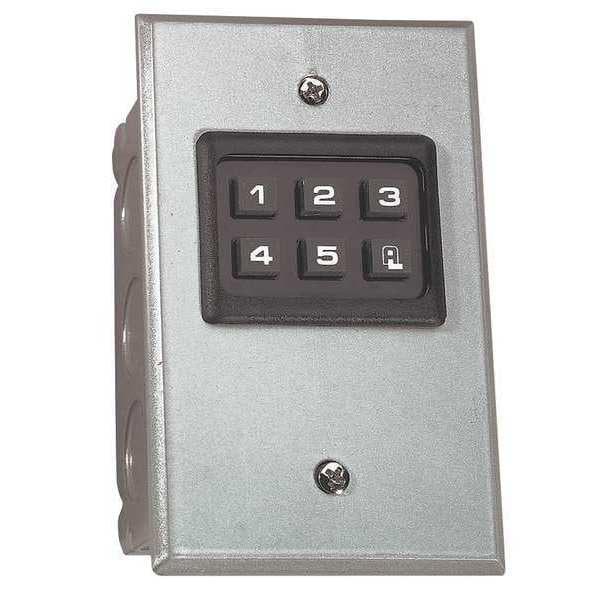

The Alarm Lock PG30KPD Pilfergard External Digital Keypad is a commercial-grade remote control accessory designed exclusively for use with the Alarm Lock PG30 Series Door Alarm. This low-profile keypad provides convenient operation of the PG30 alarm system from the opposite side of the protected door, allowing authorized personnel to arm, disarm, and control alarm functions using programmed security codes.

Featuring a brushed aluminum wall plate, compact digital keypad, hardwired ribbon cable connection, and single-gang mounting design, the PG30KPD provides a practical solution for commercial facilities requiring controlled alarm operation from both sides of an opening.

When connected to a compatible PG30 Pilfergard alarm, the external keypad supports the system's existing programmed access codes and security levels. Authorized personnel can operate the PG30 without accessing the main alarm housing.

The PG30KPD is particularly useful for commercial buildings, hospitals, schools, warehouses, and service entrances where personnel need to enter a monitored area without triggering an unauthorized door alarm.

Designed for indoor installations, the metallic silver / brushed aluminum finish complements commercial aluminum doors, frames, and other architectural hardware.

Key Features and Benefits

Remote Keypad Control

• Provides remote operation of compatible Alarm Lock PG30 door alarms.

• Allows authorized users to operate the alarm from the opposite side of the door.

• Supports arming and disarming through programmed security codes.

• Works with the PG30's existing control and programming functions.

• Eliminates the need to access the main alarm housing for routine operation.

• Ideal for facilities requiring alarm control from both sides of an opening.

Multiple Security Code Functions

The PG30 alarm system supports three programmable code categories that can be operated through the external keypad.

Master Code

• Provides primary administrative control.

• Allows authorized system programming and configuration.

• Supports arming and disarming functions.

Management Code

• Provides designated personnel with authorized alarm operation.

• Useful for supervisors, maintenance staff, and security personnel.

Passage Code

• Supports the PG30's passage-mode operation.

• Useful for approved deliveries and scheduled access periods.

• Operation depends on the programming of the connected PG30 alarm.

Three Security Levels

When connected to a PG30 alarm, the keypad can support the system's three available security levels:

• High Security: For areas requiring strict alarm control.

• Unattended Applications: For monitored locations such as stairwells and emergency exits.

• Flexible Access Control: For service entrances and delivery doors requiring authorized access.

These security functions are provided by the connected PG30 alarm system.

Low-Profile Commercial Design

• Compact keypad assembly with a professional appearance.

• Brushed aluminum wall plate.

• Black push-button keypad.

• Designed for standard single-gang electrical box installation.

• Suitable for commercial and institutional interiors.

• Tamper-resistant mounting screws help secure the wall plate.

Wired Communication

• Connects directly to the PG30 alarm control electronics.

• Includes ribbon cable extension.

• Uses a two-keypad adapter module.

• Allows the existing PG30 keypad and external keypad to operate together.

• No wireless communication or network connection required.

Convenient Retrofit Accessory

• Designed to expand the capabilities of an existing PG30 installation.

• Provides additional keypad access without replacing the original alarm.

• Compatible with properly configured PG30 installations.

• Supports applications requiring remote alarm control across a partition or doorway.

Product Specifications

How the Alarm Lock PG30KPD Works

1. Connection to PG30 Alarm

The PG30KPD is connected to the existing PG30 alarm electronics using the supplied ribbon cable extension and two-keypad adapter module.

2. Authorized Code Entry

A user enters an authorized security code on the keypad located on the opposite side of the protected door.

3. Alarm Control

The connected PG30 processes the code and performs the applicable function, including arming, disarming, or another authorized operation.

4. Door Monitoring

The original PG30 alarm continues monitoring the protected opening through its magnetic door contact system.

5. Unauthorized Door Opening

If the door is opened while the PG30 is armed without proper authorization, the main PG30 alarm activates according to its programmed settings.

6. System Re-Arming

Authorized personnel can restore alarm monitoring using the external keypad and the appropriate code.

Typical Commercial Applications

Hospitals and Healthcare Facilities

• Monitored stairwell entrances

• Staff service corridors

• Restricted access areas

• Emergency exit monitoring systems

Schools and Universities

• Secondary entrances

• Facility maintenance doors

• Gymnasium service entrances

• Monitored exit locations

Warehouses and Distribution Centers

• Shipping and receiving entrances

• Inventory storage areas

• Employee access doors

• Secured service corridors

Retail Stores and Shopping Centers

• Stockroom entrances

• Rear delivery doors

• Employee-only entrances

• Service hallways

Restaurants and Entertainment Facilities

• Rear service entrances

• Theater access corridors

• Delivery receiving areas

• Employee service doors

Commercial Office Buildings

• Facility maintenance entrances

• Controlled stairwell doors

• Security-monitored access points

Included Components

The Alarm Lock PG30KPD accessory assembly includes:

1. PG30KPD external digital keypad with wall plate

2. Single-gang junction box

3. Ribbon cable extension

4. Two-keypad adapter module

5. Tamper-resistant mounting screws

6. Manufacturer installation instructions

Important: The Alarm Lock PG30 main door alarm is not included and must be purchased separately.

Installation Requirements

The PG30KPD is designed for installation on the opposite side of a door or partition from the main PG30 alarm.

For installations using the PG30KPD, the manufacturer specifies that the main PG30 alarm must be mounted on the door frame, with the magnetic actuator installed on the door.

Installation involves:

• Mounting the supplied single-gang junction box.

• Routing the ribbon cable extension through the wall or frame.

• Connecting the two-keypad adapter module to the PG30 circuit board.

• Connecting the original PG30 keypad and remote PG30KPD keypad.

• Securing the external keypad wall plate.

• Testing operation of both keypads.

The PG30KPD is not intended for outdoor exposure. Although commonly called an exterior keypad, this designation refers to its location on the opposite side of the protected opening.

Important Product Information

• This product is an accessory for the PG30 door alarm.

• It does not include a standalone alarm or siren.

• It does not independently lock or unlock a door.

• A compatible PG30 door alarm is required.

• The keypad must be connected using the appropriate adapter and cable.

• This device is designed for indoor use only.

Why Choose the Alarm Lock PG30KPD?

The Alarm Lock PG30KPD Pilfergard Remote Keypad provides an efficient way to expand the operation of an existing PG30 door alarm without installing a second complete alarm system.

Its compact brushed aluminum design, programmed code control, and wired communication make it an excellent choice for commercial properties requiring convenient alarm management from both sides of a monitored opening.
