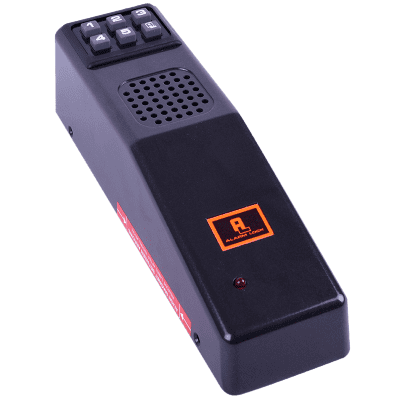

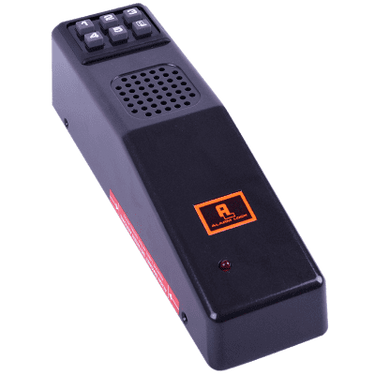

The Alarm Lock PG30MB Pilfergard Keypad-Controlled Door Alarm is a heavy-duty, battery-operated commercial security device designed to monitor emergency exits, service entrances, and restricted-access doors while providing powerful audible notification of unauthorized openings.

Featuring a 95 dB-class electronic siren, built-in digital keypad, three programmable security levels, magnetic door monitoring, and remote alarm relay output, the PG30MB provides flexible door security for commercial, industrial, and institutional facilities.

Part of the Alarm Lock PG30 Series, this microprocessor-controlled alarm combines advanced programming capabilities with simple surface-mounted installation. The device is designed for standard commercial openings and narrow-stile aluminum storefront doors.

When the system is armed, opening the protected door activates the alarm according to the programmed security level and delay settings. The integrated keypad allows authorized personnel to arm, disarm, reset, and manage the alarm without requiring a separate mechanical cylinder.

For installations requiring keypad operation from the opposite side of the opening, the optional Alarm Lock PG30KPD Remote Keypad provides additional control.

Finished in Metallic Bronze, the PG30MB complements dark bronze aluminum storefronts, commercial doors, and architectural hardware.

Key Features and Benefits

Built-In Digital Keypad Control

• Integrated keypad for convenient security management.

• Allows authorized users to arm and disarm the alarm.

• Supports programmable Master, Management, and Passage codes.

• Eliminates the need for a separate operating cylinder.

• Enables authorized passage without unnecessarily activating the alarm.

• Three- to five-digit programmable access codes.

• Designed for commercial locations requiring controlled alarm access.

Three Programmable Security Levels

The PG30MB offers three security levels to accommodate different building requirements.

Level 1 – High Security

• Provides the highest level of alarm supervision.

• Unauthorized door opening activates a latching alarm after any selected delay.

• Requires an authorized Master or Management code to reset.

• Ideal for secured emergency exits and restricted areas.

Level 2 – Unattended Door Monitoring

• Allows authorized passage using a programmed Passage Code.

• Provides a limited time for the door to be opened and closed.

• Sounds an alarm if the door remains open beyond the permitted period.

• Ideal for monitored stairwells and secondary building entrances.

Level 3 – Flexible Passage Control

• Allows authorized users to temporarily bypass alarm activation.

• Automatically returns to armed operation when the door closes.

• Useful for receiving entrances, delivery areas, and service doors.

Powerful Audible Exit Alarm

• Commercial-grade dual piezo electronic siren.

• 95 dB alarm class as advertised by Alarm Lock.

• Manufacturer installation manual specifies 110 dB at 10 feet.

• Three selectable siren patterns:

  • Sweeping siren

  • Steady siren

  • Pulsing siren

• Selectable continuous or two-minute alarm shutdown.

• Audible alarm helps notify personnel of unauthorized door activity.

Magnetic Door Monitoring

• Magnetic actuator detects when the protected door opens.

• Monitors the door while the alarm system is armed.

• Compatible with standard commercial doors and narrow-stile openings.

• Supports additional external magnetic reed switches.

• Multiple-door monitoring is possible with properly connected external contacts.

• Magnetic alignment procedure helps ensure accurate installation.

Programmable Entry and Exit Delay

• Optional 15-second entry alarm delay.

• Optional 15-second exit arming delay.

• Allows different operating configurations based on facility requirements.

• Helps accommodate authorized access and exit procedures.

Important: These are alarm timing functions. The PG30MB does not physically lock the door or delay emergency egress.

Battery-Powered Operation

• Powered by one standard 9V alkaline battery.

• Battery included with alarm.

• No external wiring required for basic standalone installation.

• Automatic low-battery detection.

• Audible and visual low-battery indicators.

• Optional external DC power connection.

• Compatible with 9–12VDC, 500mA external power.

• Internal battery may remain installed as backup when properly connected to external power.

Tamper-Resistant Security

• Cover tamper monitoring.

• Alarm activation if the housing is removed while armed.

• Detects certain attempts to defeat the alarm using an additional magnet.

• Durable commercial-grade metal housing.

• LED status indicator.

• Helps discourage unauthorized interference with the device.

Remote Monitoring and System Integration

• Integrated Form-C relay output.

• Supports connection to compatible external alarm or monitoring equipment.

• Provides terminals for external reed switches.

• Can be connected to compatible security control panels.

• Optional external power supply connection.

• Compatible with PG30KPD remote keypad for operation from the opposite side of the door.

Door Annunciator Function

• Selectable annunciator sounds when the door opens while disarmed.

• Two programmable annunciator volume settings.

• Can provide an audible indication of door activity during normal operations.

• Useful for delivery entrances and service corridors.

Technical Specifications

Specification	Details
Manufacturer	Alarm Lock
Parent Company	NAPCO Security Technologies
Model Number	PG30MB
Product Series	PG30 Pilfergard
Product Type	Keypad-Controlled Door Alarm
Finish	Metallic Bronze
Mounting	Surface Mount
Housing Height	9"
Housing Width	2-1/2"
Housing Depth	2-3/8"
Operating Method	Digital Keypad
Programmable Codes	Master, Management, Passage
Code Length	3–5 Digits
Security Levels	3
Alarm Siren	Piezo Electronic
Advertised Alarm Class	95 dB
Manual Sound Specification	110 dB at 10 Feet
Siren Patterns	Sweep, Steady, Pulsing
Alarm Duration	Continuous / 2-Minute Shutdown
Entry Alarm Delay	Optional 15 Seconds
Exit Arming Delay	Optional 15 Seconds
Door Monitoring	Magnetic Actuator
Power Source	9V Alkaline Battery
Battery Included	Yes
External Power	9–12VDC, 500mA
Relay Output	Form-C
Low-Battery Warning	Yes
Tamper Protection	Yes
External Door Contacts	Supported
Optional Remote Keypad	PG30KPD
Key Cylinder Required	No
Integrated Strobe	No

How the Alarm Lock PG30MB Works

1. System Arming

Authorized personnel enter the programmed Master Code to arm the alarm. The device begins monitoring the protected opening using its magnetic door contact.

2. Continuous Door Monitoring

When the door is closed and the magnetic actuator is properly aligned, the system monitors the opening for unauthorized activity.

3. Unauthorized Door Opening

If the door is opened while armed, the PG30MB activates the selected alarm sequence. An optional entry alarm delay may apply if enabled.

4. Audible Security Notification

The electronic siren sounds using the programmed sweep, steady, or pulsing pattern.

The Form-C relay can simultaneously signal compatible external monitoring equipment.

5. Authorized Passage

An authorized Passage Code allows permitted use of the door according to the selected security level.

Depending on programming, the alarm can automatically restore monitoring when the door closes.

6. Alarm Reset

Authorized personnel can silence or reset the alarm using a programmed Master or Management Code.

Battery Life and Power Requirements

The Alarm Lock PG30MB uses a standard 9V alkaline battery for standalone operation.

The manufacturer provides estimated battery life based on the number of alarm activations and the selected alarm shutdown settings.

Examples with the two-minute shutdown setting include:

Alarm Activations Per Year	Estimated Battery Life
1	17.6 Months
3	17.1 Months
5	16.6 Months
7	16.1 Months
10	15.4 Months

The manufacturer also specifies approximately three hours of continuous alarm operation under its stated test conditions.

Actual battery performance will vary based on usage, battery quality, and operating conditions.

For installations requiring continuous power, the optional Alarm Lock PP100 Power Supply or another compatible 9–12VDC, 500mA supply may be used.

Typical Commercial Applications

Hospitals and Healthcare Facilities

• Emergency exit monitoring

• Stairwell entrances

• Restricted service doors

• Staff-only corridors

Assisted Living and Nursing Homes

• Monitored exit doors

• Secondary entrances

• Stairwell access points

• Facility service entrances

Schools and Universities

• Emergency exit doors

• Gymnasium entrances

• Maintenance access doors

• Secondary hallway exits

Retail Stores and Shopping Centers

• Rear stockroom exits

• Employee-only entrances

• Emergency exits

• Delivery and receiving doors

Warehouses and Distribution Centers

• Shipping and receiving entrances

• Emergency exit doors

• Restricted inventory areas

• Warehouse service doors

Restaurants and Entertainment Facilities

• Kitchen service exits

• Rear delivery doors

• Theater emergency exits

• Employee-only doors

Commercial and Government Buildings

• Controlled service entrances

• Security-monitored stairwells

• Restricted access corridors

• Emergency exit monitoring

Included Components

The standard PG30MB door alarm assembly includes:

• Alarm Lock PG30MB alarm unit with metallic bronze housing

• Integrated digital keypad

• Electronic siren and control electronics

• Magnetic door actuator assembly

• Mounting baseplate

• 9V alkaline battery

• Installation mounting hardware

• Manufacturer installation instructions

Additional accessories, remote keypads, and external power supplies are sold separately.

Optional Accessories

Alarm Lock PG30KPD – Remote Digital Keypad

Allows authorized keypad operation from the opposite side of the door.

Alarm Lock PP100 – External Power Supply

Provides an optional continuous power source for compatible PG30 installations.

External Magnetic Reed Switches

Allow monitoring of additional doors or remote door contacts.

Alarm Lock Model 271 Flexible Door Cord

May be used where optional external wiring requires a flexible connection between the door and frame.

Installation Information

The Alarm Lock PG30MB is designed for surface mounting on a commercial door or door frame.

For basic installations, the alarm is mounted on the door and the magnetic actuator is positioned on the adjacent frame.

If external wiring is required, the alarm may be mounted on the frame with the magnet installed on the door.

Installation includes:

1. Selecting the proper alarm mounting location.

2. Attaching the mounting baseplate.

3. Installing the magnetic actuator.

4. Aligning the actuator with the alarm sensor.

5. Installing the supplied 9V battery.

6. Configuring alarm delay and annunciator settings.

7. Programming Master, Management, and Passage codes.

8. Testing alarm activation and reset functions.

For remote keypad applications, follow the installation requirements for the optional PG30KPD accessory.

Important: The PG30MB is an audible door monitoring device, not a locking or delayed-egress device. It must not interfere with required emergency egress. Install according to manufacturer instructions and applicable building and fire codes.

Why Choose the Alarm Lock PG30MB?

The Alarm Lock PG30MB Pilfergard Keypad-Controlled Door Alarm provides a versatile and dependable solution for commercial door monitoring.

Its integrated keypad eliminates the need for mechanical key control, while three programmable security levels allow facilities to customize alarm operation for restricted exits, unattended doors, and delivery entrances.

Combined with its powerful siren, magnetic door monitoring, tamper protection, battery-powered operation, and metallic bronze finish, the PG30MB offers excellent functionality for commercial security applications.
