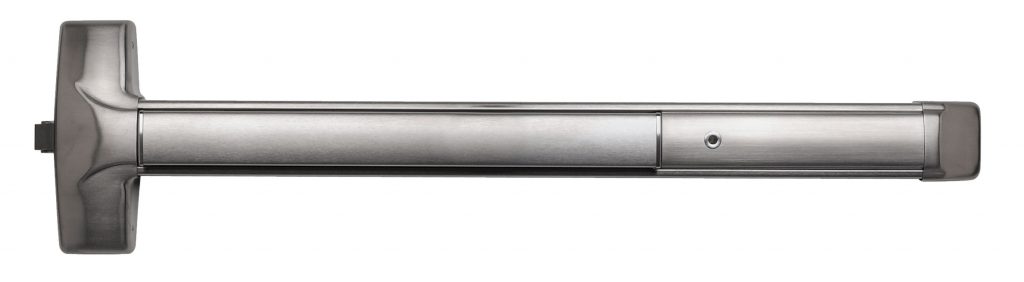

Equip exterior and weather-exposed commercial openings with the Detex 10-EX-W-HD-630-99-36 Advantex Weatherized Rim Exit Device.

Built on Detex's super-heavy-duty 10xW Series, this exit device combines rugged Grade 1 panic hardware with an integrated EX W Weatherized Request-to-Exit switch for monitoring pushpad operation in outdoor, damp, or harsh environments.

This configuration includes HD Hex Dogging, a 99 Surface Strike, a 36" device length, and a durable 630 / US32D Brushed Stainless Steel finish.

Key Features

• Genuine Detex Advantex 10xW Series

• Super-heavy-duty weatherized rim exit device

• EX W – Weatherized Request-to-Exit switch

• Pushpad monitoring for access-control and security systems

• SPDT / Form C signaling contacts

• Normally Open and Normally Closed outputs

• HD – Hex Key Dogging

• 36" device length

• 99 Surface Strike

• 630 / US32D Brushed Stainless Steel

• Stainless-steel deadlocking Pullman-type latchbolt

• Non-handed design

• Field sizeable

• Stainless-steel fasteners

• Components resistant to temperature, dust, driving rain, and salt fog

• Tested beyond 1,000,000 cycles

• ANSI/BHMA A156.3 Grade 1

• UL Listed panic hardware

• Designed for high-use and high-abuse commercial applications

EX W – Weatherized Request-to-Exit

The EX W option provides a weatherized switch that monitors when the panic-device pushpad is depressed.

The switch can send a low-current signal to compatible:

• Access-control panels

• Security systems

• Door-monitoring systems

• Remote horns

• Strobes

• Building-management systems

• Other compatible control equipment

Detex uses a standard SPDT / Form C switch, providing both Normally Open and Normally Closed contacts.

EX W Wiring Contacts

Yellow: Normally Open
Brown: Common
Gray: Normally Closed

Important: EX W vs. EXV W

The EX W is intended for low-current signaling.

If the exit-device switch must directly interrupt or shunt higher-current power, such as certain electromagnetic-lock applications, Detex specifies the separate EXV W high-current weatherized switch.

Weatherized 10xW Construction

The Detex 10xW platform is specifically designed for exterior doors and gates exposed directly to weather.

The device uses components designed to resist:

• Driving rain

• Salt fog

• Dust

• Temperature extremes

• Moisture

• Corrosive outdoor conditions

Detex lists the 10xW platform to weather-related testing including UL1034 temperature and dust requirements and MIL-STD testing for driving rain and salt fog.

HD – Hex Dogging

This configuration includes HD Hex Key Dogging.

Hex dogging allows authorized personnel to hold the pushpad in the retracted position during periods when free push/pull operation is desired.

Important Fire-Rating Note

Because this device includes mechanical dogging, this specific HD configuration should not be used where fire-rated positive-latching exit hardware is required.

Fire-rated Detex exit-device configurations use Less Dogging / No Dogging.

36" Device

This configuration is designed for:

36" / 3' Door Width

Detex identifies 36" as the standard 10xW device width, and the device is field sizeable for compatible applications.

99 Surface Strike

The device includes the Detex:

99 Surface Strike

The 99 strike is the standard strike configuration for compatible 10xW rim applications.

630 Brushed Stainless Steel Finish

BHMA Finish: 630
US Finish: US32D
Description: Brushed / Satin Stainless Steel

The stainless-steel finish is well suited for exterior, institutional, industrial, and high-traffic commercial openings.

Grade 1 Heavy-Duty Construction

The Advantex 10xW is designed for demanding commercial openings.

Detex lists the platform as:

• ANSI/BHMA A156.3 Grade 1

• Tested beyond 1,000,000 cycles

• Stainless-steel deadlocking Pullman latchbolt

• Stainless-steel 316 fasteners

• Non-handed

• Field sizeable

• Heavy-duty angled end cap

• Patented mounting plate and strike-locator system

Compatible Door Types

Detex lists the 10xW for compatible:

• Hollow metal doors

• Wood doors

• Aluminum doors

• Fiberglass doors

• Commercial gates

Standard door thickness compatibility is approximately 1-3/4" through 2-1/4", with other thicknesses requiring factory verification.

Ideal Applications

• Exterior commercial doors

• Security gates

• Schools and universities

• Government facilities

• Warehouses

• Distribution centers

• Industrial facilities

• Retail exits

• Stadiums and arenas

• Campus perimeter openings

• High-traffic exterior doors

• Weather-exposed controlled openings

Product Specifications

Brand: Detex
Series: Advantex 10xW
Model / Configuration: 10-EX-W-HD-630-99-36
Product Type: Weatherized Rim Exit Device
Electrical Function: EX W – Weatherized Request-to-Exit
Switch Type: SPDT / Form C
Dogging: HD – Hex Key Dogging
Device Length: 36"
Door Width: 36" / 3'
Strike: 99 Surface Strike
Finish: 630 / US32D
Finish Description: Brushed Stainless Steel
Latch: Stainless-Steel Deadlocking Pullman Type
Handing: Non-Handed
Sizing: Field Sizeable
Grade: ANSI/BHMA A156.3 Grade 1
Application: Exterior / Weather-Exposed Commercial Doors & Gates

What's Included

• Detex 10xW weatherized rim exit device

• EX W weatherized Request-to-Exit switch

• HD hex dogging

• 99 surface strike

• 36" device

• 630 brushed stainless steel finish

Not Included Unless Specifically Stated

• Exterior trim

• Mortise cylinder

• Access-control panel

• Power supply

• Electric latch retraction

• Magnetic lock

• Power-transfer conduit

• Door or frame

Important Ordering Information

Before ordering, verify:

• 36" door width

• Rim exit-device application

• EX W low-current REX signaling requirement

• HD hex dogging requirement

• 99 surface strike

• 630 / US32D finish

• Required exterior trim

• Door and frame construction

This configuration provides pushpad monitoring only. It does not include electric latch retraction.
