Grade 1 Commercial Maglock | 1,500+ lb Holding Force | 12/24VDC | Fail-Safe | Surface Mount

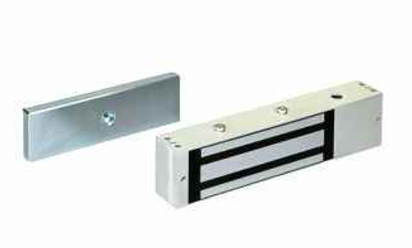

The Detex ML-1548 Electromagnetic Lock is a heavy-duty commercial maglock engineered to provide powerful and dependable access-control security for commercial, industrial, and institutional door openings.

Part of the Detex ML-1500 Series, the ML-1548 provides more than 1,500 lbs. of holding force, delivering exceptional resistance against forced entry while maintaining positive fail-safe operation for life-safety applications.

With no moving mechanical parts to bind or wear, the ML-1548 provides quiet, reliable, low-maintenance operation. When electrical power is removed by an access-control system, fire/life-safety system, or emergency release device, the magnetic lock releases immediately.

Key Features

• 1,500+ lb holding force

• ANSI/BHMA Grade 1 commercial magnetic lock

• Surface-mounted design

• 12/24VDC voltage-sensing input

• Fail-safe operation

• Releases immediately when power is removed

• Non-handed design

• All-steel magnetic core construction

• No moving mechanical parts

• Built-in spike / surge protection

• No residual magnetism

• Interlocking slide mounting plate

• Convenient terminal-block wiring

• Removable wire access cover

• Easy installation with mounting template

• Commercial-grade plated and anodized construction

• Designed for access-control and life-safety systems

1,500+ lb Holding Force

The ML-1548 provides more than 1,500 pounds of electromagnetic holding force, making it suitable for demanding commercial openings where resistance to forced entry is required.

When energized, the electromagnet bonds securely to the armature plate mounted on the door, creating a powerful locking force without conventional moving locking components.

Fail-Safe Operation

The Detex ML-1548 operates as a fail-safe magnetic lock.

Power Applied

The electromagnet energizes and secures the door.

Power Removed

The magnetic field releases immediately, allowing the door to open.

This operating principle makes the ML-1548 suitable for properly designed access-control and life-safety systems where the lock must release upon:

• Fire alarm activation

• Emergency release

• Loss of electrical power

• Access-control authorization

• Request-to-exit activation

All installations must comply with applicable building, fire, electrical, accessibility, and life-safety codes.

Dual-Voltage Operation

The ML-1548 features 12/24VDC voltage-sensing input, providing flexibility when integrating the lock with commercial access-control power supplies and door-control systems.

This makes the lock suitable for a wide range of new installations and replacement projects.

Easy Surface-Mount Installation

Detex designed the ML-1500 Series for simplified installation.

Installation features include:

• Interlocking slide mounting plate

• Peel-and-stick installation template

• Convenient wiring terminals

• Wire access cover

• Non-handed configuration

• Adjustable mounting provisions

The lock can be installed on either left- or right-hand openings when configured with the appropriate mounting hardware.

Product Specifications

Manufacturer: Detex
Model: ML-1548
Series: ML-1500 Series
Product Type: Electromagnetic Lock / Maglock
Mounting: Surface Mount
Holding Force: 1,500+ lbs.
Voltage: 12/24VDC
Operation: Fail-Safe
Handing: Non-Handed
Magnetic Core: All Steel
Surge Protection: Yes
Residual Magnetism: No
Grade: Grade 1
Application: Commercial / Industrial / Institutional
Standard Finish Configuration: 628 Clear Anodized Aluminum
Alternate Finish: 711 Black Anodized Aluminum

Common Applications

Ideal for:

• Commercial entrance doors

• Access-controlled doors

• Office buildings

• Hospitals and healthcare facilities

• Schools and universities

• Government facilities

• Warehouses

• Manufacturing facilities

• Retail buildings

• Institutional facilities

• Secured interior openings

• Controlled egress systems

• Security doors

Access Control Applications

The ML-1548 can be incorporated into properly designed systems using components such as:

• Card readers

• Keypads

• Request-to-exit sensors

• Push-to-exit buttons

• Keyswitches

• Access-control panels

• Fire alarm interfaces

• Door position switches

• Power supplies

• Delayed-egress controllers

Required control devices and accessories depend on the specific installation and code requirements.

Available Related Configuration

The Detex ML-1548RT provides the same heavy-duty magnetic locking concept with an integrated relock timer option.

For exterior or weather-exposed applications, verify whether a Detex weatherized magnetic lock configuration is required instead of the standard ML-1548.

Important Life-Safety Note

Electromagnetic locks must be installed as part of a properly designed and code-compliant door system.

Depending on the opening and jurisdiction, additional components may be required, including:

• Fire alarm release

• Request-to-exit sensor

• Emergency release button

• Door position monitoring

• Access-control equipment

• Approved power supply

Always verify requirements with the applicable authority having jurisdiction before installation.

What's Included

(1) Detex ML-1548 Electromagnetic Lock with Armature Assembly and Standard Mounting Components

Power supply, access-control equipment, request-to-exit devices, brackets, switches, and other accessories are sold separately unless specifically stated otherwise.
