36" | 628 Satin Aluminum | 99 Surface Strike | Less Dogging

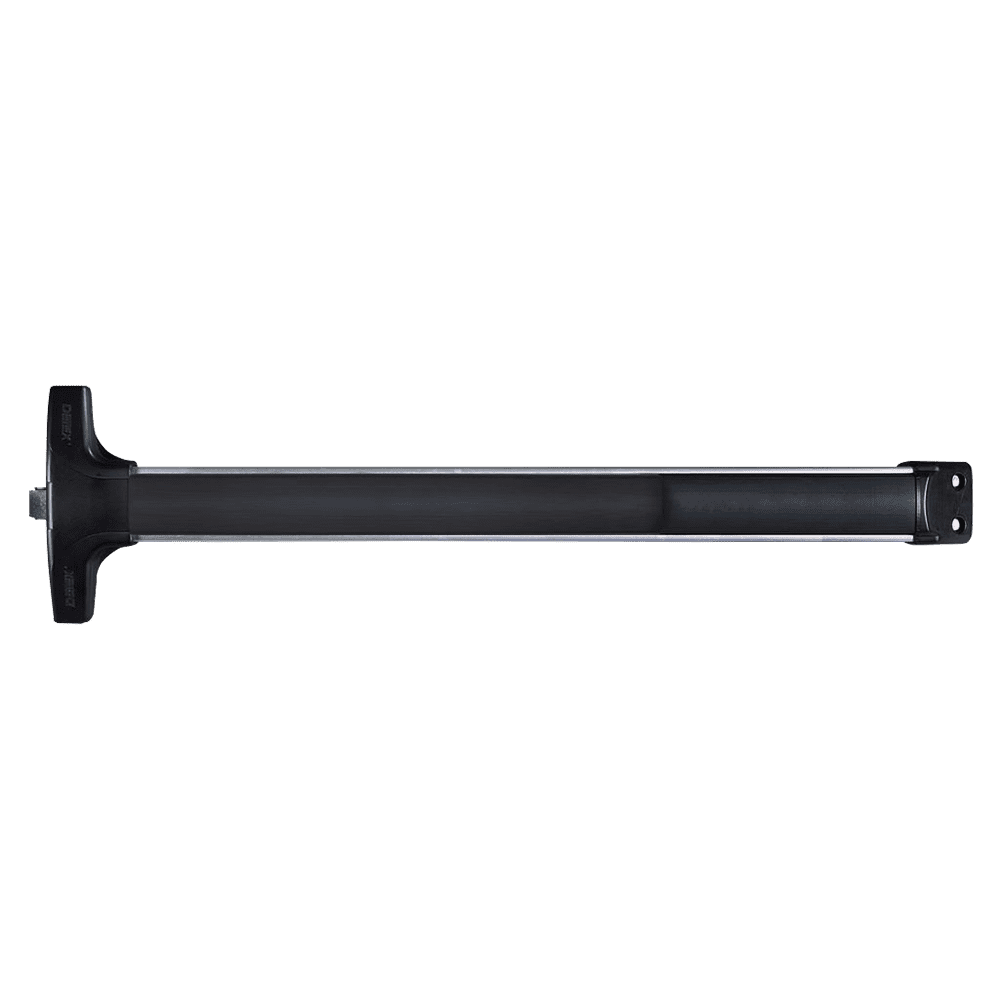

Equip commercial exit doors with dependable panic hardware using the Detex V40-LD-628-99-36 Value Series Rim Exit Device.

Designed for durability, security, and straightforward installation, the V40 features a heavy-duty aluminum rail, stainless steel deadlocking latchbolt, and Detex's mounting plate and strike locator system.

This configuration is supplied Less Dogging (LD) with a 99 Surface Strike, 36" device, and 628 Satin Aluminum / Clear Anodized finish.

Key Features

• Genuine Detex Value Series V40

• Heavy-duty rim exit device

• 36" device for typical 3' door applications

• LD – Less Dogging

• 99 Surface Strike

• 628 Satin Aluminum / Clear Anodized finish

• Stainless steel 3/4" deadlocking Pullman-type latchbolt

• Heavy-duty ribbed aluminum rail extrusion

• Non-handed

• Field sizeable

• Modular design accepts a variety of compatible outside trims

• Angled end cap helps deflect impact away from the device

• ANSI/BHMA Grade 1 panic hardware

Less Dogging Configuration

The LD – Less Dogging option is supplied without the standard mechanical dogging function.

This configuration is ideal for applications where the pushpad should remain active and the latch should not be mechanically dogged in the retracted position.

Common Applications

• Commercial Entry Doors

• Emergency Exit Doors

• Retail Facilities

• Schools

• Office Buildings

• Warehouses

• Government Facilities

• Healthcare Facilities

• Institutional Buildings

• High-Traffic Commercial Openings

Product Specifications

Brand: Detex
Series: Value Series V40
Model: V40-LD-628-99-36
Product Type: Rim Exit Device
Device Length: 36"
Dogging: LD – Less Dogging
Strike: 99 Surface Strike
Latchbolt: 3/4" Deadlocking Pullman-Type
Handing: Non-Handed
Finish: 628 Satin Aluminum / Clear Anodized
Application: Commercial Panic Exit Hardware

Important: Verify door width, stile width, strike preparation, trim requirements, and mounting conditions before ordering.
