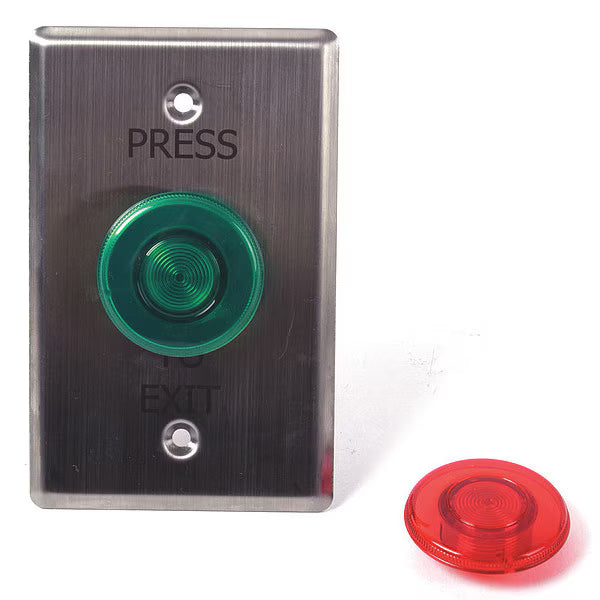

Provide a highly visible and dependable door-release control with the Locknetics IPB-300 LED Illuminated Mushroom Push Button.

Designed for commercial access-control applications, the IPB-300 combines a large round mushroom-style actuator with integrated LED illumination and an SPDT dry-contact switch.

The button operates on 12 or 24VDC and includes both red and green button lenses, providing flexibility for request-to-exit, door-release, electromagnetic-lock, electric-strike, and other access-control applications.

Key Features

• Genuine Locknetics / Allegion

• Model: IPB-300

• LED illuminated mushroom-style push button

• Large round actuator for easy operation

• Red and green lenses included

• 12/24VDC LED operation

• SPDT switch

• Normally Open and Normally Closed contact options

• Momentary push-button operation

• Stainless-steel mounting plate

• Standard commercial mounting configuration

• Ideal for Request-to-Exit applications

• Suitable for electric lock release

• Compatible with many access-control systems

• Commercial-duty construction

LED Illuminated Mushroom Button

The large mushroom-style actuator provides an easy-to-see and easy-to-operate control point.

Integrated LED illumination makes the button particularly useful in:

• Commercial entrances

• Security doors

• Reception areas

• Employee exits

• Controlled-access openings

• Low-light locations

Both red and green lenses are supplied, allowing the installer to select the color that best fits the application.

Momentary SPDT Operation

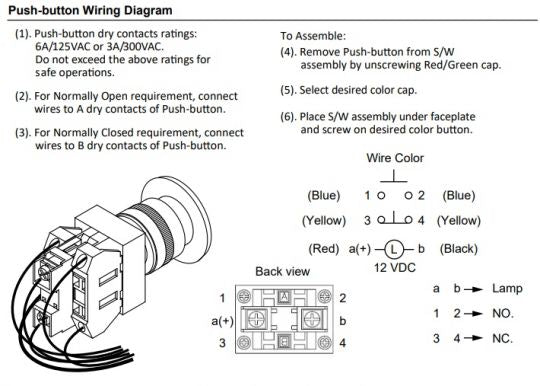

The IPB-300 uses an SPDT – Single Pole, Double Throw switch.

The available contacts allow connection as:

• Normally Open

• Normally Closed

• Common

Pressing the button temporarily changes the contact state. Releasing the button returns the switch to its normal position.

This makes the IPB-300 ideal for momentary door-release and Request-to-Exit circuits.

12/24VDC LED

The illuminated button operates on:

12VDC or 24VDC

This allows the IPB-300 to integrate with many common commercial access-control power systems without requiring separate LED models for each voltage.

Common Applications

The Locknetics IPB-300 is ideal for:

• Request-to-Exit

• Magnetic lock release

• Electric strike release

• Electrified lock release

• Automatic-door control

• Remote door release

• Reception desk door control

• Access-control systems

• Security control stations

• Commercial entry systems

Locknetics specifically identifies the IPB Series as suitable for Request-to-Exit applications used to release electromagnetic locks.

Mounting

The standard IPB-300 is designed for a commercial wall-mounted control installation.

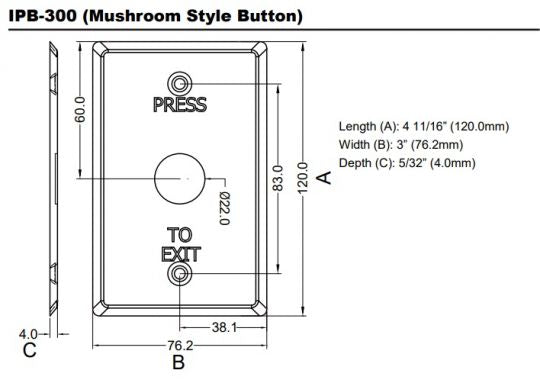

Published installation dimensions for the standard assembly are approximately:

Height: 4-11/16"
Width: 3"
Plate Depth: 5/32"

The narrow-stile version is sold separately as the IPB-300N.

Product Specifications

Brand: Locknetics
Manufacturer: Allegion
Model: IPB-300
Product Type: Illuminated Push Button
Button Style: Round Mushroom
Illumination: LED
Lens Colors Included: Red & Green
LED Voltage: 12/24VDC
Switch Type: SPDT
Switch Action: Momentary
Contacts: Normally Open / Normally Closed / Common
Mounting Style: Standard Plate
Application: Commercial Access Control / Request-to-Exit

What's Included

• Locknetics IPB-300 push-button assembly

• LED illuminated mushroom button

• Red lens

• Green lens

• SPDT switch

• Stainless-steel mounting plate

Important Ordering Information

This listing is for the standard IPB-300.

For narrow-stile storefront applications, Locknetics offers the separate IPB-300N Narrow Stile version.

Before ordering, verify:

• 12/24VDC power availability

• Required SPDT switching

• Standard versus narrow-stile mounting

• Normally Open or Normally Closed wiring requirements

• Connected lock/controller electrical requirements
