Commercial Video Intercom | 170° Wide-Angle Camera | Hands-Free Communication | IP54 Weather Resistant | IK08 Impact Resistant

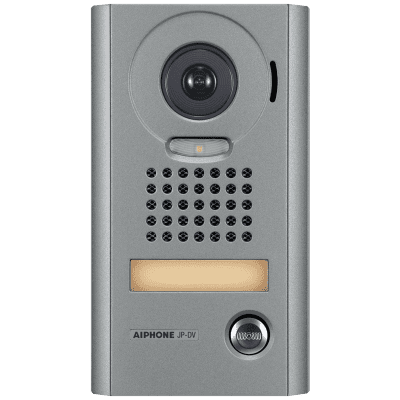

The Aiphone JP-DV Video Door Station is a professional-grade, surface-mounted video intercom designed for secure entrance communication and visitor identification in commercial buildings, offices, schools, healthcare facilities, and residential properties.

Featuring a built-in 1/2.9-inch CMOS color camera, single call button, integrated microphone and speaker, and heavy-duty zinc die-cast faceplate, the JP-DV provides dependable video monitoring and two-way audio communication with compatible Aiphone JP Series answering stations.

Equipped with a 170° horizontal and 100° vertical wide-angle camera, the JP-DV provides an expanded view of building entrances. When connected to a compatible JP Series master station, users can electronically pan, tilt, and zoom the video image to focus on visitors and specific areas around the entrance.

Designed for demanding applications, the JP-DV features IP54 weather resistance and IK08 impact resistance, making it an excellent choice for high-traffic commercial entrances requiring durable, vandal-resistant intercom equipment.

Its automatic white LED illumination, backlit nameplate, tamper-resistant mounting hardware, and simple two-wire connection provide a reliable solution for new JP Series installations or replacement of existing video door stations.

Key Features

• 170° Wide-Angle Color Camera: Provides approximately 170° horizontal and 100° vertical viewing coverage for improved visitor identification.

• Digital PanTilt & Zoom: Allows users to electronically adjust the video image through a compatible JP Series master station.

• 1/2.9" CMOS Camera: Integrated color camera provides dependable video communication.

• Single Call Button: Allows visitors to initiate communication with connected answering stations.

• Hands-Free Two-Way Audio: Built-in microphone and speaker provide convenient open-voice communication.

• Heavy-Duty Zinc Die-Cast Faceplate: Provides commercial-grade durability and a professional silver finish.

• IK08 Impact Resistance: Vandal-resistant construction helps protect against physical damage and tampering.

• IP54 Weather Protection: Provides resistance to dust and water exposure for properly installed outdoor applications.

• Automatic White LED Illumination: Activates in low-light conditions to improve camera visibility.

• Backlit Nameplate: Illuminated directory card makes entrance identification easier.

• Tamper-Resistant Mounting Hardware: Helps prevent unauthorized removal.

• Surface-Mount Installation: Installs directly onto a suitable wall surface.

• Single-Gang Mounting Option: Supports installation over a standard single-gang electrical box using the optional MKW-P mounting plate.

• Simple Two-Wire Connection: Uses compatible two-conductor intercom wiring.

• Master Station Powered: Receives operating power directly from the connected JP Series answering station.

• Remote Door Release Support: Works with compatible master stations and connected electric locking hardware.

• Expandable JP Series Compatibility: Supports compatible systems with multiple entrance and answering stations.

• TAA Compliant: Meets applicable Trade Agreements Act requirements.

• Replacement Door Station: Suitable for maintaining existing Aiphone JP Series intercom systems.

Product Specifications

• Manufacturer: Aiphone

• Model / SKU: JP-DV

• Product Type: Video Door Intercom Station

• Series: JP Series

• Finish: Solid Silver

• Faceplate Material: Zinc Die-Cast

• Mounting Type: Surface Mount

• Call Buttons: 1

• Communication: Open-Voice, Hands-Free Two-Way Audio

• Camera: 1/2.9" Color CMOS

• Horizontal Viewing Angle: Approximately 170°

• Vertical Viewing Angle: Approximately 100°

• Camera Functions: Digital PanTilt & Zoom through Compatible Master Station

• Minimum Camera Illumination: 5 Lux

• Low-Light Illumination: Automatic White LED

• Nameplate: LED Backlit Directory Card

• Power Source: Supplied by Compatible JP Series Answering Station

• Wiring: 2-Conductor, Low-Capacitance, Non-Shielded

• Recommended Cable: Aiphone #871802

• Maximum Wiring Distance, 18 AWG: 330 Feet (100 Meters)

• Maximum Wiring Distance, 22 AWG: 165 Feet

• Extended Wiring Distance: Up to 980 Feet with Compatible JPW-BA Long-Distance Adaptor and Specified Cable

• Ingress Protection: IP54

• Impact Protection: IK08

• Operating Temperature: 14°F to 140°F (-10°C to 60°C)

• Dimensions: 6-13/16" H x 3-7/8" W x 1-1/16" D

• Dimensions (Metric): 173mm H x 98mm W x 27mm D

• Weight: Approximately 1.43 lbs. (650g)

• Electrical Box: Single-Gang with Optional MKW-P Plate

• Installation Environment: Indoor / Outdoor

• System Compatibility: Aiphone JP Series Video Intercom Systems

Recommended Applications

• Commercial Office Buildings

• Schools and Universities

• Hospitals and Healthcare Facilities

• Assisted Living Facilities

• Government and Municipal Buildings

• Industrial and Manufacturing Facilities

• Warehouse and Distribution Centers

• Residential Properties

• Apartment and Condominium Entrances

• Professional Office Suites

• Secured Employee Entrances

• Corporate Office Campuses

• Reception and Security Entrances

• Property Management Facilities

• Commercial Access Control Systems

• Visitor Management and Entrance Security

Video Monitoring & Communication Functions

1. Wide-Angle Visitor Identification

The JP-DV features a built-in color camera with approximately 170° horizontal viewing coverage.

This expanded field of view helps users identify visitors and monitor activity around commercial and residential entrances.

2. Digital PanTilt & Zoom

When connected to a compatible Aiphone JP Series master station, users can digitally pan, tilt, and zoom the camera image.

This allows operators to focus on visitor faces, identification badges, or other areas of interest.

Note: PanTilt and Zoom are digital image functions. The camera does not physically rotate or move.

3. Hands-Free Two-Way Communication

Pressing the call button initiates a call to the connected JP Series answering station.

Once answered, the integrated microphone and speaker provide convenient two-way audio communication without requiring a handset at the entrance.

4. Automatic Low-Light Illumination

The built-in white LED automatically activates when additional illumination is required, helping improve visitor visibility during low-light conditions.

5. Remote Door Release

When connected to a compatible JP Series master station and properly installed electric locking hardware, authorized users can release the entrance door directly from the answering station.

6. Visitor Picture Recording

When paired with a compatible Aiphone JP-4MED master station, the system supports visitor picture memory for reviewing entrance activity.

Recording and storage capabilities are provided by the compatible answering station, not the JP-DV door station itself.

7. Multiple Entrance Expansion

The Aiphone JP Series supports systems with up to four compatible door stations and eight indoor answering stations, allowing the JP-DV to be incorporated into larger intercom installations.

Installation & Compatibility

The Aiphone JP-DV is designed for integration with compatible Aiphone JP Series Video Intercom Systems.

The door station connects to an answering station using specified two-conductor intercom wiring and receives its operating power through the connected JP Series equipment.

Its compact surface-mount construction allows installation directly onto a suitable wall. For installation over a single-gang electrical box, the optional Aiphone MKW-P mounting plate is required.

Compatible Aiphone Equipment

• JP-4MED: 7" Color Touchscreen Video Master Station

• JP-4HD: JP Series Video Expansion Station

• JP-8Z: JP Series Video Distribution Adaptor

• JPW-BA: Long-Distance / CCTV Adaptor

• MKW-P: Mounting Plate for Single-Gang Box Installation

• JPS-4AEDV: Complete Video Intercom Kit Featuring the JP-DV

• PS-2420UL: 24V DC Power Supply for Compatible JP Series Systems

Mounting Options

• Direct Surface Mount: Mounts directly onto a properly prepared wall.

• Single-Gang Box Mount: Uses the optional Aiphone MKW-P mounting plate.

• Wiring Connection: Two-conductor intercom cable connected to the appropriate JP Series terminals.

Important Installation Information

• This listing is for the JP-DV video door station only, not a complete intercom kit.

• Requires a compatible Aiphone JP Series master or answering station.

• The JP-DV does not include an independent power supply.

• It is a traditional hardwired video intercom station, not a standalone IP, Ethernet, Wi-Fi, or PoE device.

• Digital PanTilt and Zoom functions are controlled through compatible JP Series answering stations.

• Remote door release requires compatible electric locking hardware and an appropriate lock power supply.

• Mounting over a single-gang electrical box requires the optional MKW-P plate.

• Outdoor installations must follow the manufacturer's weather-protection requirements.

• Do not obstruct drainage openings when sealing the station.

• Master stations, power supplies, electric locking hardware, optional mounting plates, and other system accessories are sold separately unless otherwise specified.

Why Choose the Aiphone JP-DV?

The Aiphone JP-DV combines dependable visitor communication, vandal-resistant construction, and wide-angle video monitoring in one durable commercial entrance station.

Its 170° wide-angle color camera, digital PanTilt and Zoom, IP54 weather resistance, IK08 impact protection, backlit nameplate, and automatic LED illumination make it an excellent choice for commercial buildings and secured entrances requiring reliable visitor identification.

With its simple two-wire installation, rugged surface-mount design, and compatibility with Aiphone JP Series video intercom systems, the JP-DV provides a practical solution for new system installations and replacement of existing entrance stations.
